GSE22L-AETLKV (2010)

Toyota Lexus Is250/300

Production Aug 2010 - Apr 2013
Engine 3GRFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0604- )

Click highlighted areas on diagram

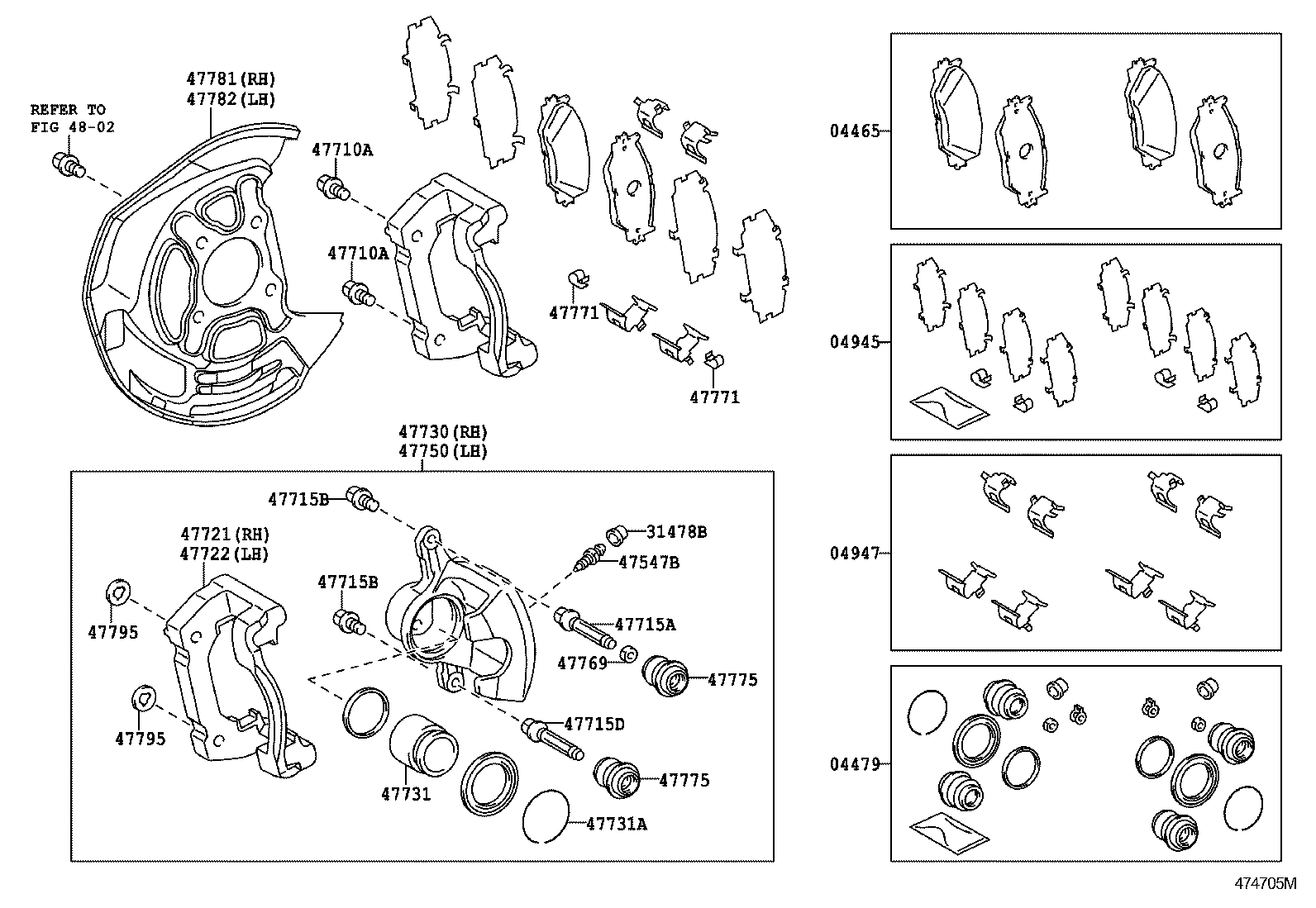

16INCHES DISC BRAKE

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47710A 47715A 47715B 47715B 47715D 47721 47722 47730 47731 47731A 47750 47769 47771 47771 47775 47775 47781 47782 47795 47795 4802
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-30410

GSE22..GCC

MARK TEXTAR T4146

 1
04465-53040

GSE22..GCC

MARK TEXTAR T4146,PHILIPPINE SPEC

 1
04465-30500

GSE22..GCC

MARK TEXTAR T4146

 1
04465-53040

GSE22..GCC

MARK TEXTAR T4146,BRAZIL SPEC

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-22040

GSE22..GCC

 1
04478-30250

GSE22..GCC

BRAZIL SPEC

 1
04478-30250

GSE22..GCC

PHILIPPINE SPEC

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-53050

GSE22..GCC

BRAZIL SPEC

 1
04945-53050

GSE22..GCC

PHILIPPINE SPEC

 1
04945-22152

GSE22..GCC

 1
04945-30350

GSE22..GCC

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-22070

GSE22..GCC

 1
04947-53020

GSE22..GCC

PHILIPPINE SPEC

 1
04947-53020

GSE22..GCC

BRAZIL SPEC

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GSE22..GCC

PHILIPPINE SPEC

 2
31478-30010

GSE22..GCC

BRAZIL SPEC

 2
31478-14010

GSE22..GCC

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-50010

GSE22..GCC

 2
47547-27030

GSE22..GCC

BRAZIL SPEC

 2
47547-27030

GSE22..GCC

PHILIPPINE SPEC

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
91552-K1240

GSE22

*12-1.25PX40-30

 4
91552-K1240

GSE2#

*12-1.25PX40-30

 4
90119-12415

GSE2#

*12-1.25PX45-30

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
91552-K1240

GSE22

*12-1.25PX40-30

 4
91552-K1240

GSE2#

*12-1.25PX40-30

 4
90119-12415

GSE2#

*12-1.25PX45-30

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

GSE22..GCC

BRAZIL SPEC

 2
47715-22070

GSE22..GCC

PHILIPPINE SPEC

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GSE22..GCC

PHILIPPINE SPEC

 4
90105-08164

GSE22..GCC

BRAZIL SPEC

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GSE22..GCC

PHILIPPINE SPEC

 4
90105-08164

GSE22..GCC

BRAZIL SPEC

 4
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-52190

GSE22..GCC

PHILIPPINE SPEC

 2
47715-52190

GSE22..GCC

BRAZIL SPEC

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-53060

GSE22..GCC

PHILIPPINE SPEC

 1
47721-53060

GSE22..GCC

BRAZIL SPEC

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-53060

GSE22..GCC

PHILIPPINE SPEC

 1
47722-53060

GSE22..GCC

BRAZIL SPEC

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-53060

GSE22..GCC

BRAZIL SPEC

 1
47730-53060

GSE22..GCC

PHILIPPINE SPEC

 1
47730-22460

GSE22..GCC

 1
47731 - PISTON, FRONT DISC BRAKE
47731-50070

GSE22..GCC

 8
47731-53060

GSE22..GCC

PHILIPPINE SPEC

 2
47731-53060

GSE22..GCC

BRAZIL SPEC

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-86005

GSE22..GCC

PHILIPPINE SPEC

 2
90520-86005

GSE22..GCC

BRAZIL SPEC

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-22460

GSE22..GCC

 1
47750-53060

GSE22..GCC

BRAZIL SPEC

 1
47750-53060

GSE22..GCC

PHILIPPINE SPEC

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50010

GSE22..GCC

BRAZIL SPEC

 2
47769-50010

GSE22..GCC

PHILIPPINE SPEC

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33340

GSE22..GCC

BRAZIL SPEC

 4
47771-33340

GSE22..GCC

PHILIPPINE SPEC

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-33340

GSE22..GCC

BRAZIL SPEC

 4
47771-33340

GSE22..GCC

PHILIPPINE SPEC

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GSE22

 4
47775-50010

GSE22..GCC

PHILIPPINE SPEC

 4
47775-50010

GSE22..GCC

BRAZIL SPEC

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GSE22

 4
47775-50010

GSE22..GCC

PHILIPPINE SPEC

 4
47775-50010

GSE22..GCC

BRAZIL SPEC

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-22200

GSE22..GCC

 1
47781-30220

GSE22..GCC

PHILIPPINE SPEC

 1
47781-30220

GSE22..GCC

BRAZIL SPEC

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-22200

GSE22..GCC

 1
47782-30220

GSE22..GCC

BRAZIL SPEC

 1
47782-30220

GSE22..GCC

PHILIPPINE SPEC

 1
47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1
47795-30520

GSE22..GCC

BRAZIL SPEC

 4
47795-30520

GSE22..GCC

PHILIPPINE SPEC

 4
47795 - PLATE, FRONT DISC BRAKE CALIPER, NO.1
47795-30520

GSE22..GCC

BRAZIL SPEC

 4
47795-30520

GSE22..GCC

PHILIPPINE SPEC

 4
Linked diagrams
4802
