GSE22L-AETLKV (2010)
Toyota Lexus Is250/300
(0604-1011)

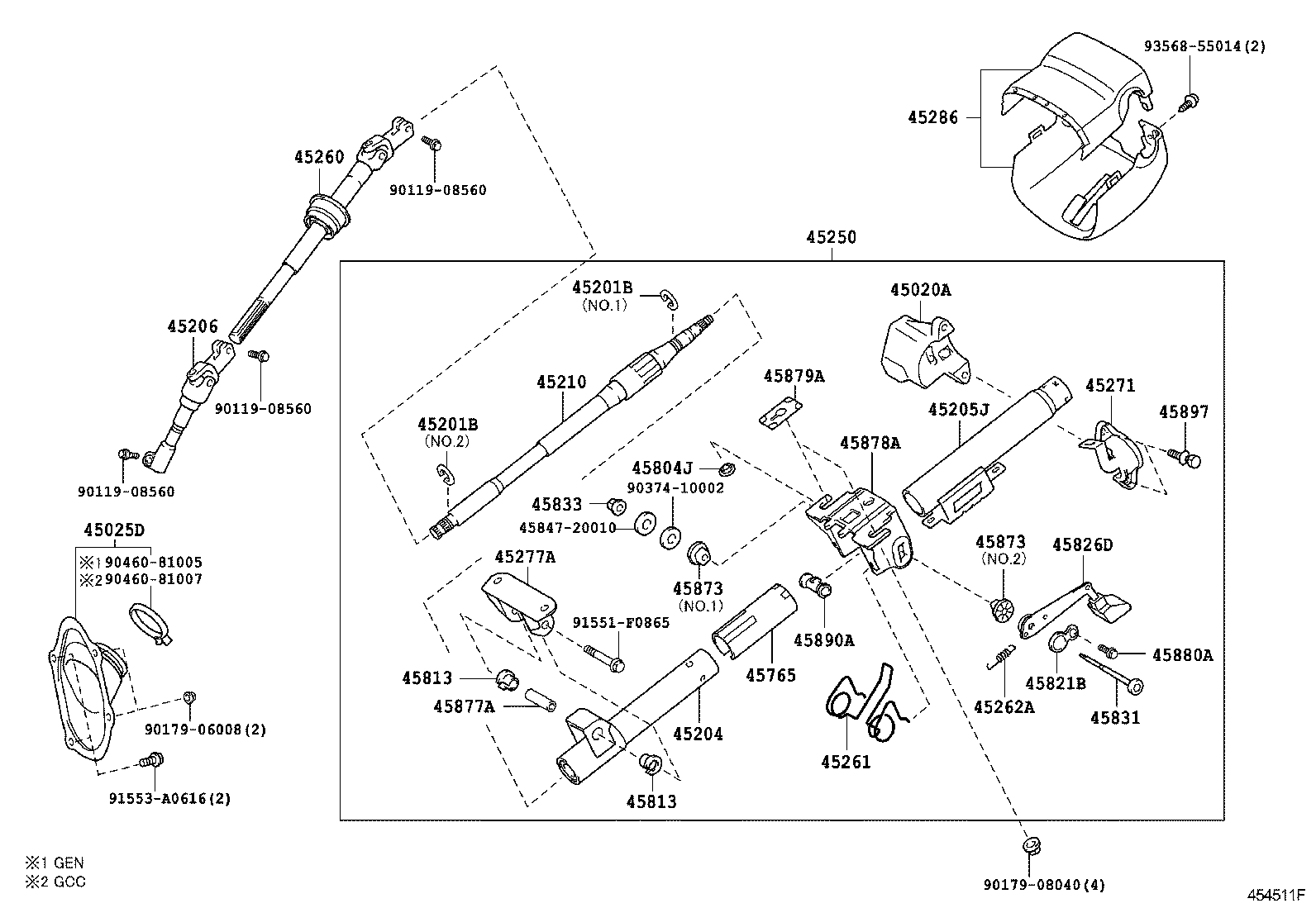

POWER TILT & TELESCOPIC STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-30A60 |
GSE22 LUXURY PACKAGE |
1 | ||
| 45020-52140 |
GSE22 |
1 | ||
| 45020-30A60 |
GSE2#..GCC |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30390 |
GSE2#..GCC |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-30112 |
GSE2#..GCC |
1 | ||
| 45206-30111 |
GSE2#..GCC |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-53061 |
GSE2#..GCC |
1 | ||
| 45250-53030 |
GSE22 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-30201 |
GSE2# |
1 | ||
| 45260-30160 |
GSE22 |
1 | ||
| 45260-30200 |
GSE2# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-53907C0 |
GSE22 LUXURY PACKAGE,BLACK,TRIM0#,1#,2# |
1 | ||
| 45286-53909C0 |
GSE22 BLACK,TRIM0#,1#,2# |
1 | ||
| 45286-53912C0 |
GSE22..GCC BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GSE22 |
2 | ||
| 45897-12020 |
GSE2# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90178-10027 | ||||
| 90179-06008 | ||||
| 90460-81005 | ||||
| 90460-81007 | ||||
| 91553-A0616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0604-1011)
MANUAL TILT & TELESCOPIC STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-30A60 |
GSE22 LUXURY PACKAGE |
1 | ||
| 45020-52140 |
GSE22 |
1 | ||
| 45020-30A60 |
GSE2#..GCC |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30390 |
GSE2#..GCC |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-21023 |
GSE22 T=1.20,NO.1 |
1 | ||
| 90520-17269 |
GSE22 T=1.20,NO.2 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-21023 |
GSE22 T=1.20,NO.1 |
1 | ||
| 90520-17269 |
GSE22 T=1.20,NO.2 |
1 | ||
| 45204 - TUBE ASSY, STEERING COLUMN, LOWER | ||||
| 45204-53010 |
GSE22 |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-22270 |
GSE22 |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-30112 |
GSE2#..GCC |
1 | ||
| 45206-30111 |
GSE2#..GCC |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22290 |
GSE22 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-53061 |
GSE2#..GCC |
1 | ||
| 45250-53030 |
GSE22 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-30201 |
GSE2# |
1 | ||
| 45260-30160 |
GSE22 |
1 | ||
| 45260-30200 |
GSE2# |
1 | ||
| 45261 - SPRING, TILT STEERING JUMP UP | ||||
| 45261-35020 |
GSE22 |
1 | ||
| 45262A - SPRING, TILT LEVER RETURN | ||||
| 45262-35010 |
GSE22 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-22030 |
GSE22 |
1 | ||
| 45277A - SUPPORT, TILT STEERING | ||||
| 45277-53010 |
GSE22 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-53907C0 |
GSE22 LUXURY PACKAGE,BLACK,TRIM0#,1#,2# |
1 | ||
| 45286-53909C0 |
GSE22 BLACK,TRIM0#,1#,2# |
1 | ||
| 45286-53912C0 |
GSE22..GCC BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 45765 - GUIDE, TELESCOPIC STEERING | ||||
| 45765-35010 |
GSE22 |
1 | ||
| 45804J - COLLAR SUB-ASSY, BREAK AWAY | ||||
| 45804-22030 |
GSE22 |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-12020 |
GSE22 OD=24-16 |
2 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-12020 |
GSE22 OD=24-16 |
2 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-35020 |
GSE22 |
1 | ||
| 45826D - LEVER, STEERING TELESCOPIC | ||||
| 45826-22130 |
GSE22 |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-35010 |
GSE22 |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20030 |
GSE22 |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-35010 |
GSE22 NO.2 |
1 | ||
| 45873-20050 |
GSE22 NO.1 |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-35010 |
GSE22 NO.2 |
1 | ||
| 45873-20050 |
GSE22 NO.1 |
1 | ||
| 45877A - SPACER, STEERING COLUMN BRACKET | ||||
| 45877-35030 |
GSE22 |
1 | ||
| 45878A - BRACKET, BREAK AWAY | ||||
| 45878-35160 |
GSE22 |
1 | ||
| 45879A - CAPSULE, BREAK AWAY | ||||
| 45879-22070 |
GSE22 |
2 | ||
| 45880A - BOLT(FOR STEERING TILT LEVER) | ||||
| 45832-12010 |
GSE22 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45823-35020 |
GSE22 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GSE22 |
2 | ||
| 45897-12020 |
GSE2# |
2 | ||
| Common parts | ||||
| 45847-20010 | ||||
| 90119-08560 | ||||
| 90179-06008 | ||||
| 90179-08040 | ||||
| 90374-10002 | ||||
| 90460-81005 | ||||
| 90460-81007 | ||||
| 91551-F0865 | ||||
| 91553-A0616 | ||||
| 93568-55014 | ||||
(1011- )
POWER TILT & TELESCOPIC STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020A - ACTUATOR ASSY, STEERING LOCK | ||||
| 45020-30A60 |
GSE22 LUXURY PACKAGE |
1 | ||
| 45020-52140 |
GSE22 |
1 | ||
| 45020-30A60 |
GSE2#..GCC |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-30390 |
GSE2#..GCC |
1 | ||
| 45206 - YOKE SUB-ASSY, STEERING SLIDING W/SHAFT | ||||
| 45206-30112 |
GSE2#..GCC |
1 | ||
| 45206-30111 |
GSE2#..GCC |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-30201 |
GSE2# |
1 | ||
| 45260-30160 |
GSE22 |
1 | ||
| 45260-30200 |
GSE2# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-53907C0 |
GSE22 LUXURY PACKAGE,BLACK,TRIM0#,1#,2# |
1 | ||
| 45286-53909C0 |
GSE22 BLACK,TRIM0#,1#,2# |
1 | ||
| 45286-53912C0 |
GSE22..GCC BLACK,TRIM0#,1#,2#,4# |
1 | ||
| 45810 - GEAR ASSY, TILT STEERING, W/MOTOR | ||||
| 45810-53020 |
GSE2#..GCC |
1 | ||
| 45892C - BRACKET, RETURN SPRING | ||||
| 45892-30020 |
GSE2#..GCC |
1 | ||
| 45892C - BRACKET, RETURN SPRING | ||||
| 45892-30020 |
GSE2#..GCC |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GSE22 |
2 | ||
| 45897-12020 |
GSE2# |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90178-10027 | ||||
| 90179-06008 | ||||
| 90460-81005 | ||||
| 90460-81007 | ||||
| 91553-A0616 | ||||
| 93381-15010 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
