GSE20L-AETLHV (2010)

Toyota Lexus Is250/300

Production Aug 2010 - Apr 2013
Engine 4GRFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1008- )4GRFSE

Click highlighted areas on diagram

CHINA SPEC

diagram 16361 16361B 16363 16363A 16400 16400B 16400F 16470 16471 16523A 16535 16571C 16571D 16571D 16572D 16572E 16572E 16581B 16712 9009904117 9009904117 9009905164 9048018010 91651B0618
Part # Description Qty Price
16361 - FAN
16361-31340

4GRFSE..GSE20

CHINA SPEC

 1
16361-31360

4GRFSE..GSE20

 1
16361B - FAN, NO.2
16361-31350

4GRFSE..GSE20

 1
16363 - MOTOR, COOLING FAN
16363-28290

3GRFE,4GRFSE..GSE2#

 1
16363-74340

4GRFSE..GSE20

CHINA SPEC

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-31040

4GRFSE..GSE20

 1
16400 - RADIATOR ASSY
16400-31440

4GRFSE..GSE20

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-21280

3GRFE,4GRFSE..GSE2#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

3GRFE,4GRFSE..GSE2#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-31080

3GRFE,4GRFSE..GSE2#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-31040

3GRFE,4GRFSE..GSE2#

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-31020

3GRFE,4GRFSE..GSE2#

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-40021

3GRFE,4GRFSE..GSE2#

 2
16571C - HOSE, RADIATOR, NO.1
16571-31170

3GRFE,4GRFSE..GSE2#

 1
16571-31171

3GRFE,4GRFSE..GSE2#

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-39002

3GRFE,4GRFSE..GSE2#

 2
96136-44801

3GRFE,4GRFSE..GSE2#

 2
16571D - CLIP, RADIATOR HOSE, NO.1
90466-39002

3GRFE,4GRFSE..GSE2#

 2
96136-44801

3GRFE,4GRFSE..GSE2#

 2
16572D - HOSE, RADIATOR, NO.2
16572-31251

3GRFE,4GRFSE..GSE2#

 1
16572-31250

3GRFE,4GRFSE..GSE2#

 1
16572E - CLIP, RADIATOR HOSE, NO.2
96136-44801

3GRFE,4GRFSE..GSE2#

 2
90466-39002

3GRFE,4GRFSE..GSE2#

 2
16572E - CLIP, RADIATOR HOSE, NO.2
96136-44801

3GRFE,4GRFSE..GSE2#

 2
90466-39002

3GRFE,4GRFSE..GSE2#

 2
16581B - CLAMP, HOSE(FOR RADIATOR HOSE)
16581-28070

GSE2#

 1
16581-31040

GSE2#

 1
16712 - SHROUD, FAN, NO.2
16711-31331

4GRFSE..GSE20

 1
16711-31330

4GRFSE..GSE20

 1
16711-31321

4GRFSE..GSE20

CHINA SPEC

 1
16711-31320

4GRFSE..GSE20

CHINA SPEC

 1
Common parts
90099-04117
90099-05164
90480-18010
91651-B0618

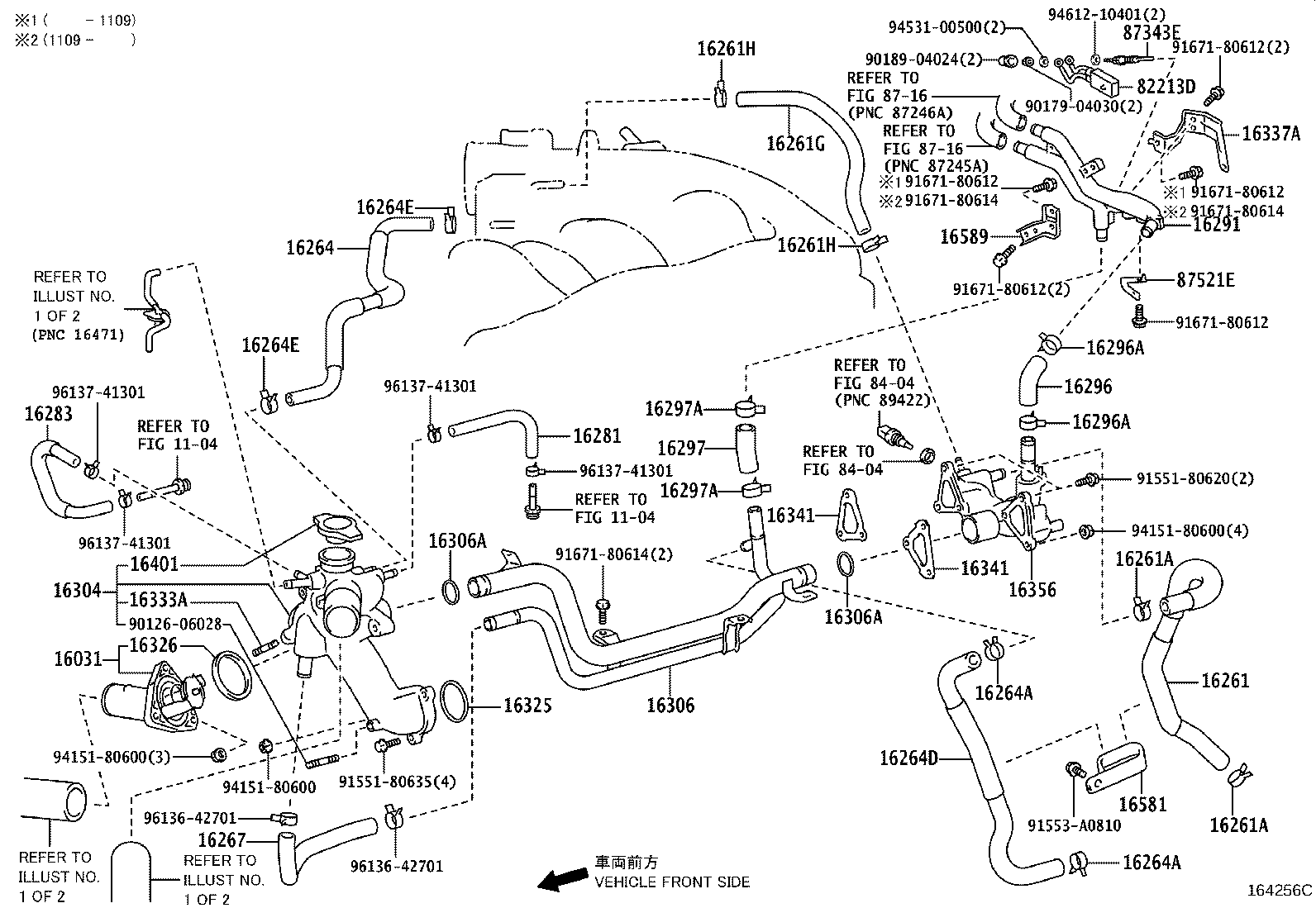

ILLUST NO. 2 OF 2(1008- )4GRFSE

Click highlighted areas on diagram

diagram 1104 1104 16031 16261 16261A 16261A 16261G 16261H 16261H 16264 16264A 16264A 16264D 16264E 16264E 16267 16281 16283 16291 16296 16296A 16296A 16297 16297A 16297A 16304 16306 16306A 16306A 16325 16326 16333A 16337A 16341 16341 16356 16401 16581 16589 82213D 8404 8404 8716 8716 87343E 87521E 9012606028 9017904030 9018904024 9155180620 9155180635 91553A0810 9167180612 9167180612 9167180612 9167180612 9167180612 9167180614 9167180614 9167180614 9415180600 9415180600 9415180600 9453100500 9461210401 9613642701 9613642701 9613741301 9613741301 9613741301 9613741301
Part # Description Qty Price
16031 - WATER INLET SUB-ASSY, W/THERMOSTAT
16031-31020

3GRFE,4GRFSE..GSE2#

 1
16261 - HOSE, WATER BY-PASS
16261-31040

3GRFE,4GRFSE..GSE2#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-42101

3GRFE,4GRFSE..GSE2#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96136-42101

3GRFE,4GRFSE..GSE2#

 2
16261G - HOSE, WATER BY-PASS, NO.1
16261-31071

4GRFSE..GSE20

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96137-51501

3GRFE,4GRFSE..GSE2#

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96137-51501

3GRFE,4GRFSE..GSE2#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-31120

4GRFSE..GSE20

 1
16264-31060

4GRFSE..GSE20

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42101

3GRFE,4GRFSE..GSE2#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96136-42101

3GRFE,4GRFSE..GSE2#

 2
16264D - HOSE, WATER BY-PASS, NO.2
16264-31030

3GRFE,4GRFSE..GSE2#

 1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-51501

3GRFE,4GRFSE..GSE2#

 2
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
96137-51501

3GRFE,4GRFSE..GSE2#

 2
16267 - HOSE, WATER BY-PASS, NO.3
16267-31021

3GRFE,4GRFSE..GSE2#

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-31021

3GRFE,4GRFSE..GSE2#

 1
16283 - HOSE, WATER BY-PASS, NO.6
16283-31010

3GRFE,4GRFSE..GSE2#

 1
16291 - JOINT, WATER HOSE
16291-31060

4GRFSE..GSE20

 1
16296 - HOSE, WATER BY-PASS, NO.8
16296-31030

4GRFSE..GSE20

 1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96136-42701

3GRFE,4GRFSE..GSE2#

 2
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
96136-42701

3GRFE,4GRFSE..GSE2#

 2
16297 - HOSE, WATER BY-PASS, NO.9
16297-31030

4GRFSE..GSE20

 1
16297-31031

4GRFSE..GSE20

 1
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
96136-42701

3GRFE,4GRFSE..GSE2#

 2
16297A - CLIP(FOR WATER BY-PASS HOSE NO.9)
96136-42701

3GRFE,4GRFSE..GSE2#

 2
16304 - OUTLET SUB-ASSY, WATER
16304-31034

3GRFE,4GRFSE..GSE2#

 1
16304-31035

3GRFE,4GRFSE..GSE2#

 1
16304-31033

3GRFE,4GRFSE..GSE2#

 1
16306 - PIPE SUB-ASSY, WATER OUTLET
16306-31050

3GRFE,4GRFSE..GSE2#

 1
16306A - RING, O(FOR WATER OUTLET PIPE)
96761-35025

3GRFE,4GRFSE..GSE2#

 2
16306A - RING, O(FOR WATER OUTLET PIPE)
96761-35025

3GRFE,4GRFSE..GSE2#

 2
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-31010

3GRFE,4GRFSE..GSE2#

 1
16326 - GASKET, WATER INLET HOUSING, NO.2
16326-31020

3GRFE,4GRFSE..GSE2#

 1
16333A - BOLT, STUD(FOR WATER OUTLET HOUSING)
92122-80618

3GRFE,4GRFSE..GSE2#

 3
16337A - STAY, WATER OUTLET
16337-31010

4GRFSE..GSE20

 1
16341 - GASKET, WATER OUTLET
16341-31010

3GRFE,4GRFSE..GSE2#

 2
16341 - GASKET, WATER OUTLET
16341-31010

3GRFE,4GRFSE..GSE2#

 2
16356 - JOINT, WATER BY-PASS, REAR
16356-31021

3GRFE,4GRFSE..GSE2#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-31680

3GRFE,4GRFSE..GSE2#

 1
16401-31650

3GRFE,4GRFSE..GSE2#

 1
16401-31791

3GRFE,4GRFSE..GSE2#

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-31010

3GRFE,4GRFSE..GSE2#

 1
16589 - STAY, PIPE CLAMP
16589-31010

4GRFSE..GSE20

 1
82213D - WIRE, HEATER BLOWER
82213-30060

GSE20

 1
87343E - PLUG, WATER BY-PASS GLOW
87343-30010

GSE20

 2
87521E - BRACKET,ENGINE BLOCK HEATER
87521-30020

GSE20

 1
Common parts
90126-06028
90179-04030
90189-04024
91551-80620
91551-80635
91553-A0810
91671-80612
91671-80614
94151-80600
94531-00500
94612-10401
96136-42701
96137-41301
Linked diagrams
1104
8404
8716
