JCE10R-AEAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

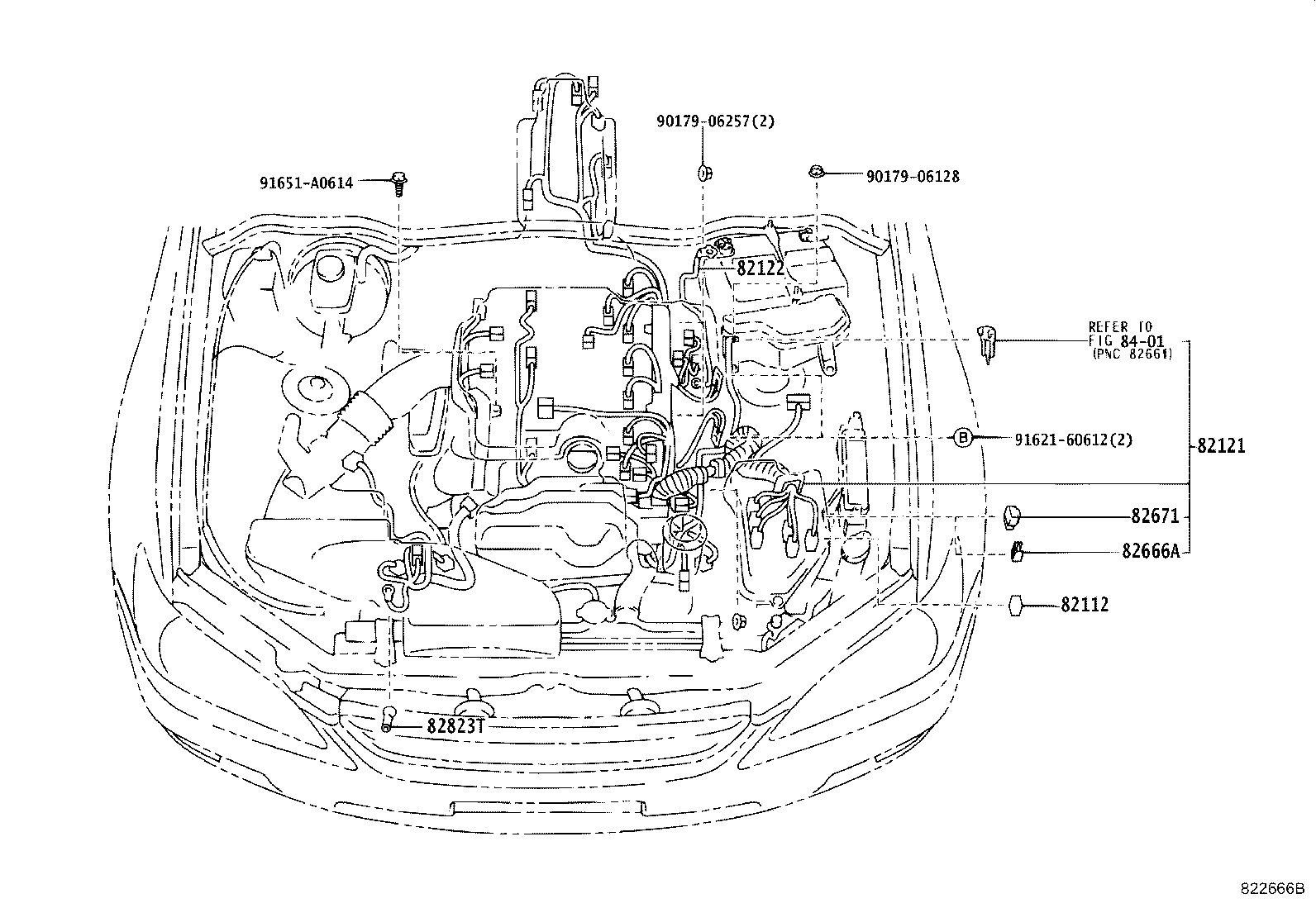

ILLUST NO. 2 OF 9(0107- )JCE10..RHD

Click highlighted areas on diagram

ENGINE

diagram 82112 82121 82122 82666A 82671 82823T 8401 9017906128 9017906257 9162160612 91651A0614
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-53130

JCE10..RHD

 1
82122 - WIRE, ENGINE, NO.2
82122-53070

JCE10..RHD

 1
82666A - HOLDER, CONNECTOR NO.2
82666-30670

GXE10,JCE10

 1
82671 - BLOCK, JUNCTION
82671-30340

GXE10,JCE10

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-24030

JCE10

 1
Common parts
90179-06128
90179-06257
91621-60612
91651-A0614
Linked diagrams
8401

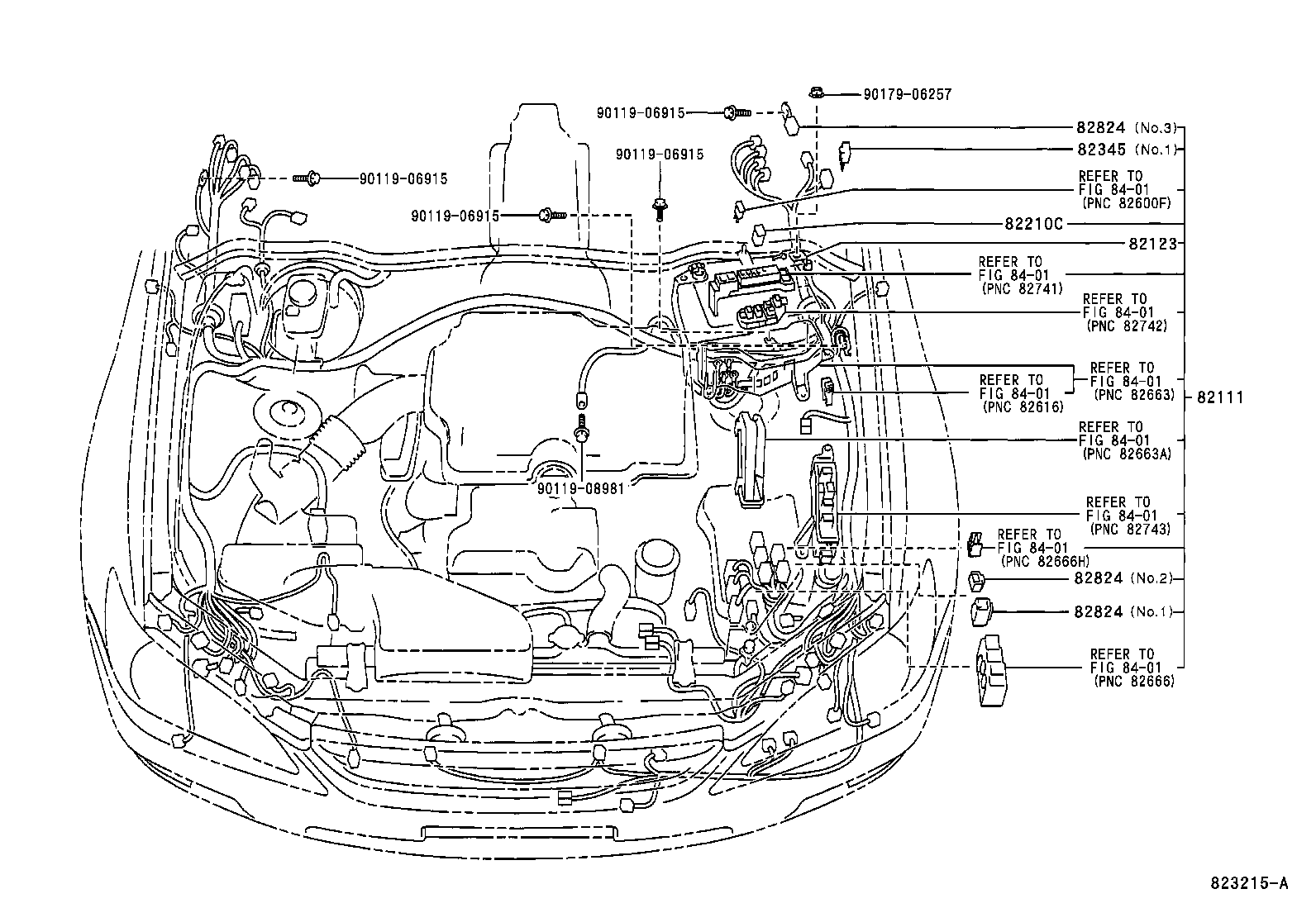

ILLUST NO. 1 OF 9(0107- )JCE10..RHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82123 82210C 82345 82824 82824 82824 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 9011906915 9011908981 9017906257
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-53600

JCE10..RHD

 1
82111-53601

JCE10..RHD

 1
82123 - WIRE, ENGINE, NO.3
82123-53050

GXE10,JCE10..RHD

 1
82210C - FUSIBLE LINK
90982-08283

GXE10,JCE10

30A,TERM.:FEMALE,PNK

 1
90982-08202

GXE10,JCE10

60A,TERM.:MALE,YEL

 1
90982-08274

GXE10,JCE10

120A,TERM.:MALE,WHT

 1
90982-08284

GXE10..LHD..WG;GXE10,JCE10..RHD

40A,TERM.:FEMALE,GRN

 1
82345 - DIODE
82345-12050

GXE10,JCE10

NO.1

 1
82345-22051

GXE10,JCE10

NO.2

 1
82824 - CONNECTOR, WIRING HARNESS
82824-20110

GXE10,JCE10

NO.2

 1
82824-12210

GXE10,JCE10

NO.1

 1
82824-20130

GXE10,JCE10

NO.3

 1
82824 - CONNECTOR, WIRING HARNESS
82824-20110

GXE10,JCE10

NO.2

 1
82824-12210

GXE10,JCE10

NO.1

 1
82824-20130

GXE10,JCE10

NO.3

 1
82824 - CONNECTOR, WIRING HARNESS
82824-20110

GXE10,JCE10

NO.2

 1
82824-12210

GXE10,JCE10

NO.1

 1
82824-20130

GXE10,JCE10

NO.3

 1
Common parts
90119-06915
90119-08981
90179-06257
Linked diagrams
8401
