JCE10R-AEAVFQ (2001)
Toyota Lexus Is200/300
Production
Jul 2001
-
Jul 2005
Engine
2JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

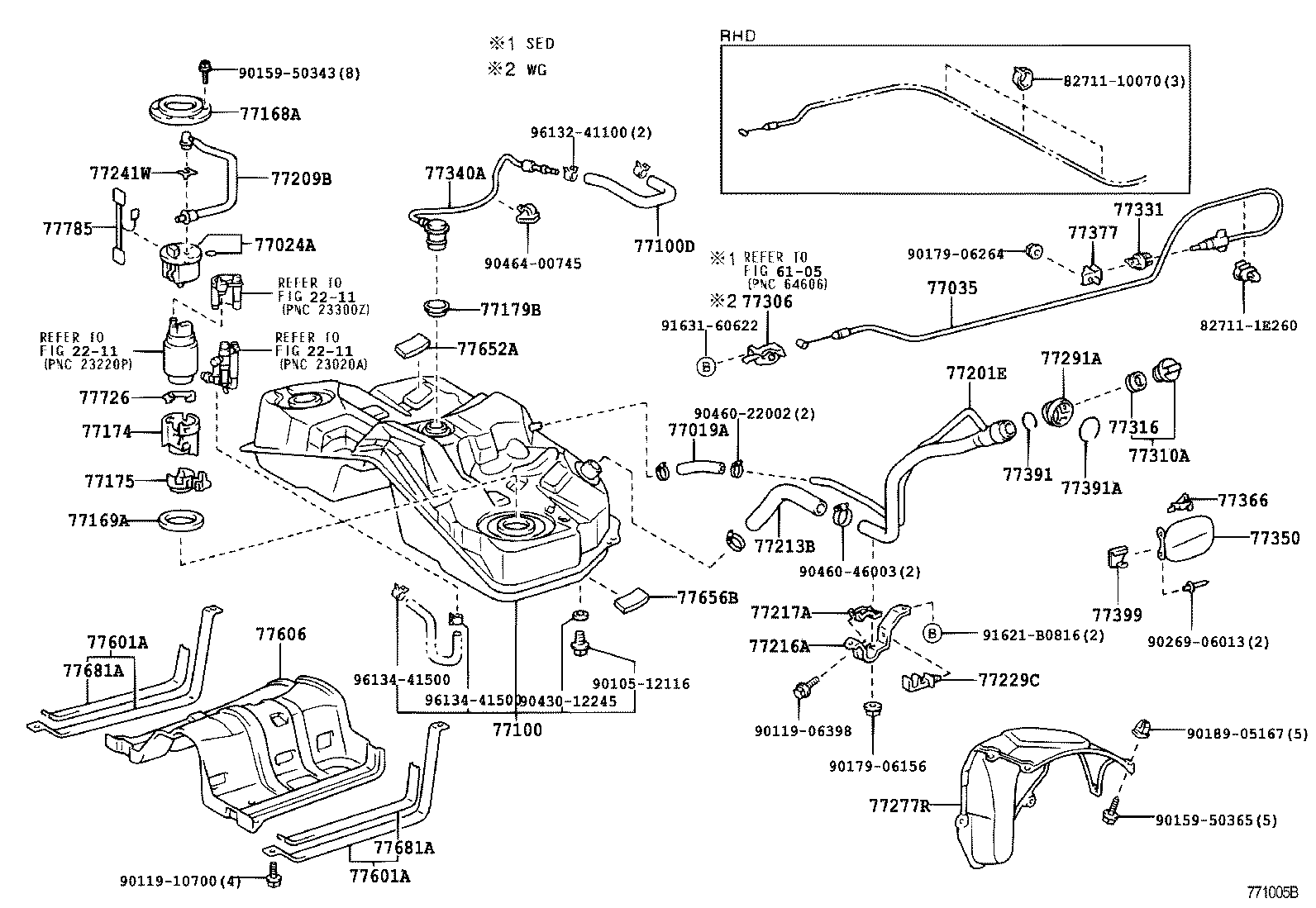

ILLUST NO. 1 OF 2(0107- )JCE10
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK) | ||||
| 77019-53010 |
GXE10,JCE10 L=200 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-30040 |
JCE10 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-53010 |
GXE10,JCE10..RHD..SED |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-53050 |
JCE10 |
1 | ||
| 77001-53051 |
JCE10 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77249-53040 |
GXE10,JCE10 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
GXE10,JCE10 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
GXE10,JCE10 |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-30030 |
JCE10 |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-33010 |
GXE10,JCE10 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-53030 |
GXE10,JCE10 |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-51020 |
JCE10 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-53010 |
GXE10,JCE10 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-51010 |
GXE10,JCE10 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-51010 |
GXE10,JCE10 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-51010 |
GXE10,JCE10 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GXE10,JCE10 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-53010 |
GXE10,JCE10 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-53021 |
GXE10,JCE10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-28010 |
GXE10,JCE10 |
1 | ||
| 77300-50020 |
GXE10,JCE10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
GXE10,JCE10 |
1 | ||
| 77331 - BRACKET, FUEL LID LOCK CONTROL | ||||
| 77331-53010 |
GXE10,JCE10 |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-51010 |
GXE10,JCE10 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-53011 |
GXE10,JCE10..SED |
1 | ||
| 77350-53030 |
GXE10,JCE10..SED |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-53010 |
GXE10,JCE10 |
1 | ||
| 77360-33020 |
GXE10,JCE10 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-22060 |
GXE10,JCE10 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-53020 |
GXE10,JCE10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-53010 |
GXE10,JCE10 |
1 | ||
| 77399 - HANGER, FUEL TANK CAP | ||||
| 77399-53010 |
GXE10,JCE10 |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-53010 |
GXE10,JCE10 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-53010 |
GXE10,JCE10 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-53020 |
JCE10 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
GXE10,JCE10 |
13 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-53010 |
GXE10,JCE10 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
GXE10,JCE10 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
GXE10,JCE10 |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
GXE10,JCE10 |
1 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 82711-1E260 | ||||
| 90105-12116 | ||||
| 90119-06398 | ||||
| 90119-10700 | ||||
| 90159-50343 | ||||
| 90159-50365 | ||||
| 90179-06156 | ||||
| 90179-06264 | ||||
| 90189-05167 | ||||
| 90269-06013 | ||||
| 90430-12245 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00745 | ||||
| 91621-B0816 | ||||
| 91631-60622 | ||||
| 96132-41100 | ||||
| 96134-41500 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 6105 | ||||
ILLUST NO. 2 OF 2(0107- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-53031 |
GXE10,JCE10 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-53060 |
JCE10..RHD |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-51010 |
GXE10,JCE10 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-30100 |
GXE10,JCE10 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-53010 |
GXE10,JCE10 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-51010 |
GXE10,JCE10 |
6 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-51010 |
GXE10,JCE10 |
2 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-51010 |
GXE10,JCE10 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-22020 |
GXE10,JCE10 |
1 | ||
| 77412A - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-51010 |
GXE10,JCE10 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-22460 |
GXE10,JCE10 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-46290 |
GXE10,JCE10 L=185 |
1 | ||
| 77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER) | ||||
| 23829-46320 |
GXE10,JCE10 L=40 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 23829-46270 |
GXE10,JCE10 |
1 | ||
| 77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER) | ||||
| 23829-46280 |
GXE10,JCE10 |
1 | ||
| 77740P - WAY, 3(FOR CHARCOAL CANISTER) | ||||
| 90413-07002 |
GXE10,JCE10 |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-51010 |
GXE10,JCE10 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-22140 |
GXE10,JCE10 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90178-06012 | ||||
| 90949-01B80 | ||||
| 90959-01538 | ||||
| 91626-A0625 | ||||
| 96132-41300 | ||||
| 96132-41500 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
