JCE10R-AEAVFQ (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

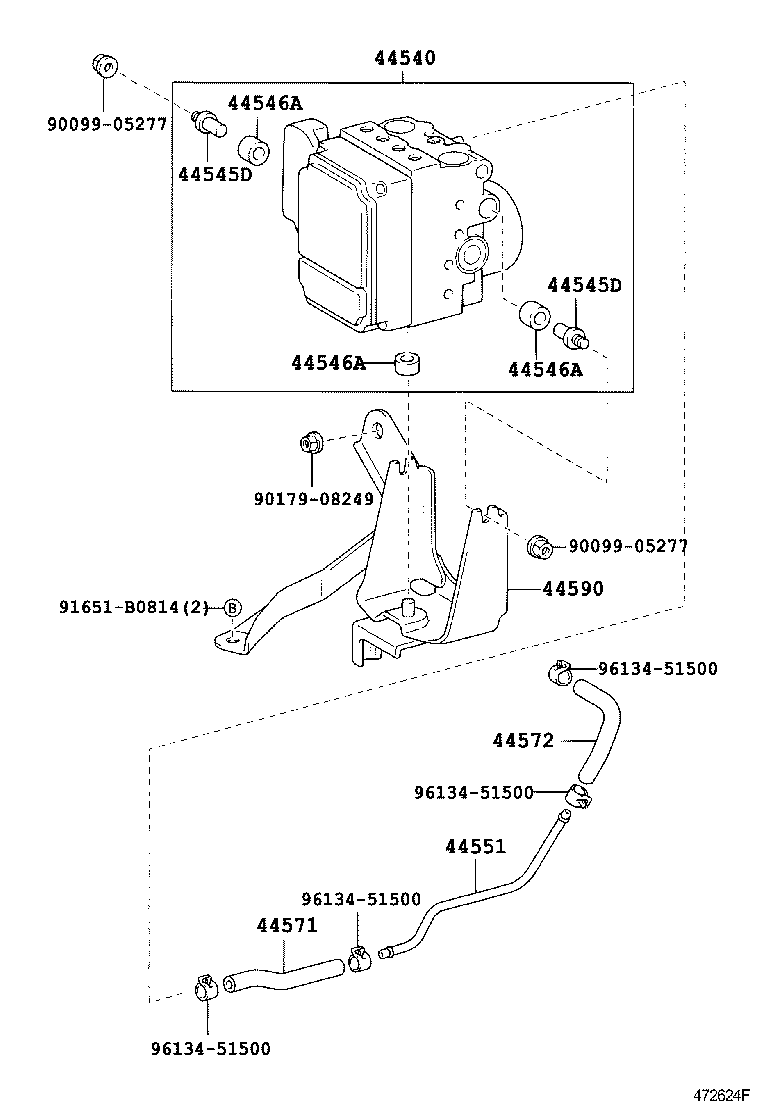

ILLUST NO. 2 OF 3(0107- )RHD

diagram 44540 44545D 44545D 44546A 44546A 44546A 44571 44590 9009905277 9009905277 9017908249 91651B0814 9613541400 9613551300
Part # Description Qty Price
44540 - ACTUATOR ASSY, ABS & TRACTION
44050-53050

JCE10

W(VSC)

 1
44050-53040

GXE10,JCE10

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GXE10,JCE10

 2
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-42090

GXE10,JCE10

 2
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GXE10,JCE10

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GXE10,JCE10

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-42090

GXE10,JCE10

 3
44571 - HOSE, BRAKE ACTUATOR
44571-53050

GXE10,JCE10..RHD

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-53050

GXE10,JCE10..RHD

 1
Common parts
90099-05277 None epc.PartDetail.None
90179-08249 None epc.PartDetail.None
91651-B0814 None epc.PartDetail.None
96135-41400 None epc.PartDetail.None
96135-51300 None epc.PartDetail.None

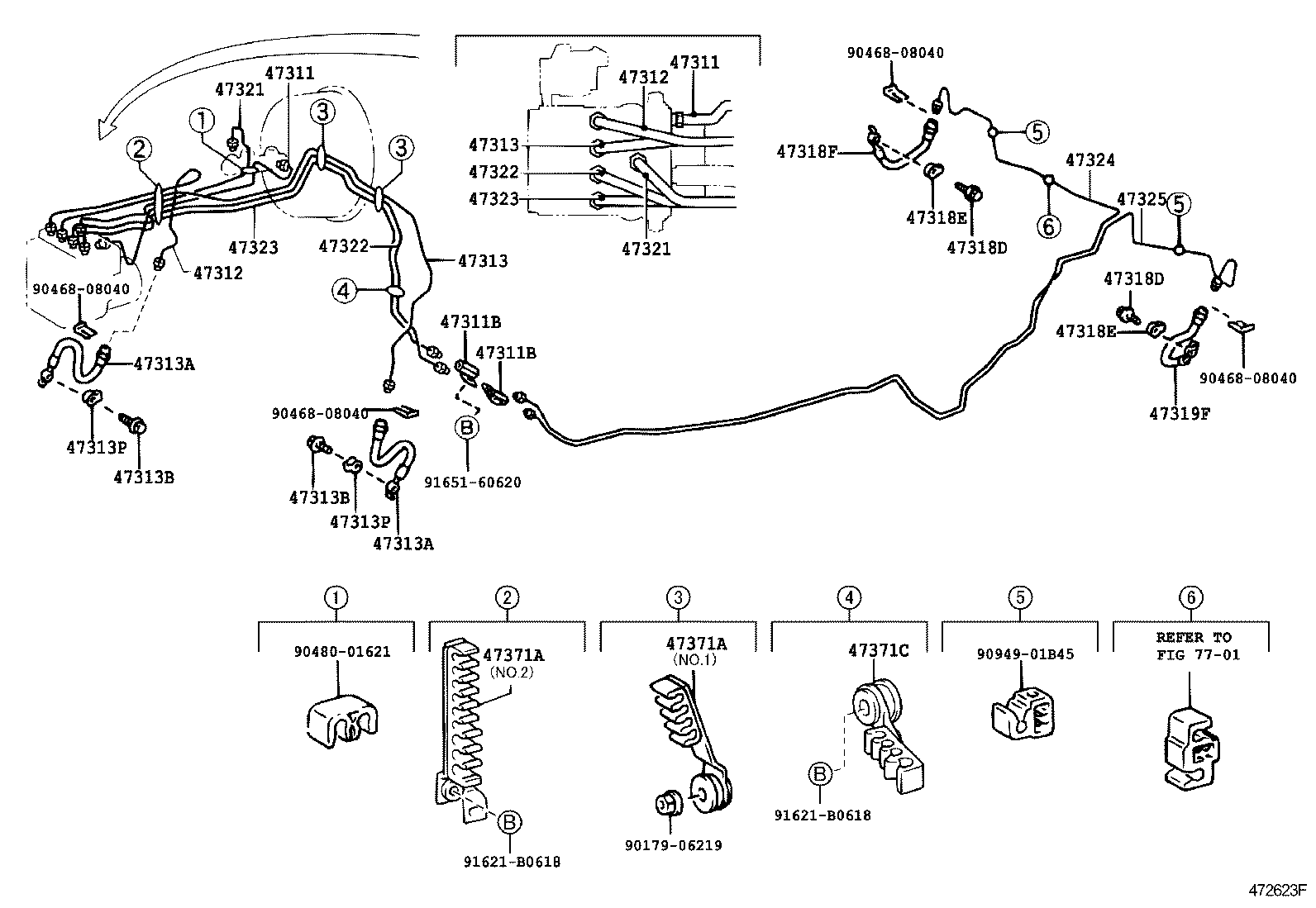

ILLUST NO. 1 OF 3(0107- )RHD

diagram 47311 47311 47311B 47311B 47312 47312 47313 47313 47313A 47313A 47313B 47313B 47313P 47313P 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321 47322 47322 47323 47323 47324 47325 47371A 47371C 47372 7701 9017906219 9046808040 9046808040 9046808040 9046808040 9094901540 9094901872 9094901B45 91621B0618 91621B0618 9165160620
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-53090

GXE10,JCE10..RHD

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-53090

GXE10,JCE10..RHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10144

JCE10;GXE10..WG

 2
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10144

JCE10;GXE10..WG

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-53080

GXE10,JCE10..RHD

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-53080

GXE10,JCE10..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-53080

GXE10,JCE10..RHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-53080

GXE10,JCE10..RHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A30

GXE10,JCE10

 2
90947-02C28

JCE10;GXE10..WG

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02A30

GXE10,JCE10

 2
90947-02C28

JCE10;GXE10..WG

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GXE10,JCE10

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

GXE10,JCE10

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GXE10,JCE10

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

GXE10,JCE10

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GXE10,JCE10

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

GXE10,JCE10

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GXE10,JCE10

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

GXE10,JCE10

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02C29

JCE10;GXE10..WG

 1
90947-02A29

GXE10,JCE10

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02A29

GXE10,JCE10

 1
90947-02C29

JCE10;GXE10..WG

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-53070

GXE10,JCE10..RHD

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-53070

GXE10,JCE10..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-53090

GXE10,JCE10..RHD

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-53090

GXE10,JCE10..RHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-53070

GXE10,JCE10..RHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-53070

GXE10,JCE10..RHD

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-53060

GXE10,JCE10

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-53040

GXE10,JCE10

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-53040

GXE10,JCE10..RHD

 2
47371C - CLAMP, BRAKE TUBE, NO.7
47371-53110

JCE10;GXE10..RHD

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-53050

GXE10,JCE10..RHD

 1
Common parts
90179-06219 None epc.PartDetail.None
90468-08040 None epc.PartDetail.None
90949-01540 None epc.PartDetail.None
90949-01872 None epc.PartDetail.None
90949-01B45 None epc.PartDetail.None
91621-B0618 None epc.PartDetail.None
91651-60620 None epc.PartDetail.None
