JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )WG

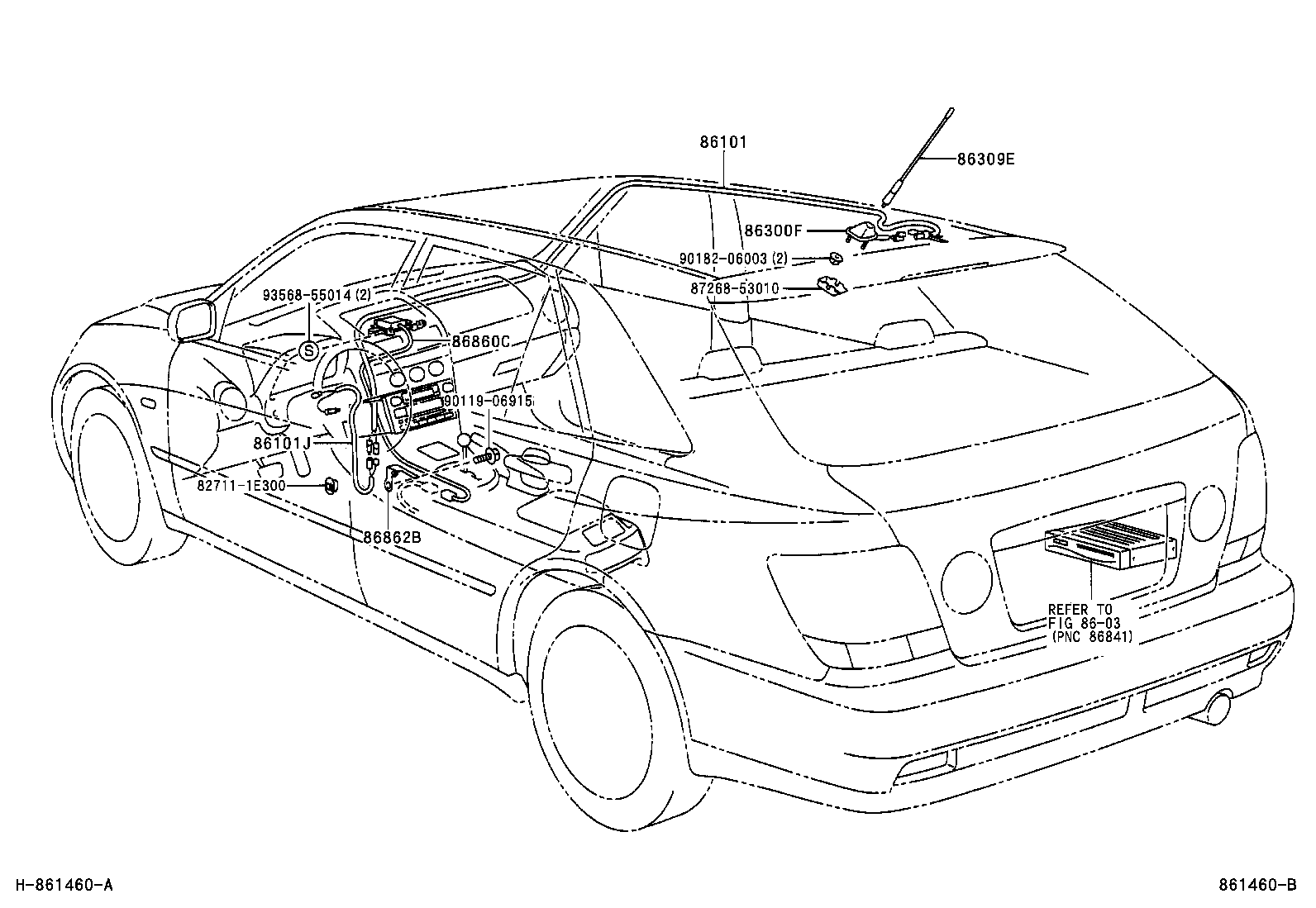

Click highlighted areas on diagram

diagram 827111E300 8603 86101 86101J 86300F 86309E 86860C 86862B 8726853010 9011906915 9018206003 9356855014
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-53250

GXE10,JCE10..LHD..WG

 1
86101-53260

GXE10,JCE10..LHD..WG

W(MOON ROOF)

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-53350

GXE10,JCE10..LHD

 1
86300F - HOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)
86300-53100

GXE10,JCE10..WG

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-53020

GXE10,JCE10

 1
86860C - ANTENNA ASSY, NAVIGATION
86860-53030

GXE10,JCE10..WG

 1
86862B - BRACKET, NAVIGATION ANTENNA
86862-53020

GXE10,JCE10..LHD..WG

 1
Common parts
82711-1E300
87268-53010
90119-06915
90182-06003
93568-55014
Linked diagrams
8603
