JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300
(0107- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52145E - BRACKET, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52145-53030 |
GXE10,JCE10..WG |
1 | ||
| 52146E - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-53030 |
GXE10,JCE10..WG |
1 | ||
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-53030 |
GXE10,JCE10..WG |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-53030 |
GXE10,JCE10..WG |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85273-53030 |
GXE10,JCE10..WG LH |
1 | ||
| 85272-53030 |
GXE10,JCE10..WG RH |
1 | ||
| 85272A - CLAMP, HEADLAMP CLEANER, NO.1 | ||||
| 85273-53030 |
GXE10,JCE10..WG LH |
1 | ||
| 85272-53030 |
GXE10,JCE10..WG RH |
1 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-30020 |
GXE10,JCE10 |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85381-53060J0 |
GXE10,JCE10..WG DK.BLUE MC.,8N8,RH |
1 | ||
| 85382-53030F0 |
GXE10,JCE10..WG SUPER BRIGHT YELLOW,576,LH |
1 | ||
| 85381-53060F0 |
GXE10,JCE10..WG SUPER BRIGHT YELLOW,576,RH |
1 | ||
| 85381-53060F1 |
GXE10,JCE10..WG GOLD ME.,585,RH |
1 | ||
| 85382-53030J0 |
GXE10,JCE10..WG DK.BLUE MC.,8N8,LH |
1 | ||
| 85382-53030F1 |
GXE10,JCE10..WG GOLD ME.,585,LH |
1 | ||
| 85381-53060A0 |
GXE10,JCE10..WG SUPER WHITE 2,040,RH |
1 | ||
| 85381-53060D0 |
GXE10,JCE10..WG SUPER RED 5,3P0,RH |
1 | ||
| 85381-53060A1 |
GXE10,JCE10..WG WHITE PEARL CS.,062,RH |
1 | ||
| 85381-53060G0 |
GXE10,JCE10..WG DARK GREEN MC.,6R4,RH |
1 | ||
| 85381-53060B0 |
GXE10,JCE10..WG SILVER ME.,1C0,RH |
1 | ||
| 85381-53060B1 |
GXE10,JCE10..WG DK.GRAY M.M.,1C6,RH |
1 | ||
| 85381-53060C0 |
GXE10,JCE10..WG BLACK,202,RH |
1 | ||
| 85382-53030A0 |
GXE10,JCE10..WG SUPER WHITE 2,040,LH |
1 | ||
| 85382-53030B1 |
GXE10,JCE10..WG DK.GRAY M.M.,1C6,LH |
1 | ||
| 85382-53030B0 |
GXE10,JCE10..WG SILVER ME.,1C0,LH |
1 | ||
| 85382-53030D0 |
GXE10,JCE10..WG SUPER RED 5,3P0,LH |
1 | ||
| 85382-53030A1 |
GXE10,JCE10..WG WHITE PEARL CS.,062,LH |
1 | ||
| 85382-53030G0 |
GXE10,JCE10..WG DARK GREEN MC.,6R4,LH |
1 | ||
| 85382-53030C0 |
GXE10,JCE10..WG BLACK,202,LH |
1 | ||
| 85381-53060E0 |
GXE10,JCE10..WG BEIGE ME.,4R4,RH |
1 | ||
| 85381-53060J4 |
GXE10,JCE10..WG DK.BLUE M.M.,8P4,RH |
1 | ||
| 85381-53060J3 |
GXE10,JCE10..WG GRAYISH BLUE ME.,8N6,RH |
1 | ||
| 85382-53030J2 |
GXE10,JCE10..WG GRAYISH BLUE ME.,8N6,LH |
1 | ||
| 85382-53030E0 |
GXE10,JCE10..WG BEIGE ME.,4R4,LH |
1 | ||
| 85382-53030J3 |
GXE10,JCE10..WG DK.BLUE M.M.,8P4,LH |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85381-53060J0 |
GXE10,JCE10..WG DK.BLUE MC.,8N8,RH |
1 | ||
| 85382-53030F0 |
GXE10,JCE10..WG SUPER BRIGHT YELLOW,576,LH |
1 | ||
| 85381-53060F0 |
GXE10,JCE10..WG SUPER BRIGHT YELLOW,576,RH |
1 | ||
| 85381-53060F1 |
GXE10,JCE10..WG GOLD ME.,585,RH |
1 | ||
| 85382-53030J0 |
GXE10,JCE10..WG DK.BLUE MC.,8N8,LH |
1 | ||
| 85382-53030F1 |
GXE10,JCE10..WG GOLD ME.,585,LH |
1 | ||
| 85381-53060A0 |
GXE10,JCE10..WG SUPER WHITE 2,040,RH |
1 | ||
| 85381-53060D0 |
GXE10,JCE10..WG SUPER RED 5,3P0,RH |
1 | ||
| 85381-53060A1 |
GXE10,JCE10..WG WHITE PEARL CS.,062,RH |
1 | ||
| 85381-53060G0 |
GXE10,JCE10..WG DARK GREEN MC.,6R4,RH |
1 | ||
| 85381-53060B0 |
GXE10,JCE10..WG SILVER ME.,1C0,RH |
1 | ||
| 85381-53060B1 |
GXE10,JCE10..WG DK.GRAY M.M.,1C6,RH |
1 | ||
| 85381-53060C0 |
GXE10,JCE10..WG BLACK,202,RH |
1 | ||
| 85382-53030A0 |
GXE10,JCE10..WG SUPER WHITE 2,040,LH |
1 | ||
| 85382-53030B1 |
GXE10,JCE10..WG DK.GRAY M.M.,1C6,LH |
1 | ||
| 85382-53030B0 |
GXE10,JCE10..WG SILVER ME.,1C0,LH |
1 | ||
| 85382-53030D0 |
GXE10,JCE10..WG SUPER RED 5,3P0,LH |
1 | ||
| 85382-53030A1 |
GXE10,JCE10..WG WHITE PEARL CS.,062,LH |
1 | ||
| 85382-53030G0 |
GXE10,JCE10..WG DARK GREEN MC.,6R4,LH |
1 | ||
| 85382-53030C0 |
GXE10,JCE10..WG BLACK,202,LH |
1 | ||
| 85381-53060E0 |
GXE10,JCE10..WG BEIGE ME.,4R4,RH |
1 | ||
| 85381-53060J4 |
GXE10,JCE10..WG DK.BLUE M.M.,8P4,RH |
1 | ||
| 85381-53060J3 |
GXE10,JCE10..WG GRAYISH BLUE ME.,8N6,RH |
1 | ||
| 85382-53030J2 |
GXE10,JCE10..WG GRAYISH BLUE ME.,8N6,LH |
1 | ||
| 85382-53030E0 |
GXE10,JCE10..WG BEIGE ME.,4R4,LH |
1 | ||
| 85382-53030J3 |
GXE10,JCE10..WG DK.BLUE M.M.,8P4,LH |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85279-33020 |
GXE10,JCE10 |
1 | ||
| 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 | ||||
| 85379-89131 |
GXE10,JCE10 |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 85279-50040 |
GXE10,JCE10 |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 85379-90K04 |
GXE10,JCE10 |
1 | ||
| 85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5 | ||||
| 85279-53020 |
GXE10,JCE10 |
2 | ||
| 85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5 | ||||
| 85279-53020 |
GXE10,JCE10 |
2 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 85336-12230 |
GXE10,JCE10 L=15 |
1 | ||
| 85371C - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85275-35040 |
GXE10,JCE10 L=120 |
1 | ||
| 85371E - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85275-53020 |
GXE10,JCE10 |
1 | ||
| 85371F - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 85275-42010 |
GXE10,JCE10 L=45 |
1 | ||
| 85372A - HOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90445-14072 |
GXE10,JCE10..WG;GXE10..LHD..ATM *H,L=940 |
1 | ||
| 85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE) | ||||
| 85375-32011 |
GXE10,JCE10 L=35 |
2 | ||
| 85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE) | ||||
| 85375-32011 |
GXE10,JCE10 L=35 |
2 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85275-42010 |
GXE10,JCE10 L=45 |
2 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85275-42010 |
GXE10,JCE10 L=45 |
2 | ||
| Common parts | ||||
| 82711-14890 | ||||
| 85272-20080 | ||||
| 85273-20020 | ||||
| 85366-50040 | ||||
| 90075-05002 | ||||
| 90463-12570 | ||||
| 91511-B0616 | ||||

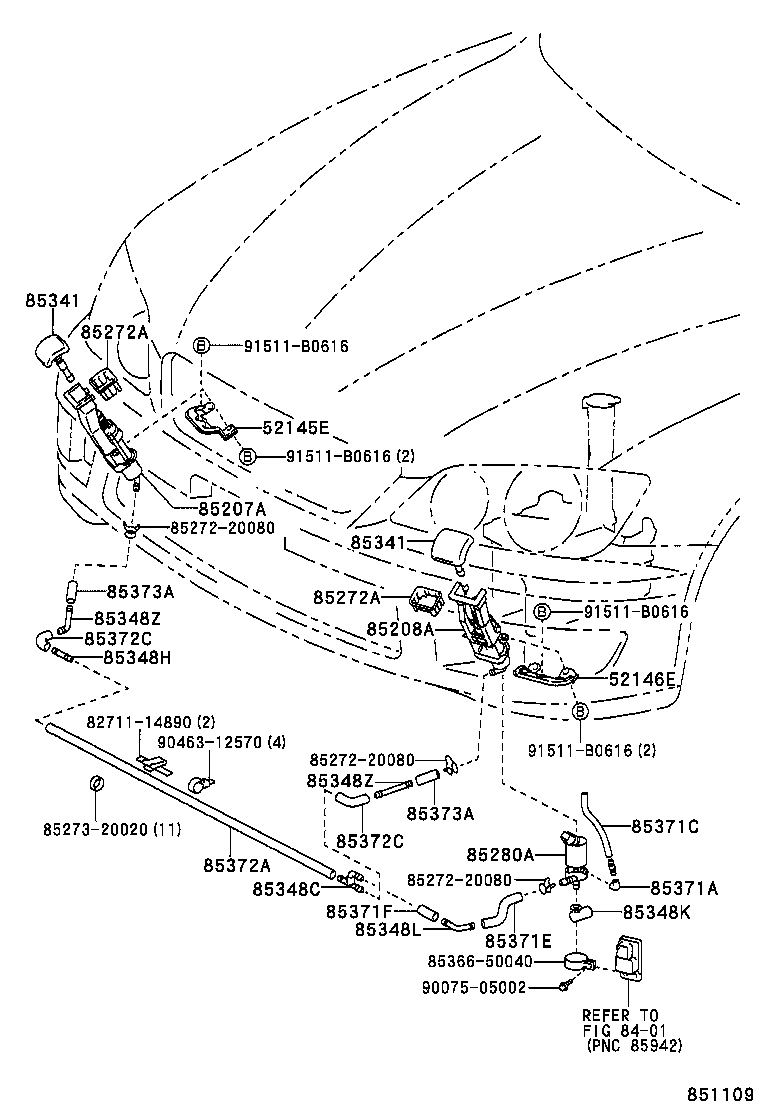

| Linked diagrams | ||||
| 8401 | ||||
