JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300
Production
Jul 2001
-
Jul 2005
Engine
2JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )WG

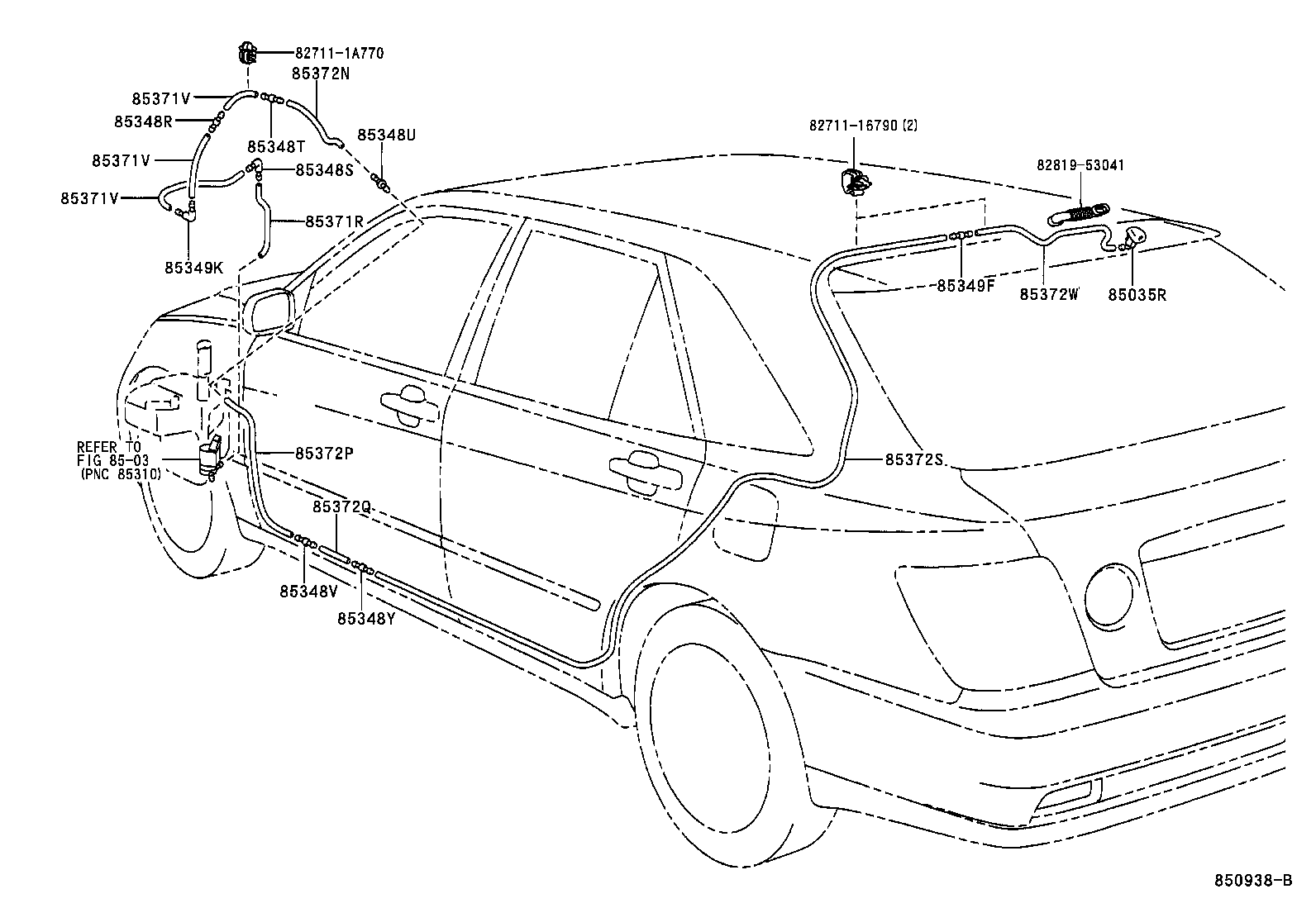

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035R - NOZZLE SUB-ASSY, REAR WASHER | ||||
| 85391-53010 |
GXE10,JCE10..WG |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-53030 |
GXE10,JCE10..WG |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85317-12230 |
GXE10,JCE10..WG |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
GXE10,JCE10..WG |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85375-53030 |
GXE10,JCE10..WG |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
GXE10,JCE10..WG |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
GXE10,JCE10..WG |
1 | ||
| 85349-89122 |
GXE10,JCE10..WG |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
GXE10,JCE10..WG |
1 | ||
| 85349-89122 |
GXE10,JCE10..WG |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85317-12230 |
GXE10,JCE10..WG |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-07001 |
GXE10,JCE10..WG *H,L=190 |
1 | ||
| 85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT) | ||||
| 90099-33080 |
GXE10,JCE10..WG *H,L=50 |
1 | ||
| 90446-07001 |
GXE10,JCE10..WG *H,L=480 |
1 | ||
| 85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT) | ||||
| 90099-33080 |
GXE10,JCE10..WG *H,L=50 |
1 | ||
| 90446-07001 |
GXE10,JCE10..WG *H,L=480 |
1 | ||
| 85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT) | ||||
| 90099-33080 |
GXE10,JCE10..WG *H,L=50 |
1 | ||
| 90446-07001 |
GXE10,JCE10..WG *H,L=480 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
GXE10,JCE10..WG *H,L=360 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90446-07001 |
GXE10,JCE10..WG *H,L=600 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
GXE10,JCE10..WG *H,L=50 |
1 | ||
| 90099-33080 |
GXE10,JCE10..WG *H,L=50 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33589 |
GXE10,JCE10..WG *H,L=3300 |
1 | ||
| 90099-33589 |
GXE10,JCE10..WG *H,L=3300 |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
GXE10,JCE10..WG *H,L=570 |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1A770 | ||||
| 82819-53041 | ||||
| Linked diagrams | ||||
| 8503 | ||||
