JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )LHD

Click highlighted areas on diagram

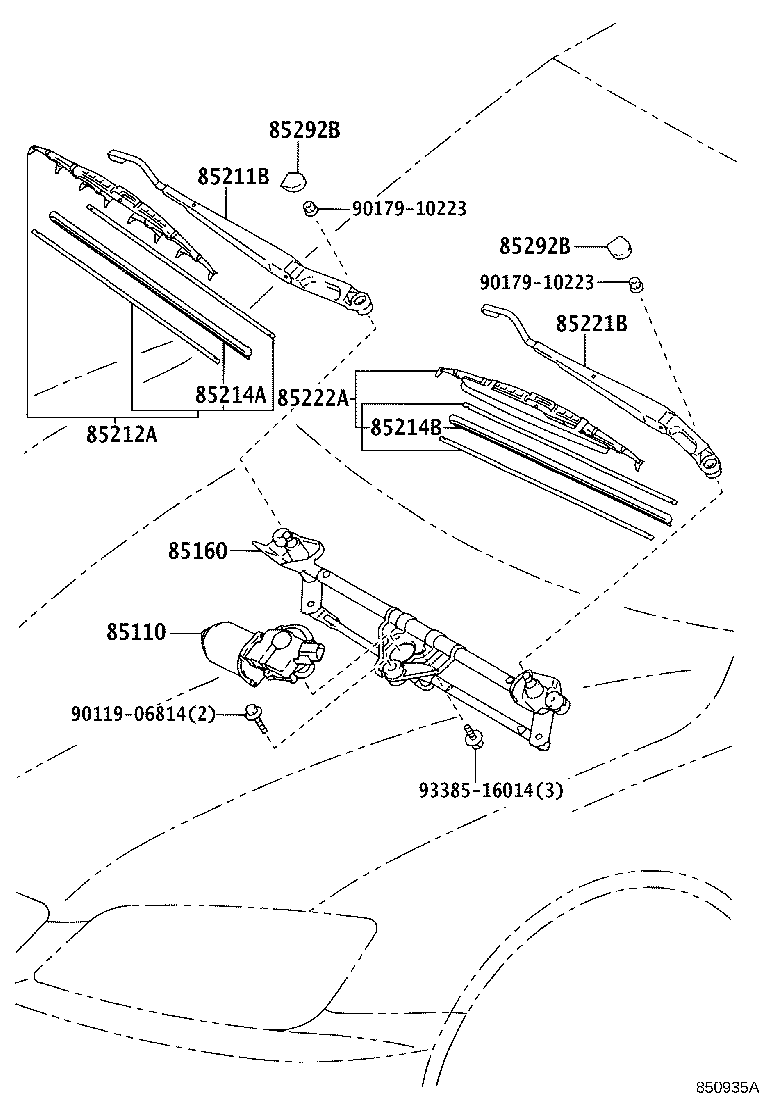

diagram 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 9011906814 9017910223 9017910223 9338516014
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-53030

GXE10,JCE10..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-53020

GXE10,JCE10..LHD

 1
85211B - ARM, FRONT WIPER, RH
85211-53030

GXE10,JCE10..LHD

 1
85212A - BLADE, FR WIPER, RH
85212-53050

GXE10,JCE10..LHD

 1
85214A - RUBBER, WIPER, RH
85214-53040

GXE10,JCE10..LHD

 1
85214B - RUBBER, WIPER, LH
85214-48010

GXE10,JCE10..LHD

 1
85221B - ARM, FRONT WIPER, LH
85221-53030

GXE10,JCE10..LHD

 1
85222A - BLADE, FR WIPER, LH
85222-53020

GXE10,JCE10..LHD

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

GXE10,JCE10

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

GXE10,JCE10

 2
Common parts
90119-06814
90179-10223
93385-16014
