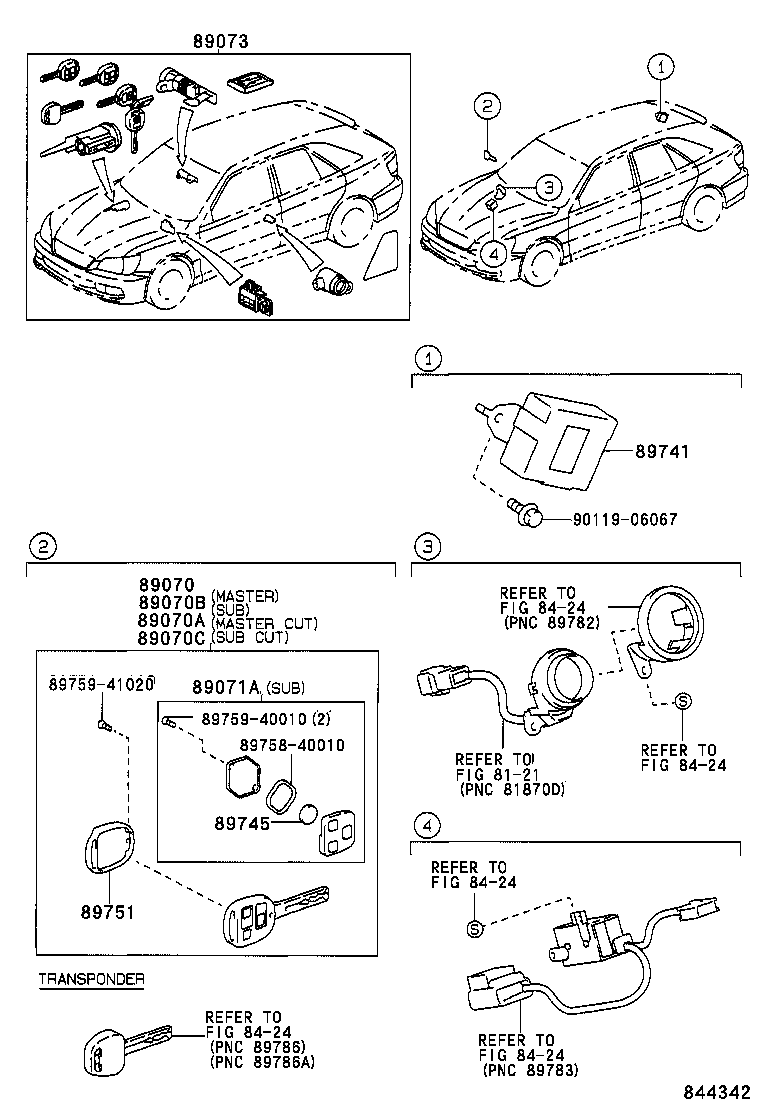

Toyota Lexus is200/300 JCE10 WIRELESS DOOR LOCK

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-48201	GXE10,JCE10..WG	07/2001 - 07/2005	1
89070A - TRANSMITTER, DOOR CONTROL (CUT KEY)
89070-48331	GXE10,JCE10..WG	07/2001 - 12/2999	1
89070B - TRANSMITTER ASSY, DOOR CONTROL (SUB KEY)
89070-48271	JCE10..LHD;GXE10..LHD..SED W(DOUBLE-LOCK)	07/2001 - 12/2999	1
89070C - TRANSMITTER ASSY, DOOR CONTROL (SUB & CUT KEY)
89070-48401	JCE10..LHD;GXE10..LHD..SED W(DOUBLE-LOCK)	07/2001 - 12/2999	1
89071A - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL(SUB KEY)
89071-60081	GXE10,JCE10..WG W(DOUBLE-LOCK)	07/2001 - 12/2999	3
89071-60081	GXE10,JCE10..LHD..WG	07/2001 - 12/2999	2
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
69005-53230	GXE10,JCE10..LHD..WG W(DOUBLE-LOCK)	07/2001 - 07/2005	1
69005-53220	GXE10,JCE10..LHD..WG	07/2001 - 07/2005	1
89741 - RECEIVER, DOOR CONTROL
89741-53100	GXE10,JCE10..WG	07/2001 - 12/2999	1
89745 - BATTERY, TRANSMITTER
89745-40010	GXE10,JCE10..ARL;GXE10,JCE10..LHD	07/2001 - 07/2005	2
89745-40010	GXE10,JCE10..LHD W(DOUBLE-LOCK)	07/2001 - 07/2005	3
89751 - COVER, TRANSMITTER HOUSING
89751-24050	GXE10,JCE10..EUR	07/2001 - 07/2005	2
89751-48010	GXE10,JCE10..LHD..WG;GXE10,JCE10..SED..EUR W(DOUBLE-LOCK)	07/2001 - 07/2005	1
Common parts
89758-40010
89759-40010
89759-41020
90119-06067
Linked diagrams
8121
8424

JCE10L-AWAVFW (2001)
