JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )LHD

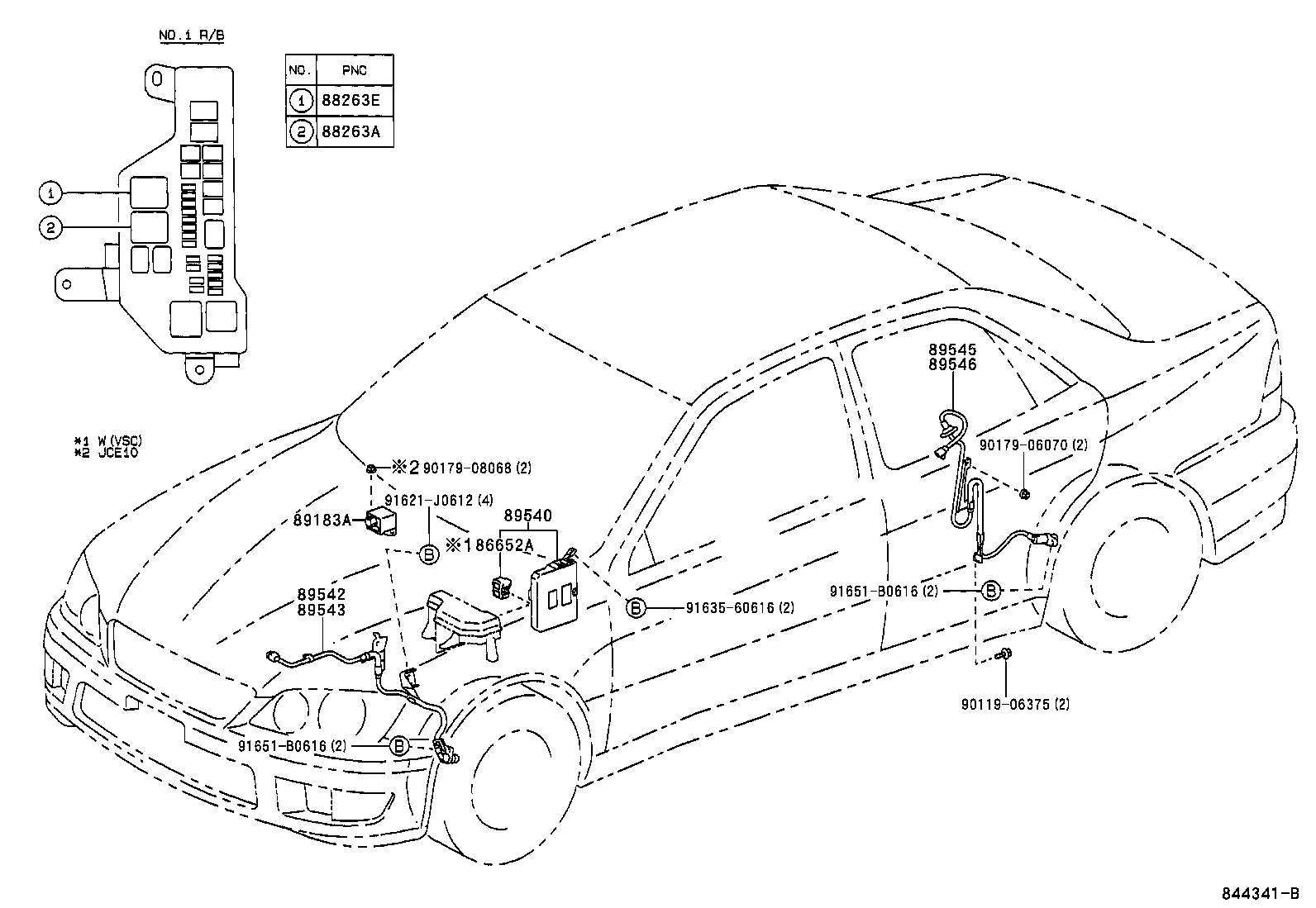

Click highlighted areas on diagram

diagram 86652A 88263A 88263E 89183A 89540 89542 89543 89545 89546 9011906375 9017906070 9017908068 91621J0612 9163560616 91651B0616 91651B0616
Part # Description Qty Price
86652A - BUZZER ASSY, SKID CONTROL
86652-51010

JCE10

 1
88263A - RELAY, SKID CONTROL
88263-24020

GXE10,JCE10

 1
88263E - RELAY, SKID CONTROL NO.2
88263-24030

GXE10,JCE10

 1
89183A - SENSOR, YAWRATE
89183-30060

JCE10

 1
89540 - COMPUTER ASSY, SKID CONTROL
89540-53140

JCE10..LHD;GXE10..LHD..SED

 1
89540-53160

JCE10..LHD

W(VSC)

 1
89542 - SENSOR, SPEED, FRONT RH
89542-51010

GXE10,JCE10

 1
89543 - SENSOR, SPEED, FRONT LH
89543-53010

GXE10,JCE10

 1
89545 - SENSOR, SPEED, REAR RH
89545-30060

GXE10,JCE10

 1
89546 - SENSOR, SPEED, REAR LH
89546-30060

GXE10,JCE10

 1
Common parts
90119-06375
90179-06070
90179-08068
91621-J0612
91635-60616
91651-B0616
