JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300
Production
Jul 2001
-
Jul 2005
Engine
2JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )JCE10..LHD

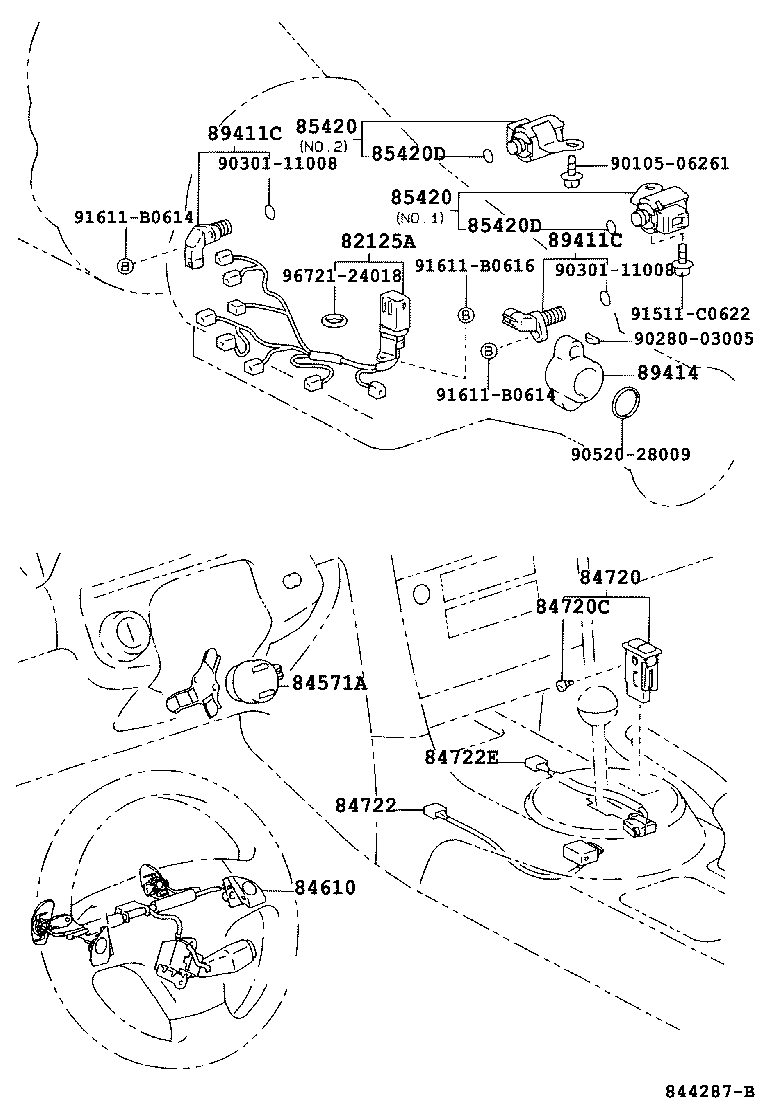

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-30460 |
JCE10 |
1 | ||
| 84571A - SWITCH, KICK DOWN | ||||
| 84571-33010 |
GXE10,JCE10..LHD..ATM |
1 | ||
| 84610 - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-53010 |
JCE10 |
1 | ||
| 84610-53011 |
JCE10 |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-53010 |
GXE10,JCE10..ATM |
1 | ||
| 84720C - BULB(FOR PATTERN SELECT SWITCH) | ||||
| 84999-10420 |
GXE10,JCE10..ATM 14V 0.84W |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-53030 |
GXE10,JCE10..LHD..ATM |
1 | ||
| 84722E - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-53020 |
JCE10 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-50030 |
JCE10 NO.2 |
1 | ||
| 85420-30240 |
JCE10 NO.1 |
1 | ||
| 85420-30270 |
JCE10 NO.2,AISIN |
1 | ||
| 35250-50010 |
JCE10 NO.1 |
1 | ||
| 85420-30260 |
JCE10 NO.2,DENSO |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 35250-50030 |
JCE10 NO.2 |
1 | ||
| 85420-30240 |
JCE10 NO.1 |
1 | ||
| 85420-30270 |
JCE10 NO.2,AISIN |
1 | ||
| 35250-50010 |
JCE10 NO.1 |
1 | ||
| 85420-30260 |
JCE10 NO.2,DENSO |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
GXE10,JCE10..ATM |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
GXE10,JCE10..ATM |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-50010 |
JCE10 |
2 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-50010 |
JCE10 |
2 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-30040 |
JCE10 |
1 | ||
| Common parts | ||||
| 90105-06261 | ||||
| 90280-03005 | ||||
| 90301-11008 | ||||
| 90520-28009 | ||||
| 91511-C0622 | ||||
| 91611-B0614 | ||||
| 91611-B0616 | ||||
| 96721-24018 | ||||
