JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300

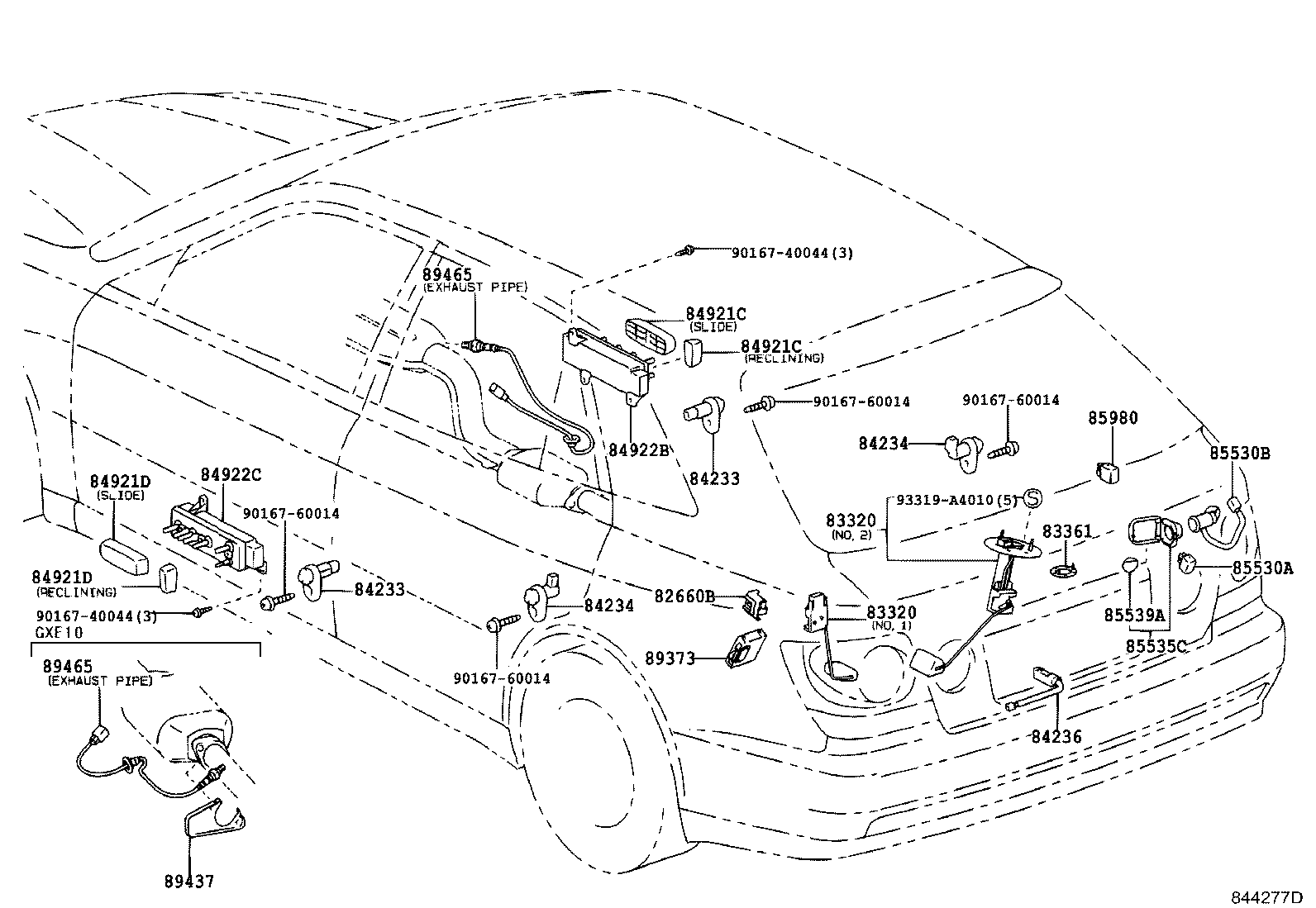

ILLUST NO. 6 OF 6(0107- )WG
ROOF,FLOOR,DOOR,SEAT & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-53010 |
GXE10,JCE10..WG |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-51010 |
GXE10,JCE10 NO.1 |
1 | ||
| 83320-59095 |
GXE10,JCE10 NO.2 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-51010 |
GXE10,JCE10 NO.1 |
1 | ||
| 83320-59095 |
GXE10,JCE10 NO.2 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
GXE10,JCE10 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
GXE10,JCE10 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
GXE10,JCE10 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GXE10,JCE10 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
GXE10,JCE10 |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84230-53010 |
GXE10,JCE10..WG |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24030A1 |
GXE10,JCE10 IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-24030C0 |
GXE10,JCE10 BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-30120A0 |
GXE10,JCE10 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-30120C0 |
GXE10,JCE10 BLACK,TRIM2#,RECLINING |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-24030A1 |
GXE10,JCE10 IVORY,TRIM0#,SLIDE |
1 | ||
| 84921-24030C0 |
GXE10,JCE10 BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-30120A0 |
GXE10,JCE10 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-30120C0 |
GXE10,JCE10 BLACK,TRIM2#,RECLINING |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-30130A0 |
GXE10,JCE10 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-30130C0 |
GXE10,JCE10 BLACK,TRIM2#,RECLINING |
1 | ||
| 84921-24050C0 |
JCE10;GXE10..WG W(LEATHER SEAT),BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-24050A1 |
JCE10;GXE10..WG W(LEATHER SEAT),IVORY,TRIM0#,SLIDE |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-30130A0 |
GXE10,JCE10 IVORY,TRIM0#,RECLINING |
1 | ||
| 84921-30130C0 |
GXE10,JCE10 BLACK,TRIM2#,RECLINING |
1 | ||
| 84921-24050C0 |
JCE10;GXE10..WG W(LEATHER SEAT),BLACK,TRIM2#,SLIDE |
1 | ||
| 84921-24050A1 |
JCE10;GXE10..WG W(LEATHER SEAT),IVORY,TRIM0#,SLIDE |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-30210 |
GXE10,JCE10 |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-30230 |
GXE10,JCE10 |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02020 |
GXE10,JCE10..WG |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-53020 |
GXE10,JCE10..WG |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-53010A0 |
GXE10,JCE10..WG IVORY,TRIM0# |
1 | ||
| 85535-53010C0 |
GXE10,JCE10..WG BLACK,TRIM2# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
GXE10,JCE10..WG |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 90987-04004 |
GXE10,JCE10..WG |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-12150 |
GXE10,JCE10 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-53120 |
JCE10 EXHAUST PIPE |
1 | ||
| 89465-53150 |
JCE10 BANK2 SENSOR1 |
1 | ||
| 89465-53200 |
JCE10..LHD BANK1 SENSOR2 |
1 | ||
| 89465-53190 |
JCE10 EXHAUST PIPE |
1 | ||
| 89465-53210 |
JCE10 BANK1 SENSOR1 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-53120 |
JCE10 EXHAUST PIPE |
1 | ||
| 89465-53150 |
JCE10 BANK2 SENSOR1 |
1 | ||
| 89465-53200 |
JCE10..LHD BANK1 SENSOR2 |
1 | ||
| 89465-53190 |
JCE10 EXHAUST PIPE |
1 | ||
| 89465-53210 |
JCE10 BANK1 SENSOR1 |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90167-60014 | ||||
| 93319-A4010 | ||||
