JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300

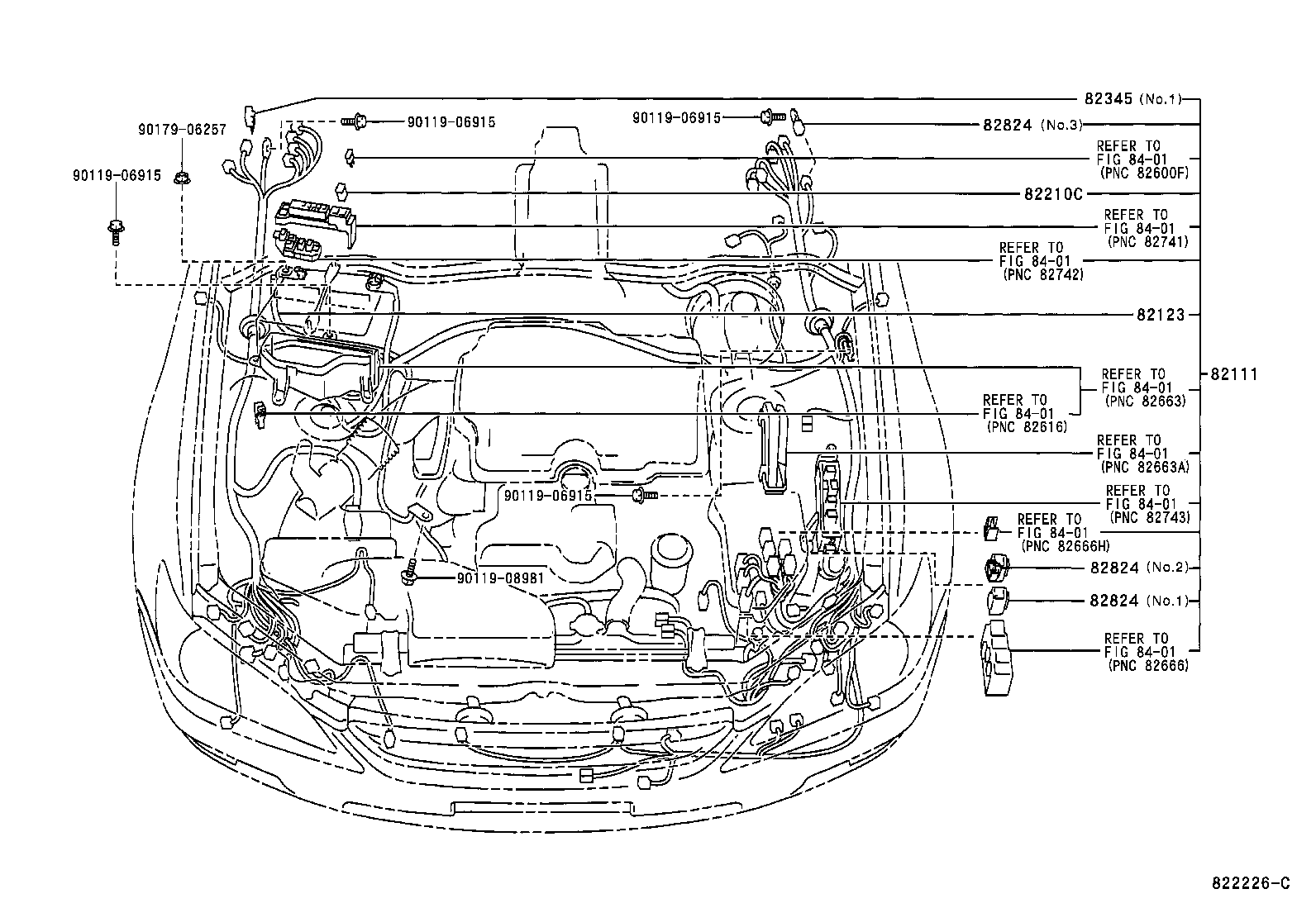

ILLUST NO. 1 OF 9(0107- )JCE10..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-53620 |
JCE10..LHD |
1 | ||
| 82111-53621 |
JCE10..LHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-53041 |
JCE10..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08283 |
GXE10,JCE10 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08202 |
GXE10,JCE10 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08274 |
GXE10,JCE10 120A,TERM.:MALE,WHT |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
GXE10,JCE10 NO.1 |
1 | ||
| 82345-22051 |
GXE10,JCE10 NO.2 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
GXE10,JCE10 NO.2 |
1 | ||
| 82824-12210 |
GXE10,JCE10 NO.1 |
1 | ||
| 82824-20130 |
GXE10,JCE10 NO.3 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
GXE10,JCE10 NO.2 |
1 | ||
| 82824-12210 |
GXE10,JCE10 NO.1 |
1 | ||
| 82824-20130 |
GXE10,JCE10 NO.3 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20110 |
GXE10,JCE10 NO.2 |
1 | ||
| 82824-12210 |
GXE10,JCE10 NO.1 |
1 | ||
| 82824-20130 |
GXE10,JCE10 NO.3 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08981 | ||||
| 90179-06257 | ||||
| Linked diagrams | ||||
| 8401 | ||||

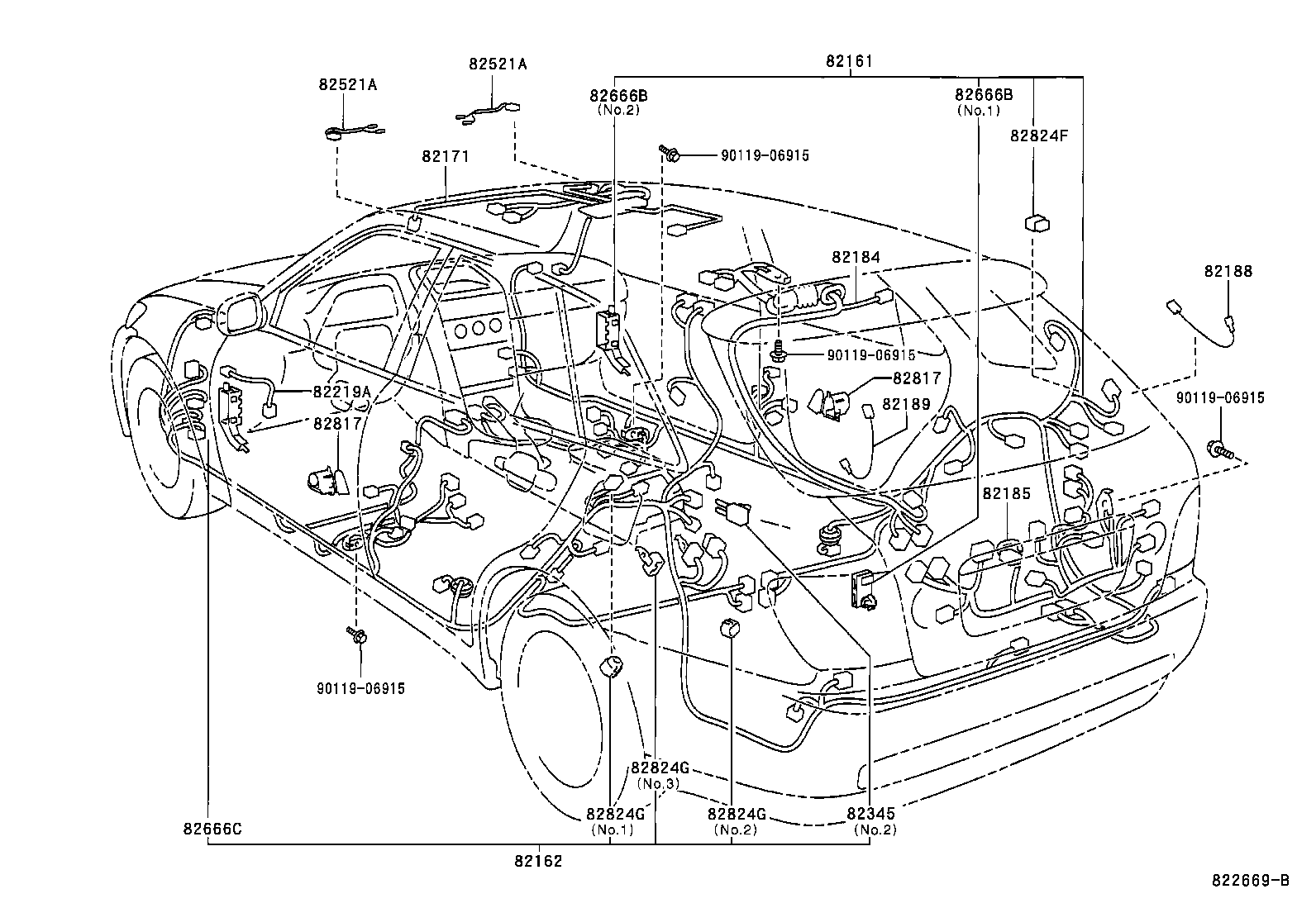

ILLUST NO. 5 OF 9(0107- )LHD..WG
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-53360 |
JCE10..LHD..WG W(ANTI-THEFT DEVICE) |
1 | ||
| 82161-53370 |
JCE10..LHD..WG W(ANTI-THEFT DEVICE) & W(LEATHER-SEAT) |
1 | ||
| 82161-53320 |
JCE10..LHD..WG |
1 | ||
| 82161-53330 |
JCE10..LHD..WG W(LEATHER-SEAT) |
1 | ||
| 82161-53380 |
JCE10..LHD..WG W(GPS NAVIGATION SYSTEM) |
1 | ||
| 82161-53390 |
JCE10..LHD..WG W(GPS NAVIGATION SYSTEM & LEATHER SEAT) |
1 | ||
| 82161-53361 |
GXE10,JCE10..LHD..WG W(ANTI-THEFT DEVICE) |
1 | ||
| 82161-53331 |
JCE10..LHD..WG W(LEATHER-SEAT) |
1 | ||
| 82161-53371 |
GXE10,JCE10..LHD..WG W(ANTI-THEFT DEVICE) & W(LEATHER-SEAT) |
1 | ||
| 82161-53391 |
GXE10,JCE10..LHD..WG W(GPS NAVIGATION SYSTEM & LEATHER SEAT) |
1 | ||
| 82161-53381 |
GXE10,JCE10..LHD..WG W(GPS NAVIGATION SYSTEM) |
1 | ||
| 82161-53321 |
GXE10,JCE10..LHD..WG |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-53430 |
JCE10..LHD..WG |
1 | ||
| 82162-53440 |
JCE10..LHD..WG W(LEATHER-SEAT) |
1 | ||
| 82162-53431 |
GXE10,JCE10..LHD..WG |
1 | ||
| 82162-53441 |
JCE10..LHD..WG W(LEATHER-SEAT) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-53190 |
JCE10..LHD;GXE10..LHD..SED W(INSIDE REAR VIEW MIRROR) & W(SUN ROOF & MOON ROOF) |
1 | ||
| 82171-53160 |
GXE10,JCE10..LHD |
1 | ||
| 82171-53220 |
JCE10..LHD;GXE10..LHD..SED W(ANTI-THEFT DEVICE) & W(INSIDE REAR VIEW MIRROR) |
1 | ||
| 82171-53210 |
GXE10,JCE10..LHD W(ANTI-THEFT DEVICE) & W(SUN ROOF & MOON ROOF) |
1 | ||
| 82171-53230 |
JCE10..LHD;GXE10..LHD..SED W(ANTI-THEFT DEVICE) & W(SUN ROOF & MOON ROOF) & W(INDIDE REAR VIEW MIRROR) |
1 | ||
| 82171-53200 |
GXE10,JCE10..LHD W(ANTI-THEFT DEVICE) |
1 | ||
| 82171-53180 |
JCE10..LHD;GXE10..LHD..SED W(INSIDE REAR VIEW MIRROR) |
1 | ||
| 82171-53170 |
GXE10,JCE10..LHD W(SUN ROOF & MOON ROOF) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-53010 |
GXE10,JCE10..WG |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-53010 |
GXE10,JCE10..WG |
1 | ||
| 82188 - WIRE, FUEL TANK | ||||
| 86101-53170 |
JCE10..WG |
1 | ||
| 82189 - WIRE, BACK DOOR, NO.4 | ||||
| 86101-53180 |
JCE10..WG |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-53011 |
GXE10,JCE10..WG |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
GXE10,JCE10 NO.1 |
1 | ||
| 82345-22051 |
GXE10,JCE10 NO.2 |
1 | ||
| 82521A - WIRE, VANITY LAMP | ||||
| 82521-53020 |
GXE10,JCE10 |
2 | ||
| 82521A - WIRE, VANITY LAMP | ||||
| 82521-53020 |
GXE10,JCE10 |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-53010 |
GXE10,JCE10..SED;GXE10,JCE10..LHD..WG |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-53010 |
GXE10,JCE10..SED;GXE10,JCE10..LHD..WG |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-53040 |
GXE10,JCE10 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3K410 |
GXE10,JCE10 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-3K410 |
GXE10,JCE10 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-22080 |
GXE10,JCE10..LHD..WG W(ANTI-THEFT DEVICE) OR W(GPS NAVIGATION SYSTEM) |
1 | ||
| 82824-20110 |
GXE10,JCE10..LHD..WG |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
GXE10,JCE10..WG NO.3 |
1 | ||
| 82824-22080 |
GXE10,JCE10..LHD..WG NO.1 |
1 | ||
| 82824-20130 |
GXE10,JCE10 NO.2 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
GXE10,JCE10..WG NO.3 |
1 | ||
| 82824-22080 |
GXE10,JCE10..LHD..WG NO.1 |
1 | ||
| 82824-20130 |
GXE10,JCE10 NO.2 |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-52080 |
GXE10,JCE10..WG NO.3 |
1 | ||
| 82824-22080 |
GXE10,JCE10..LHD..WG NO.1 |
1 | ||
| 82824-20130 |
GXE10,JCE10 NO.2 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||

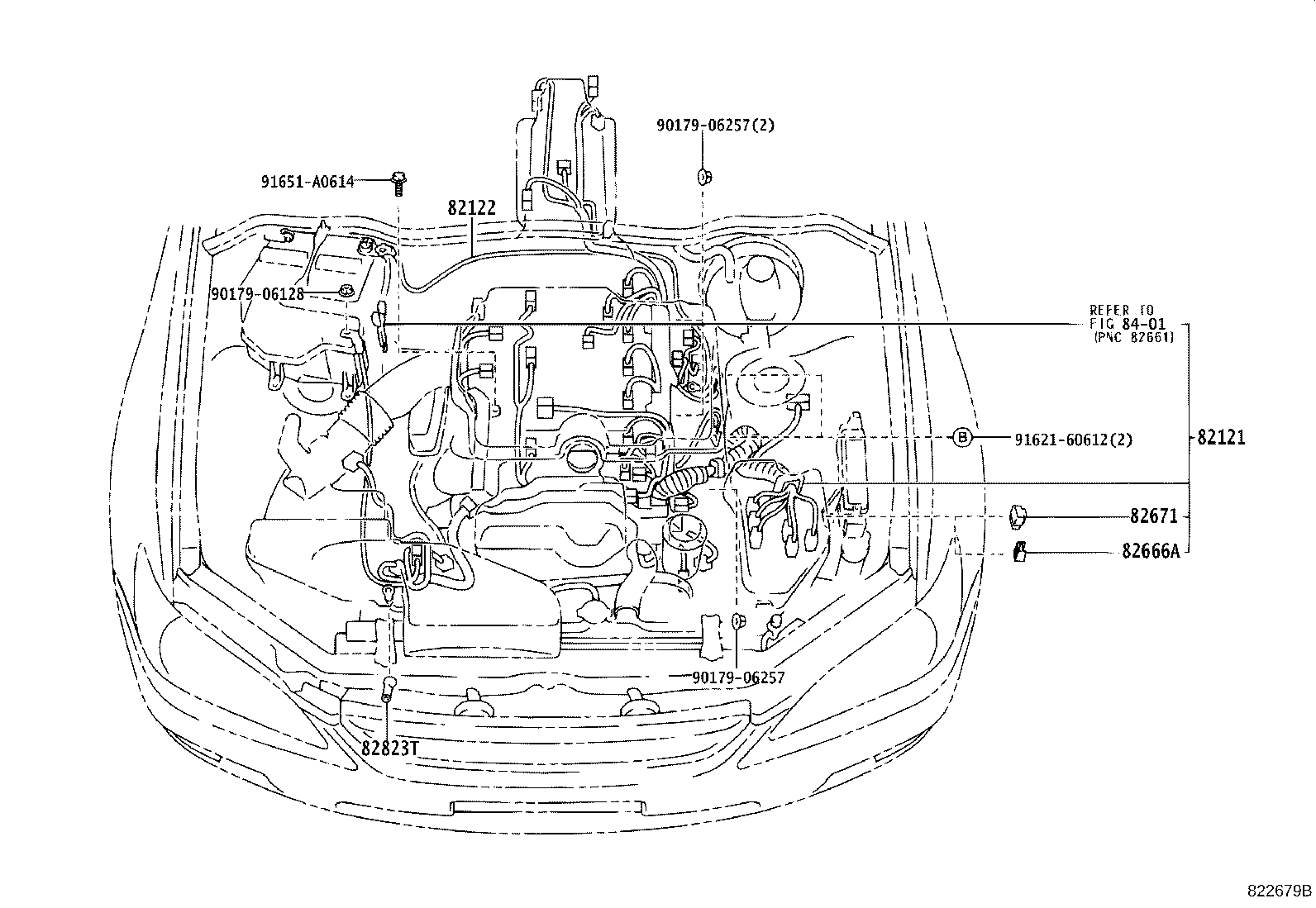

ILLUST NO. 2 OF 9(0107- )JCE10..LHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-53102 |
JCE10..LHD |
1 | ||
| 82121-53101 |
JCE10..LHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-53041 |
JCE10..LHD |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-30670 |
GXE10,JCE10 |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-30340 |
GXE10,JCE10 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-24030 |
JCE10 |
1 | ||
| Common parts | ||||
| 90179-06128 | ||||
| 90179-06257 | ||||
| 91621-60612 | ||||
| 91651-A0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
