Toyota Lexus is200/300 JCE10 FOG LAMP

JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005

Engine 2JZGE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

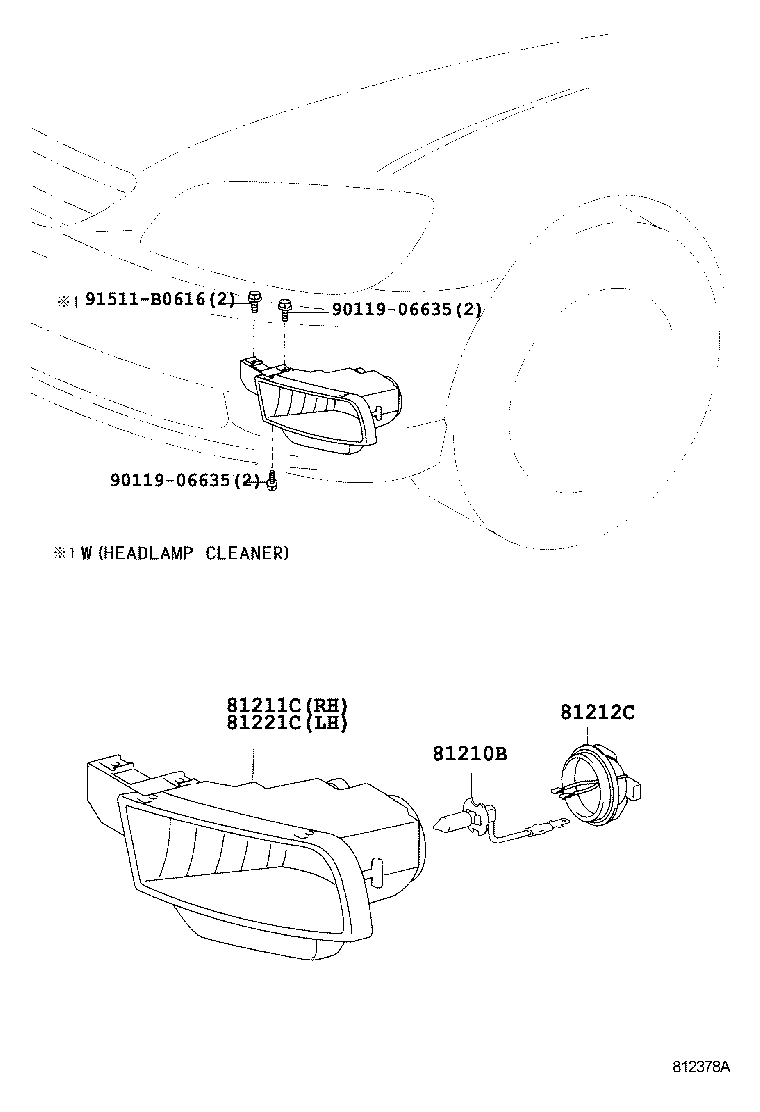

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210B - BULB, FOG LAMP
90981-13018	GXE10,JCE10 12V 55W,HALOGEN	08/2002 - 07/2005	2
90981-13047	GXE10,JCE10 12V 51W,HALOGEN	07/2001 - 08/2002	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-53070	JCE10..WG YELLOW	07/2001 - 08/2002	1
81211-53120	GXE10,JCE10..WG YELLOW	08/2002 - 08/2003	1
81211-53110	GXE10,JCE10..WG WHITE	08/2002 - 08/2003	1
81211-53050	JCE10..WG WHITE	07/2001 - 08/2002	1
81211-53250	GXE10,JCE10..WG YELLOW	08/2003 - 07/2005	1
81211-53240	GXE10,JCE10..WG WHITE	08/2003 - 07/2005	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-53120	GXE10,JCE10..WG YELLOW	08/2002 - 08/2003	1
81221-53050	JCE10..WG WHITE	07/2001 - 08/2002	1
81221-53110	GXE10,JCE10..WG WHITE	08/2002 - 08/2003	1
81221-53070	JCE10..WG YELLOW	07/2001 - 08/2002	1
81221-53240	GXE10,JCE10..WG WHITE	08/2003 - 12/2999	1
81221-53250	GXE10,JCE10..WG YELLOW	08/2003 - 12/2999	1
Common parts
90119-06635
91511-B0616
91651-B0618

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210B - BULB, FOG LAMP
90981-13018	GXE10,JCE10 12V 55W,HALOGEN	08/2002 - 07/2005	2
90981-13047	GXE10,JCE10 12V 51W,HALOGEN	07/2001 - 08/2002	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-53070	JCE10..WG YELLOW	07/2001 - 08/2002	1
81211-53120	GXE10,JCE10..WG YELLOW	08/2002 - 08/2003	1
81211-53110	GXE10,JCE10..WG WHITE	08/2002 - 08/2003	1
81211-53050	JCE10..WG WHITE	07/2001 - 08/2002	1
81211-53250	GXE10,JCE10..WG YELLOW	08/2003 - 07/2005	1
81211-53240	GXE10,JCE10..WG WHITE	08/2003 - 07/2005	1
81212C - COVER, FOG LAMP
90075-66005	GXE10,JCE10..WG	08/2002 - 07/2005	2
81221C - LAMP UNIT, FOG LAMP, LH
81221-53120	GXE10,JCE10..WG YELLOW	08/2002 - 08/2003	1
81221-53050	JCE10..WG WHITE	07/2001 - 08/2002	1
81221-53110	GXE10,JCE10..WG WHITE	08/2002 - 08/2003	1
81221-53070	JCE10..WG YELLOW	07/2001 - 08/2002	1
81221-53240	GXE10,JCE10..WG WHITE	08/2003 - 12/2999	1
81221-53250	GXE10,JCE10..WG YELLOW	08/2003 - 12/2999	1
Common parts
90119-06635
91511-B0616
