JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300
Production
Jul 2001
-
Jul 2005
Engine
2JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

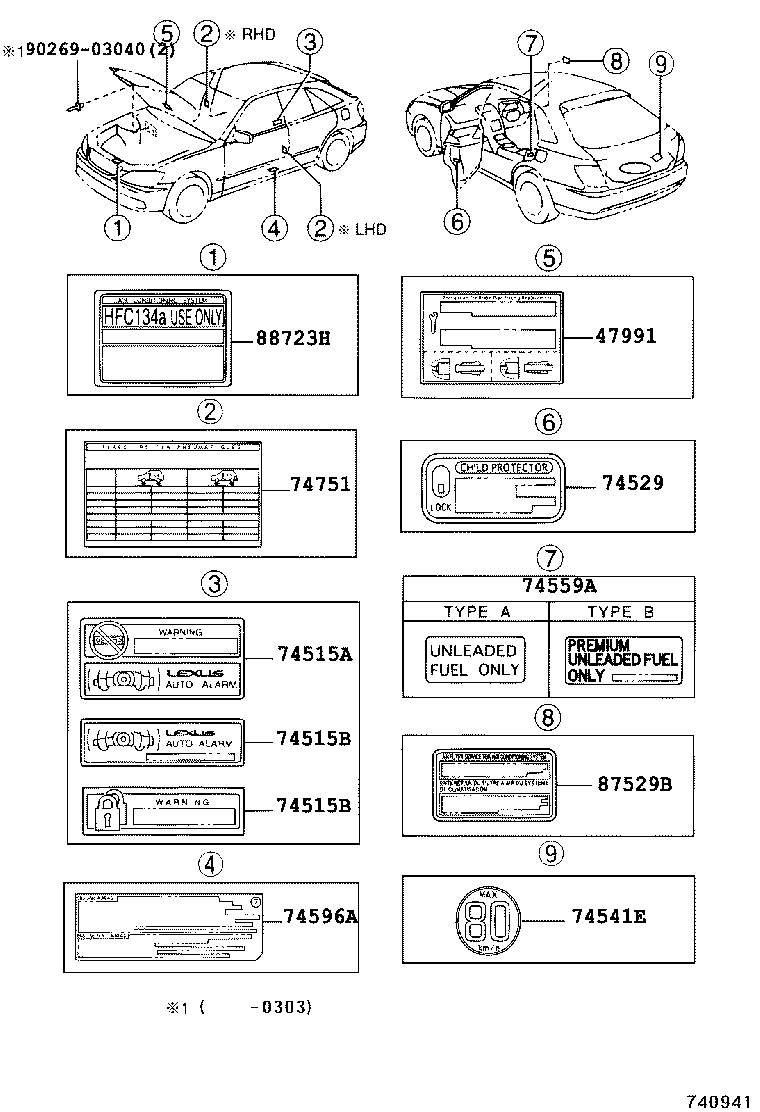

ILLUST NO. 1 OF 2(0107- )WG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47991 - LABEL, BRAKE TUBE INFORMATION | ||||
| 47991-33010 |
GXE10,JCE10 |
1 | ||
| 74515A - PLATE, THEFT WARNING | ||||
| 74515-53020 |
GXE10..MTM..EUR;GXE10,JCE10..ATM |
2 | ||
| 74515-53020 |
GXE10,JCE10..EUR |
2 | ||
| 74515-53020 |
GXE10,JCE10..EUR |
2 | ||
| 74515B - PLATE, THEFT WARNING | ||||
| 74515-20010 |
GXE10,JCE10..LHD W(DOUBLE-LOCK) |
2 | ||
| 74515-50020 |
GXE10,JCE10..ARL;GXE10,JCE10..LHD |
2 | ||
| 74515B - PLATE, THEFT WARNING | ||||
| 74515-20010 |
GXE10,JCE10..LHD W(DOUBLE-LOCK) |
2 | ||
| 74515-50020 |
GXE10,JCE10..ARL;GXE10,JCE10..LHD |
2 | ||
| 74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION | ||||
| 69339-12010 |
GXE10,JCE10 |
2 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-20020 |
JCE10..WG |
1 | ||
| 74559A - PLATE, FUEL CAUTION | ||||
| 74559-14050 |
GXE10,JCE10 UNLEADED FUEL |
1 | ||
| 74596A - LABEL, SIDE AIR BAG CAUTION | ||||
| 74596-12011 |
GXE10,JCE10 |
2 | ||
| 74751 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-53110 |
JCE10..WG |
1 | ||
| 87529B - LABEL, A/C FILTER INFORMATION | ||||
| 87529-50010 |
GXE10,JCE10 |
1 | ||
| 88723H - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-28220 |
GXE10,JCE10 |
1 | ||
| Common parts | ||||
| 90269-03040 | ||||

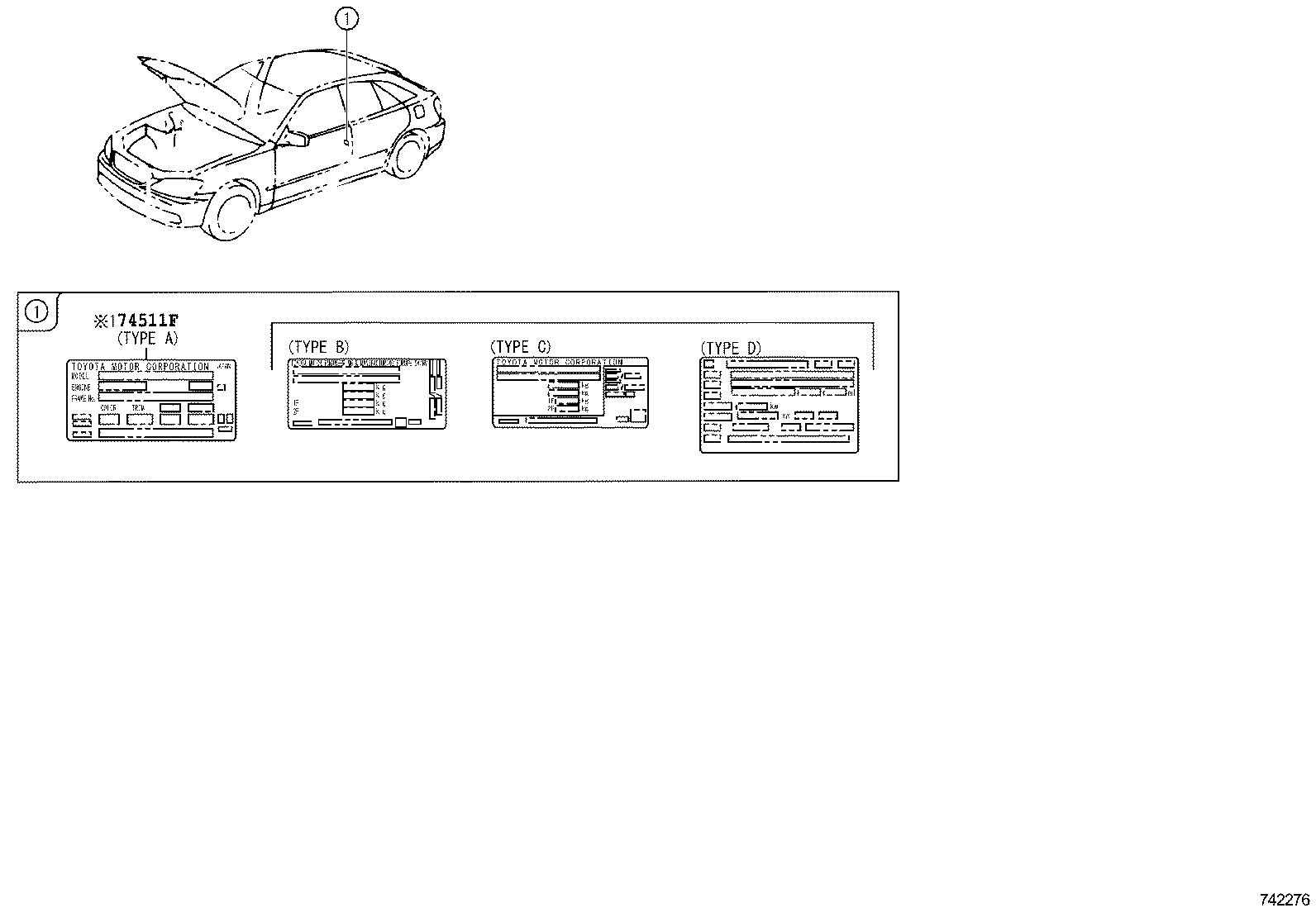

ILLUST NO. 2 OF 2(0302- )WG
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-48010 |
GXE10,JCE10..EUR *111,TYPE B:REFER ILLUST. |
1 | ||
| 74511-48020 |
GXE10,JCE10..EUR *111,TYPE C:REFER ILLUST. |
1 | ||
