JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )WG

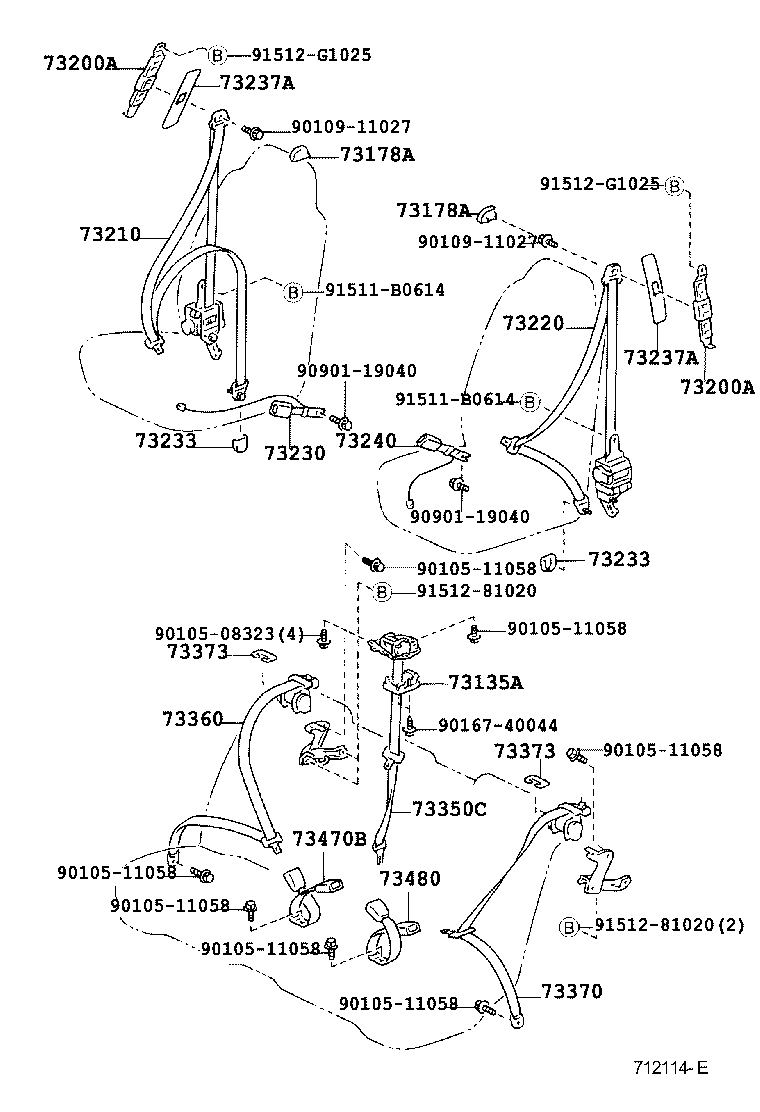

Click highlighted areas on diagram

diagram 73135A 73178A 73178A 73200A 73200A 73210 73220 73230 73233 73233 73237A 73237A 73240 73350C 73360 73370 73373 73373 73470B 73480 9010508323 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010911027 9010911027 9016740044 9090119040 9090119040 91511B0614 91511B0614 9151281020 9151281020 91512G1025 91512G1025
Part # Description Qty Price
73135A - COVER, SHOULDER BELT ANCHOR, RH
73137-53010A0

GXE10,JCE10..WG

IVORY,TRIM0#

 1
73137-53010B0

GXE10,JCE10..WG

MD.CHARCOAL,TRIM2#

 1
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020A1

GXE10,JCE10

IVORY,TRIM0#

 2
73178-33020B1

GXE10,JCE10

MD.CHARCOAL,TRIM2#

 2
73178A - CAP, SEAT BELT ANCHOR COVER
73178-33020A1

GXE10,JCE10

IVORY,TRIM0#

 2
73178-33020B1

GXE10,JCE10

MD.CHARCOAL,TRIM2#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-33020A1

GXE10,JCE10

IVORY,TRIM0#

 2
73200-33020B2

GXE10,JCE10

MD.CHARCOAL,TRIM2#

 2
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-33020A1

GXE10,JCE10

IVORY,TRIM0#

 2
73200-33020B2

GXE10,JCE10

MD.CHARCOAL,TRIM2#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73203-53060A0

GXE10,JCE10

IVORY,TRIM0#

 1
73203-53060C0

GXE10,JCE10

BLACK,TRIM2#

 1
73203-53061C0

GXE10,JCE10

BLACK,TRIM2#

 1
73203-53061A0

GXE10,JCE10

IVORY,TRIM0#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73204-53051A0

GXE10,JCE10

IVORY,TRIM0#

 1
73204-53050A0

GXE10,JCE10

IVORY,TRIM0#

 1
73204-53050C0

GXE10,JCE10

BLACK,TRIM2#

 1
73204-53051C0

GXE10,JCE10

BLACK,TRIM2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-53050C0

GXE10,JCE10..LHD

BLACK,TRIM2#

 1
73230-53060C0

GXE10,JCE10..LHD

W(POWER SEAT),BLACK,TRIM2#

 1
73230-53111C0

GXE10,JCE10..LHD

BLACK,TRIM2#

 1
73230-53050A0

GXE10,JCE10..LHD

IVORY,TRIM0#

 1
73230-53111A0

GXE10,JCE10..LHD

IVORY,TRIM0#

 1
73230-53060A0

GXE10,JCE10..LHD

W(POWER SEAT),IVORY,TRIM0#

 1
73230-53121A0

GXE10,JCE10..LHD

W(POWER SEAT),IVORY,TRIM0#

 1
73230-53121C0

GXE10,JCE10..LHD

W(POWER SEAT),BLACK,TRIM2#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010C0

GXE10,JCE10

BLACK,TRIM2#

 2
73233-33010A1

GXE10,JCE10

IVORY,TRIM0#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-33010C0

GXE10,JCE10

BLACK,TRIM2#

 2
73233-33010A1

GXE10,JCE10

IVORY,TRIM0#

 2
73237A - COVER, SHOULDER BELT ANCHOR
73237-33010B2

GXE10,JCE10

MD.CHARCOAL,TRIM2#

 2
73237-33010A1

GXE10,JCE10

IVORY,TRIM0#

 2
73237A - COVER, SHOULDER BELT ANCHOR
73237-33010B2

GXE10,JCE10

MD.CHARCOAL,TRIM2#

 2
73237-33010A1

GXE10,JCE10

IVORY,TRIM0#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-53081A0

GXE10,JCE10..LHD

W(POWER SEAT),IVORY,TRIM0#

 1
73230-53011C0

GXE10,JCE10..LHD

BLACK,TRIM2#

 1
73230-53071C0

GXE10,JCE10..LHD

BLACK,TRIM2#

 1
73230-53081C0

GXE10,JCE10..LHD

W(POWER SEAT),BLACK,TRIM2#

 1
73230-53011A0

GXE10,JCE10..LHD

IVORY,TRIM0#

 1
73230-53071A0

GXE10,JCE10..LHD

IVORY,TRIM0#

 1
73230-53021A0

GXE10,JCE10..LHD

W(POWER SEAT),IVORY,TRIM0#

 1
73230-53021C0

GXE10,JCE10..LHD

W(POWER SEAT),BLACK,TRIM2#

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-53010C0

GXE10,JCE10..WG

BLACK,TRIM2#

 1
73350-53010A0

GXE10,JCE10..WG

IVORY,TRIM0#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-53040A0

GXE10,JCE10..WG

IVORY,TRIM0#

 1
73360-53030C0

GXE10,JCE10..WG

BLACK,TRIM2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-53030C0

GXE10,JCE10..WG

BLACK,TRIM2#

 1
73360-53040A0

GXE10,JCE10..WG

IVORY,TRIM0#

 1
73373 - COVER, REAR SEAT SHOULDER BELT
73373-33010A1

GXE10,JCE10..WG

IVORY,TRIM0#

 2
73373-33010C0

GXE10,JCE10..WG

BLACK,TRIM2#

 2
73373 - COVER, REAR SEAT SHOULDER BELT
73373-33010A1

GXE10,JCE10..WG

IVORY,TRIM0#

 2
73373-33010C0

GXE10,JCE10..WG

BLACK,TRIM2#

 2
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-53040A0

GXE10,JCE10..WG

IVORY,TRIM0#

 1
73470-53040C0

GXE10,JCE10..WG

BLACK,TRIM2#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-53010C0

GXE10,JCE10

BLACK,TRIM2#

 1
73480-53010A0

GXE10,JCE10

IVORY,TRIM0#

 1
Common parts
90105-08323
90105-11058
90109-11027
90167-40044
90901-19040
91511-B0614
91512-81020
91512-G1025
