JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300
(0107- )WG

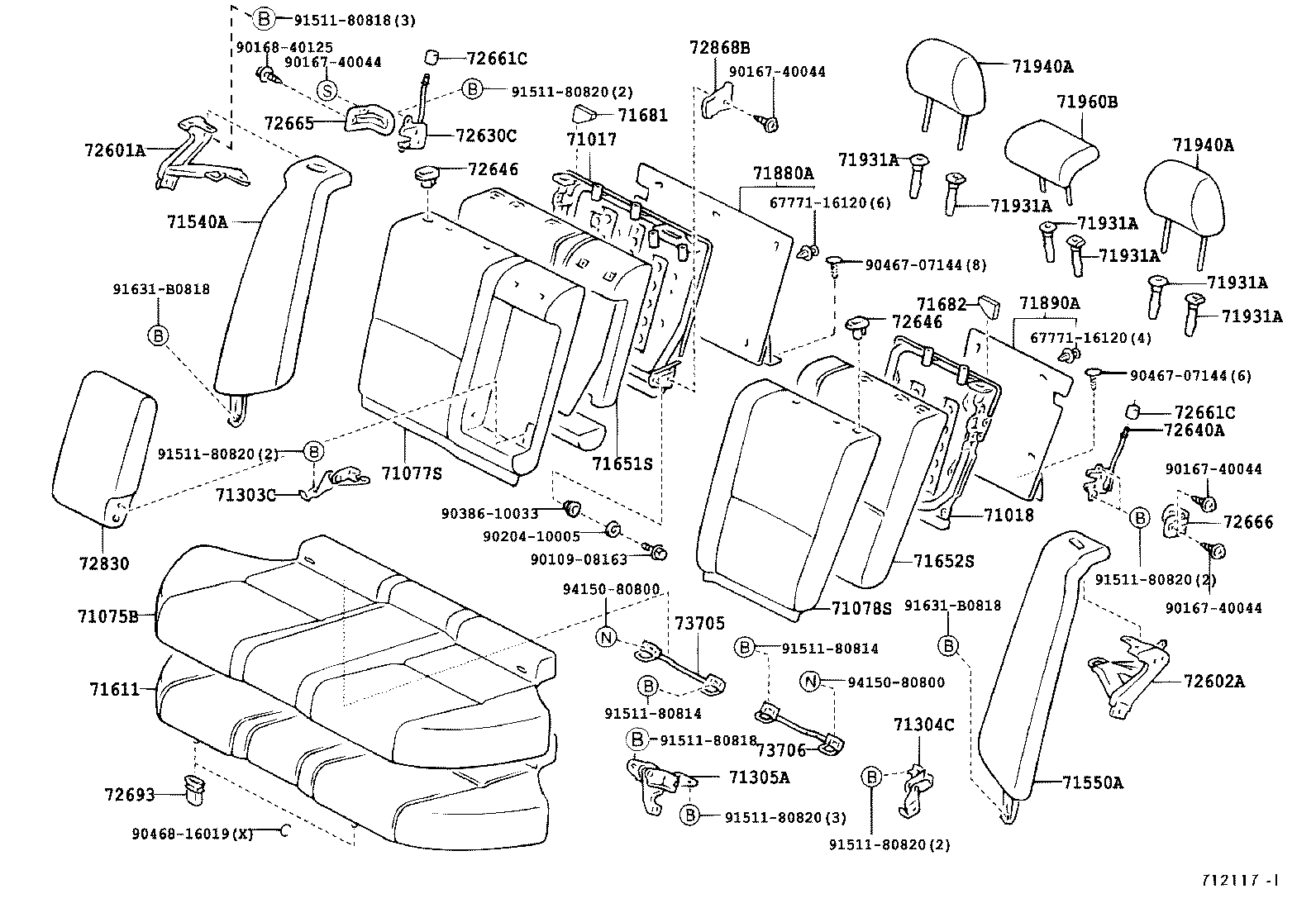

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-53050 |
GXE10,JCE10..WG |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-53010 |
GXE10,JCE10..WG |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-53100A1 |
JCE10..WG SEAT = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71075-53090C1 |
JCE10..WG SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71075-53090A1 |
JCE10..WG SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71075-53080A2 |
JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71075-53100C1 |
JCE10..WG SEAT = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71075-53091A2 |
JCE10..WG SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71075-53080C2 |
JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71075-53091C2 |
GXE10,JCE10..WG SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71075-53091A2 |
GXE10,JCE10..WG SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71075-53091C2 |
JCE10..WG SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71075-53080A2 |
GXE10,JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71075-53101A2 |
GXE10,JCE10..WG SEAT = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71075-53101C2 |
JCE10..WG SEAT = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71075-53101C2 |
GXE10,JCE10..WG SEAT = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71075-53093A2 |
GXE10,JCE10..WG SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71075-53103A2 |
GXE10,JCE10..WG SEAT = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71075-53080C2 |
GXE10,JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71075-53082A2 |
GXE10,JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71075-53093C2 |
GXE10,JCE10..WG SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71075-53082C2 |
GXE10,JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71075-53103C2 |
GXE10,JCE10..WG SEAT = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71075-53101A2 |
JCE10..WG SEAT = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-53150A1 |
JCE10..WG SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71077-53140A2 |
JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71077-53160A2 |
JCE10..WG SEAT = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71077-53150C1 |
JCE10..WG SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71077-53140C2 |
JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71077-53160C2 |
GXE10,JCE10..WG SEAT = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71077-53160A2 |
GXE10,JCE10..WG SEAT = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71077-53140C2 |
GXE10,JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71077-53150C2 |
GXE10,JCE10..WG SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71077-53160C2 |
JCE10..WG SEAT = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71077-53140A2 |
GXE10,JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71077-53150A2 |
GXE10,JCE10..WG SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-53010C2 |
JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71078-53010A2 |
JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71078-53030C2 |
JCE10..WG SEAT = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71078-53020C1 |
JCE10..WG SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71078-53020A1 |
JCE10..WG SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71078-53010A2 |
GXE10,JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71078-53010C2 |
GXE10,JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71078-53030C2 |
GXE10,JCE10..WG SEAT = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71078-53020C2 |
GXE10,JCE10..WG SEAT = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71078-53030A2 |
JCE10..WG SEAT = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71078-53030A2 |
GXE10,JCE10..WG SEAT = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71078-53020A2 |
GXE10,JCE10..WG SEAT = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-53010 |
GXE10,JCE10..WG |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-53010 |
GXE10,JCE10..WG |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-53010 |
GXE10,JCE10..WG |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-53010A0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71540-53010A0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71540-53020A0 |
GXE10,JCE10..WG SEAT = TYPE B OR TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71540-53010C0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71540-53020A0 |
GXE10,JCE10..WG SEAT = TYPE B OR TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71540-53020C0 |
GXE10,JCE10..WG SEAT = TYPE B OR TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71540-53020C0 |
GXE10,JCE10..WG SEAT = TYPE B OR TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71540-53010C0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-53010A0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71550-53020A0 |
GXE10,JCE10..WG SEAT = TYPE B OR TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71550-53020C0 |
GXE10,JCE10..WG SEAT = TYPE B OR TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71550-53010C0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71550-53020A0 |
GXE10,JCE10..WG SEAT = TYPE B OR TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71550-53010C0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71550-53010A0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71550-53020C0 |
GXE10,JCE10..WG SEAT = TYPE B OR TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-53020 |
GXE10,JCE10..WG |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-53020 |
GXE10,JCE10..WG |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-53011 |
GXE10,JCE10..WG |
1 | ||
| 71652-53010 |
JCE10..WG |
1 | ||
| 71681 - PAD, REAR SEAT BACK CORNER, A | ||||
| 71681-53010 |
GXE10,JCE10..WG |
1 | ||
| 71682 - PAD, REAR SEAT BACK CORNER, B | ||||
| 71682-53010 |
GXE10,JCE10..WG |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-53010C0 |
GXE10,JCE10..WG BLACK,TRIM2# |
1 | ||
| 71880-53011C0 |
GXE10,JCE10..WG BLACK,TRIM2# |
1 | ||
| 71880-53021A0 |
GXE10,JCE10..WG IVORY,TRIM0# |
1 | ||
| 71880-53020A0 |
GXE10,JCE10..WG IVORY,TRIM0# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-53021A0 |
GXE10,JCE10..WG IVORY,TRIM0# |
1 | ||
| 71890-53011C0 |
GXE10,JCE10..WG BLACK,TRIM2# |
1 | ||
| 71890-53010C0 |
GXE10,JCE10..WG BLACK,TRIM2# |
1 | ||
| 71890-53020A0 |
GXE10,JCE10..WG IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010C0 |
GXE10,JCE10 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-44010A1 |
GXE10,JCE10 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71931-32020C0 |
GXE10,JCE10 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-32020A1 |
GXE10,JCE10 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010C0 |
GXE10,JCE10 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-44010A1 |
GXE10,JCE10 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71931-32020C0 |
GXE10,JCE10 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-32020A1 |
GXE10,JCE10 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010C0 |
GXE10,JCE10 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-44010A1 |
GXE10,JCE10 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71931-32020C0 |
GXE10,JCE10 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-32020A1 |
GXE10,JCE10 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010C0 |
GXE10,JCE10 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-44010A1 |
GXE10,JCE10 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71931-32020C0 |
GXE10,JCE10 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-32020A1 |
GXE10,JCE10 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010C0 |
GXE10,JCE10 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-44010A1 |
GXE10,JCE10 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71931-32020C0 |
GXE10,JCE10 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-32020A1 |
GXE10,JCE10 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-44010C0 |
GXE10,JCE10 W(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-44010A1 |
GXE10,JCE10 W(LOCK),IVORY,TRIM0# |
3 | ||
| 71931-32020C0 |
GXE10,JCE10 W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-32020A1 |
GXE10,JCE10 W/O(LOCK),IVORY,TRIM0# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-53010C0 |
GXE10,JCE10 SEAT = TYPE A-*104,BLACK,TRIM2# |
2 | ||
| 71940-53010A1 |
GXE10,JCE10 SEAT = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71940-53030C1 |
GXE10,JCE10 SEAT = TYPE B OR TYPE C-*104,BLACK,TRIM2# |
2 | ||
| 71940-53030A1 |
JCE10;GXE10..WG SEAT = TYPE B OR TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-53010C0 |
GXE10,JCE10 SEAT = TYPE A-*104,BLACK,TRIM2# |
2 | ||
| 71940-53010A1 |
GXE10,JCE10 SEAT = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71940-53030C1 |
GXE10,JCE10 SEAT = TYPE B OR TYPE C-*104,BLACK,TRIM2# |
2 | ||
| 71940-53030A1 |
JCE10;GXE10..WG SEAT = TYPE B OR TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-53040A0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71960-53040C0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71960-53050A0 |
GXE10,JCE10..WG SEAT = TYPE B OR TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71960-53050C0 |
GXE10,JCE10..WG SEAT = TYPE B OR TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-53010 |
GXE10,JCE10..WG |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-53010 |
GXE10,JCE10..WG |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-53010 |
GXE10,JCE10..WG |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-53010 |
GXE10,JCE10..WG |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-53010A0 |
GXE10,JCE10..WG IVORY,TRIM0# |
2 | ||
| 72646-53010C0 |
GXE10,JCE10..WG BLACK,TRIM2# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-53010A0 |
GXE10,JCE10..WG IVORY,TRIM0# |
2 | ||
| 72646-53010C0 |
GXE10,JCE10..WG BLACK,TRIM2# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-13030C0 |
GXE10,JCE10..WG BLACK,TRIM2# |
2 | ||
| 72661-13030A0 |
GXE10,JCE10..WG IVORY,TRIM0# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-13030C0 |
GXE10,JCE10..WG BLACK,TRIM2# |
2 | ||
| 72661-13030A0 |
GXE10,JCE10..WG IVORY,TRIM0# |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-53010A0 |
GXE10,JCE10..WG IVORY,TRIM0# |
1 | ||
| 72665-53010C0 |
GXE10,JCE10..WG BLACK,TRIM2# |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-53010C0 |
GXE10,JCE10..WG BLACK,TRIM2# |
1 | ||
| 72666-53010A0 |
GXE10,JCE10..WG IVORY,TRIM0# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-20060 |
GXE10,JCE10 |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-53040A0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 72830-53040C0 |
GXE10,JCE10..WG SEAT = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 72830-53050A0 |
JCE10..WG LEATHER,IVORY,TRIM0# |
1 | ||
| 72830-53050C0 |
JCE10..WG LEATHER,BLACK,TRIM2# |
1 | ||
| 72868B - COVER, CENTER ARMREST HINGE | ||||
| 72868-53010A1 |
JCE10..WG IVORY,TRIM00 |
1 | ||
| 72868-53010C1 |
JCE10..WG BLACK,TRIM20 |
1 | ||
| 72868-53010C1 |
GXE10,JCE10..WG BLACK,TRIM2# |
1 | ||
| 72868-53010A1 |
GXE10,JCE10..WG IVORY,TRIM0# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-53010 |
GXE10,JCE10 |
1 | ||
| 73705-53011 |
GXE10,JCE10 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-53010 |
GXE10,JCE10 |
1 | ||
| 73706-53011 |
GXE10,JCE10 |
1 | ||
| Common parts | ||||
| 67771-16120 | ||||
| 90109-08163 | ||||
| 90167-40044 | ||||
| 90168-40125 | ||||
| 90204-10005 | ||||
| 90386-10033 | ||||
| 90467-07144 | ||||
| 90468-16019 | ||||
| 91511-80814 | ||||
| 91511-80818 | ||||
| 91511-80820 | ||||
| 91631-B0818 | ||||
| 94150-80800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
