JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )WG

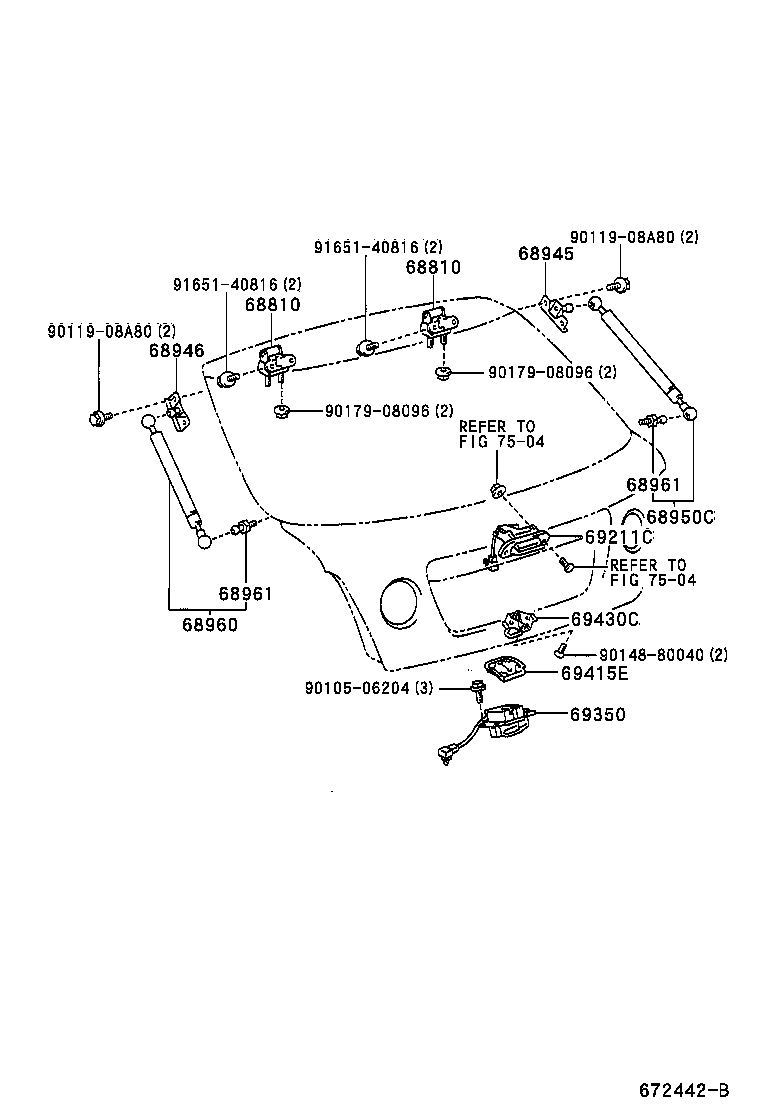

Click highlighted areas on diagram

diagram 68810 68810 68945 68946 68950C 68960 68961 68961 69211C 69350 69415E 69430C 7504 7504 9010506204 9011908A80 9011908A80 9014880040 9017908096 9017908096 9165140816 9165140816
Part # Description Qty Price
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-53010

GXE10,JCE10..WG

 2
68810 - HINGE ASSY, BACK DOOR, UPPER
68810-53010

GXE10,JCE10..WG

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-53020

GXE10,JCE10..WG

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68945-53020

GXE10,JCE10..WG

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-80113

GXE10,JCE10..WG

 1
68950-80110

GXE10,JCE10..WG

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-80068

GXE10,JCE10..WG

 1
68960-80065

GXE10,JCE10..WG

 1
68961 - BOLT, BACK DOOR STAY
68961-40010

GXE10,JCE10..WG

 2
68961 - BOLT, BACK DOOR STAY
68961-40010

GXE10,JCE10..WG

 2
69211C - HANDLE, BACK DOOR OUTSIDE
69023-53010

GXE10,JCE10..WG

 1
69350 - LOCK ASSY, BACK DOOR
69350-53010

GXE10,JCE10..WG

 1
69415E - COVER, BACK DOOR LOCK STRIKER
69415-53010C0

GXE10,JCE10..WG

BLACK,TRIM2#

 1
69415-53010A0

GXE10,JCE10..WG

IVORY,TRIM0#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-53010

GXE10,JCE10..WG

 1
Common parts
90105-06204
90119-08A80
90148-80040
90179-08096
91651-40816
Linked diagrams
7504
