JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

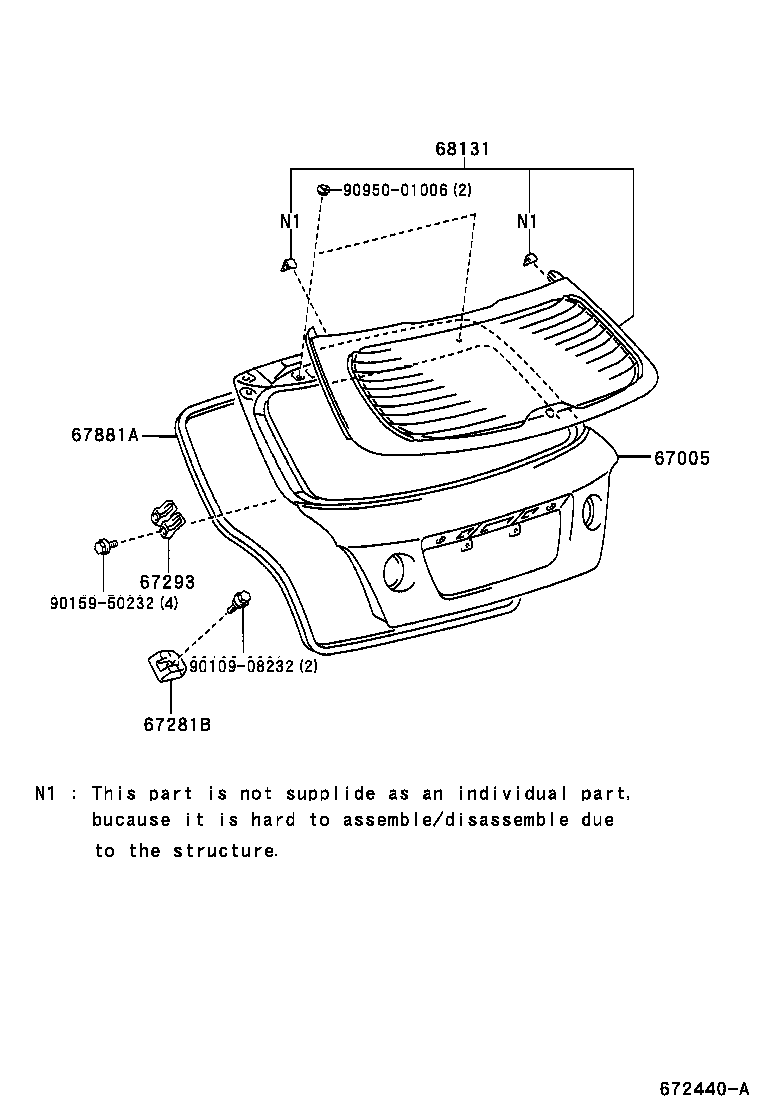

ILLUST NO. 2 OF 2(0107- )WG

Click highlighted areas on diagram

diagram 67005 67281B 67293 67881A 68131 9010908232 9015950232 9095001006
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-53020

GXE10,JCE10..WG

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-12061

GXE10,JCE10..WG

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-13030

GXE10,JCE10..WG

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-53010

GXE10,JCE10..WG

 1
67881-53011

GXE10,JCE10..WG

 1
68131 - GLASS, BACK DOOR
68105-53080

GXE10,JCE10..LHD..WG

*TT,T=3.5DK.GREEN

 1
68105-53070

GXE10,JCE10..LHD..WG

*UVCTT,T=3.5,GREEN

 1
68105-53081

GXE10,JCE10..LHD..WG

*TT,T=3.5DK.GREEN

 1
68105-53071

GXE10,JCE10..LHD..WG

*UVCTT,T=3.5,GREEN

 1
Common parts
90109-08232
90159-50232
90950-01006

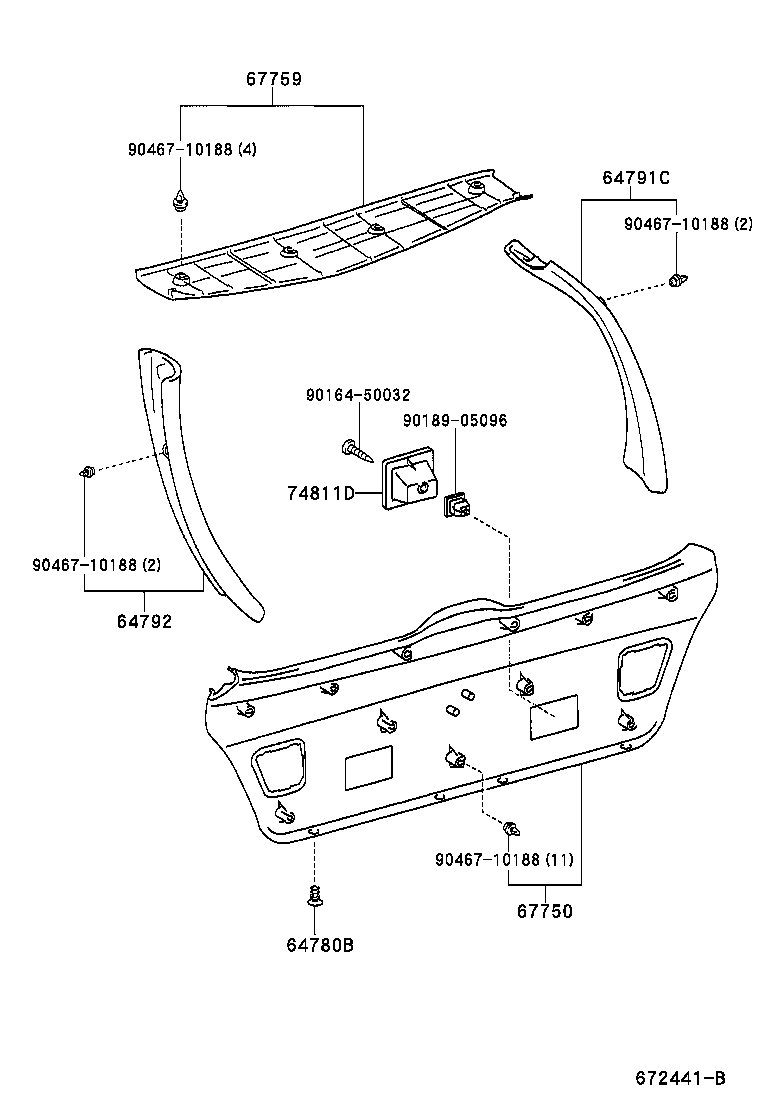

ILLUST NO. 1 OF 2(0107- )WG

Click highlighted areas on diagram

diagram 64780B 64791C 64792 67750 67759 74811D 9016450032 9018905096 9046710188 9046710188 9046710188 9046710188
Part # Description Qty Price
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-07090C4

GXE10,JCE10..WG

BLACK,TRIM2#

 4
90467-07090A0

GXE10,JCE10..WG

IVORY,TRIM0#

 4
64791C - COVER, BACK DOOR TRIM, RH
64791-53010B0

GXE10,JCE10..WG

MD.CHARCOAL,TRIM2#

 1
64791-53010A0

GXE10,JCE10..WG

IVORY,TRIM0#

 1
64792 - COVER, BACK DOOR TRIM, LH
64792-53010A0

GXE10,JCE10..WG

IVORY,TRIM0#

 1
64792-53010B0

GXE10,JCE10..WG

MD.CHARCOAL,TRIM2#

 1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-53010C0

GXE10,JCE10..WG

BLACK,TRIM2#

 1
67750-53010A0

GXE10,JCE10..WG

IVORY,TRIM0#

 1
67759 - BOARD, BACK DOOR TRIM, UPPER
67759-53010B0

GXE10,JCE10..WG

MD.CHARCOAL,TRIM2#

 1
67759-53010A0

GXE10,JCE10..WG

IVORY,TRIM0#

 1
74811D - HANDLE, DOOR PULL
74811-53010C0

GXE10,JCE10..WG

BLACK,TRIM2#

 1
74811-53010A0

GXE10,JCE10..WG

IVORY,TRIM0#

 1
Common parts
90164-50032
90189-05096
90467-10188
