JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300

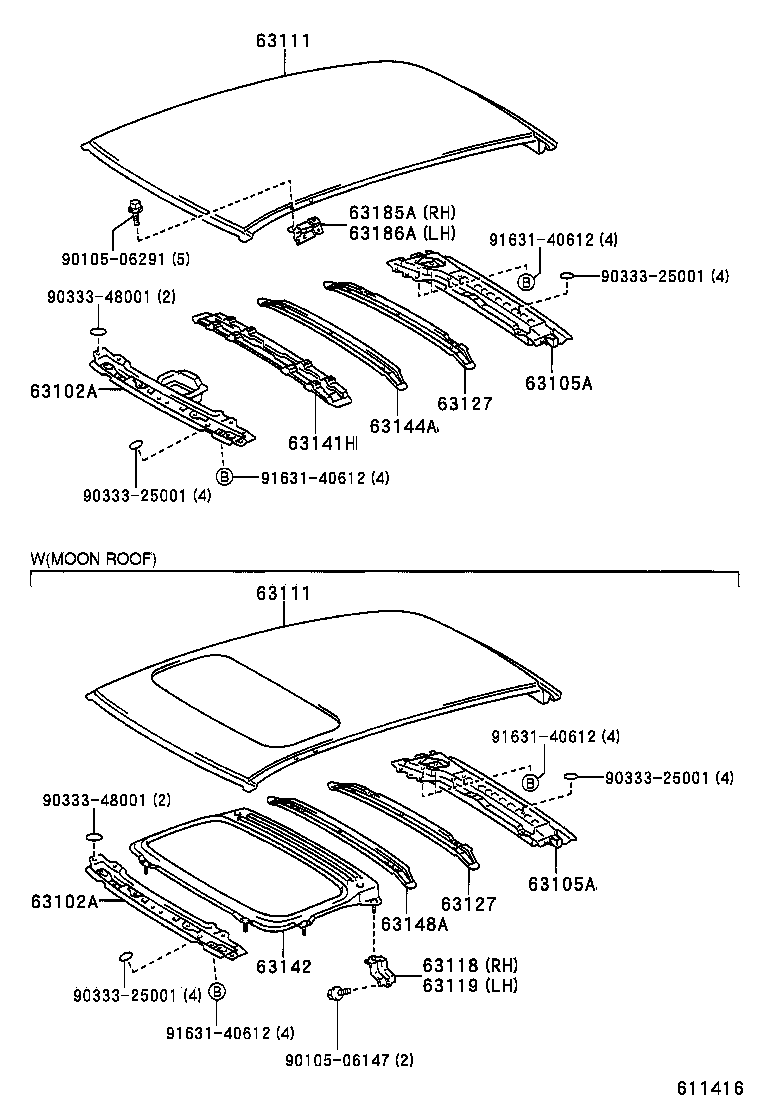

ILLUST NO. 1 OF 2(0107- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-53900 |
GXE10,JCE10 |
1 | ||
| 63102-53901 |
GXE10,JCE10 W(MOON ROOF) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-53900 |
GXE10,JCE10 |
1 | ||
| 63102-53901 |
GXE10,JCE10 W(MOON ROOF) |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-53010 |
GXE10,JCE10..WG |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-53010 |
GXE10,JCE10..WG |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-53040 |
GXE10,JCE10..WG W(MOON ROOF) |
1 | ||
| 63111-53030 |
GXE10,JCE10..WG |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-53040 |
GXE10,JCE10..WG W(MOON ROOF) |
1 | ||
| 63111-53030 |
GXE10,JCE10..WG |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-53010 |
GXE10,JCE10 |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-53010 |
GXE10,JCE10 |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-53010 |
GXE10,JCE10..WG |
1 | ||
| 63127 - REINFORCEMENT, ROOF PANEL, NO.5 | ||||
| 63127-53010 |
GXE10,JCE10..WG |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-53010 |
GXE10,JCE10 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-22070 |
GXE10,JCE10 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-53010 |
GXE10,JCE10 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-53010 |
GXE10,JCE10 |
1 | ||
| 63185A - BRACKET, ROOF RACK, FRONT RH | ||||
| 63185-53010 |
GXE10,JCE10..WG |
1 | ||
| 63186A - BRACKET, ROOF RACK, FRONT LH | ||||
| 63186-53010 |
GXE10,JCE10..WG |
1 | ||
| Common parts | ||||
| 90105-06147 | ||||
| 90105-06291 | ||||
| 90333-25001 | ||||
| 90333-48001 | ||||
| 91631-40612 | ||||

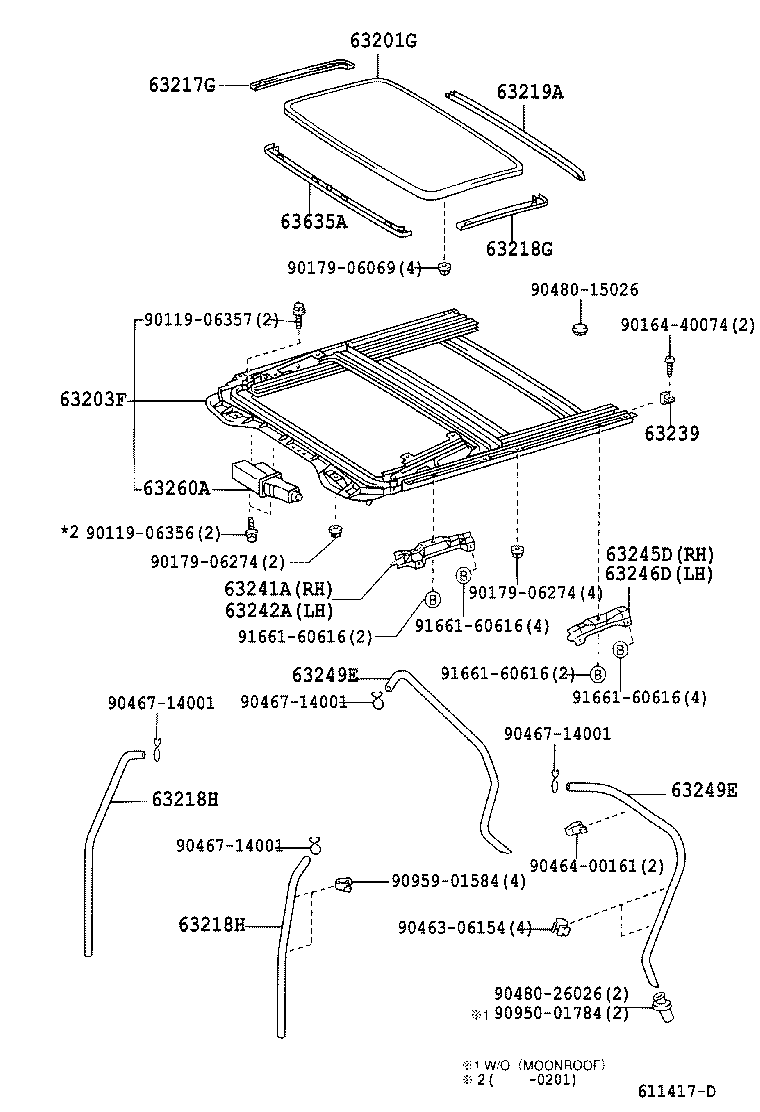

ILLUST NO. 2 OF 2(0107-0302)WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-53010 |
GXE10,JCE10 *TT,T=4.0.GRAY |
1 | ||
| 63201-53011 |
GXE10,JCE10 *TT,T=4.0.GRAY |
1 | ||
| 63201-53012 |
GXE10,JCE10 *TT,T=4.0.GRAY |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-53011 |
GXE10,JCE10..EUR NO.2 |
1 | ||
| 63200-53021 |
GXE10,JCE10..EUR CHINA OR KOREA OR MOROCCO OR TAIWAN OR SOUTH AMERICA SPEC,NO.1 |
1 | ||
| 63200-53030 |
GXE10,JCE10..EUR NO.1 |
1 | ||
| 63200-53031 |
GXE10,JCE10..EUR NO.1 |
1 | ||
| 63203-53010 |
GXE10,JCE10 NO.2 |
1 | ||
| 63200-53020 |
GXE10,JCE10..EUR CHINA OR KOREA OR MOROCCO OR TAIWAN OR SOUTH AMERICA SPEC,NO.1 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-22040 |
GXE10,JCE10 |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-22040 |
GXE10,JCE10 |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-53010 |
GXE10,JCE10 |
2 | ||
| 63249-53060 |
GXE10,JCE10 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-53010 |
GXE10,JCE10 |
2 | ||
| 63249-53060 |
GXE10,JCE10 |
2 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-22040 |
GXE10,JCE10 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
GXE10,JCE10 |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-53010 |
GXE10,JCE10 |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63242-53010 |
GXE10,JCE10 |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-53010 |
GXE10,JCE10 |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63246-53010 |
GXE10,JCE10 |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-53030 |
GXE10,JCE10..WG |
2 | ||
| 63249-53080 |
GXE10,JCE10..WG |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-53030 |
GXE10,JCE10..WG |
2 | ||
| 63249-53080 |
GXE10,JCE10..WG |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-53020 |
GXE10,JCE10 |
1 | ||
| 63260-53030 |
GXE10,JCE10..EUR |
1 | ||
| 63260-53020 |
GXE10,JCE10..EUR CHINA OR KOREA OR MOROCCO OR TAIWAN OR SOUTH AMERICA SPEC |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-53010 |
GXE10,JCE10 |
1 | ||
| Common parts | ||||
| 90119-06356 | ||||
| 90119-06357 | ||||
| 90164-40074 | ||||
| 90179-06069 | ||||
| 90179-06274 | ||||
| 90463-06154 | ||||
| 90464-00161 | ||||
| 90467-14001 | ||||
| 90480-15026 | ||||
| 90480-26026 | ||||
| 90950-01784 | ||||
| 90959-01584 | ||||
| 91661-60616 | ||||

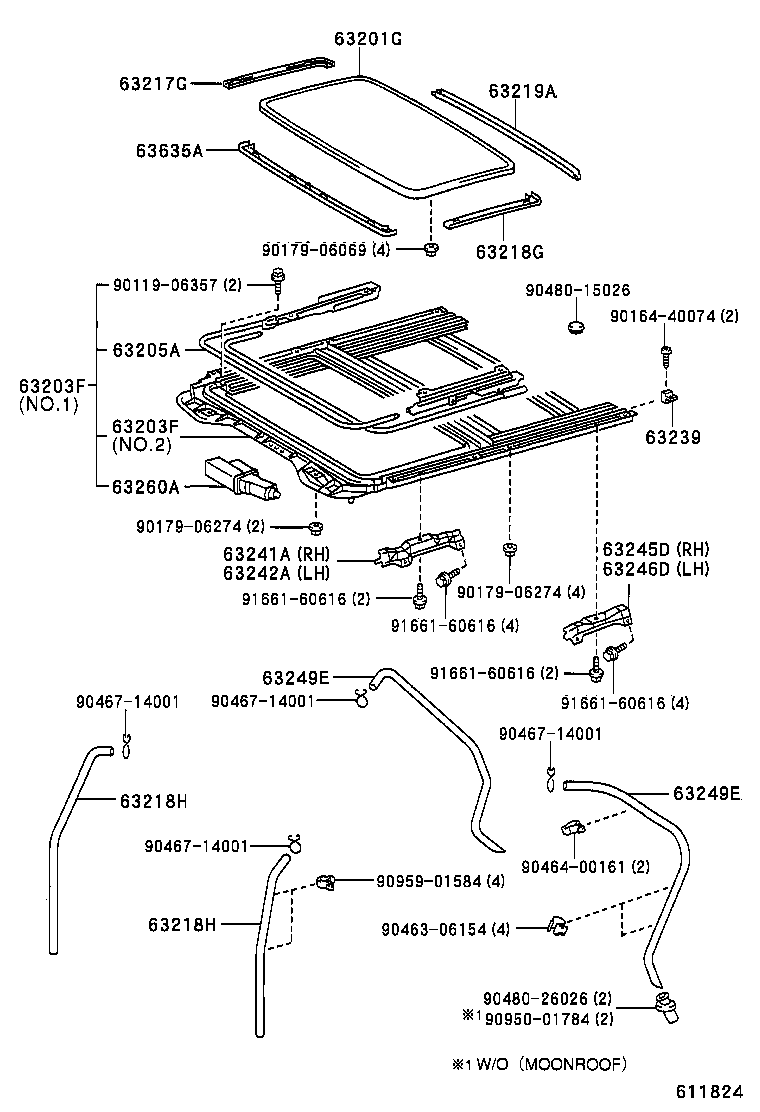

ILLUST NO. 2 OF 2(0302- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-53010 |
GXE10,JCE10 *TT,T=4.0.GRAY |
1 | ||
| 63201-53011 |
GXE10,JCE10 *TT,T=4.0.GRAY |
1 | ||
| 63201-53012 |
GXE10,JCE10 *TT,T=4.0.GRAY |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-53011 |
GXE10,JCE10..EUR NO.2 |
1 | ||
| 63200-53021 |
GXE10,JCE10..EUR CHINA OR KOREA OR MOROCCO OR TAIWAN OR SOUTH AMERICA SPEC,NO.1 |
1 | ||
| 63200-53030 |
GXE10,JCE10..EUR NO.1 |
1 | ||
| 63200-53031 |
GXE10,JCE10..EUR NO.1 |
1 | ||
| 63203-53010 |
GXE10,JCE10 NO.2 |
1 | ||
| 63200-53020 |
GXE10,JCE10..EUR CHINA OR KOREA OR MOROCCO OR TAIWAN OR SOUTH AMERICA SPEC,NO.1 |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-53011 |
GXE10,JCE10..EUR NO.2 |
1 | ||
| 63200-53021 |
GXE10,JCE10..EUR CHINA OR KOREA OR MOROCCO OR TAIWAN OR SOUTH AMERICA SPEC,NO.1 |
1 | ||
| 63200-53030 |
GXE10,JCE10..EUR NO.1 |
1 | ||
| 63200-53031 |
GXE10,JCE10..EUR NO.1 |
1 | ||
| 63203-53010 |
GXE10,JCE10 NO.2 |
1 | ||
| 63200-53020 |
GXE10,JCE10..EUR CHINA OR KOREA OR MOROCCO OR TAIWAN OR SOUTH AMERICA SPEC,NO.1 |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-53010 |
GXE10,JCE10 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-22040 |
GXE10,JCE10 |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-22040 |
GXE10,JCE10 |
1 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-53010 |
GXE10,JCE10 |
2 | ||
| 63249-53060 |
GXE10,JCE10 |
2 | ||
| 63218H - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-53010 |
GXE10,JCE10 |
2 | ||
| 63249-53060 |
GXE10,JCE10 |
2 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-22040 |
GXE10,JCE10 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-12030 |
GXE10,JCE10 |
2 | ||
| 63241A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, RH | ||||
| 63241-53010 |
GXE10,JCE10 |
1 | ||
| 63242A - BRACKET, SLIDING ROOF HOUSING FRONT MOUNTING, LH | ||||
| 63242-53010 |
GXE10,JCE10 |
1 | ||
| 63245D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, RH | ||||
| 63245-53010 |
GXE10,JCE10 |
1 | ||
| 63246D - BRACKET, SLIDING ROOF HOUSING REAR MOUNTING, LH | ||||
| 63246-53010 |
GXE10,JCE10 |
1 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-53030 |
GXE10,JCE10..WG |
2 | ||
| 63249-53080 |
GXE10,JCE10..WG |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-53030 |
GXE10,JCE10..WG |
2 | ||
| 63249-53080 |
GXE10,JCE10..WG |
2 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-53020 |
GXE10,JCE10 |
1 | ||
| 63260-53030 |
GXE10,JCE10..EUR |
1 | ||
| 63260-53020 |
GXE10,JCE10..EUR CHINA OR KOREA OR MOROCCO OR TAIWAN OR SOUTH AMERICA SPEC |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-53010 |
GXE10,JCE10 |
1 | ||
| Common parts | ||||
| 90119-06357 | ||||
| 90164-40074 | ||||
| 90179-06069 | ||||
| 90179-06274 | ||||
| 90463-06154 | ||||
| 90464-00161 | ||||
| 90467-14001 | ||||
| 90480-15026 | ||||
| 90480-26026 | ||||
| 90950-01784 | ||||
| 90959-01584 | ||||
| 91661-60616 | ||||
