JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300

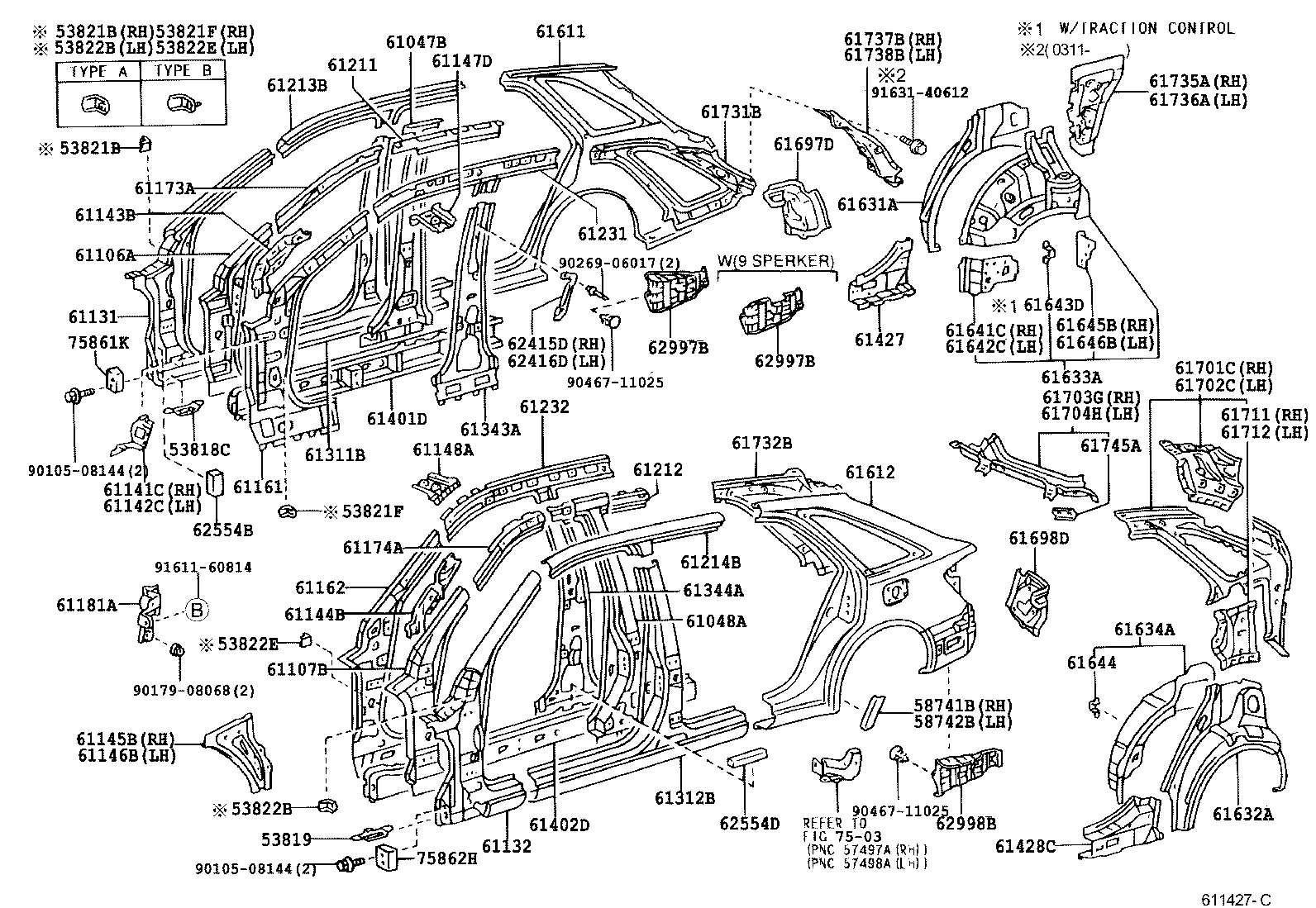

ILLUST NO. 1 OF 2(0107- )LHD..WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53818C - REINFORCEMENT, FRONT FENDER, REAR RH | ||||
| 53818-53010 |
GXE10,JCE10 |
1 | ||
| 53819 - REINFORCEMENT, FRONT FENDER, REAR LH | ||||
| 53819-53010 |
GXE10,JCE10 |
1 | ||
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-53010 |
GXE10,JCE10 TYPE B |
1 | ||
| 53821-16010 |
GXE10,JCE10 TYPE A |
1 | ||
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-53010 |
GXE10,JCE10 TYPE B |
1 | ||
| 53821-16010 |
GXE10,JCE10 TYPE A |
1 | ||
| 53821F - BRACKET, FRONT FENDER, REAR NO.2 RH | ||||
| 53821-16010 |
GXE10,JCE10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 53821F - BRACKET, FRONT FENDER, REAR NO.2 RH | ||||
| 53821-16010 |
GXE10,JCE10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
GXE10,JCE10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 53821-53010 |
GXE10,JCE10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
GXE10,JCE10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 53821-53010 |
GXE10,JCE10 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 53822E - BRACKET, FRONT FENDER, REAR NO.2 LH | ||||
| 53821-16010 |
GXE10,JCE10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 53822E - BRACKET, FRONT FENDER, REAR NO.2 LH | ||||
| 53821-16010 |
GXE10,JCE10 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-53010 |
GXE10,JCE10 |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-53010 |
GXE10,JCE10 |
1 | ||
| 61047B - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER RH | ||||
| 61047-53011 |
GXE10,JCE10 |
1 | ||
| 61048A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER LH | ||||
| 61048-53011 |
GXE10,JCE10 |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-53021 |
GXE10,JCE10..LHD |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-53021 |
GXE10,JCE10..LHD |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-53040 |
GXE10,JCE10..LHD..WG |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-53040 |
GXE10,JCE10..LHD..WG |
1 | ||
| 61141C - EXTENSION, FRONT PILLAR, UPPER INNER RH | ||||
| 61141-53011 |
GXE10,JCE10 |
1 | ||
| 61142C - EXTENSION, FRONT PILLAR, UPPER INNER LH | ||||
| 61142-53011 |
GXE10,JCE10 |
1 | ||
| 61143B - GUSSET, FRONT BODY PILLAR, UPPER INNER RH | ||||
| 61143-53020 |
GXE10,JCE10 |
1 | ||
| 61144B - GUSSET, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61144-53020 |
GXE10,JCE10 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-53010 |
GXE10,JCE10 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-53010 |
GXE10,JCE10 |
1 | ||
| 61147D - EXTENSION, FRONT BODY PILLAR, UPPER OUTER RH | ||||
| 61147-53011 |
GXE10,JCE10 |
1 | ||
| 61148A - EXTENSION, FRONT BODY PILLAR, UPPER OUTER LH | ||||
| 61148-53011 |
GXE10,JCE10 |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-53012 |
GXE10,JCE10 |
1 | ||
| 61161-53013 |
GXE10,JCE10 |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-53022 |
GXE10,JCE10 |
1 | ||
| 61162-53023 |
GXE10,JCE10 |
1 | ||
| 61173A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH | ||||
| 61173-53011 |
GXE10,JCE10 |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-53011 |
GXE10,JCE10 |
1 | ||
| 61181A - BRACKET, INSTRUMENT SIDE, RH | ||||
| 61181-53011 |
GXE10,JCE10..LHD |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-53010 |
GXE10,JCE10 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-53010 |
GXE10,JCE10 |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-53020 |
GXE10,JCE10..WG |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-53020 |
GXE10,JCE10..WG |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-53070 |
GXE10,JCE10..WG |
1 | ||
| 61231-53060 |
GXE10,JCE10..WG W(MOON ROOF) |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-53050 |
GXE10,JCE10..WG W(MOON ROOF) |
1 | ||
| 61232-53040 |
GXE10,JCE10..WG |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-53020 |
GXE10,JCE10..WG |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-53020 |
GXE10,JCE10..WG |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-53011 |
GXE10,JCE10 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-53011 |
GXE10,JCE10 |
1 | ||
| 61401D - RAIL SUB-ASSY, NO.1 LOWER OUTER, RH | ||||
| 61401-53011 |
GXE10,JCE10 |
1 | ||
| 61402D - RAIL SUB-ASSY, NO.1 LOWER OUTER, LH | ||||
| 61402-53011 |
GXE10,JCE10 |
1 | ||
| 61427 - REINFORCEMENT, ROCKER PANEL, NO.5 RH | ||||
| 61427-53010 |
GXE10,JCE10 |
1 | ||
| 61428C - REINFORCEMENT, ROCKER PANEL, NO.5 LH | ||||
| 61428-53010 |
GXE10,JCE10 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-53050 |
GXE10,JCE10..WG |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-53030 |
GXE10,JCE10..WG |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-53020 |
GXE10,JCE10..WG |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-53020 |
GXE10,JCE10..WG |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-53041 |
GXE10,JCE10..WG |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-53021 |
GXE10,JCE10..WG |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-53010 |
GXE10,JCE10 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-53010 |
GXE10,JCE10 |
1 | ||
| 61643D - PATCH, QUARTER WHEEL HOUSE, NO.1 RH | ||||
| 58369-47010 |
GXE10,JCE10 |
1 | ||
| 61644 - GUSSET, QUARTER WHEEL HOUSE, CENTER LH | ||||
| 58369-47010 |
GXE10,JCE10 |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-51010 |
GXE10,JCE10 |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-51010 |
GXE10,JCE10 |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-53901 |
GXE10,JCE10..WG |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61698-53901 |
GXE10,JCE10..WG |
1 | ||
| 61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61701-53010 |
GXE10,JCE10..WG |
1 | ||
| 61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH | ||||
| 61702-53010 |
GXE10,JCE10..WG |
1 | ||
| 61703G - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-53010 |
GXE10,JCE10..WG |
1 | ||
| 61704H - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-53010 |
GXE10,JCE10..WG |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-53020 |
GXE10,JCE10..WG |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-53020 |
GXE10,JCE10..WG |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-53901 |
GXE10,JCE10..WG W(MOON ROOF) |
1 | ||
| 61731-53900 |
GXE10,JCE10..WG |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-53900 |
GXE10,JCE10..WG |
1 | ||
| 61732-53901 |
GXE10,JCE10..WG W(MOON ROOF) |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-53020 |
GXE10,JCE10..WG |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-53020 |
GXE10,JCE10..WG |
1 | ||
| 61737B - PANEL, ROOF SIDE, INNER LOWER RH | ||||
| 61737-53020 |
GXE10,JCE10..WG |
1 | ||
| 61738B - PANEL, ROOF SIDE, INNER LOWER LH | ||||
| 61738-53020 |
GXE10,JCE10..WG |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-53010 |
GXE10,JCE10..WG |
1 | ||
| 62415D - PANEL, CENTER PILLAR GARNISH, RH | ||||
| 62415-53010 |
GXE10,JCE10 |
1 | ||
| 62416D - PANEL, CENTER PILLAR GARNISH, LH | ||||
| 62416-53010 |
GXE10,JCE10 |
1 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-30010 |
GXE10,JCE10 |
2 | ||
| 62554D - PAD, FRONT PILLER | ||||
| 62554-53030 |
GXE10,JCE10 |
2 | ||
| 62997B - COVER, QUARTER VENT HOLE, RH | ||||
| 62997-53010 |
GXE10,JCE10..WG |
1 | ||
| 62997-53020 |
GXE10,JCE10..WG W(9 SPEAKER) |
1 | ||
| 62997B - COVER, QUARTER VENT HOLE, RH | ||||
| 62997-53010 |
GXE10,JCE10..WG |
1 | ||
| 62997-53020 |
GXE10,JCE10..WG W(9 SPEAKER) |
1 | ||
| 62998B - COVER, QUARTER VENT HOLE, LH | ||||
| 62998-53010 |
GXE10,JCE10..WG |
1 | ||
| 75861K - PROTECTOR, ROCKER PANEL MOULDING, RH | ||||
| 75861-53010 |
GXE10,JCE10 |
1 | ||
| 75862H - PROTECTOR, ROCKER PANEL MOULDING, LH | ||||
| 75862-53010 |
GXE10,JCE10 |
1 | ||
| Common parts | ||||
| 90105-08144 | ||||
| 90179-08068 | ||||
| 90269-06017 | ||||
| 90467-11025 | ||||
| 91611-60814 | ||||
| 91631-40612 | ||||
| Linked diagrams | ||||
| 7503 | ||||

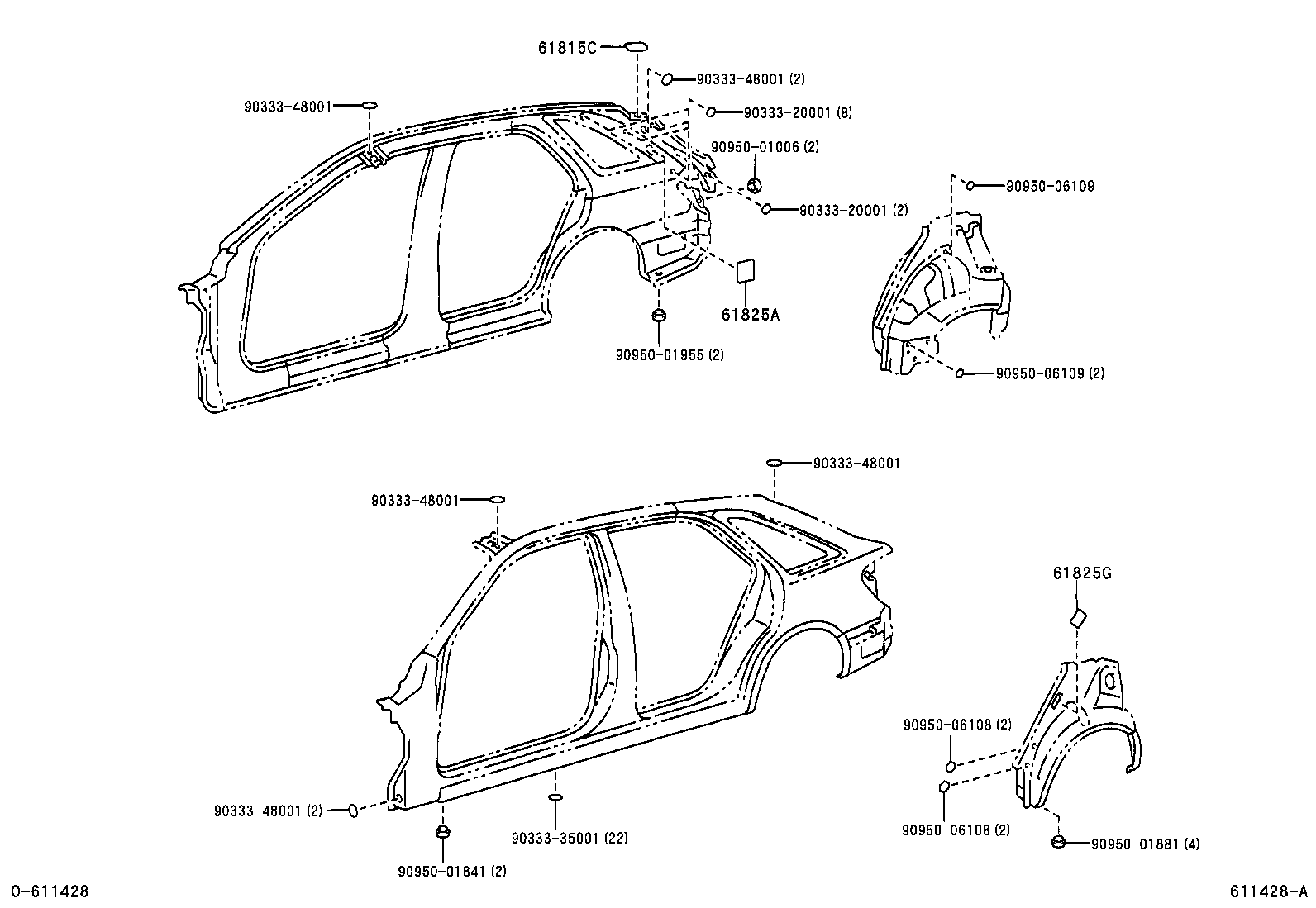

ILLUST NO. 2 OF 2(0107- )WG
PLUG HOLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61815C - COVER, ROOF SIDE, INNER UPPER | ||||
| 61815-16030 |
GXE10,JCE10..WG |
1 | ||
| 61825A - PLATE, NOISE CONTROL, NO.2 | ||||
| 61825-20180 |
GXE10,JCE10..WG |
2 | ||
| 61825G - PAD, NOISE SHUTTER, NO.2 | ||||
| 61825-51010 |
GXE10,JCE10..WG |
2 | ||
| Common parts | ||||
| 90333-20001 | ||||
| 90333-35001 | ||||
| 90333-48001 | ||||
| 90950-01006 | ||||
| 90950-01841 | ||||
| 90950-01881 | ||||
| 90950-01955 | ||||
| 90950-06108 | ||||
| 90950-06109 | ||||
