JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300
Production
Jul 2001
-
Jul 2005
Engine
2JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )WG

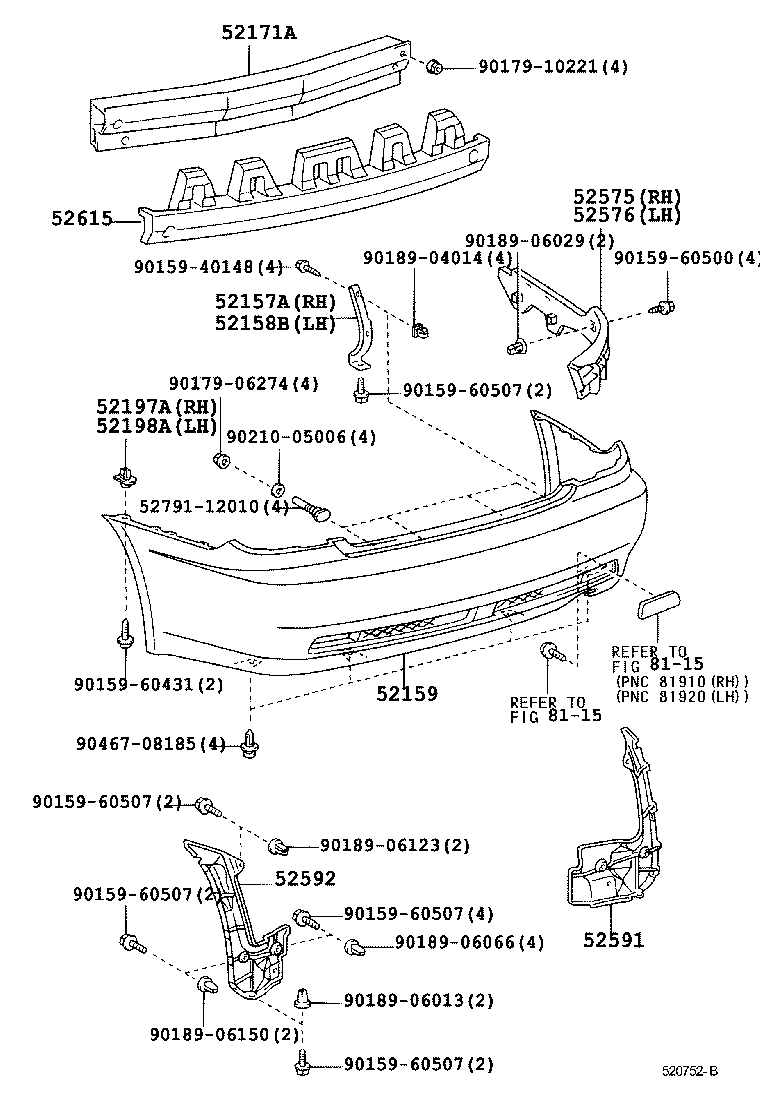

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-53030 |
GXE10,JCE10..WG |
1 | ||
| 52158B - STAY, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-53030 |
GXE10,JCE10..WG |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-53903 |
GXE10,JCE10..WG |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-53040 |
GXE10,JCE10..WG |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-53010 |
GXE10,JCE10 |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52197-53010 |
GXE10,JCE10 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-53010 |
GXE10,JCE10..WG |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-53010 |
GXE10,JCE10..WG |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-53010 |
GXE10,JCE10 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-53010 |
GXE10,JCE10 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-53040 |
GXE10,JCE10..WG |
1 | ||
| Common parts | ||||
| 52791-12010 | ||||
| 90159-40148 | ||||
| 90159-60431 | ||||
| 90159-60500 | ||||
| 90159-60507 | ||||
| 90179-06274 | ||||
| 90179-10221 | ||||
| 90189-04014 | ||||
| 90189-06013 | ||||
| 90189-06029 | ||||
| 90189-06066 | ||||
| 90189-06123 | ||||
| 90189-06150 | ||||
| 90210-05006 | ||||
| 90467-08185 | ||||
| Linked diagrams | ||||
| 8115 | ||||
