JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )WG

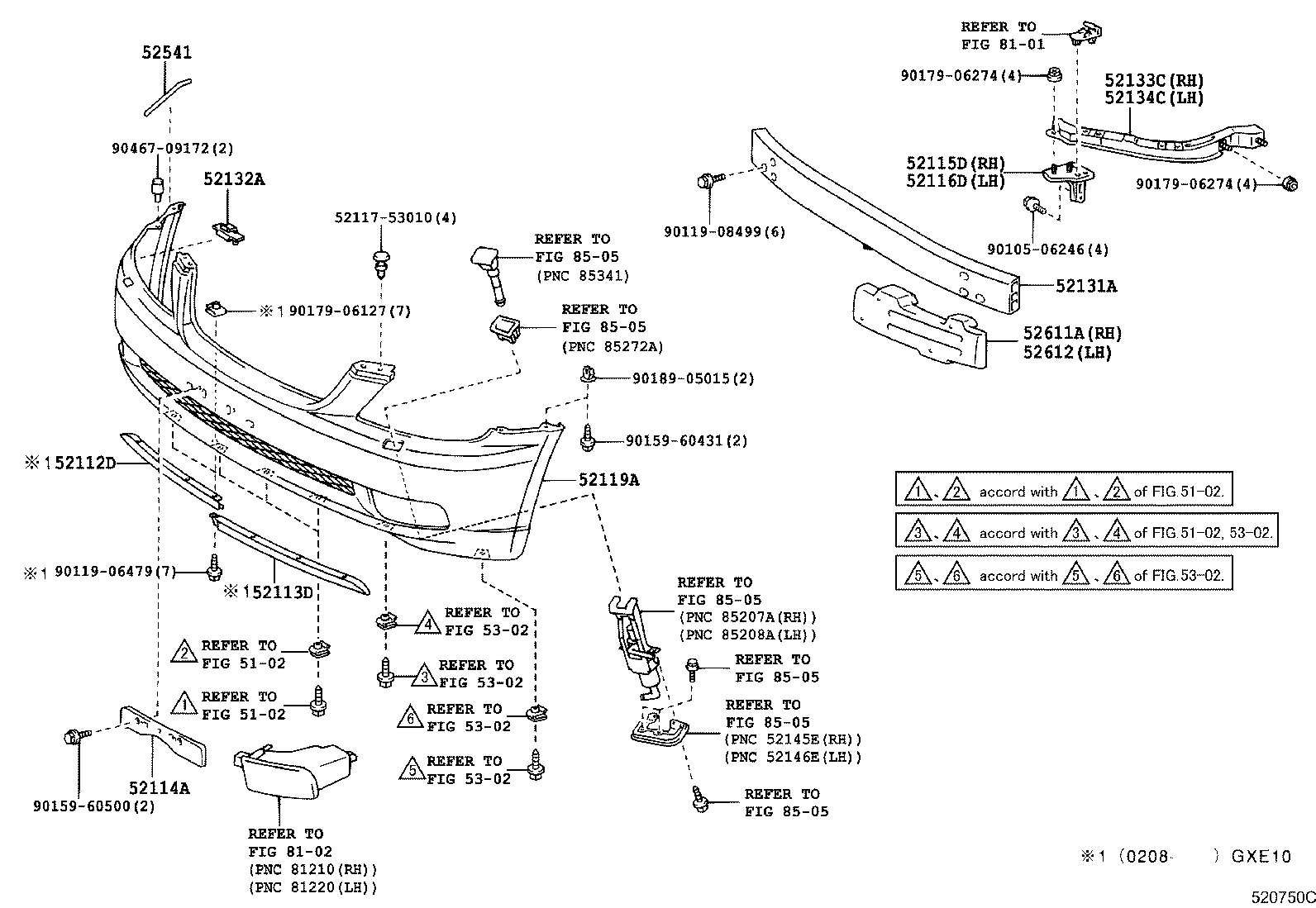

Click highlighted areas on diagram

diagram 5102 5102 52112D 52113D 52114A 52115D 52116D 5211753010 52119A 52131A 52132A 52133C 52134C 52541 52611A 52612 5302 5302 5302 5302 8101 8102 8505 8505 8505 8505 8505 8505 9010506246 9011906479 9011908499 9015960431 9015960500 9017906127 9017906274 9017906274 9018905015 9046709172
Part # Description Qty Price
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-53040

GXE10,JCE10..WG

 1
52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH
52115-53010

GXE10,JCE10

 1
52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH
52116-53010

GXE10,JCE10

 1
52119A - COVER, FRONT BUMPER
52119-53906

JCE10..WG

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-53010

GXE10,JCE10

 1
52132A - REINFORCEMENT, FRONT BUMPER, NO.2
52132-53010

GXE10,JCE10

 4
52133C - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-53010

GXE10,JCE10

 1
52134C - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-53010

GXE10,JCE10

 1
52541 - PROTECTOR, FRONT BUMPER
52541-51010

GXE10,JCE10

 2
52611A - ABSORBER, FRONT BUMPER ENERGY, RH
52611-53030

GXE10,JCE10..WG

 1
52612 - ABSORBER, FRONT BUMPER ENERGY, LH
52612-53020

GXE10,JCE10..WG

 1
Common parts
52117-53010
90105-06246
90119-06479
90119-08499
90159-60431
90159-60500
90179-06127
90179-06274
90189-05015
90467-09172
Linked diagrams
5102
5302
8101
8102
8505
