JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

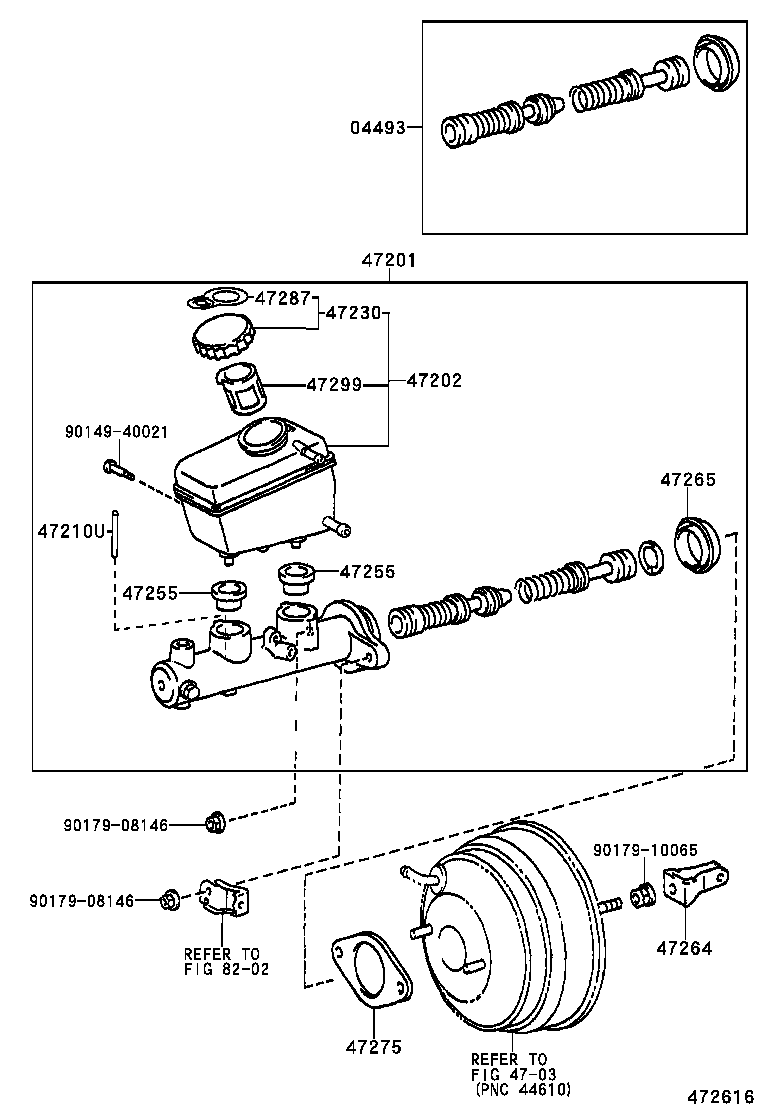

ILLUST NO. 1 OF 2(0107- )LHD

Click highlighted areas on diagram

diagram 04493 4703 47201 47202 47210U 47230 47255 47255 47264 47265 47275 47287 47299 8202 9014940021 9017908146 9017908146 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-53040

GXE10,JCE10..EUR

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-53160

GXE10,JCE10..LHD

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-50130

GXE10,JCE10..LHD

 1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-14204

GXE10,JCE10

 2
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20100

GXE10,JCE10..EUR

 1
47230-20100

GXE10,JCE10

W(TRACTION CONTROL)

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GXE10,JCE10

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GXE10,JCE10

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-30050

GXE10,JCE10

 1
47265 - BOOT, MASTER CYLINDER
47265-22030

GXE10,JCE10..EUR

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020

GXE10,JCE10

 1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

GXE10,JCE10

 1
47287-20010

GXE10,JCE10..EUR

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060

GXE10,JCE10

 1
Common parts
90149-40021
90179-08146
90179-10065
Linked diagrams
4703
8202
