JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300
Production
Jul 2001
-
Jul 2005
Engine
2JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )2JZGE

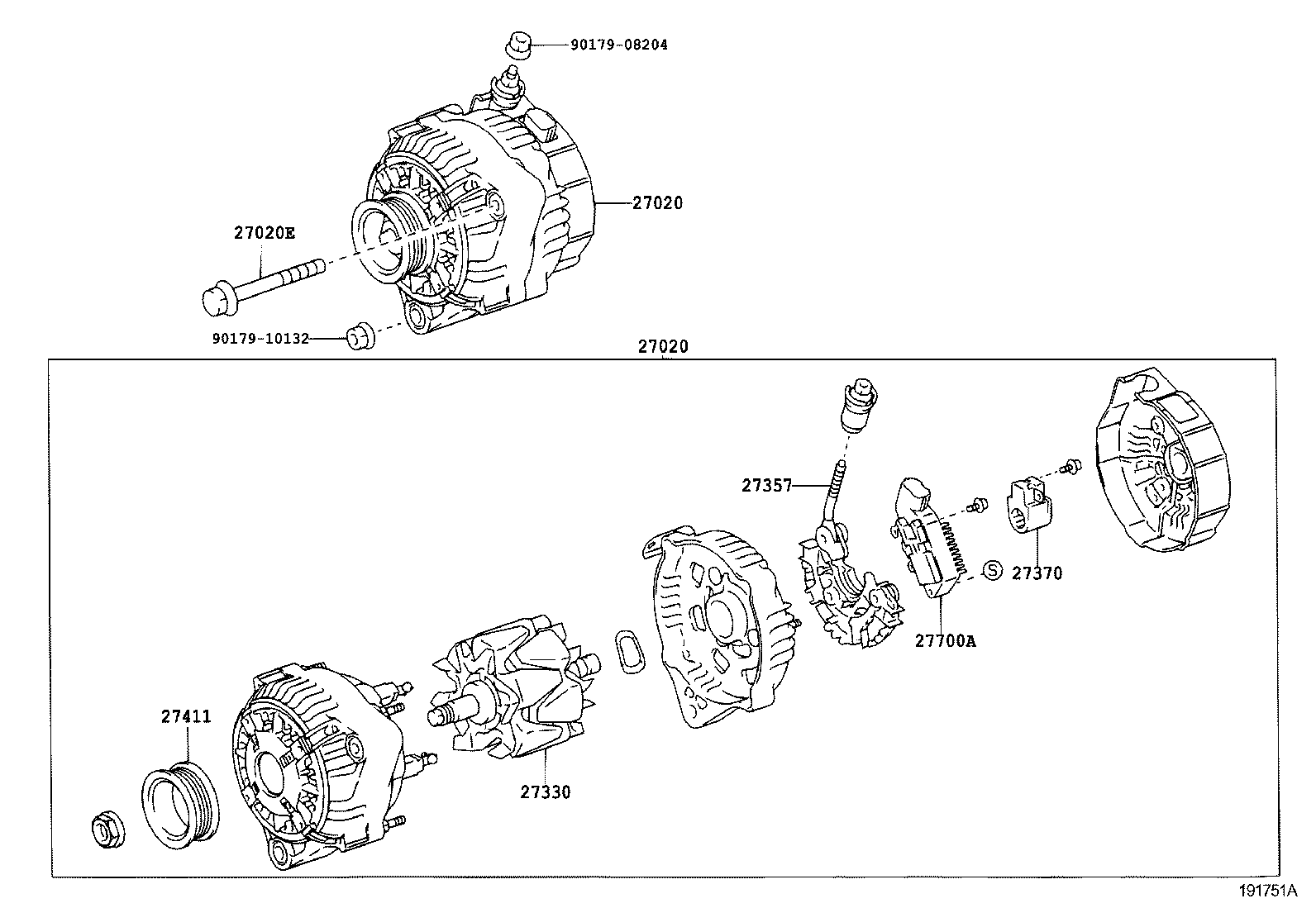

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-46300 |
2JZGE..JCE10 12V 100A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-46300 |
2JZGE..JCE10 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91512-61050 |
2JZGE..JCE10 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-62180 |
2JZGE..JCE10 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-46310 |
2JZGE..JCE10 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2JZGE..JCE10 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-46080 |
2JZGE..JCE10 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-46060 |
2JZGE..JCE10 |
1 | ||
| Common parts | ||||
| 90179-08204 | ||||
| 90179-10132 | ||||
