JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300

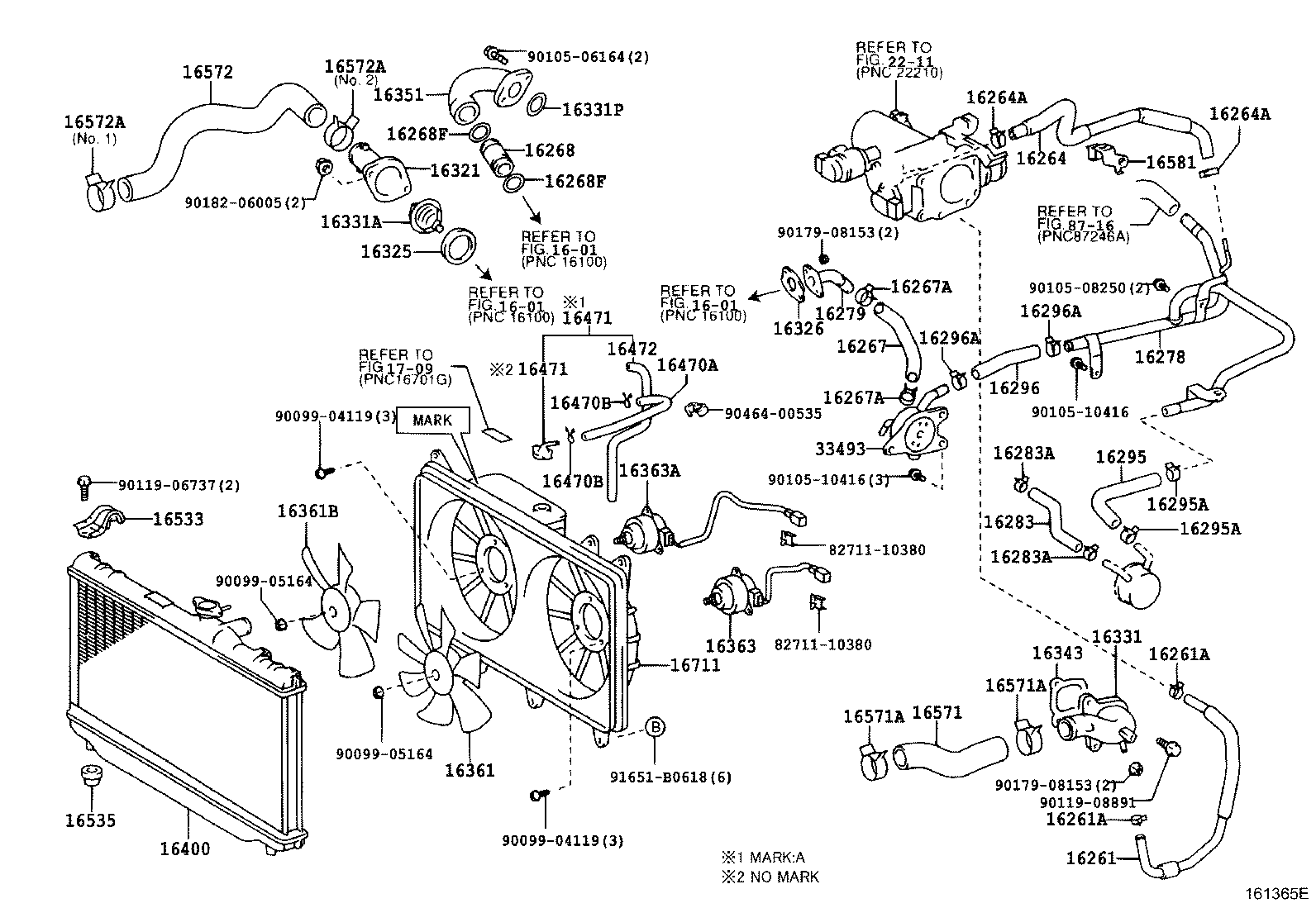

ILLUST NO. 1 OF 2(0107- )2JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-46020 |
2JZGE..JCE10 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2JZGE..JCE10 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-51300 |
2JZGE..JCE10 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-46041 |
2JZGE..JCE10 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
2JZGE..JCE10 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-51300 |
2JZGE..JCE10 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-46030 |
2JZGE..JCE10 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-21001 |
2JZGE..JCE10 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-21001 |
2JZGE..JCE10 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-46011 |
2JZGE..JCE10 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24022 |
2JZGE..JCE10 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24022 |
2JZGE..JCE10 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-46100 |
2JZGE..JCE10 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-46030 |
2JZGE..JCE10 |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-46031 |
2JZGE..JCE10 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-20011 |
2JZGE..JCE10 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-20011 |
2JZGE..JCE10 |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-46040 |
2JZGE..JCE10 |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-20011 |
2JZGE..JCE10 |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 90467-20011 |
2JZGE..JCE10 |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-46010 |
2JZGE..JCE10 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90466-21001 |
2JZGE..JCE10 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 90466-21001 |
2JZGE..JCE10 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-46040 |
2JZGE..JCE10 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
2JZGE..JCE10 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-46010 |
2JZGE..JCE10 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-46100 |
2JZGE..JCE10 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
2JZGE..JCE10 *WAX 82-95 |
1 | ||
| 16331P - RING,O(FOR WATER OUTLET) | ||||
| 96761-24028 |
2JZGE..JCE10 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-46020 |
2JZGE..JCE10 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-46022 |
2JZGE..JCE10 |
1 | ||
| 16361 - FAN | ||||
| 16361-46080 |
2JZGE..JCE10 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-46090 |
2JZGE..JCE10 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-46050 |
2JZGE..JCE10 |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-46120 |
2JZGE..JCE10 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-46721 |
2JZGE..JCE10 |
1 | ||
| 16400-46720 |
2JZGE..JCE10 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16565-46070 |
2JZGE..JCE10 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2JZGE..JCE10 |
1 | ||
| 90467-11085 |
2JZGE..JCE10 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2JZGE..JCE10 |
1 | ||
| 90467-11085 |
2JZGE..JCE10 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-70130 |
2JZGE..JCE10 MARK A:REFER TO ILLUSTRATION |
1 | ||
| 16405-46200 |
2JZGE..JCE10 NO MARK:REFER TO ILLUSTRATION |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-70130 |
2JZGE..JCE10 MARK A:REFER TO ILLUSTRATION |
1 | ||
| 16405-46200 |
2JZGE..JCE10 NO MARK:REFER TO ILLUSTRATION |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 90445-12078 |
2JZGE..JCE10 *H,L=500 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70060 |
2JZGE..JCE10 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40021 |
2JZGE..JCE10 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-46310 |
2JZGE..JCE10 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
2JZGE..JCE10 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37005 |
2JZGE..JCE10 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-46290 |
2JZGE..JCE10 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
2JZGE..JCE10 NO.2 |
1 | ||
| 90467-37005 |
2JZGE..JCE10 NO.1 |
1 | ||
| 96136-54801 |
2JZGE..JCE10 NO.2 |
1 | ||
| 90467-41002 |
2JZGE..JCE10 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-41007 |
2JZGE..JCE10 NO.2 |
1 | ||
| 90467-37005 |
2JZGE..JCE10 NO.1 |
1 | ||
| 96136-54801 |
2JZGE..JCE10 NO.2 |
1 | ||
| 90467-41002 |
2JZGE..JCE10 NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-46040 |
2JZGE..JCE10 |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-46350 |
2JZGE..JCE10 |
1 | ||
| 33493 - COOLER, TRANSMISSION OIL | ||||
| 33493-22021 |
JCE10 |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90105-06164 | ||||
| 90105-08250 | ||||
| 90105-10416 | ||||
| 90119-06737 | ||||
| 90119-08891 | ||||
| 90179-08153 | ||||
| 90182-06005 | ||||
| 90464-00535 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1709 | ||||
| 2211 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(0107- )2JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

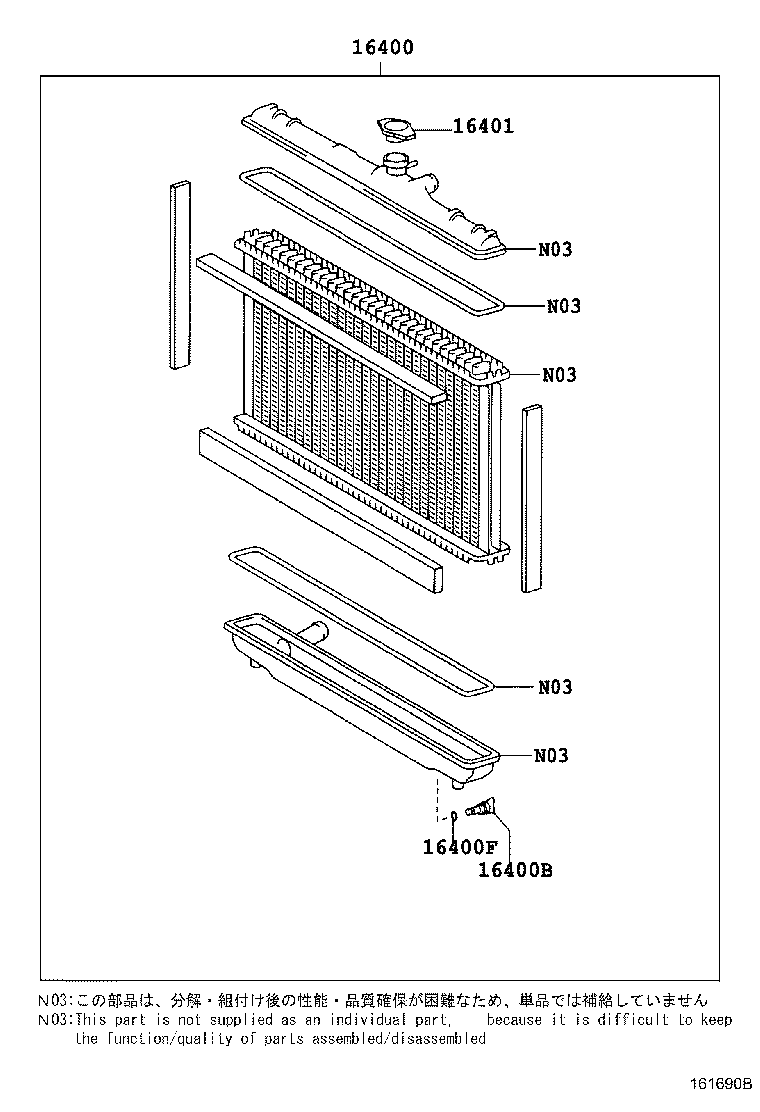

| 16400 - RADIATOR ASSY | ||||
| 16400-46721 |
2JZGE..JCE10 |
1 | ||
| 16400-46720 |
2JZGE..JCE10 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
2JZGE..JCE10 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
2JZGE..JCE10 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-28430 |
2JZGE..JCE10 |
1 | ||
| 16401-46610 |
2JZGE..JCE10 |
1 | ||
