JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )2JZGE

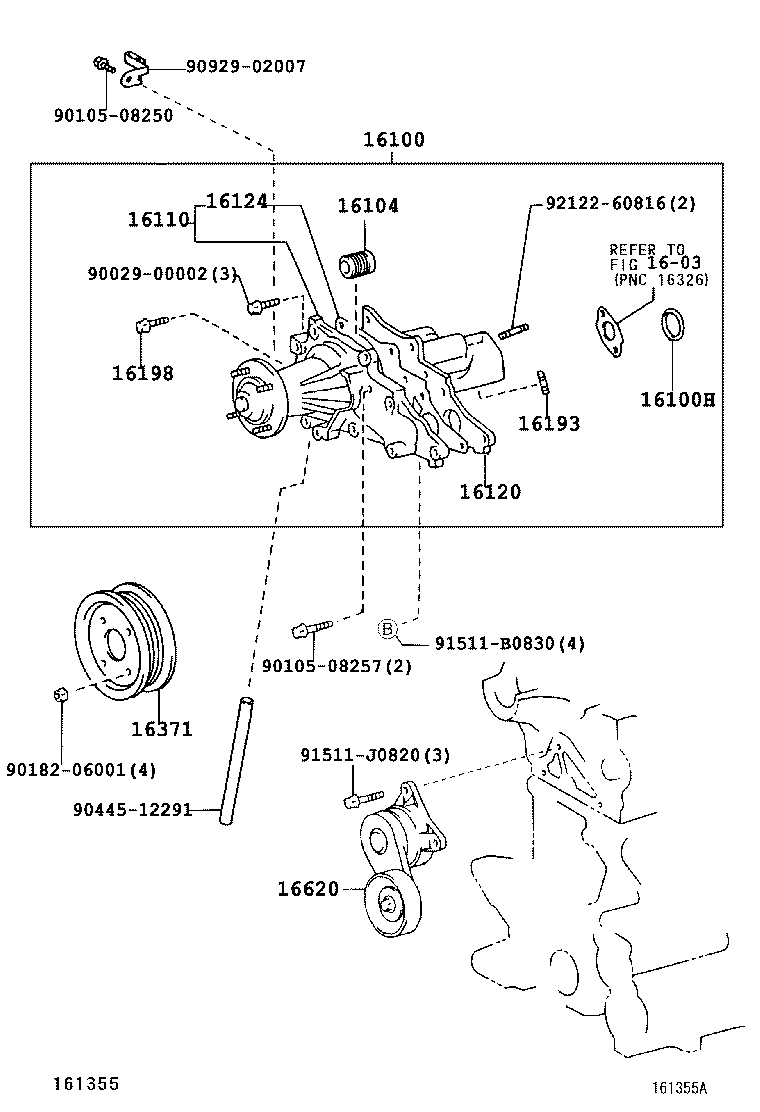

Click highlighted areas on diagram

diagram 1603 16100 16100H 16104 16110 16120 16124 16193 16198 16371 16620 9002900002 9010508250 9010508257 9018206001 9044512291 9092902007 91511B0830 91511J0820 9212260816
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-49876

2JZGE..JCE10

 1
16100H - RING, O(FOR WATER PUMP)
96761-24040

2JZGE..JCE10

 1
16104 - SEAL SET, WATER PUMP
16104-46060

2JZGE..JCE10

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-49156

2JZGE..JCE10

 1
16120 - COVER ASSY, WATER PUMP
16102-46072

2JZGE..JCE10

 1
16102-46073

2JZGE..JCE10

 1
16124 - GASKET, WATER PUMP COVER
16124-46070

2JZGE..JCE10

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-46030

2JZGE..JCE10

 2
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
16198-46031

2JZGE..JCE10

 1
16371 - PULLEY, FAN
16371-46040

2JZGE..JCE10

 1
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-0W025

2JZGE..JCE10

 1
Common parts
90029-00002
90105-08250
90105-08257
90182-06001
90445-12291
90929-02007
91511-B0830
91511-J0820
92122-60816
Linked diagrams
1603
