JCE10L-AWAVFW (2001)
Toyota Lexus Is200/300
(0107- )2JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

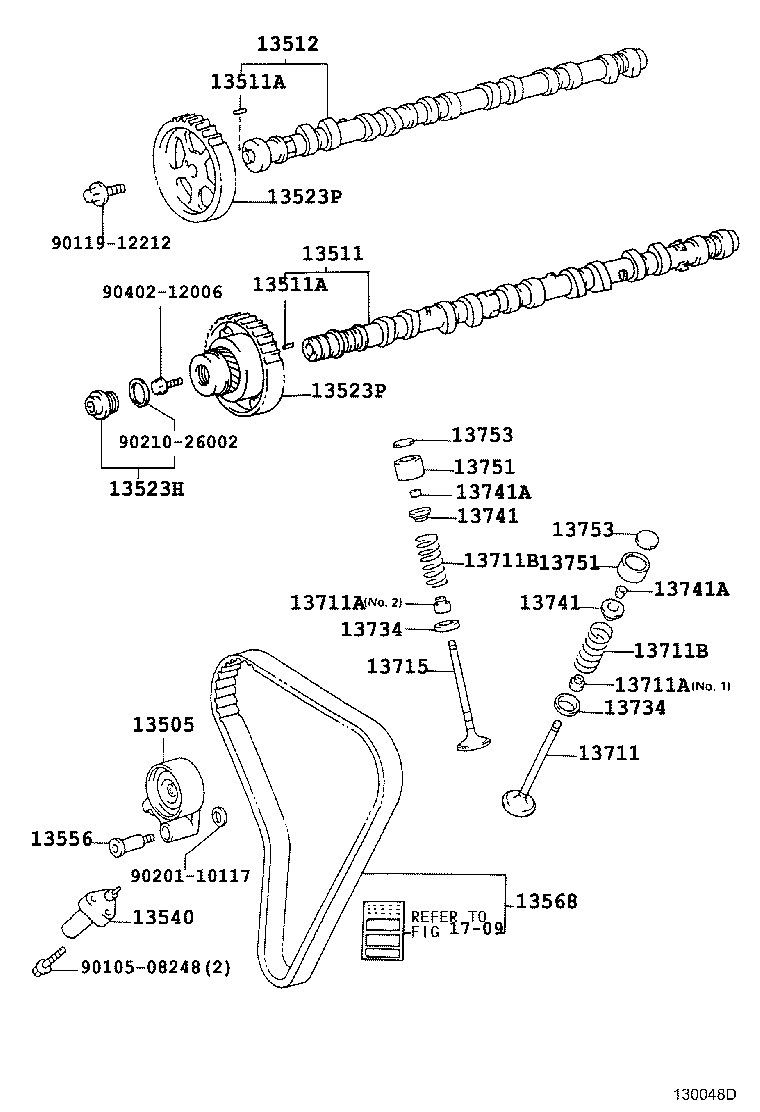

| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-46041 |
2JZGE..JCE10 |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-46080 |
2JZGE..JCE10 |
1 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
2JZGE..JCE10 L=13.8,OD=5.0 |
2 | ||
| 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) | ||||
| 90250-05021 |
2JZGE..JCE10 L=13.8,OD=5.0 |
2 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-46011 |
2JZGE..JCE10 |
1 | ||
| 13523H - PLUG, STRAIGHT SCREW W/HEAD(FOR CAMSHAFT TIMING PULLEY) | ||||
| 90341-27007 |
JCE10 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13050-46010 |
2JZGE..JCE10 LH |
1 | ||
| 13523-46030 |
2JZGE..JCE10 RH |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13050-46010 |
2JZGE..JCE10 LH |
1 | ||
| 13523-46030 |
2JZGE..JCE10 RH |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-46030 |
2JZGE..JCE10 |
1 | ||
| 13556 - SHAFT, TIMING BELT IDLER | ||||
| 13556-46010 |
2JZGE..JCE10 |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-49036 |
2JZGE..JCE10 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-46022 |
2JZGE..JCE10 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02088 |
2JZGE..JCE10 NO.2 |
12 | ||
| 90913-02090 |
2JZGE..JCE10 NO.1 |
12 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02088 |
2JZGE..JCE10 NO.2 |
12 | ||
| 90913-02090 |
2JZGE..JCE10 NO.1 |
12 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90905-01068 |
2JZGE..JCE10 |
24 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90905-01068 |
2JZGE..JCE10 |
24 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-46020 |
2JZGE..JCE10 |
12 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 90201-18017 |
2JZGE..JCE10 |
24 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 90201-18017 |
2JZGE..JCE10 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-46020 |
2JZGE..JCE10 |
24 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-46020 |
2JZGE..JCE10 |
24 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03025 |
2JZGE..JCE10 |
48 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03025 |
2JZGE..JCE10 |
48 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-46740 |
2JZGE..JCE10 |
24 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-46740 |
2JZGE..JCE10 |
24 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-74050 |
2JZGE..JCE10 T=2.60 |
24 | ||
| 13753-74010 |
2JZGE..JCE10 T=2.50 |
24 | ||
| 13753-74130 |
2JZGE..JCE10 T=2.80 |
24 | ||
| 13753-74090 |
2JZGE..JCE10 T=2.70 |
24 | ||
| 13753-74070 |
2JZGE..JCE10 T=2.65 |
24 | ||
| 13753-74170 |
2JZGE..JCE10 T=2.90 |
24 | ||
| 13753-74250 |
2JZGE..JCE10 T=3.10 |
24 | ||
| 13753-74110 |
2JZGE..JCE10 T=2.75 |
24 | ||
| 13753-74030 |
2JZGE..JCE10 T=2.55 |
24 | ||
| 13753-74230 |
2JZGE..JCE10 T=3.05 |
24 | ||
| 13753-74270 |
2JZGE..JCE10 T=3.15 |
24 | ||
| 13753-74330 |
2JZGE..JCE10 T=3.30 |
24 | ||
| 13753-74190 |
2JZGE..JCE10 T=2.95 |
24 | ||
| 13753-74210 |
2JZGE..JCE10 T=3.00 |
24 | ||
| 13753-74310 |
2JZGE..JCE10 T=3.25 |
24 | ||
| 13753-74290 |
2JZGE..JCE10 T=3.20 |
24 | ||
| 13753-74150 |
2JZGE..JCE10 T=2.85 |
24 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-74050 |
2JZGE..JCE10 T=2.60 |
24 | ||
| 13753-74010 |
2JZGE..JCE10 T=2.50 |
24 | ||
| 13753-74130 |
2JZGE..JCE10 T=2.80 |
24 | ||
| 13753-74090 |
2JZGE..JCE10 T=2.70 |
24 | ||
| 13753-74070 |
2JZGE..JCE10 T=2.65 |
24 | ||
| 13753-74170 |
2JZGE..JCE10 T=2.90 |
24 | ||
| 13753-74250 |
2JZGE..JCE10 T=3.10 |
24 | ||
| 13753-74110 |
2JZGE..JCE10 T=2.75 |
24 | ||
| 13753-74030 |
2JZGE..JCE10 T=2.55 |
24 | ||
| 13753-74230 |
2JZGE..JCE10 T=3.05 |
24 | ||
| 13753-74270 |
2JZGE..JCE10 T=3.15 |
24 | ||
| 13753-74330 |
2JZGE..JCE10 T=3.30 |
24 | ||
| 13753-74190 |
2JZGE..JCE10 T=2.95 |
24 | ||
| 13753-74210 |
2JZGE..JCE10 T=3.00 |
24 | ||
| 13753-74310 |
2JZGE..JCE10 T=3.25 |
24 | ||
| 13753-74290 |
2JZGE..JCE10 T=3.20 |
24 | ||
| 13753-74150 |
2JZGE..JCE10 T=2.85 |
24 | ||
| Common parts | ||||
| 90105-08248 | ||||
| 90119-12212 | ||||
| 90201-10117 | ||||
| 90210-26002 | ||||
| 90402-12006 | ||||
| Linked diagrams | ||||
| 1709 | ||||
