JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )2JZGE

Click highlighted areas on diagram

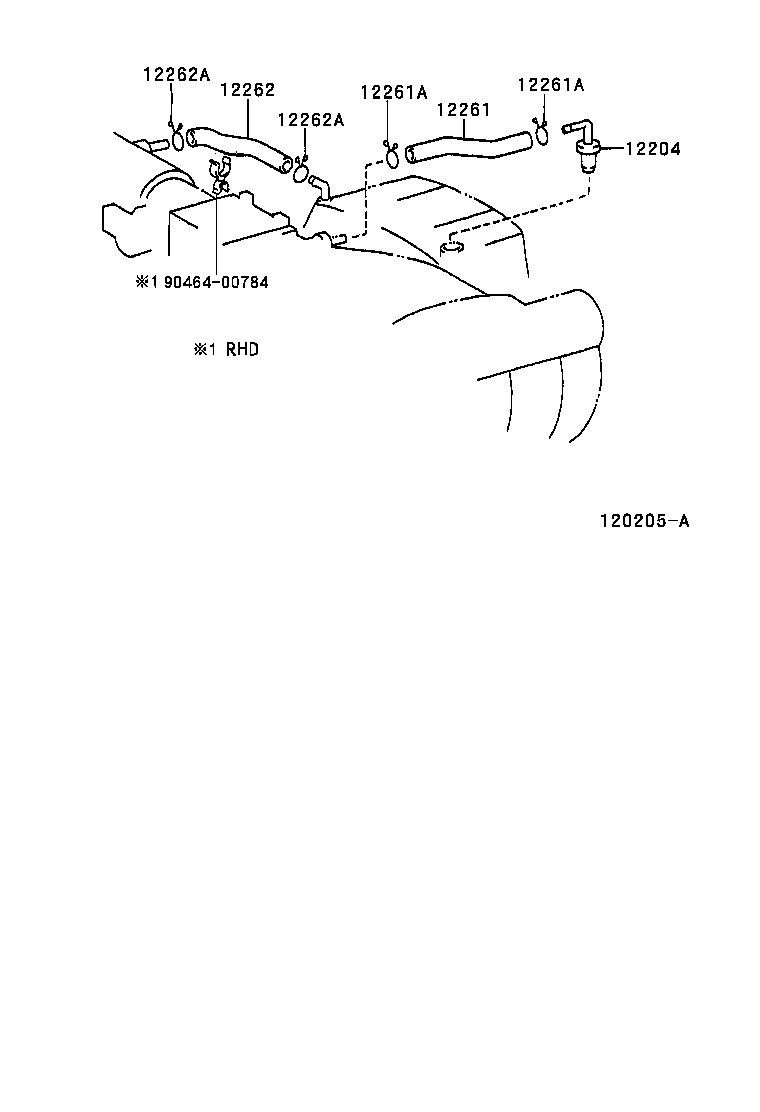

diagram 12204 12261 12261A 12261A 12262 12262A 12262A 9046400784
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-46031

2JZGE..JCE10

 1
12261 - HOSE, VENTILATION
12261-46051

2JZGE..JCE10

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2JZGE..JCE10

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14001

2JZGE..JCE10

 2
12262 - HOSE, VENTILATION, NO.2
12262-46090

2JZGE..JCE10

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18003

2JZGE..JCE10

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18003

2JZGE..JCE10

 2
Common parts
90464-00784
