JCE10L-AWAVFW (2001)

Toyota Lexus Is200/300

Production Jul 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )2JZGE

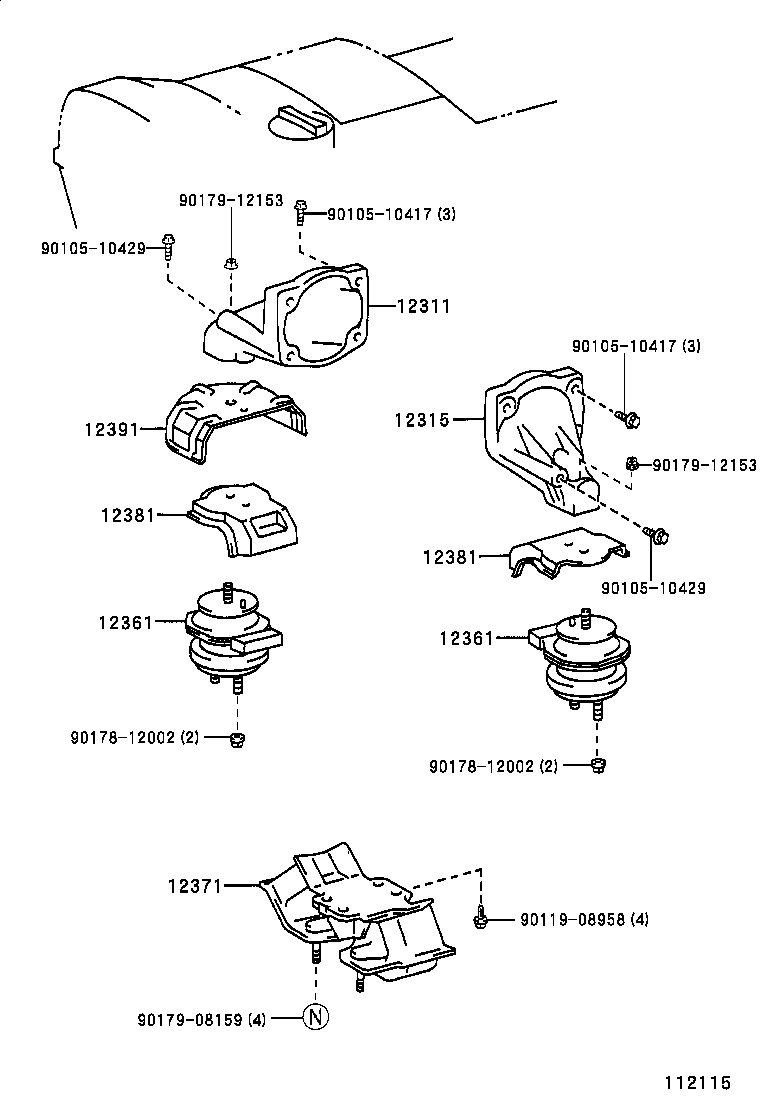

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12391 9010510417 9010510417 9010510429 9010510429 9011908958 9017812002 9017812002 9017908159 9017912153 9017912153
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-46140

2JZGE..JCE10

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-46120

2JZGE..JCE10

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-46190

2JZGE..JCE10

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-46190

2JZGE..JCE10

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-46160

2JZGE..JCE10

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-46070

2JZGE..JCE10

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-46070

2JZGE..JCE10

 2
12391 - INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH
12391-46040

2JZGE..JCE10

 1
Common parts
90105-10417
90105-10429
90119-08958
90178-12002
90179-08159
90179-12153
