JCE10L-AEAVFW (2001)
Toyota Lexus Is200/300
Production
Jul 2001
-
Jul 2005
Engine
2JZGE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )JCE10

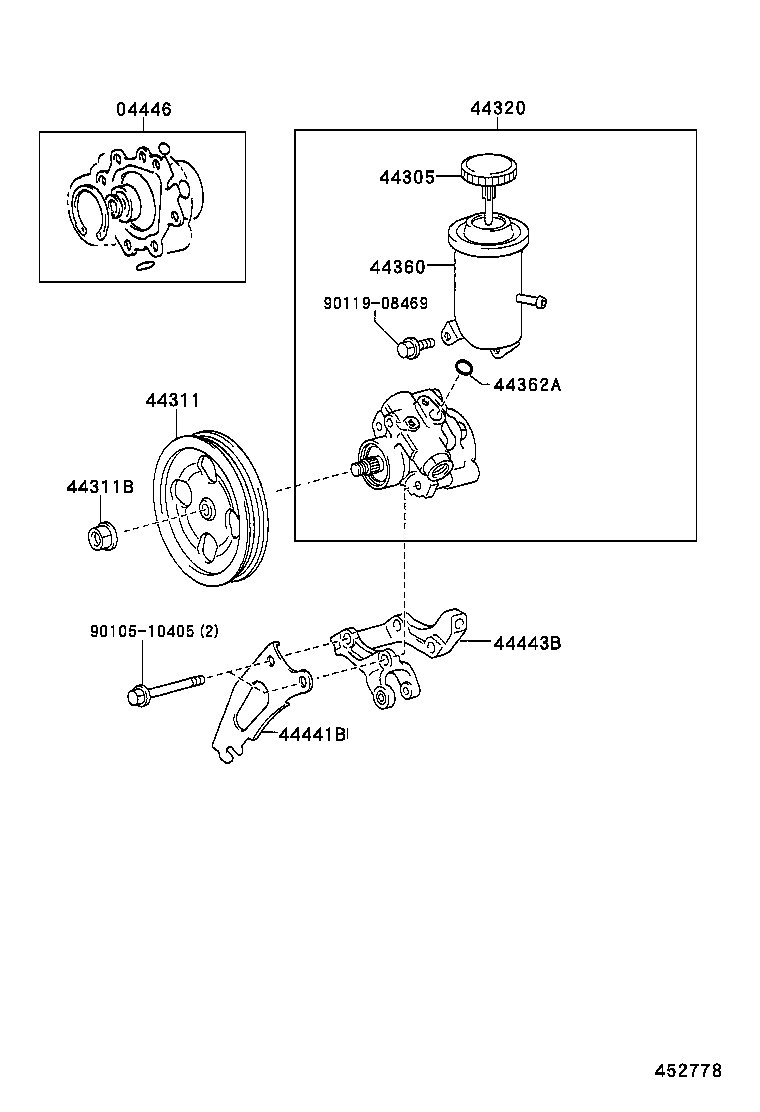

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30120 |
JCE10 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-50010 |
JCE10 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-22091 |
JCE10 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
GXE10,JCE10 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-53030 |
JCE10 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-24080 |
JCE10 |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-11016 |
GXE10,JCE10 |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-30080 |
JCE10 |
1 | ||
| 44443B - BRACKET, VANE PUMP | ||||
| 44443-22130 |
JCE10 |
1 | ||
| Common parts | ||||
| 90105-10405 | ||||
| 90119-08469 | ||||
