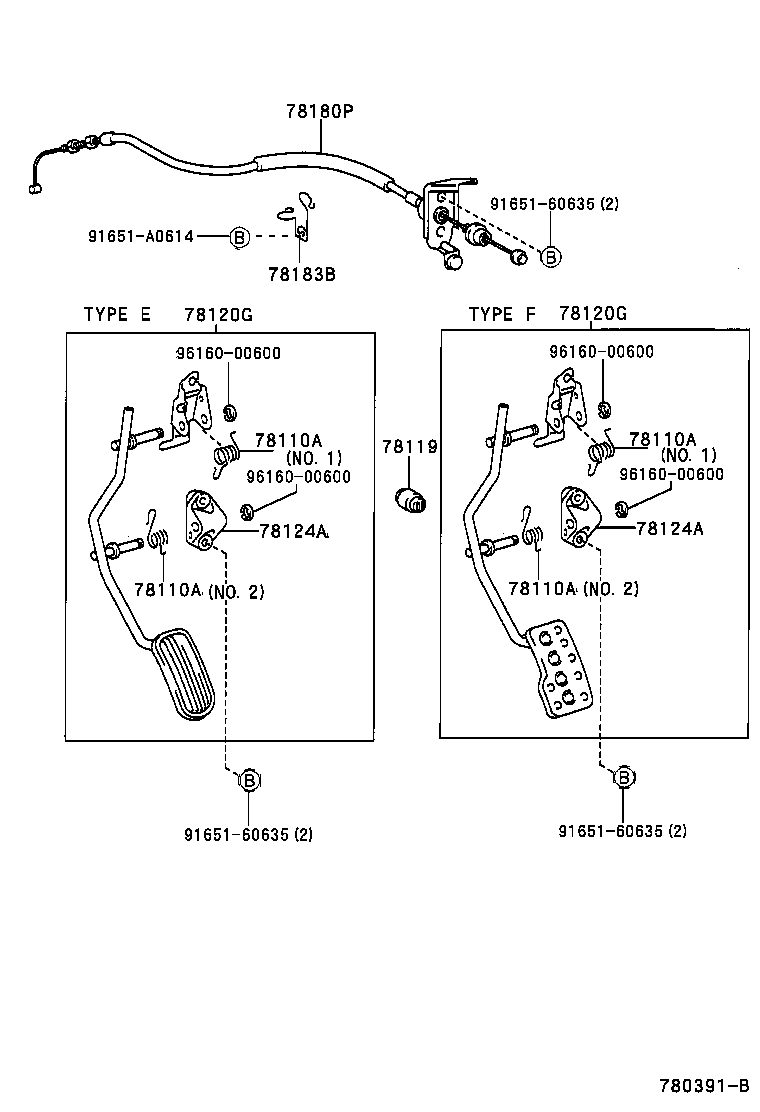

GXE10L-AEPVKW (1999)
Toyota Lexus Is200/300
(9901- )GXE10..LHD..ATM ; (0107- )JCE10..LHD
TYPE E, TYPE F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-29022 |
GXE10..LHD..ATM NO.2 |
1 | ||
| 90508-23069 |
GXE10..LHD..ATM NO.1 |
1 | ||
| 90508-23069 |
GXE10,JCE10..LHD..ATM NO.1 |
1 | ||
| 90508-29022 |
GXE10,JCE10..LHD..ATM NO.2 |
1 | ||
| 90508-23069 |
GXE10,JCE10..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-29022 |
GXE10..LHD..ATM NO.2 |
1 | ||
| 90508-23069 |
GXE10..LHD..ATM NO.1 |
1 | ||
| 90508-23069 |
GXE10,JCE10..LHD..ATM NO.1 |
1 | ||
| 90508-29022 |
GXE10,JCE10..LHD..ATM NO.2 |
1 | ||
| 90508-23069 |
GXE10,JCE10..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-29022 |
GXE10..LHD..ATM NO.2 |
1 | ||
| 90508-23069 |
GXE10..LHD..ATM NO.1 |
1 | ||
| 90508-23069 |
GXE10,JCE10..LHD..ATM NO.1 |
1 | ||
| 90508-29022 |
GXE10,JCE10..LHD..ATM NO.2 |
1 | ||
| 90508-23069 |
GXE10,JCE10..LHD |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-29022 |
GXE10..LHD..ATM NO.2 |
1 | ||
| 90508-23069 |
GXE10..LHD..ATM NO.1 |
1 | ||
| 90508-23069 |
GXE10,JCE10..LHD..ATM NO.1 |
1 | ||
| 90508-29022 |
GXE10,JCE10..LHD..ATM NO.2 |
1 | ||
| 90508-23069 |
GXE10,JCE10..LHD |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 78119-53010 |
GXE10..LHD |
1 | ||
| 78119-53010 |
GXE10,JCE10..LHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-53060 |
GXE10..LHD..ATM TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 78120-53020 |
GXE10..LHD..ATM TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 78120-53020 |
GXE10,JCE10..LHD..ATM TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 78120-53040 |
GXE10..LHD TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 78120-53060 |
GXE10,JCE10..LHD..ATM TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 78120-53050 |
GXE10..LHD TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 78120-53050 |
GXE10,JCE10..LHD TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 78120-53040 |
GXE10,JCE10..LHD TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-53060 |
GXE10..LHD..ATM TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 78120-53020 |
GXE10..LHD..ATM TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 78120-53020 |
GXE10,JCE10..LHD..ATM TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 78120-53040 |
GXE10..LHD TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 78120-53060 |
GXE10,JCE10..LHD..ATM TYPE F:REFER TO ILLUSTRATION |
1 | ||
| 78120-53050 |
GXE10..LHD TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 78120-53050 |
GXE10,JCE10..LHD TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 78120-53040 |
GXE10,JCE10..LHD TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 78124A - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 78124-24030 |
GXE10..LHD |
1 | ||
| 78124-24030 |
GXE10,JCE10..LHD |
1 | ||
| 78124A - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 78124-24030 |
GXE10..LHD |
1 | ||
| 78124-24030 |
GXE10,JCE10..LHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-53030 |
GXE10..LHD |
1 | ||
| 78180-53030 |
GXE10..LHD |
1 | ||
| Common parts | ||||
| 91651-60635 | ||||
| 91651-A0614 | ||||
| 96160-00600 | ||||
