URJ150L-GKTZKV (2009)
Toyota Lexus Gx400/460
Production
Nov 2009
-
Aug 2013
Engine
1URFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0911- )

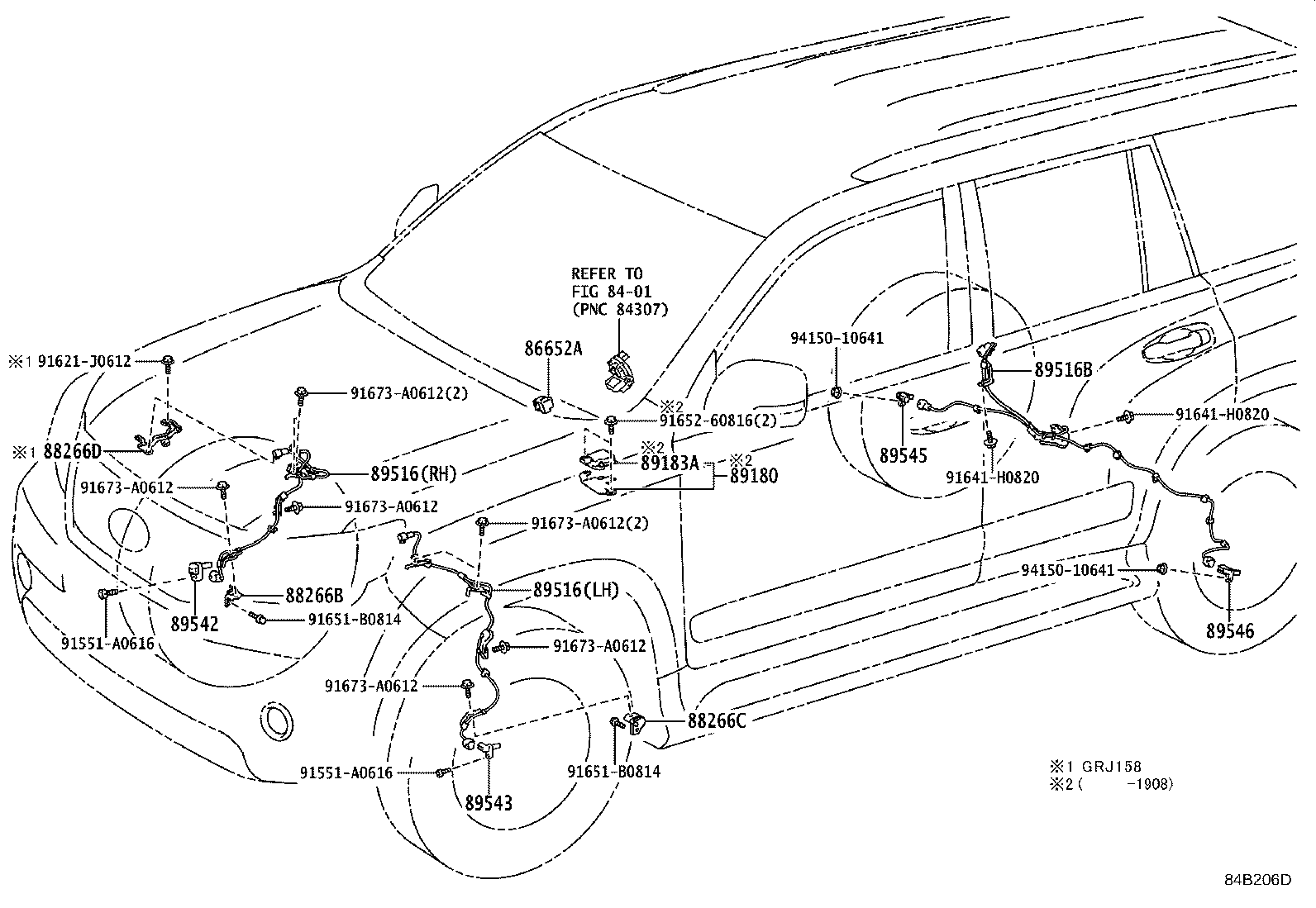

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86652A - BUZZER ASSY, SKID CONTROL | ||||
| 86652-50010 |
URJ150..GCC PRE-COLLISION SYSTEM-WITH(*MRT) |
1 | ||
| 86652-50010 |
URJ150 |
1 | ||
| 88266B - CLAMP, SKID CONTROL SENSOR, NO.1 | ||||
| 88266-60A00 |
GRJ158,URJ150 |
1 | ||
| 88266-60770 |
GRJ158;URJ150..GCC |
1 | ||
| 88266C - CLAMP, SKID CONTROL SENSOR, NO.2 | ||||
| 88266-60780 |
GRJ158;URJ150..GCC |
1 | ||
| 88266-60A10 |
GRJ158,URJ150 |
1 | ||
| 89180 - SENSOR ASSY, YAWRATE | ||||
| 89180-35030 |
URJ150..GCC |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60260 |
URJ150..GCC RH |
1 | ||
| 89516-60270 |
URJ150..GCC LH |
1 | ||
| 89516-60280 |
URJ150 SOUTH/CENTRAL AMERICA SPEC,RH |
1 | ||
| 89516-60290 |
URJ150 SOUTH/CENTRAL AMERICA SPEC,LH |
1 | ||
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60260 |
URJ150..GCC RH |
1 | ||
| 89516-60270 |
URJ150..GCC LH |
1 | ||
| 89516-60280 |
URJ150 SOUTH/CENTRAL AMERICA SPEC,RH |
1 | ||
| 89516-60290 |
URJ150 SOUTH/CENTRAL AMERICA SPEC,LH |
1 | ||
| 89516B - WIRE, SKID CONTROL SENSOR | ||||
| 89516-60300 |
URJ150..GCC |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-60050 |
URJ150..GCC |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-60050 |
URJ150..GCC |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89542-60050 |
URJ150..GCC |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89543-60050 |
URJ150..GCC |
1 | ||
| Common parts | ||||
| 91551-A0616 | ||||
| 91621-J0612 | ||||
| 91641-H0820 | ||||
| 91651-B0814 | ||||
| 91652-60816 | ||||
| 91673-A0612 | ||||
| 94150-10641 | ||||
| Linked diagrams | ||||
| 8401 | ||||
