URJ150L-GKTZKV (2009)
Toyota Lexus Gx400/460

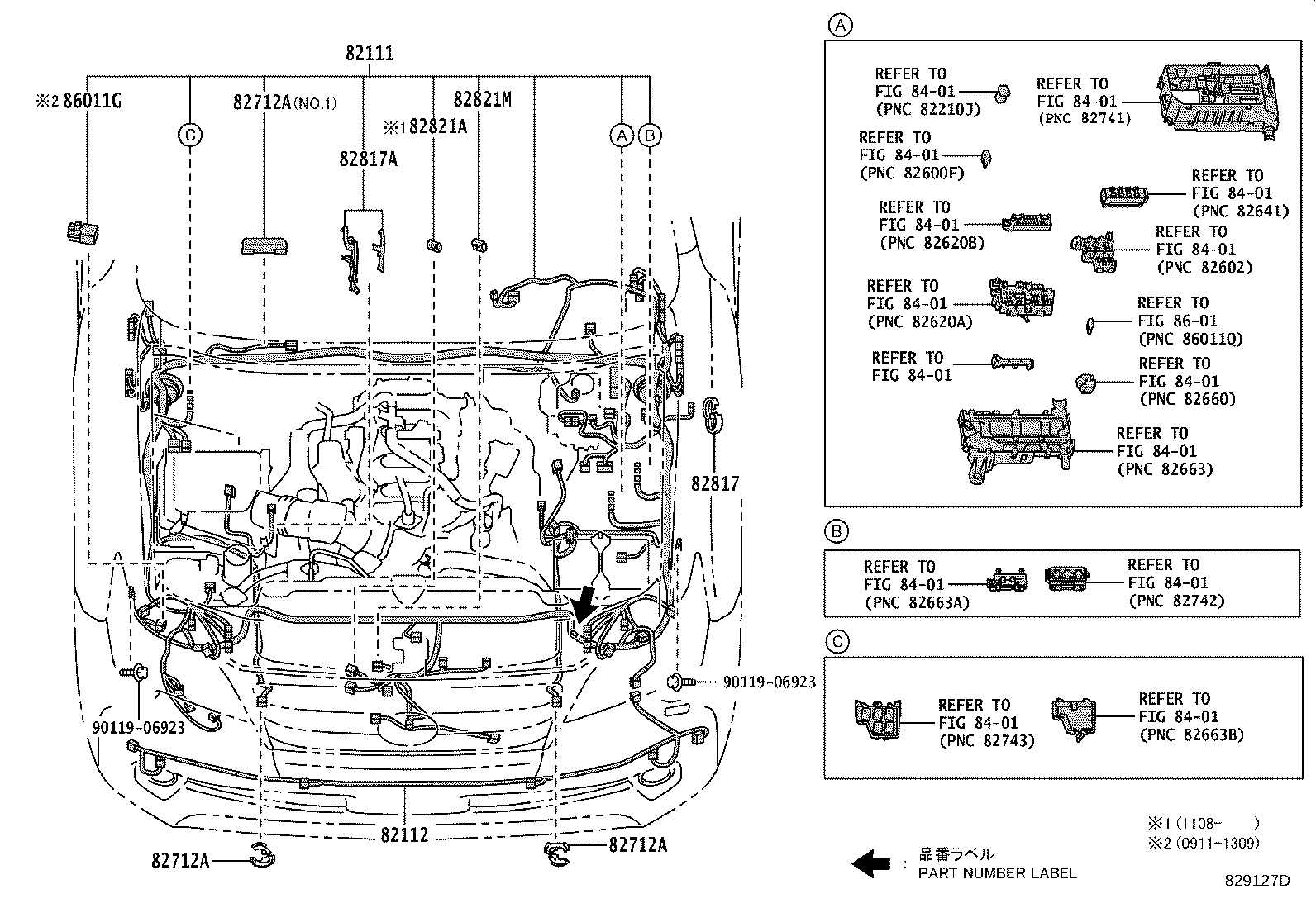

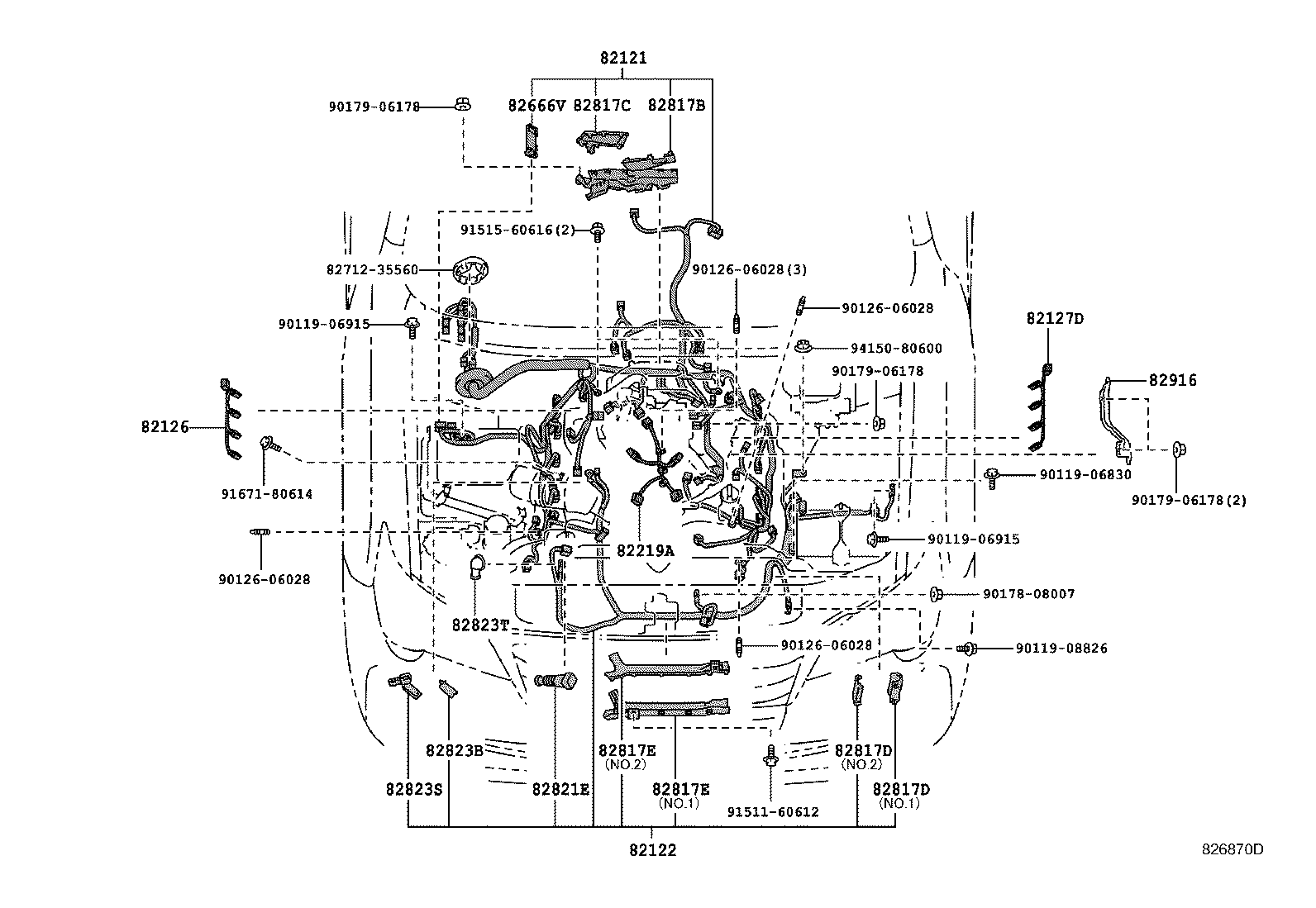

ILLUST NO. 2 OF11(0911-1308)URJ150
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-60J40 |
URJ150..GCC |
1 | ||
| 82121-60S40 |
URJ150 PHILIPPINES SPEC |
1 | ||
| 82121-60S40 |
URJ150 SOUTH/CENTRAL AMERICA SPEC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-35A30 |
URJ150..GCC |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-34021 |
URJ150..GCC |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-34050 |
URJ150..GCC |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-60100 |
URJ150..GCC |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-60610 |
URJ150..GCC |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-35A90 |
URJ150..GCC |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-35B00 |
URJ150..GCC |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-35A30 |
URJ150..GCC NO.1 |
1 | ||
| 82817-35A40 |
URJ150..GCC NO.2 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-35A30 |
URJ150..GCC NO.1 |
1 | ||
| 82817-35A40 |
URJ150..GCC NO.2 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-35A50 |
URJ150..GCC NO.1 |
1 | ||
| 82817-35A60 |
URJ150..GCC NO.2 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-35A50 |
URJ150..GCC NO.1 |
1 | ||
| 82817-35A60 |
URJ150..GCC NO.2 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20370 |
URJ150..GCC |
1 | ||
| 82823B - CAP, TERMINAL, NO.3 | ||||
| 82823-0C040 |
URJ150..GCC |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-0C030 |
URJ150..GCC |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-60040 |
URJ150..GCC |
1 | ||
| 82916 - INSULATOR, WIRING HARNESS HEAT, NO.2 | ||||
| 82916-35010 |
URJ150..GCC |
1 | ||
| Common parts | ||||
| 82712-35560 | ||||
| 90119-06830 | ||||
| 90119-06915 | ||||
| 90119-08826 | ||||
| 90126-06028 | ||||
| 90178-08007 | ||||
| 90179-06178 | ||||
| 91511-60612 | ||||
| 91515-60616 | ||||
| 91671-80614 | ||||
| 94150-80600 | ||||

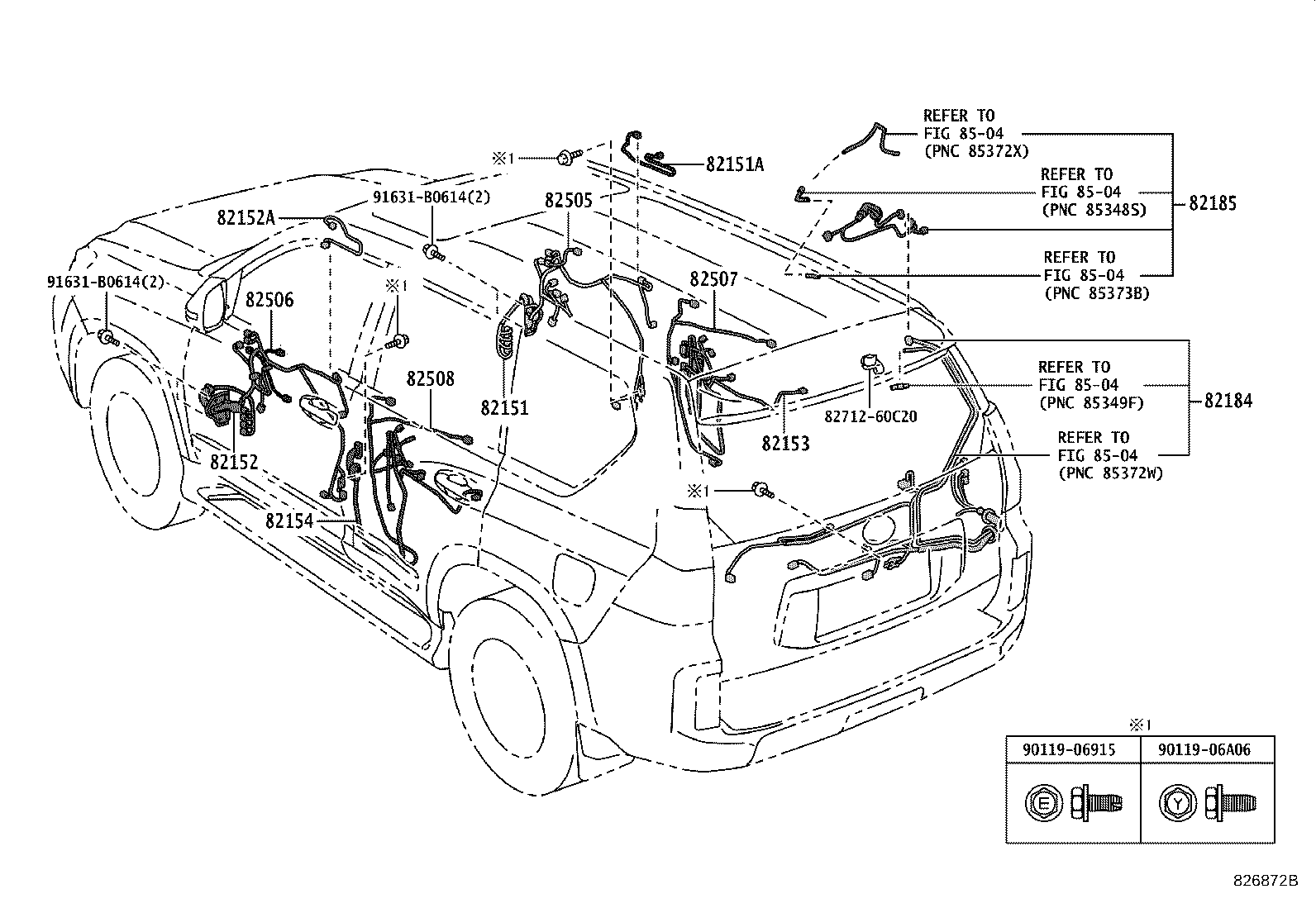

ILLUST NO. 4 OF11(0911- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60A70 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 82151-60A60 |
URJ150..GCC |
1 | ||
| 82151-60A70 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 82151-60A70 |
URJ150 BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 82151-60A70 |
URJ150..GCC BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR) |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82155-60050 |
URJ150..GCC |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60890 |
URJ150..GCC |
1 | ||
| 82152-60A00 |
URJ150 BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 82152-60A00 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 82152-60A00 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82156-60010 |
URJ150..GCC |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60350 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82153-60360 |
URJ150..GCC |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-60180 |
URJ150..GCC |
1 | ||
| 82154-60170 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60480 |
URJ150..GCC |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60280 |
URJ150..GCC |
1 | ||
| 82505 - WIRING SUB-ASSY, FRONT DOOR, RH | ||||
| 82505-60110 |
URJ150..GCC |
1 | ||
| 82506 - WIRING SUB-ASSY, FRONT DOOR, LH | ||||
| 82506-60080 |
URJ150..GCC |
1 | ||
| 82507 - WIRING SUB-ASSY, REAR DOOR, RH | ||||
| 82507-60030 |
URJ150..GCC |
1 | ||
| 82508 - WIRING SUB-ASSY, REAR DOOR, LH | ||||
| 82507-60030 |
URJ150..GCC |
1 | ||
| Common parts | ||||
| 82712-60C20 | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 91631-B0614 | ||||
| Linked diagrams | ||||
| 8504 | ||||

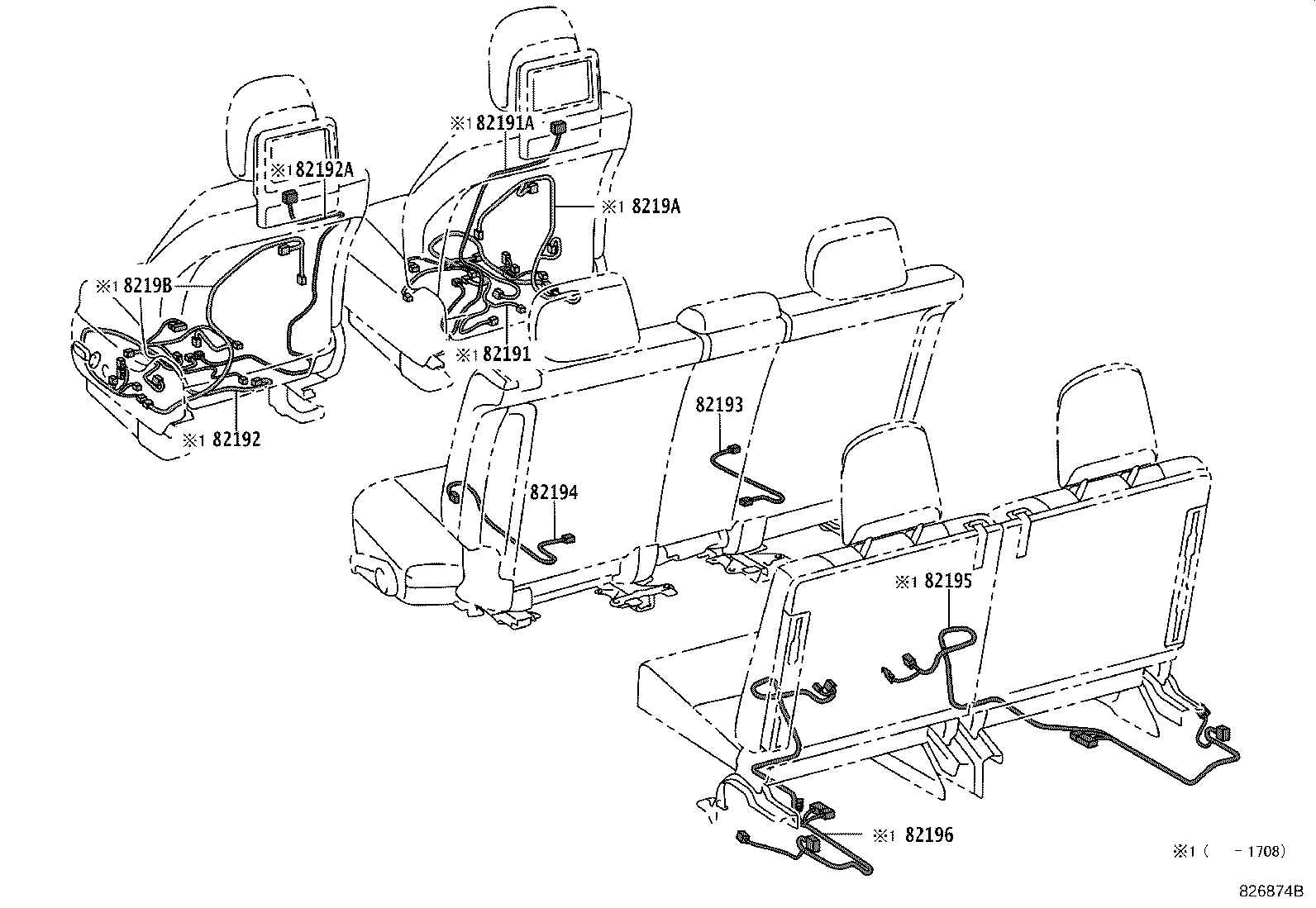

ILLUST NO. 6 OF11(0911- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-60460 |
URJ150..GCC |
1 | ||
| 82191A - WIRE, FRONT SEAT, RH | ||||
| 8219C-60010 |
URJ150..GCC REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-60290 |
URJ150..GCC |
1 | ||
| 82192A - WIRE, REAR SEAT, LH | ||||
| 8219C-60010 |
URJ150..GCC REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-60070 |
URJ150..GCC SEAT COVER MATERIAL-SEMI-ANILINE LEATHER |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-60070 |
URJ150..GCC SEAT COVER MATERIAL-SEMI-ANILINE LEATHER |
1 | ||
| 82195 - WIRE, REAR SEAT, RH NO.2 | ||||
| 82195-60031 |
URJ150 |
1 | ||
| 82195-60030 |
GRJ158;URJ150..GCC |
1 | ||
| 82196 - WIRE, REAR SEAT, LH NO.2 | ||||
| 82196-60031 |
URJ150 |
1 | ||
| 82196-60030 |
GRJ158;URJ150..GCC |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-60050 |
URJ150..GCC |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-60050 |
URJ150..GCC |
1 | ||

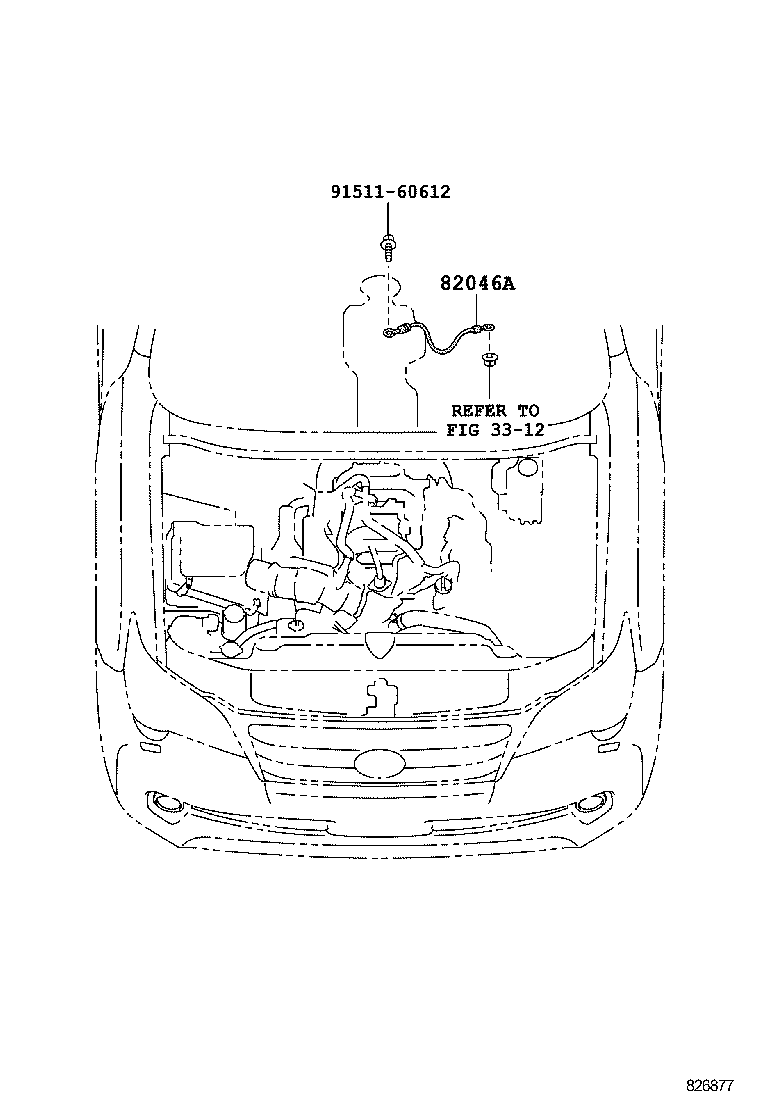

ILLUST NO. 8 OF11(0911- )URJ150
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-60170 |
URJ150..GCC |
1 | ||
| Common parts | ||||
| 91511-60612 | ||||
| Linked diagrams | ||||
| 3312 | ||||

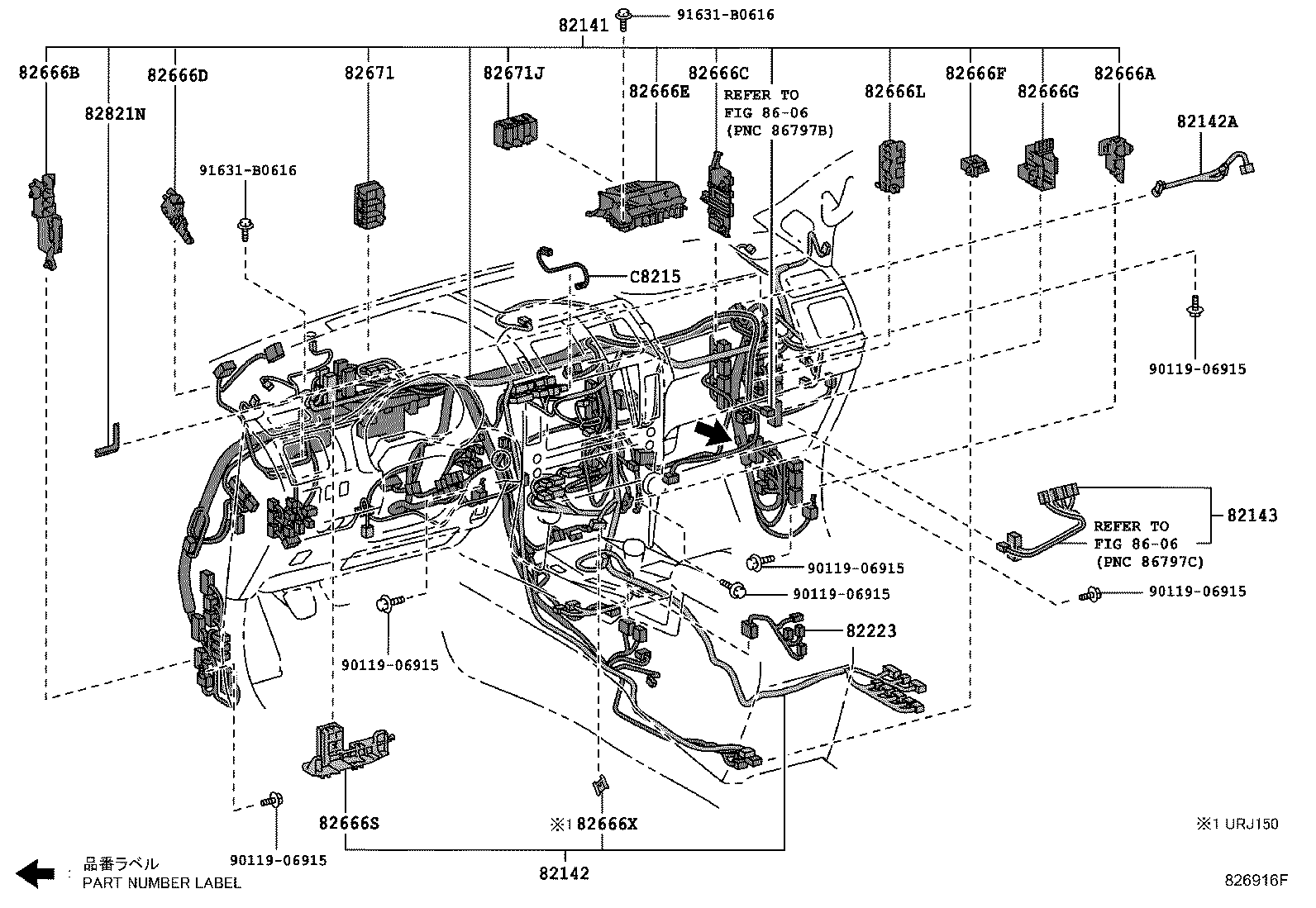

ILLUST NO. 3 OF11(0911-1308)GCC ; (1012-1206)CHI ; (1206-1309)GRJ158
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60W10 |
URJ150 |
1 | ||
| 82141-60P80 |
URJ150 |
1 | ||
| 82141-60Q10 |
URJ150 AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82141-60W40 |
URJ150 AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82141-6AG50 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82141-6AG40 |
URJ150..GCC |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-60C00 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82142-60B70 |
URJ150..GCC |
1 | ||
| 82142-60C30 |
URJ150 SOUTH/CENTRAL AMERICA SPEC&AUDIO-EMV,DVD CHANGER,17SPEAKER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82142-60E90 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82142-60B90 |
URJ150 SOUTH/CENTRAL AMERICA SPEC&AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-35020 |
URJ150..GCC |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-60340 |
URJ150 CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR) |
1 | ||
| 82143-60340 |
URJ150..GCC CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 82143-60340 |
URJ150 AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(AROUND MONITOR) |
1 | ||
| 82143-60340 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82143-60340 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)&BACK MONITOR (REAR TELEVISION CAMERA)-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 82143-60410 |
URJ150..GCC |
1 | ||
| 82143-60330 |
URJ150..GCC CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82143-60340 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER&CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82223 - WIRE, SWITCH | ||||
| 82223-60350 |
URJ150..GCC |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60730 |
URJ150..GCC |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60740 |
URJ150..GCC |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60750 |
URJ150..GCC |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60760 |
URJ150..GCC |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60770 |
URJ150..GCC |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-60800 |
URJ150..GCC |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60B80 |
URJ150..GCC |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-60780 |
URJ150..GCC |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-60C00 |
URJ150..GCC |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-26080 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82666-26080 |
URJ150 SOUTH/CENTRAL AMERICA SPEC&AUDIO-EMV,DVD CHANGER,17SPEAKER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-60110 |
URJ150..GCC |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-60120 |
URJ150..GCC |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-60140 |
URJ150..GCC |
1 | ||
| C8215 - WIRE, HAZARD SWITCH | ||||
| C8215-35010 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| C8215-60010 |
URJ150..GCC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91631-B0616 | ||||
| Linked diagrams | ||||
| 8606 | ||||

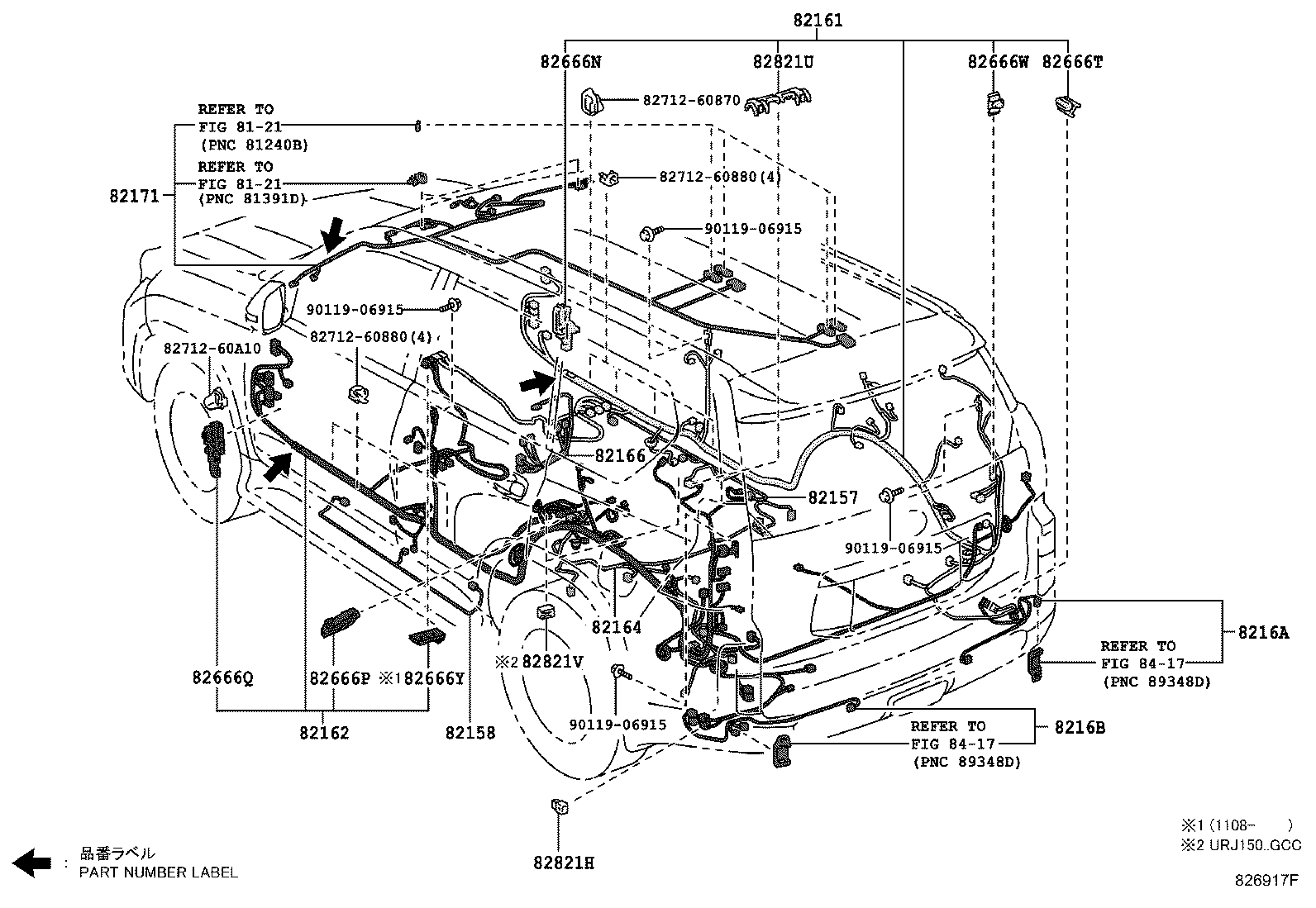

ILLUST NO. 5 OF11(0911-1308)URJ150 ; (0911-1309)GRJ158
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82157 - WIRE, STEP PANEL, RH | ||||
| 82157-60030 |
URJ150..GCC |
1 | ||
| 82158 - WIRE, STEP PANEL, LH | ||||
| 82157-60030 |
URJ150..GCC |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-60L00 |
URJ150 REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82161-60L01 |
URJ150..GCC REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82161-60K90 |
URJ150 |
1 | ||
| 82161-60K91 |
URJ150..GCC |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60B30 |
URJ150 AUDIO-EMV,DVD CHANGER,17SPEAKER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82162-60L50 |
URJ150 |
1 | ||
| 82162-60L60 |
URJ150 AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82162-60L61 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82162-60L51 |
URJ150..GCC |
1 | ||
| 82162-60B31 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60620 |
URJ150..GCC |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-60600 |
URJ150..GCC REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82166-60590 |
URJ150..GCC COOL BOX-WITH&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER |
1 | ||
| 82166-60580 |
URJ150..GCC COOL BOX-WITH |
1 | ||
| 82166-60610 |
URJ150..GCC COOL BOX-WITH&SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82166-60740 |
URJ150..GCC COOL BOX-WITH&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 82166-60720 |
URJ150..GCC SEAT COVER MATERIAL-SEMI-ANILINE LEATHER |
1 | ||
| 82166-60710 |
URJ150..GCC |
1 | ||
| 82166-60730 |
URJ150..GCC SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 8216A - WIRE, FLOOR NO.7 | ||||
| 8216A-60050 |
URJ150..GCC CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 8216A-60040 |
URJ150..GCC |
1 | ||
| 8216B - WIRE, FLOOR NO.8 | ||||
| 8216B-60050 |
URJ150..GCC CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 8216B-60040 |
URJ150..GCC |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60E20 |
URJ150 |
1 | ||
| 82171-60P10 |
URJ150..GCC |
1 | ||
| 82171-60P60 |
URJ150..GCC AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82171-60J40 |
URJ150 AUDIO-EMV,DVD CHANGER,17SPEAKER |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-60830 |
URJ150..GCC |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-60850 |
URJ150..GCC |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-60840 |
URJ150..GCC |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-60C10 |
URJ150..GCC |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-60220 |
URJ150..GCC |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-22070 |
URJ150..GCC |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-60370 |
URJ150..GCC CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82821-60370 |
URJ150..GCC |
1 | ||
| 82821U - COVER, CONNECTOR | ||||
| 82821-30580 |
URJ150..GCC |
1 | ||
| 82821V - COVER, CONNECTOR | ||||
| 90980-11085 |
URJ150..GCC SEAT COVER MATERIAL-SEMI-ANILINE LEATHER |
2 | ||
| 90980-11085 |
URJ150..GCC |
2 | ||
| Common parts | ||||
| 82712-60870 | ||||
| 82712-60880 | ||||
| 82712-60A10 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||

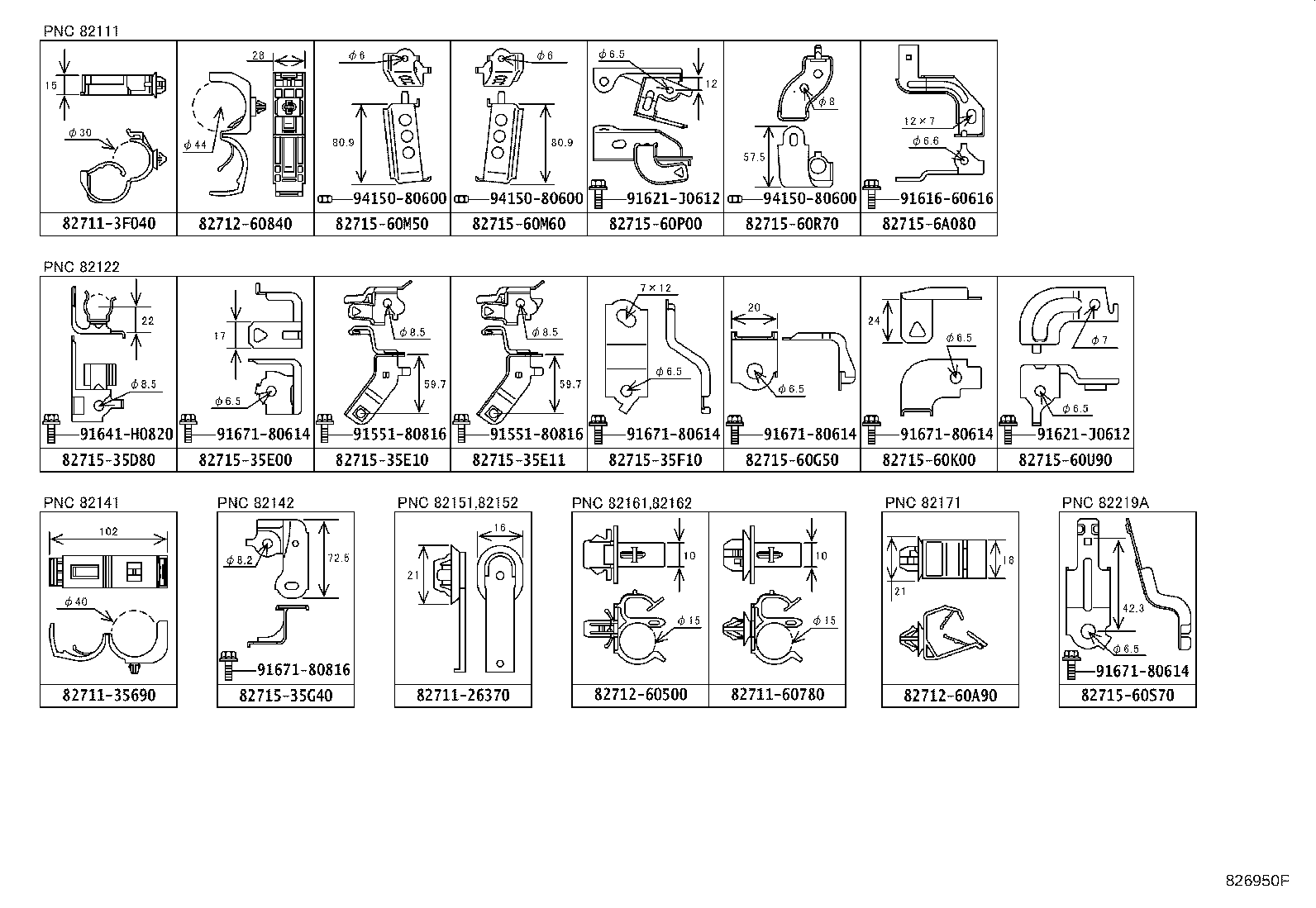

ILLUST NO. 7 OF11(0911- )URJ150
CLAMP & BRACKET 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-26370 | ||||
| 82711-35690 | ||||
| 82711-3F040 | ||||
| 82711-60780 | ||||
| 82712-60500 | ||||
| 82712-60840 | ||||
| 82712-60A90 | ||||
| 82715-35D80 | ||||
| 82715-35E00 | ||||
| 82715-35E10 | ||||
| 82715-35E11 | ||||
| 82715-35F10 | ||||
| 82715-35G40 | ||||
| 82715-60G50 | ||||
| 82715-60K00 | ||||
| 82715-60M50 | ||||
| 82715-60M60 | ||||
| 82715-60P00 | ||||
| 82715-60R70 | ||||
| 82715-60S70 | ||||
| 82715-60U90 | ||||
| 82715-6A080 | ||||
| 91551-80816 | ||||
| 91616-60616 | ||||
| 91621-J0612 | ||||
| 91641-H0820 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 94150-80600 | ||||

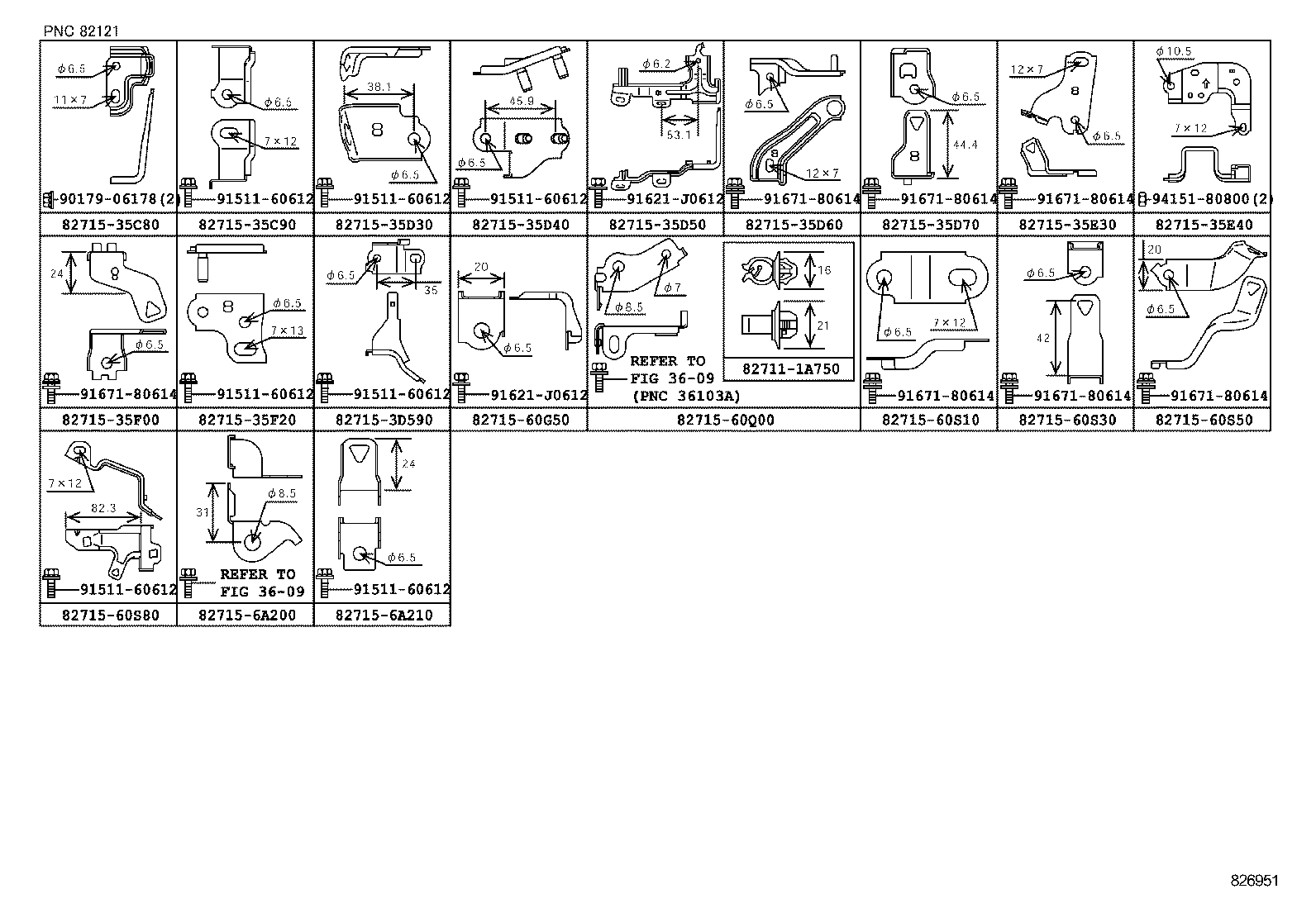

ILLUST NO. 7 OF11(0911- )URJ150
CLAMP & BRACKET 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1A750 | ||||
| 82715-35C80 | ||||
| 82715-35C90 | ||||
| 82715-35D30 | ||||
| 82715-35D40 | ||||
| 82715-35D50 | ||||
| 82715-35D60 | ||||
| 82715-35D70 | ||||
| 82715-35E30 | ||||
| 82715-35E40 | ||||
| 82715-35F00 | ||||
| 82715-35F20 | ||||
| 82715-3D590 | ||||
| 82715-60G50 | ||||
| 82715-60Q00 | ||||
| 82715-60S10 | ||||
| 82715-60S30 | ||||
| 82715-60S50 | ||||
| 82715-60S80 | ||||
| 82715-6A200 | ||||
| 82715-6A210 | ||||
| 90179-06178 | ||||
| 91511-60612 | ||||
| 91621-J0612 | ||||
| 91671-80614 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3609 | ||||

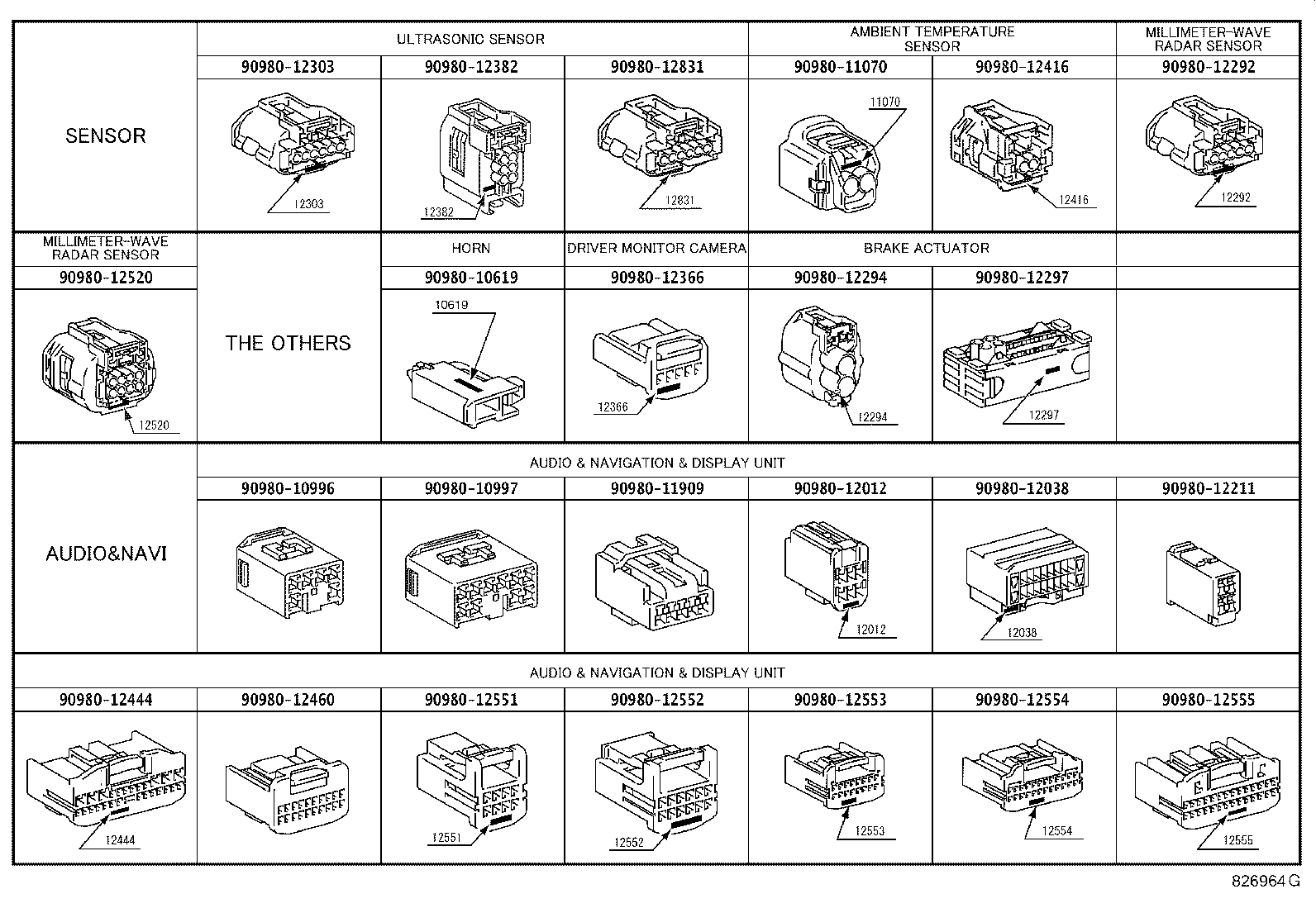

ILLUST NO.10 OF11(0911- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-11909 | ||||
| 90980-12012 | ||||
| 90980-12038 | ||||
| 90980-12211 | ||||
| 90980-12292 | ||||
| 90980-12294 | ||||
| 90980-12297 | ||||
| 90980-12303 | ||||
| 90980-12366 | ||||
| 90980-12382 | ||||
| 90980-12416 | ||||
| 90980-12444 | ||||
| 90980-12460 | ||||
| 90980-12520 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12831 | ||||

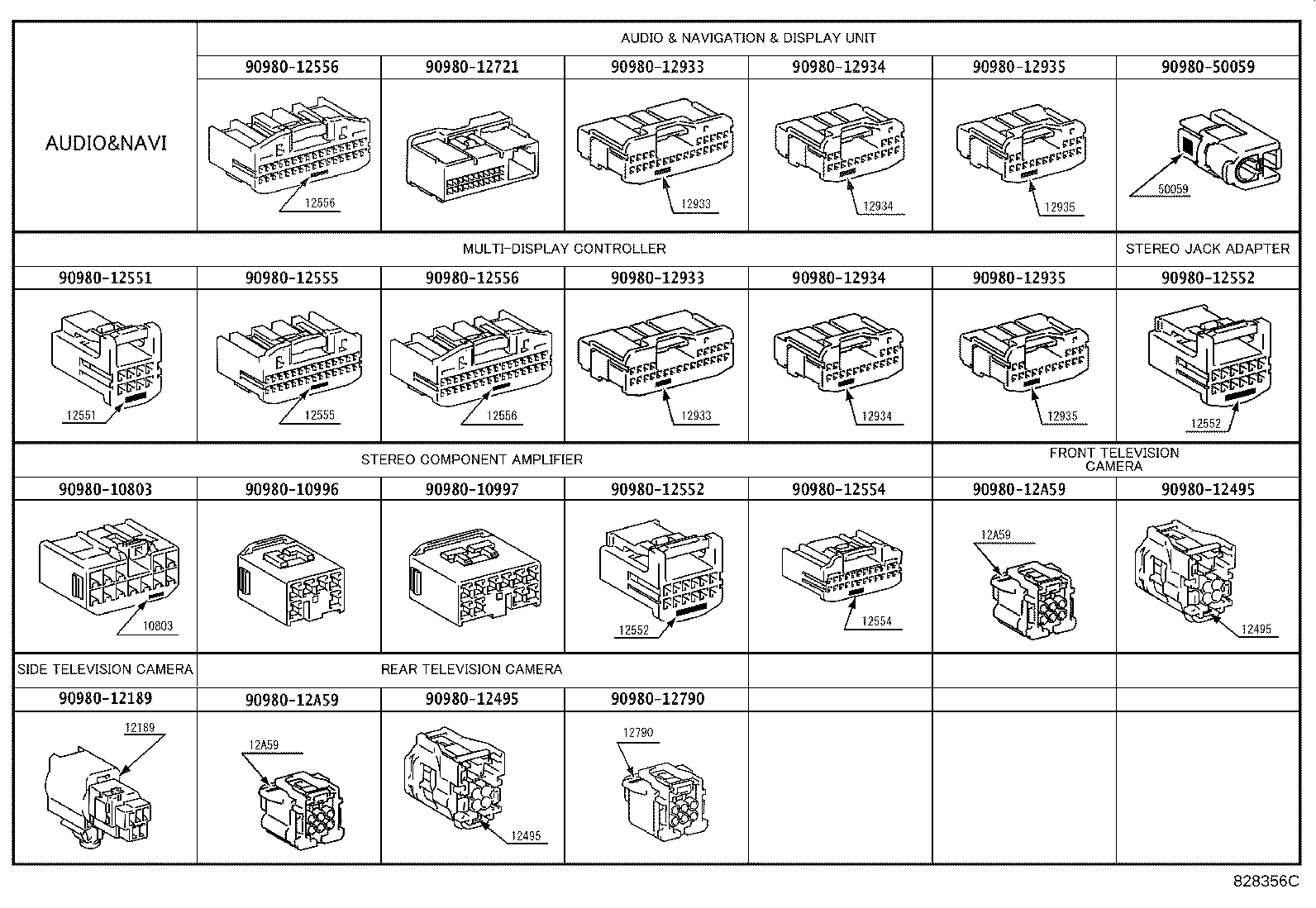

ILLUST NO.11 OF11(0911- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12189 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12556 | ||||
| 90980-12721 | ||||
| 90980-12790 | ||||
| 90980-12933 | ||||
| 90980-12934 | ||||
| 90980-12935 | ||||
| 90980-12A59 | ||||
| 90980-50059 | ||||
ILLUST NO. 1 OF11(0911- )URJ150 ; (1012-1206)CHI ; (1206- )GRJ158
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60P61 |
URJ150 |
1 | ||
| 82111-60K80 |
URJ150 |
1 | ||
| 82111-60P60 |
URJ150 |
1 | ||
| 82111-60Z90 |
URJ150 |
1 | ||
| 82111-60J40 |
URJ150 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60690 |
URJ150..GCC CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
1 | ||
| 82112-60730 |
URJ150..GCC |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-60B20 |
URJ150..GCC NO.2 |
2 | ||
| 82712-60B90 |
URJ150..GCC NO.1 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-60B20 |
URJ150..GCC NO.2 |
2 | ||
| 82712-60B90 |
URJ150..GCC NO.1 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-60B20 |
URJ150..GCC NO.2 |
2 | ||
| 82712-60B90 |
URJ150..GCC NO.1 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
URJ150..GCC |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-60K80 |
URJ150..GCC |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-71080 |
URJ150..GCC |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-12400 |
URJ150..GCC |
1 | ||
| 86011G - CONDENSER | ||||
| 90980-04083 |
URJ150..GCC |
1 | ||
| Common parts | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

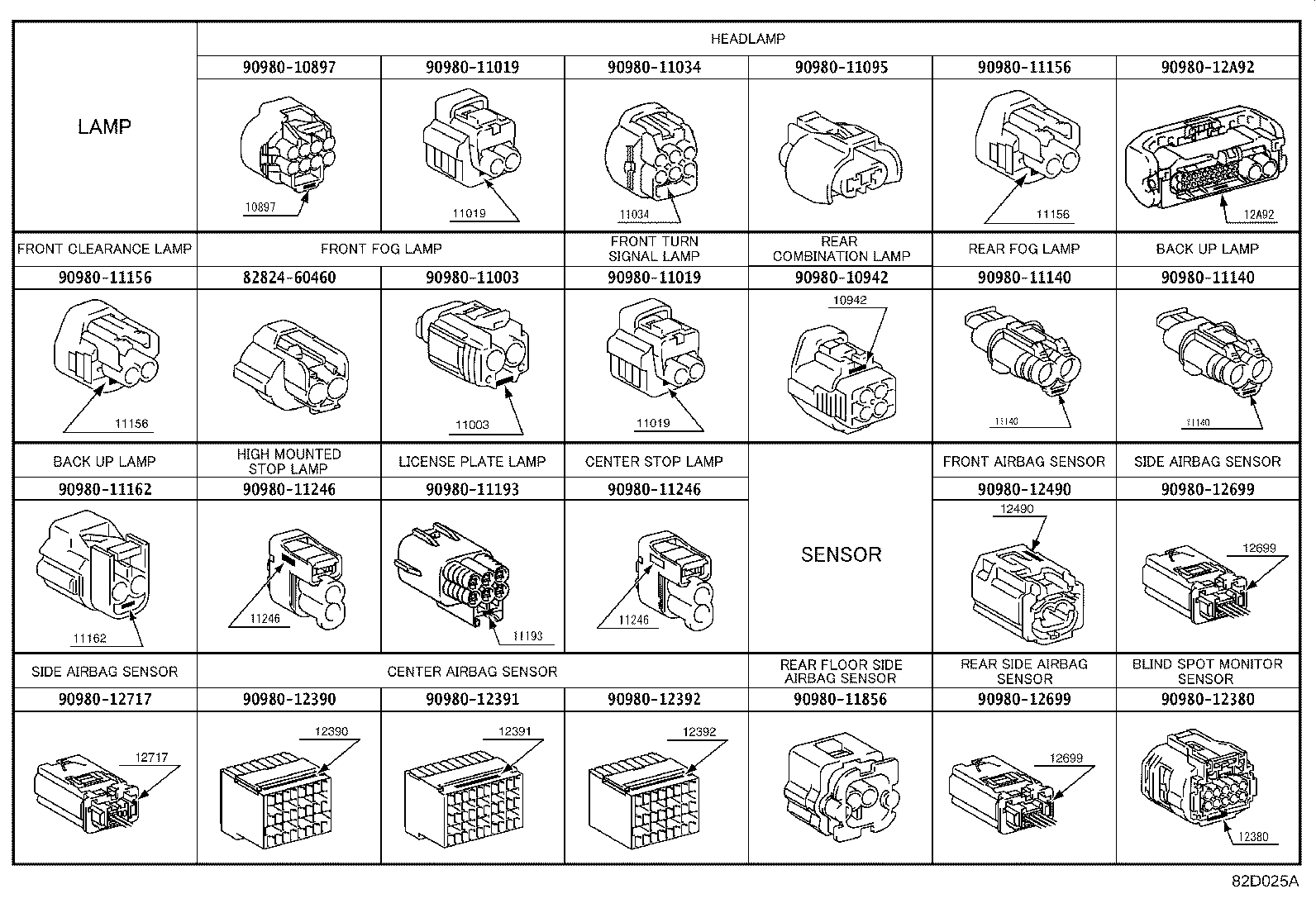

ILLUST NO. 9 OF11(0911- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-11003 | ||||
| 90980-11019 | ||||
| 90980-11034 | ||||
| 90980-11095 | ||||
| 90980-11140 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11193 | ||||
| 90980-11246 | ||||
| 90980-11856 | ||||
| 90980-12380 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-12717 | ||||
| 90980-12A92 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
