URJ150L-GKTZKV (2009)

Toyota Lexus Gx400/460

Production Nov 2009 - Aug 2013
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0911- )

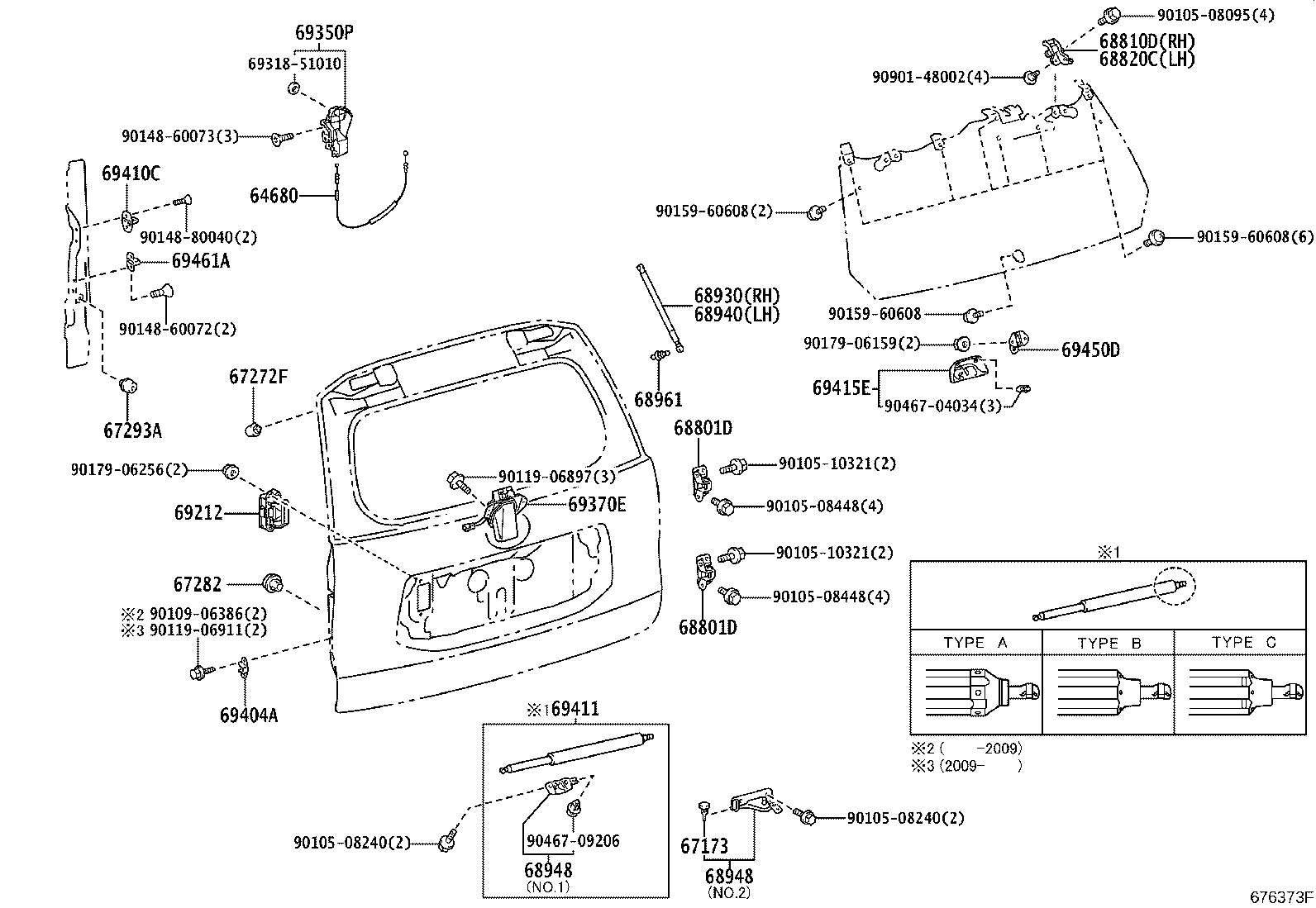

Click highlighted areas on diagram

diagram 64680 67173 67272F 67282 67293A 68801D 68801D 68810D 68820C 68930 68940 68948 68948 68961 69212 6931851010 69350P 69370E 69404A 69410C 69411 69415E 69450D 69461A 9010508095 9010508240 9010508240 9010508448 9010508448 9010510321 9010510321 9010906386 9011906897 9011906911 9014860072 9014860073 9014880040 9015960608 9015960608 9015960608 9017906159 9017906256 9046704034 9046709206 9090148002
Part # Description Qty Price
64680 - CABLE ASSY, BACK DOOR LOCK CONTROL
64680-60010

URJ150..GCC

 1
67173 - CUSHION, BACK DOOR
90541-03005

URJ150..GCC

 1
67272F - CUSHION, BACK DOOR STOPPER, NO.2
67272-60050

URJ150..GCC

 1
67282 - STOPPER, BACK DOOR, NO.1
67282-46010

URJ150..GCC

 1
67293A - CUSHION, BACK DOOR STOPPER
67293-60040

URJ150..GCC

 1
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-60050

URJ150..GCC

 2
68801D - HINGE SUB-ASSY, BACK DOOR, RH
68801-60050

URJ150..GCC

 2
68810D - HINGE ASSY, BACK DOOR, RH
68810-60050

URJ150

 1
68810-60051

URJ150..GCC

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-60010

URJ150

 1
68820-60011

URJ150..GCC

 1
68930 - STAY ASSY, BACK WINDOW, RH
68930-0W020

URJ150..GCC

 1
68940 - STAY ASSY, BACK WINDOW, LH
68940-0W020

URJ150..GCC

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-60020

URJ150..GCC

NO.2:REFER ILLUST.

 1
68948-60010

URJ150..GCC

NO.1:REFER ILLUST.

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-60020

URJ150..GCC

NO.2:REFER ILLUST.

 1
68948-60010

URJ150..GCC

NO.1:REFER ILLUST.

 1
68961 - BOLT, BACK DOOR STAY
68961-20140

URJ150..GCC

 2
69212 - HANDLE, BACK DOOR OUTSIDE, LH
69190-60011

URJ150

 1
69190-60010

GRJ158;URJ150..GCC

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69110-60232

URJ150

 1
69110-60230

URJ150

 1
69110-60231

GRJ158;URJ150..GCC

 1
69370E - LOCK ASSY, BACK WINDOW
69370-60020

URJ150..GCC

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69403-60011

URJ150..GCC

 1
69410C - PLATE ASSY, BACK DOOR LOCK STRIKER
69410-60020

URJ150..GCC

 1
69411 - CHECK, BACK DOOR
68650-0W012

GRJ158,URJ150

NO.1

 1
68650-0W011

URJ150

NO.1

 1
68650-09010

GRJ158;URJ150..GCC

NO.2

 1
68650-0W010

URJ150

NO.1

 1
69415E - COVER, BACK DOOR LOCK STRIKER
69415-60010

URJ150..GCC

 1
69450D - STRIKER ASSY, BACK WINDOW LOCK
69450-60050

URJ150..GCC

 1
69461A - STOPPER, BACK DOOR SIDE MALE
69461-60010

URJ150..GCC

 1
Common parts
69318-51010
90105-08095
90105-08240
90105-08448
90105-10321
90109-06386
90119-06897
90119-06911
90148-60072
90148-60073
90148-80040
90159-60608
90179-06159
90179-06256
90467-04034
90467-09206
90901-48002
