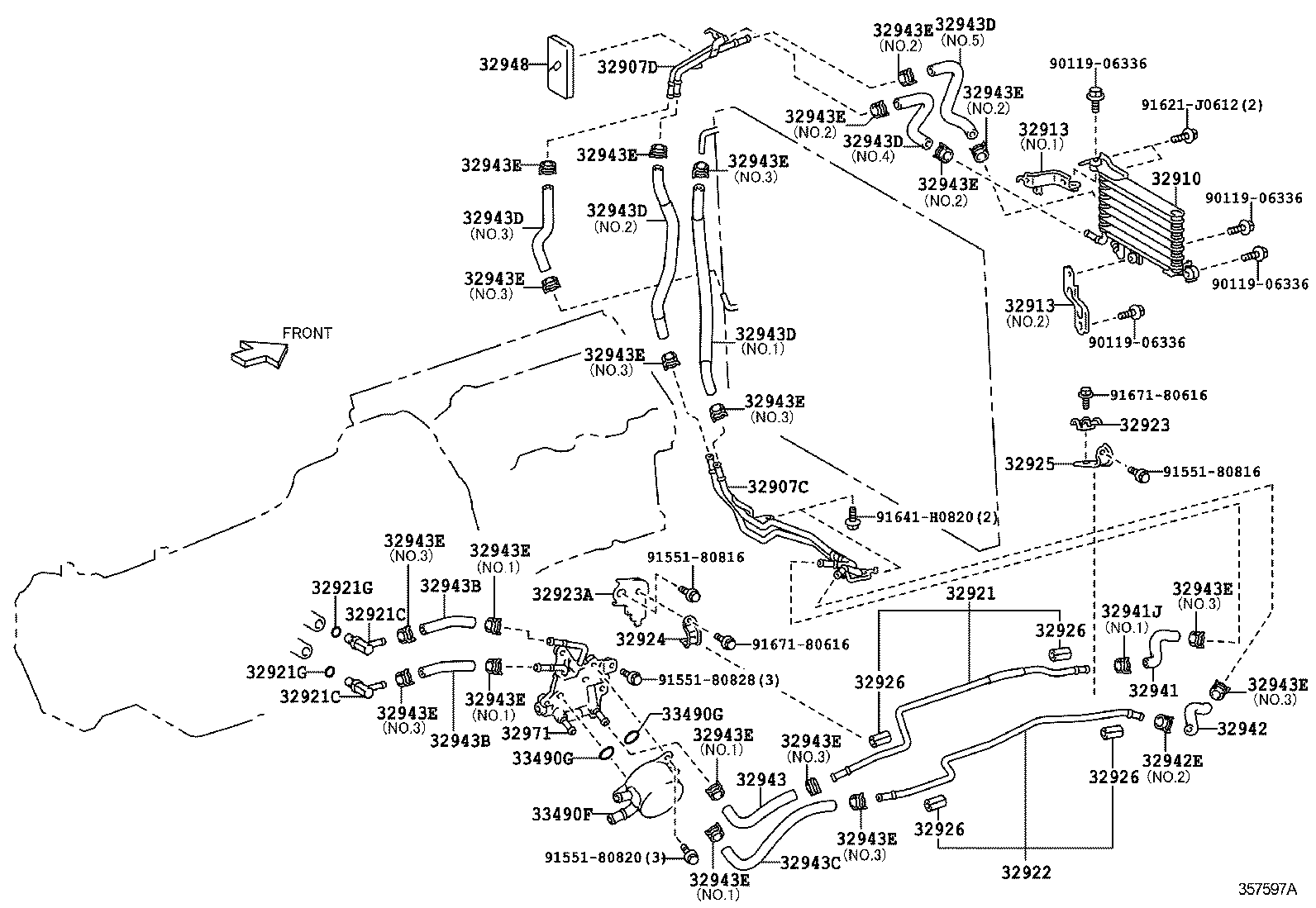

URJ150L-GKTZKV (2009)
Toyota Lexus Gx400/460
(0911- )URJ150
W(AIR OIL COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1 | ||||
| 32907-60300 |
URJ150..GCC |
1 | ||
| 32907D - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2 | ||||
| 32907-60290 |
URJ150..GCC |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-60170 |
URJ150..GCC |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60270 |
URJ150..GCC NO.2 |
1 | ||
| 32913-60260 |
URJ150..GCC NO.1 |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-60270 |
URJ150..GCC NO.2 |
1 | ||
| 32913-60260 |
URJ150..GCC NO.1 |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-35420 |
URJ150..GCC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14033 |
URJ150..GCC |
2 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14033 |
URJ150..GCC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
URJ150..GCC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11030 |
URJ150..GCC |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-35450 |
URJ150..GCC |
1 | ||
| 32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 90462-12074 |
URJ150..GCC |
1 | ||
| 32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE | ||||
| 32923-35100 |
URJ150..GCC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32929-50010 |
URJ150..GCC |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-35060 |
URJ150..GCC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
URJ150..GCC L=35,ID=10 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
URJ150..GCC L=35,ID=10 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
URJ150..GCC L=35,ID=10 |
4 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
URJ150..GCC L=35,ID=10 |
4 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32941-35310 |
URJ150..GCC |
1 | ||
| 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32942-35130 |
URJ150..GCC |
1 | ||
| 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC |
1 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-35030 |
URJ150..GCC |
1 | ||
| 32943B - HOSE, TRANSMISSION OIL COOLER | ||||
| 32943-34040 |
URJ150..GCC |
2 | ||
| 32943B - HOSE, TRANSMISSION OIL COOLER | ||||
| 32943-34040 |
URJ150..GCC |
2 | ||
| 32943C - HOSE, TRANSMISSION OIL COOLER, NO.3 | ||||
| 32943-35020 |
URJ150..GCC |
1 | ||
| 32943D - HOSE, TRANSMISSION OIL COOLER, NO.4 | ||||
| 32943-35050 |
URJ150..GCC NO.2 |
1 | ||
| 32943-60620 |
URJ150..GCC NO.5 |
1 | ||
| 32943-60610 |
URJ150..GCC NO.4 |
1 | ||
| 32943-35040 |
URJ150..GCC NO.1 |
1 | ||
| 32943-35060 |
URJ150..GCC NO.3 |
1 | ||
| 32943D - HOSE, TRANSMISSION OIL COOLER, NO.4 | ||||
| 32943-35050 |
URJ150..GCC NO.2 |
1 | ||
| 32943-60620 |
URJ150..GCC NO.5 |
1 | ||
| 32943-60610 |
URJ150..GCC NO.4 |
1 | ||
| 32943-35040 |
URJ150..GCC NO.1 |
1 | ||
| 32943-35060 |
URJ150..GCC NO.3 |
1 | ||
| 32943D - HOSE, TRANSMISSION OIL COOLER, NO.4 | ||||
| 32943-35050 |
URJ150..GCC NO.2 |
1 | ||
| 32943-60620 |
URJ150..GCC NO.5 |
1 | ||
| 32943-60610 |
URJ150..GCC NO.4 |
1 | ||
| 32943-35040 |
URJ150..GCC NO.1 |
1 | ||
| 32943-35060 |
URJ150..GCC NO.3 |
1 | ||
| 32943D - HOSE, TRANSMISSION OIL COOLER, NO.4 | ||||
| 32943-35050 |
URJ150..GCC NO.2 |
1 | ||
| 32943-60620 |
URJ150..GCC NO.5 |
1 | ||
| 32943-60610 |
URJ150..GCC NO.4 |
1 | ||
| 32943-35040 |
URJ150..GCC NO.1 |
1 | ||
| 32943-35060 |
URJ150..GCC NO.3 |
1 | ||
| 32943D - HOSE, TRANSMISSION OIL COOLER, NO.4 | ||||
| 32943-35050 |
URJ150..GCC NO.2 |
1 | ||
| 32943-60620 |
URJ150..GCC NO.5 |
1 | ||
| 32943-60610 |
URJ150..GCC NO.4 |
1 | ||
| 32943-35040 |
URJ150..GCC NO.1 |
1 | ||
| 32943-35060 |
URJ150..GCC NO.3 |
1 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
URJ150..GCC NO.3 |
10 | ||
| 90466-16004 |
URJ150..GCC NO.1 |
4 | ||
| 90466-16004 |
URJ150..GCC NO.2 |
6 | ||
| 32948 - SEAL, OIL COOLER TUBE | ||||
| 32948-60020 |
URJ150..GCC |
1 | ||
| 32971 - THERMOSTAT, TRANSMISSION OIL | ||||
| 32971-35010 |
URJ150..GCC |
1 | ||
| 33490F - COOLER ASSY, TRANSMISSION OIL | ||||
| 33493-34030 |
URJ150..GCC |
1 | ||
| 33490G - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-20012 |
URJ150..GCC |
2 | ||
| 33490G - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-20012 |
URJ150..GCC |
2 | ||
| Common parts | ||||
| 90119-06336 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91551-80828 | ||||
| 91621-J0612 | ||||
| 91641-H0820 | ||||
| 91671-80616 | ||||
