URJ150L-GKTZKV (2009)

Toyota Lexus Gx400/460

Production Nov 2009 - Aug 2013
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0911- )URJ150

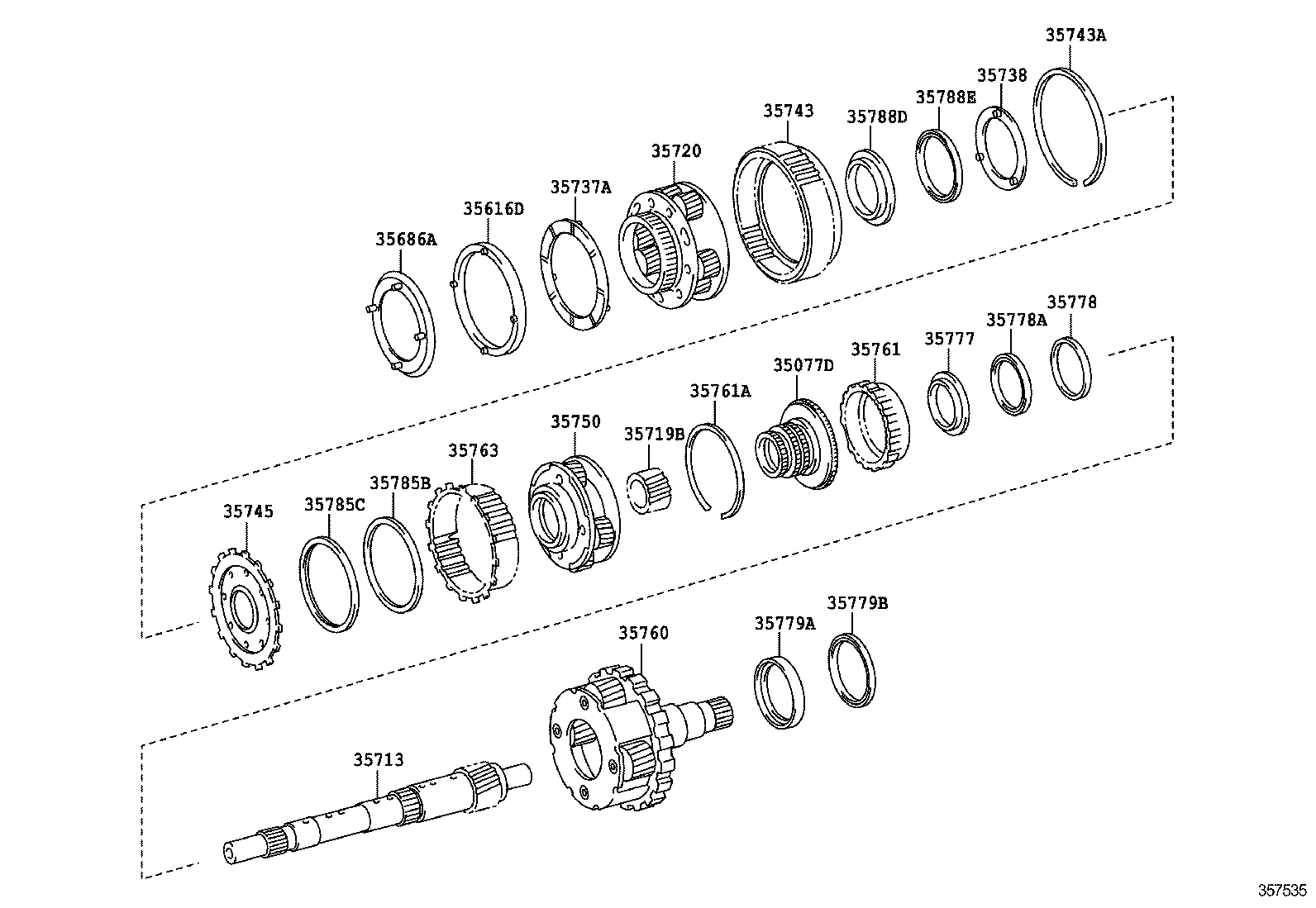

Click highlighted areas on diagram

A760F

diagram 35077D 35616D 35686A 35713 35719B 35720 35737A 35738 35743 35743A 35745 35750 35760 35761 35761A 35763 35777 35778 35778A 35779A 35779B 35785B 35785C 35788D 35788E
Part # Description Qty Price
35077D - FLANGE SUB-ASSY, RR PLANETARY RING GEAR
35077-60010

URJ150..GCC

 1
35616D - WASHER, CLUTCH DRUM THRUST
35616-60010

URJ150..GCC

 1
35686A - WASHER, CLUTCH DRUM THRUST, NO.2
35686-60010

URJ150..GCC

 1
35713 - SHAFT, INTERMEDIATE
35713-60090

URJ150..GCC

 1
35719B - GEAR, PLANETARY SUN
35719-30090

URJ150..GCC

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-35040

URJ150..GCC

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-60030

URJ150..GCC

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-60030

URJ150..GCC

 1
35743 - GEAR, FRONT PLANETARY RING
35743-50020

URJ150..GCC

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99076

URJ150..GCC

 1
35745 - FLANGE, FRONT PLANETARY RING GEAR
35745-50040

URJ150..GCC

 1
35750 - GEAR ASSY, CENTER PLANETARY
35750-34020

URJ150..GCC

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-35020

URJ150..GCC

 1
35761 - GEAR, REAR PLANETARY RING
35761-60040

URJ150..GCC

 1
35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
90520-99073

URJ150..GCC

 1
35763 - GEAR, CENTER PLANETARY RING
35763-30020

URJ150..GCC

 1
35777 - RACE, THRUST BEARING, NO.7
35777-60010

URJ150..GCC

 1
35778 - RACE, THRUST BEARING, NO.8
35778-60010

URJ150..GCC

 1
35778A - BEARING, THRUST NEEDLE ROLLER
90374-32010

URJ150..GCC

 1
35779A - RACE, THRUST BEARING, NO.9
35779-60011

URJ150..GCC

 1
35779B - BEARING, THRUST NEEDLE ROLLER
90374-43007

URJ150..GCC

 1
35785B - RACE, THRUST BEARING, NO.4
35785-60010

URJ150..GCC

 1
35785C - BEARING, THRUST NEEDLE ROLLER
90374-55004

URJ150..GCC

 1
35788D - RACE, THRUST BEARING, NO.3
35788-60010

URJ150..GCC

 1
35788E - BEARING, THRUST NEEDLE ROLLER
90374-44005

URJ150..GCC

 1
