URJ150L-GKTZKV (2009)

Toyota Lexus Gx400/460

Production Nov 2009 - Aug 2013
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0911- )URJ150

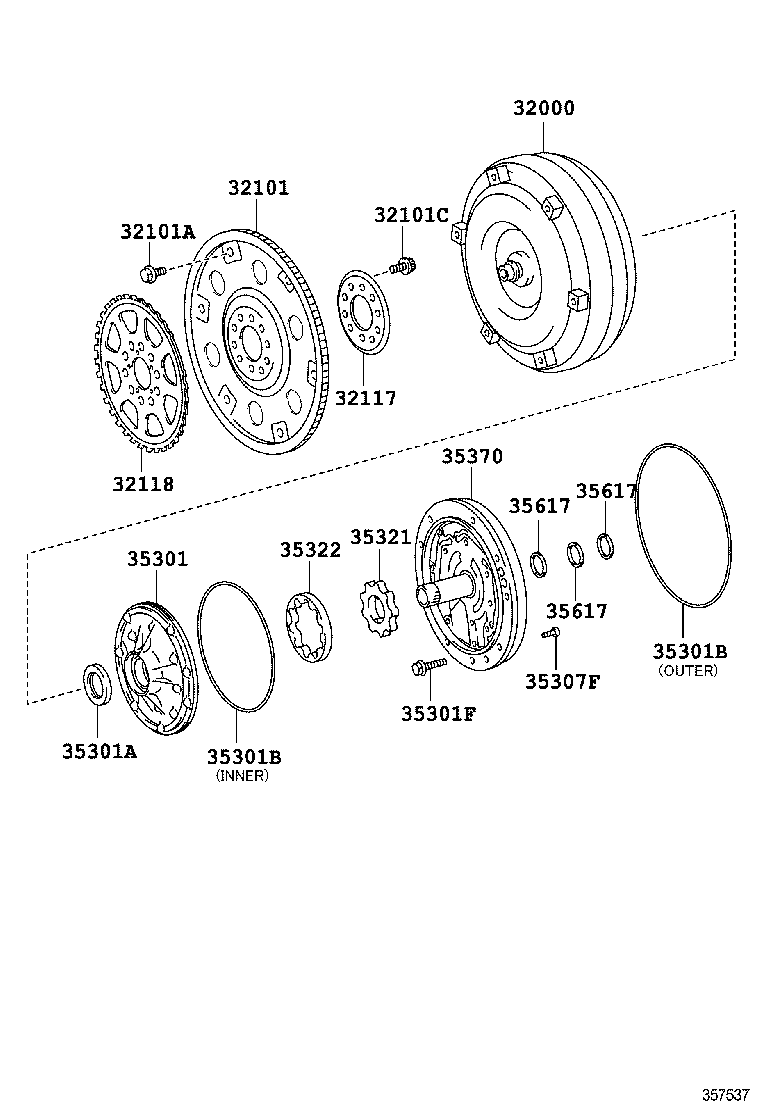

Click highlighted areas on diagram

A760F

diagram 32000 32101 32101A 32101C 32117 32118 35301 35301A 35301B 35301B 35301F 35307F 35321 35322 35370 35617 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-35230

URJ150..GCC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-50021

URJ150..GCC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90105-10552

URJ150..GCC

*10-1.25PX16-13,SILVER WHITE

 5
90105-10551

URJ150..GCC

*10-1.25PX16-12.9,BLACK

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90910-A2002

URJ150..GCC

*10-1.25PX23-16,(L)

 10
90910-02129

URJ150..GCC

*10-1.25PX23-16,(J)

 10
32117 - SPACER, DRIVE PLATE, REAR
32117-34010

URJ150..GCC

 1
32118 - ROTOR, CRANKSHAFT ANGLE SENSOR
32118-34020

URJ150..GCC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-60030

URJ150..GCC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38083

URJ150..GCC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99148

URJ150..GCC

INNER

 1
90301-99139

URJ150..GCC

OUTER

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99148

URJ150..GCC

INNER

 1
90301-99139

URJ150..GCC

OUTER

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08451

URJ150..GCC

*8-1.25PX40-30

 10
35307F - BOLT (FOR STATOR SHAFT)
90148-60079

URJ150..GCC

 14
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-50060

URJ150..GCC

T=10.771-10.777

 1
35321-50040

URJ150..GCC

T=10.757-10.763

 1
35321-50050

URJ150..GCC

T=10.764-10.770

 1
35321-50030

URJ150..GCC

T=10.750-10.756

 1
35321-50070

URJ150..GCC

T=10.778-10.784

 1
35321-50010

URJ150..GCC

T=10.736-10.742

 1
35321-50020

URJ150..GCC

T=10.743-10.749

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-50010

URJ150..GCC

T=10.736-10.742

 1
35322-50060

URJ150..GCC

T=10.771-10.777

 1
35322-50020

URJ150..GCC

T=10.743-10.749

 1
35322-50050

URJ150..GCC

T=10.764-10.770

 1
35322-50040

URJ150..GCC

T=10.757-10.763

 1
35322-50030

URJ150..GCC

T=10.750-10.756

 1
35322-50070

URJ150..GCC

T=10.778-10.784

 1
35370 - SHAFT ASSY, STATOR
35370-50030

URJ150..GCC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

URJ150..GCC

 3
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

URJ150..GCC

 3
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030

URJ150..GCC

 3
