URJ150L-GKTZKV (2019)
Toyota Lexus Gx400/460

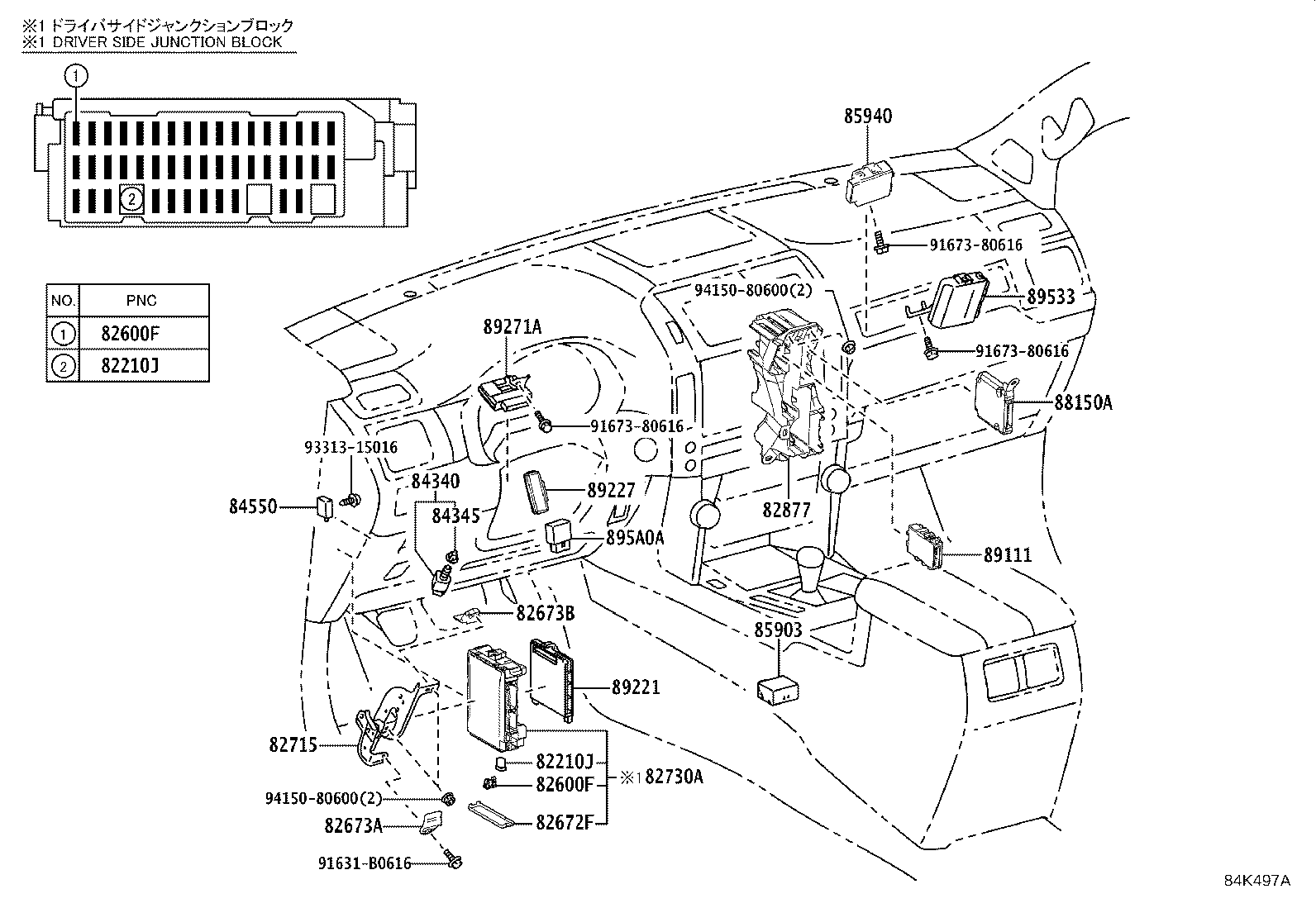

ILLUST NO. 4 OF 9(1908- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08305 |
URJ150 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
URJ150 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08306 |
URJ150 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08302 |
URJ150 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
URJ150 50A-30A-30A,FEMALE |
1 | ||
| 90982-08301 |
URJ150 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
URJ150 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08304 |
URJ150 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08295 |
URJ150 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08305 |
URJ150 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
URJ150 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08306 |
URJ150 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08302 |
URJ150 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
URJ150 50A-30A-30A,FEMALE |
1 | ||
| 90982-08301 |
URJ150 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
URJ150 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08304 |
URJ150 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08295 |
URJ150 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
URJ150 25A,MINI FUSE |
1 | ||
| 90982-09020 |
URJ150 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
URJ150 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
URJ150 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
URJ150 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
URJ150 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
URJ150 25A,MINI FUSE |
1 | ||
| 90982-09020 |
URJ150 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
URJ150 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
URJ150 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
URJ150 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
URJ150 30A,MINI FUSE,GRN |
1 | ||
| 82672F - COVER, JUNCTION BLOCK | ||||
| 82672-60120 |
URJ150 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-60170 |
URJ150 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-35010 |
URJ150 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-35F60 |
URJ150 |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-60210 |
URJ150 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-60020 |
URJ150 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19075 |
URJ150 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
URJ150 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
URJ150 |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52020 |
URJ150 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-60120 |
URJ150 |
1 | ||
| 85940-60120 |
URJ150 INTERMITTENT WIPER-INT(TIME ADJUSTMENT) |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-60170 |
URJ150 ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM + |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-47080 |
URJ150 |
1 | ||
| 89111-47081 |
URJ150 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 892G0-6AN70 |
URJ150 LEBANON SPEC |
1 | ||
| 892G0-6AN80 |
URJ150 JORDAN SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WINDSHIELD DEICER-WITHOUT |
1 | ||
| 892G0-6AP10 |
URJ150 |
1 | ||
| 892G0-6BU10 |
URJ150 LEBANON SPEC |
1 | ||
| 892G0-6AN60 |
URJ150 LEBANON SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WINDSHIELD DEICER-WITHOUT |
1 | ||
| 892G0-6AP00 |
URJ150 ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WINDSHIELD DEICER-WITHOUT |
1 | ||
| 892G0-6AN90 |
URJ150 JORDAN SPEC |
1 | ||
| 892G0-6AP20 |
URJ150 PHILIPPINES SPEC |
1 | ||
| 892G0-6BU40 |
URJ150 ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WINDSHIELD DEICER-WITHOUT |
1 | ||
| 892G0-6AP40 |
URJ150 ELSALVADOR SPEC |
1 | ||
| 892G0-6AP30 |
URJ150 COSTARIC,GUATEMA,HONDURAS SPEC |
1 | ||
| 892G0-6BU20 |
URJ150 LEBANON SPEC&ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&WINDSHIELD DEICER-WITHOUT |
1 | ||
| 892G0-6AP50 |
URJ150 BOLIVI,DOMINI,PANAM,PERU SPEC |
1 | ||
| 892G0-6BU60 |
URJ150 COSTARIC,GUATEMA,HONDURAS SPEC |
1 | ||
| 892G0-6BU70 |
URJ150 ELSALVADOR SPEC |
1 | ||
| 892G0-6BU80 |
URJ150 BOLIVI,DOMINI,PANAM,PERU SPEC |
1 | ||
| 892G0-6BU50 |
URJ150 PHILIPPINES SPEC |
1 | ||
| 892G0-6BU30 |
URJ150 |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-60100 |
URJ150 |
1 | ||
| 89271A - COMPUTER, STABILIZER CONTROL | ||||
| 89271-60050 |
URJ150 |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60340 |
URJ150 |
1 | ||
| 895A0A - COMPUTER ASSY, STOP LAMP CONTROL | ||||
| 895A0-30010 |
URJ150 |
1 | ||
| Common parts | ||||
| 91631-B0616 | ||||
| 91673-80616 | ||||
| 93313-15016 | ||||
| 94150-80600 | ||||

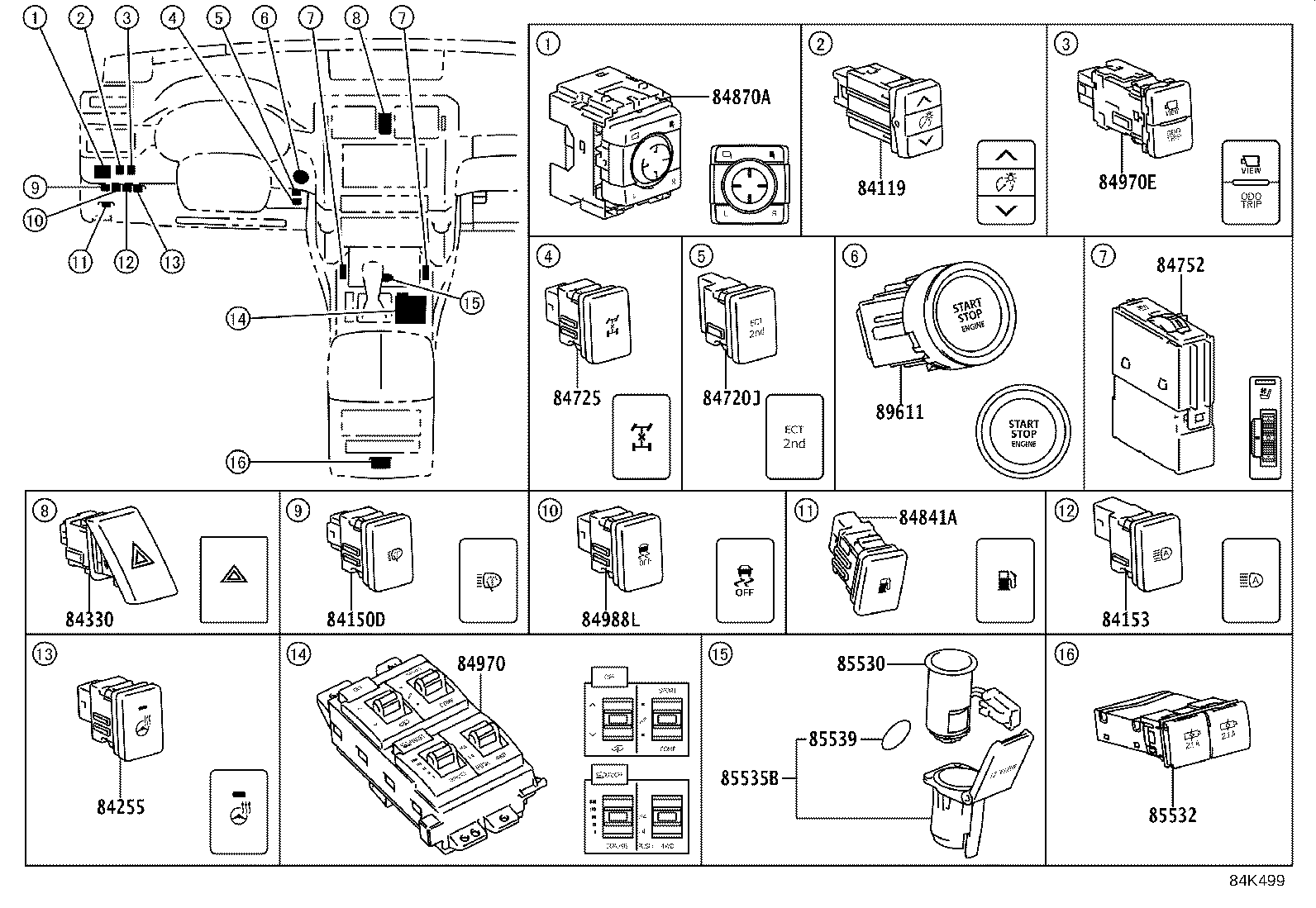

ILLUST NO. 5 OF 9(1908- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-60180 |
URJ150 |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-60041 |
URJ150 |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-60010 |
URJ150 ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM + |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-60011 |
URJ150 STEERING WHEEL-WOOD,WITH(AIR BAG & STEERING HEATER) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-60420 |
URJ150 |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84721-60080 |
URJ150 |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60181 |
URJ150 |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-60320 |
URJ150 |
2 | ||
| 84752-60340 |
URJ150 SEAT AIR CONDITIONER-WITHOUT |
2 | ||
| 84752-60350 |
URJ150 SEAT HEATER-WITHOUT |
2 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-60011 |
URJ150 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-60070 |
URJ150 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-60460 |
URJ150 |
1 | ||
| 84970-60450 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA) |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84970-60440 |
URJ150 BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA) |
1 | ||
| 84970-60430 |
URJ150 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-60021 |
URJ150 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-60340 |
URJ150 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-50020 |
URJ150 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-33060 |
URJ150 |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
URJ150 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30123 |
URJ150 |
1 | ||

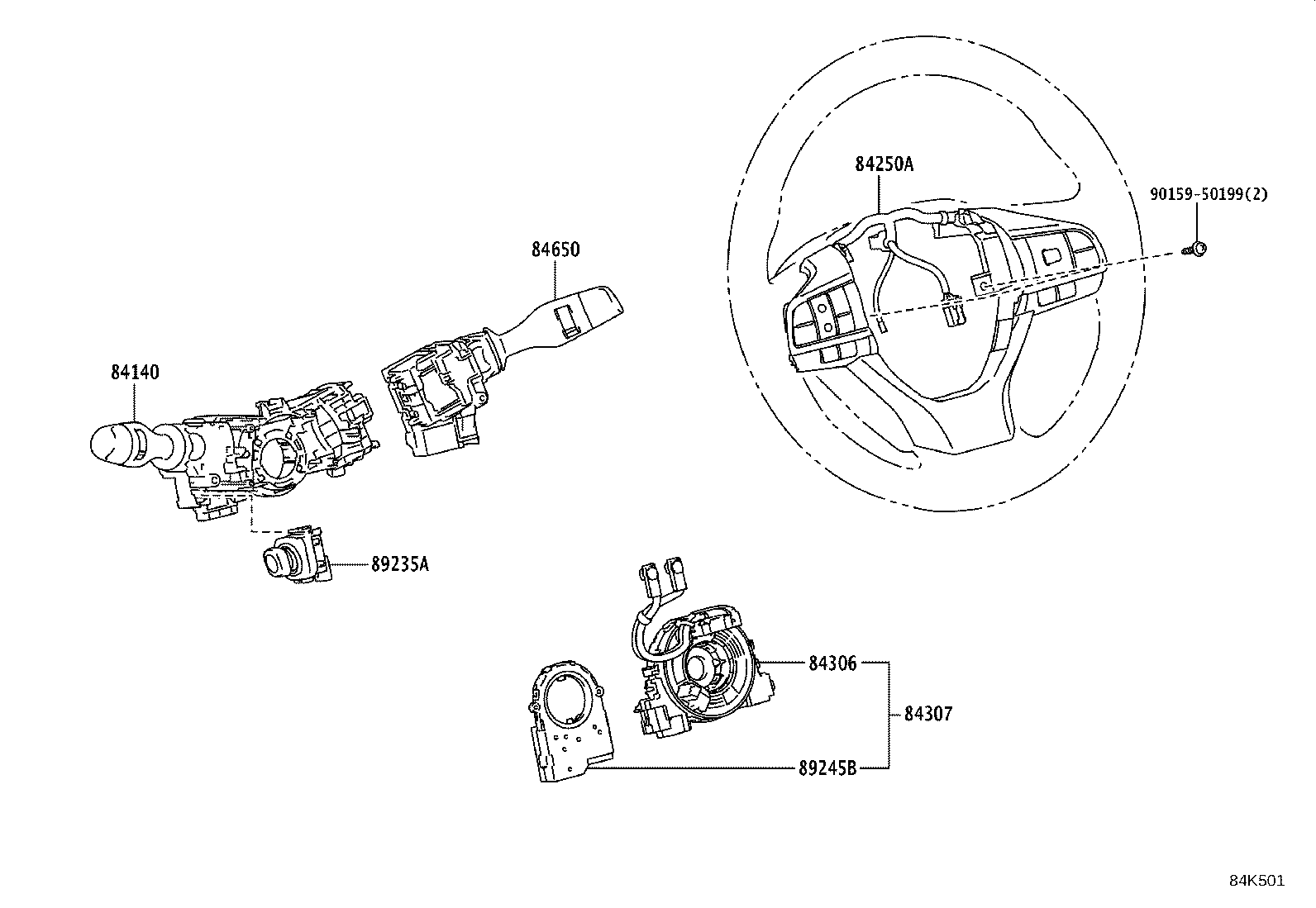

ILLUST NO. 6 OF 9(1908- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33290 |
URJ150 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-33520 |
URJ150 ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CRUISE CONTROL-WITH (HIGH SPEED *ACC) |
1 | ||
| 84250-33510 |
URJ150 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-48040 |
URJ150 ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CRUISE CONTROL-WITH (HIGH SPEED *ACC)&STEERING WHEEL-WOOD,WITH(AIR BAG & STEERING HEATER) |
1 | ||
| 84308-48040 |
URJ150 ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CRUISE CONTROL-WITH (HIGH SPEED *ACC) |
1 | ||
| 84308-48030 |
URJ150 |
1 | ||
| 84308-48040 |
URJ150 STEERING WHEEL-WOOD,WITH(AIR BAG & STEERING HEATER) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-60190 |
URJ150 ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CRUISE CONTROL-WITH (HIGH SPEED *ACC)&STEERING WHEEL-WOOD,WITH(AIR BAG & STEERING HEATER) |
1 | ||
| 84307-60190 |
URJ150 ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +&CRUISE CONTROL-WITH (HIGH SPEED *ACC) |
1 | ||
| 84307-60200 |
URJ150 |
1 | ||
| 84307-60190 |
URJ150 STEERING WHEEL-WOOD,WITH(AIR BAG & STEERING HEATER) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-78020 |
URJ150 INTERMITTENT WIPER-INT(TIME ADJUSTMENT) |
1 | ||
| 84652-78010 |
URJ150 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
URJ150 |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-10010 |
URJ150 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||

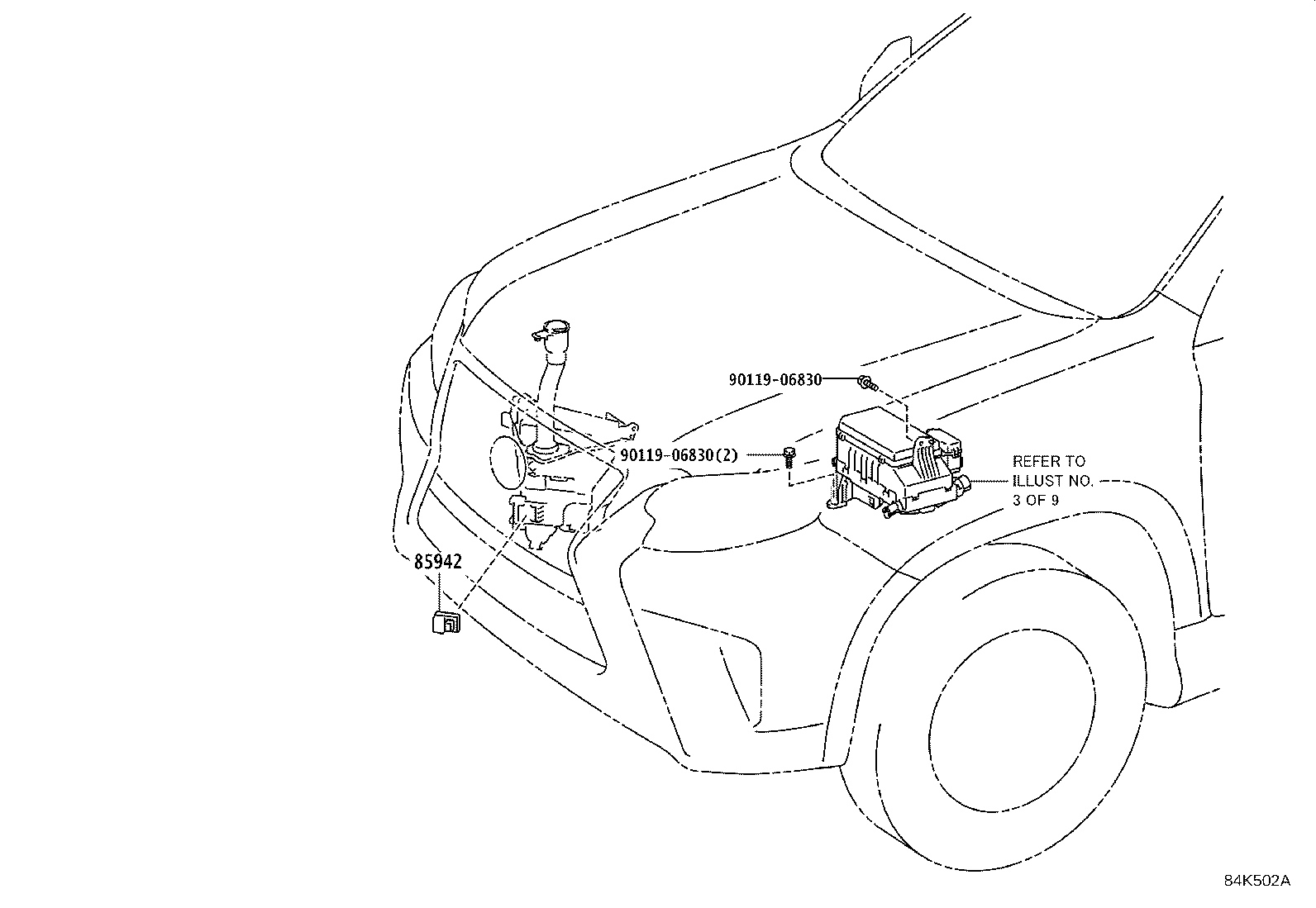

ILLUST NO. 2 OF 9(1908- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-53020 |
URJ150 |
1 | ||
| Common parts | ||||
| 90119-06830 | ||||

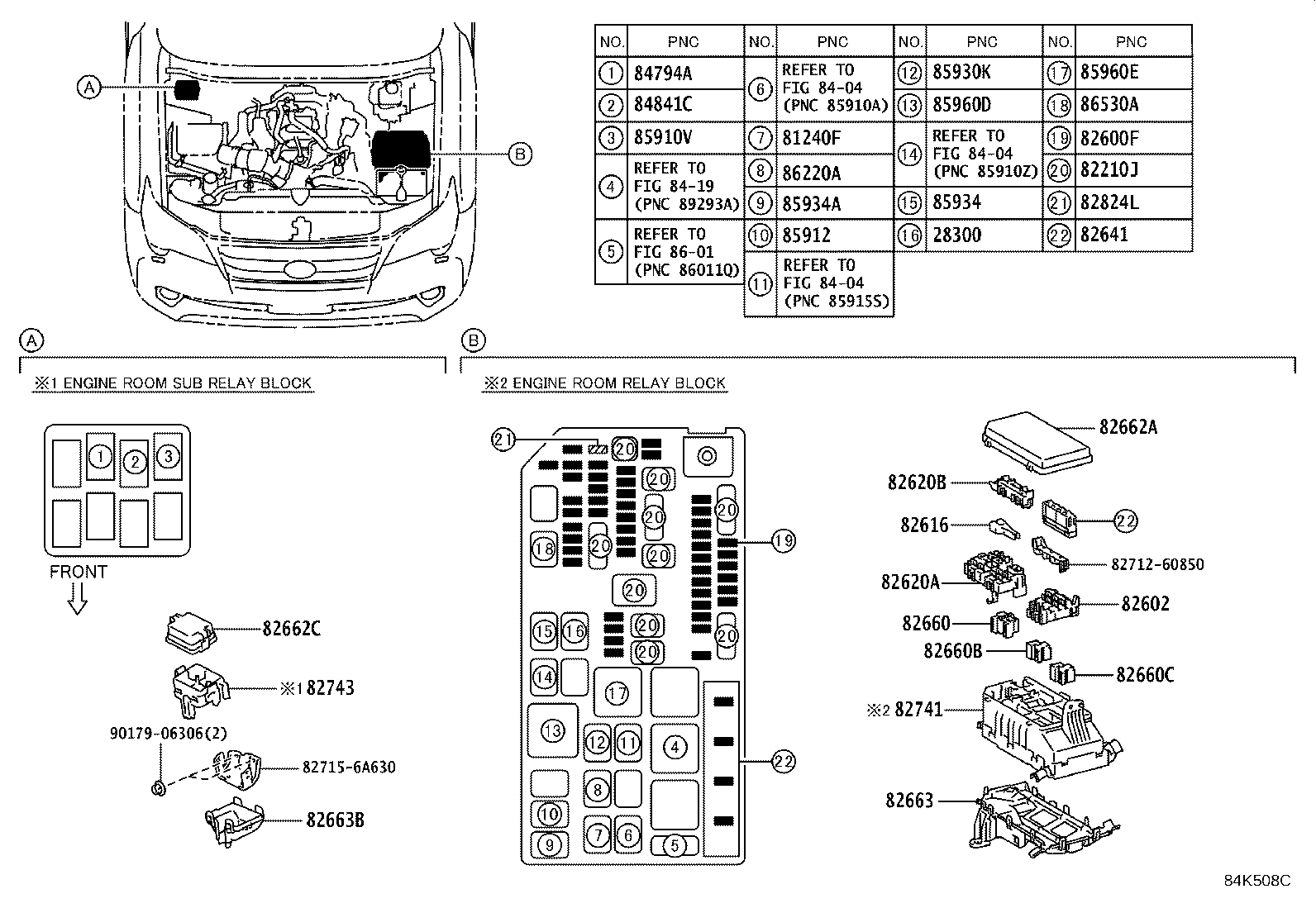

ILLUST NO. 3 OF 9(1908- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
1URFE..URJ150 |
1 | ||
| 81240F - RELAY, DOME LAMP | ||||
| 90987-02027 |
URJ150 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08305 |
URJ150 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08307 |
URJ150 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08306 |
URJ150 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08302 |
URJ150 50A-30A-50A,FEMALE |
1 | ||
| 90982-08300 |
URJ150 50A-30A-30A,FEMALE |
1 | ||
| 90982-08301 |
URJ150 50A-30A-40A,FEMALE |
1 | ||
| 90982-08286 |
URJ150 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08304 |
URJ150 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08295 |
URJ150 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09024 |
URJ150 25A,MINI FUSE |
1 | ||
| 90982-09020 |
URJ150 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
URJ150 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
URJ150 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
URJ150 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
URJ150 30A,MINI FUSE,GRN |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-60090 |
URJ150 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
URJ150 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60060 |
URJ150 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60070 |
URJ150 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-60080 |
URJ150 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-0H070 |
URJ150 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-47040 |
URJ150 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-60170 |
URJ150 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-60500 |
URJ150 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-60791 |
URJ150 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-60080 |
URJ150 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-60130 |
URJ150 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60040 |
URJ150 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-60020 |
URJ150 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
URJ150 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
URJ150 WINDSHIELD DEICER-WITHOUT |
1 | ||
| 90987-02027 |
URJ150 |
1 | ||
| 84841C - RELAY, FUEL LID OPENER | ||||
| 90987-02027 |
URJ150 |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02027 |
URJ150 SEAT COVER MATERIAL-SEMI-ANILINE LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR OUT SIDE) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
URJ150 |
1 | ||
| 85930K - RELAY, ACC, NO.2 | ||||
| 90987-02027 |
URJ150 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
URJ150 |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02027 |
URJ150 |
1 | ||
| 85960D - RELAY, HEADLAMP, RH | ||||
| 90987-02025 |
URJ150 |
1 | ||
| 85960E - RELAY, HEADLAMP, LH | ||||
| 90987-02025 |
URJ150 |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
URJ150 |
1 | ||
| 86530A - RELAY, HORN | ||||
| 90987-02027 |
URJ150 |
1 | ||
| Common parts | ||||
| 82712-60850 | ||||
| 82715-6A630 | ||||
| 90179-06306 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8419 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
