URJ150L-GKTZKV (2019)
Toyota Lexus Gx400/460

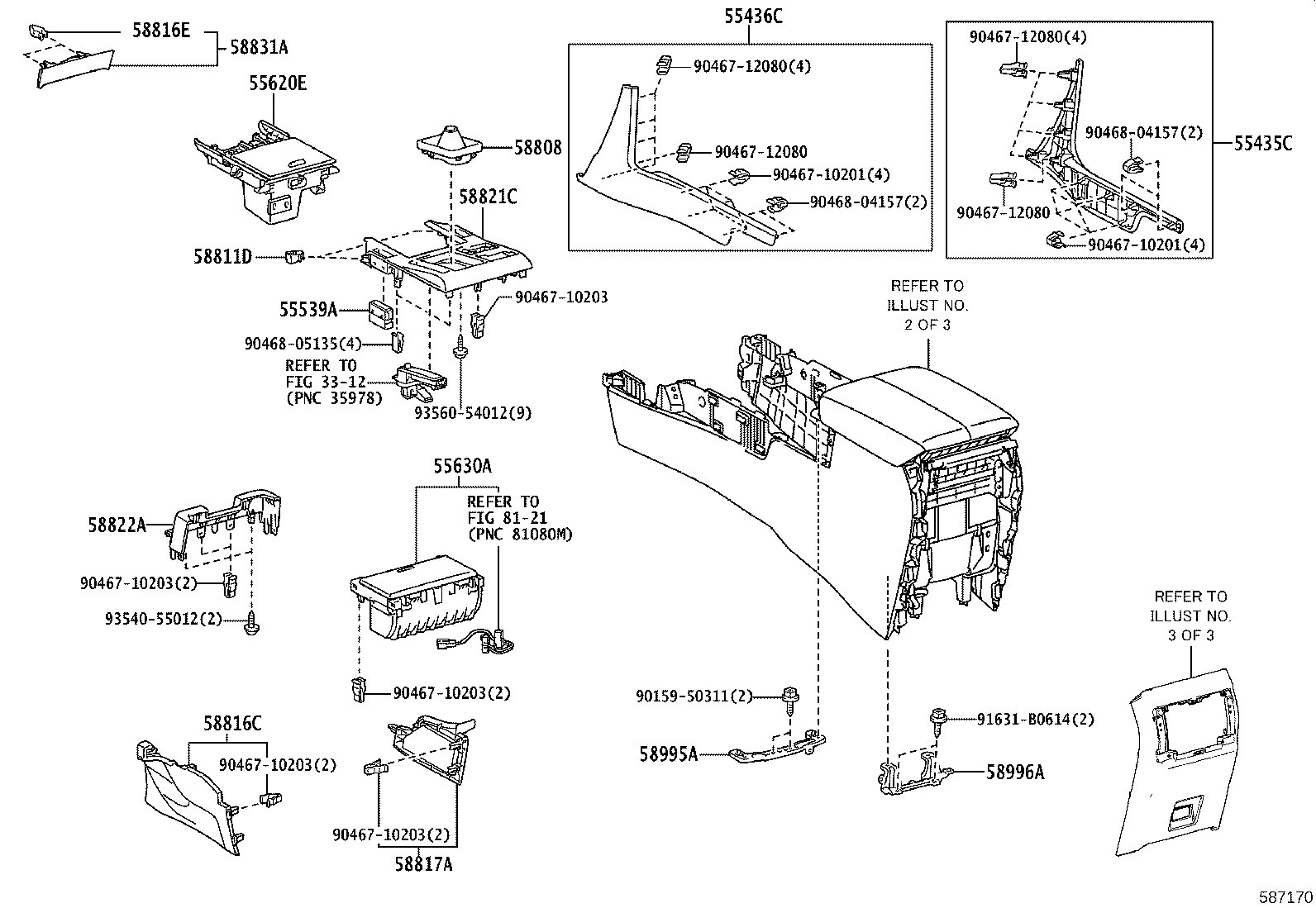

ILLUST NO. 1 OF 3(1908- )
W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55402-60070A2 |
URJ150 ECRU,TRIM0# |
1 | ||
| 55402-60070C3 |
URJ150 BLACK/CRIMSON,TRIM21 |
1 | ||
| 55402-60070C1 |
URJ150 BLACK,TRIM20 |
1 | ||
| 55402-60070E2 |
URJ150 SEPIA/LT.BROWN,TRIM4# |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55403-60070A2 |
URJ150 ECRU,TRIM0# |
1 | ||
| 55403-60070C3 |
URJ150 BLACK/CRIMSON,TRIM21 |
1 | ||
| 55403-60070C1 |
URJ150 BLACK,TRIM20 |
1 | ||
| 55403-60070E2 |
URJ150 SEPIA/LT.BROWN,TRIM4# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-60380 |
URJ150 SEAT HEATER-WITHOUT&SEAT AIR CONDITIONER-WITHOUT |
2 | ||
| 55620E - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-60040 |
URJ150 DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER |
1 | ||
| 55620-60040 |
URJ150 DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-LEXUS DISPLAY AUDIO & DVD& 9SPEAKER&BACK MONITOR-*BM & LEXUS DISPLAY AUDIO(EXCEPT USA) |
1 | ||
| 55620-60350 |
URJ150 |
1 | ||
| 55620-60040 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA) |
1 | ||
| 55620-60040 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-LEXUS DISPLAY AUDIO & DVD & 9SPEAKER&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA) |
1 | ||
| 55630A - HOLDER, REAR CONSOLE BOX, CUP | ||||
| 55630-60030 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA) |
1 | ||
| 55630-60070 |
URJ150 |
1 | ||
| 55630-60030 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-LEXUS DISPLAY AUDIO & DVD & 9SPEAKER&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA) |
1 | ||
| 55630-60030 |
URJ150 DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER |
1 | ||
| 55630-60030 |
URJ150 DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-LEXUS DISPLAY AUDIO & DVD& 9SPEAKER&BACK MONITOR-*BM & LEXUS DISPLAY AUDIO(EXCEPT USA) |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-60510C1 |
URJ150 BLACK/LT.BROWN,TRIM0#,20,4# |
1 | ||
| 58808-60510C2 |
URJ150 BLACK/CRIMSON,TRIM21 |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-13082A0 |
URJ150 MELLOW WHITE |
2 | ||
| 58815A - CARPET, CONSOLE BOX | ||||
| 58815-60130 |
URJ150 |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-60050A0 |
URJ150 ECRU,TRIM0# |
1 | ||
| 58816-60050E0 |
URJ150 SEPIA,TRIM4# |
1 | ||
| 58816-60050C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58816E - CLIP, CONSOLE BOX INSERT, FRONT | ||||
| 90467-13082A0 |
URJ150 MELLOW WHITE |
2 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-60060C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58817-60060A0 |
URJ150 ECRU,TRIM0# |
1 | ||
| 58817-60060E0 |
URJ150 SEPIA,TRIM4# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-60A10 |
URJ150 |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-60070E0 |
URJ150 SEPIA,TRIM4# |
1 | ||
| 58822-60070C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58822-60070A0 |
URJ150 ECRU,TRIM0# |
1 | ||
| 58824D - BOX, CONSOLE COIN | ||||
| 58824-60020 |
URJ150 |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-60230 |
URJ150 |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-60330E2 |
URJ150 SEPIA/LT.BROWN,TRIM4# |
1 | ||
| 58905-60331C1 |
URJ150 TRIM2# |
1 | ||
| 58905-60341A2 |
URJ150 COOL BOX-WITH,TRIM0# |
1 | ||
| 58905-60340C3 |
URJ150 COOL BOX-WITH,BLACK/CRIMSON,TRIM2# |
1 | ||
| 58905-60331A2 |
URJ150 TRIM0# |
1 | ||
| 58905-60341C1 |
URJ150 COOL BOX-WITH,TRIM2# |
1 | ||
| 58905-60330C3 |
URJ150 BLACK/CRIMSON,TRIM2# |
1 | ||
| 58905-60340E2 |
URJ150 COOL BOX-WITH,SEPIA/LT.BROWN,TRIM4# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-60130C3 |
URJ150 BLACK/CRIMSON,TRIM2# |
1 | ||
| 88520-60703A0 |
URJ150 COOL BOX-WITH,ECRU,TRIM0# |
1 | ||
| 58910-60131C1 |
URJ150 TRIM2# |
1 | ||
| 88520-60703C0 |
URJ150 COOL BOX-WITH,BLACK,TRIM20 |
1 | ||
| 88520-60703C2 |
URJ150 COOL BOX-WITH,BLACK DK.ROSE,TRIM21 |
1 | ||
| 88520-60702A0 |
URJ150 COOL BOX-WITH,ECRU,TRIM0# |
1 | ||
| 88520-60702E1 |
URJ150 COOL BOX-WITH,SEPIA, LT.BROWN,TRIM4# |
1 | ||
| 58910-60130E2 |
URJ150 SEPIA/LT.BROWN,TRIM4# |
1 | ||
| 58910-60131A2 |
URJ150 TRIM0# |
1 | ||
| 88520-60702C2 |
URJ150 COOL BOX-WITH,BLACK, DK.ROSE,TRIM21 |
1 | ||
| 88520-60703E1 |
URJ150 COOL BOX-WITH,SEPIA LT.BROWN,TRIM4# |
1 | ||
| 88520-60702C0 |
URJ150 COOL BOX-WITH,BLACK,TRIM20 |
1 | ||
| 58959C - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
URJ150 |
6 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-35060 |
URJ150 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-60120 |
URJ150 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-04157 | ||||
| 90468-05135 | ||||
| 91631-B0614 | ||||
| 93540-54012 | ||||
| 93540-55012 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8121 | ||||

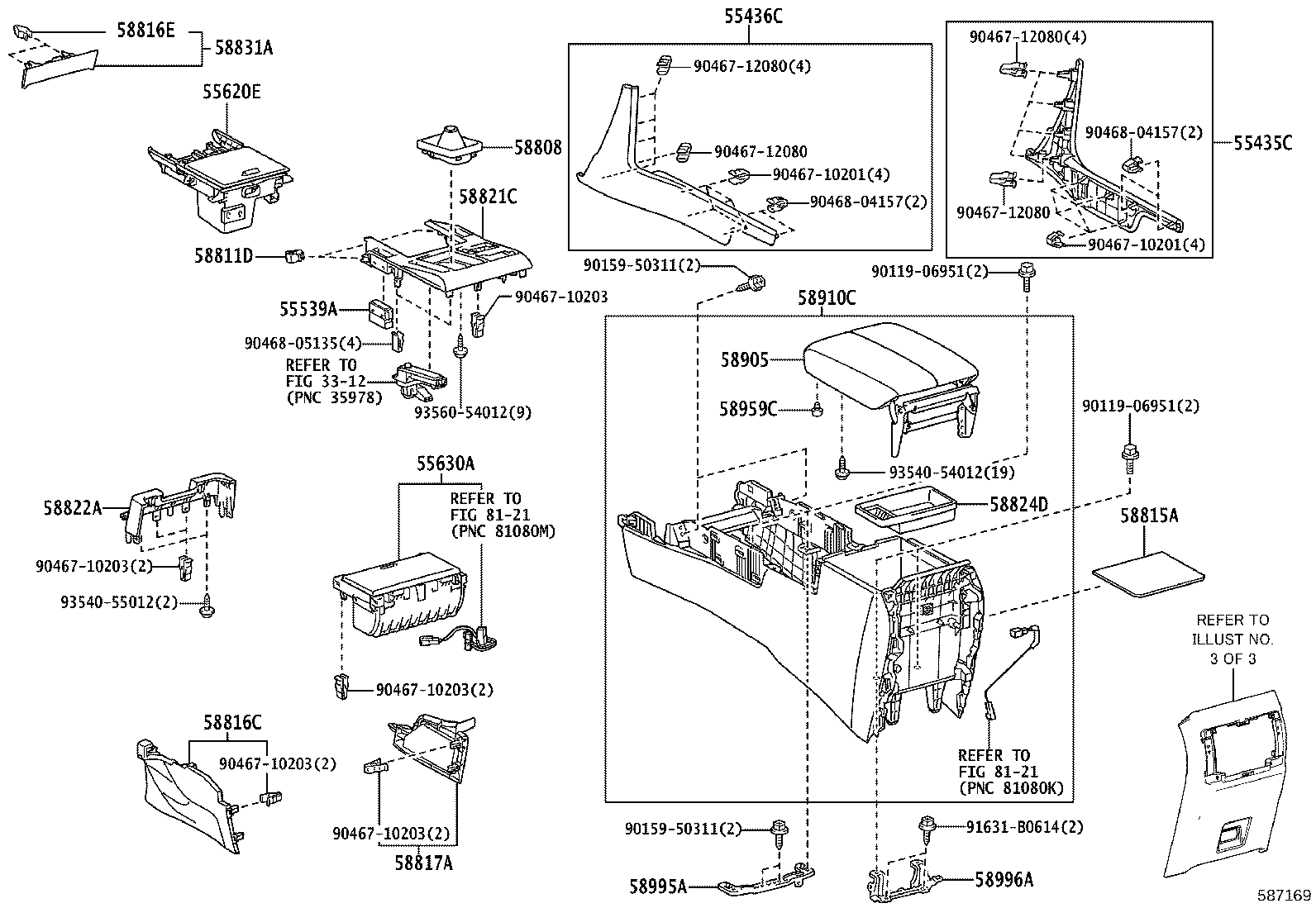

ILLUST NO. 1 OF 3(1908- )
W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55402-60070A2 |
URJ150 ECRU,TRIM0# |
1 | ||
| 55402-60070C3 |
URJ150 BLACK/CRIMSON,TRIM21 |
1 | ||
| 55402-60070C1 |
URJ150 BLACK,TRIM20 |
1 | ||
| 55402-60070E2 |
URJ150 SEPIA/LT.BROWN,TRIM4# |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55403-60070A2 |
URJ150 ECRU,TRIM0# |
1 | ||
| 55403-60070C3 |
URJ150 BLACK/CRIMSON,TRIM21 |
1 | ||
| 55403-60070C1 |
URJ150 BLACK,TRIM20 |
1 | ||
| 55403-60070E2 |
URJ150 SEPIA/LT.BROWN,TRIM4# |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-60380 |
URJ150 SEAT HEATER-WITHOUT&SEAT AIR CONDITIONER-WITHOUT |
2 | ||
| 55620E - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-60040 |
URJ150 DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER |
1 | ||
| 55620-60040 |
URJ150 DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-LEXUS DISPLAY AUDIO & DVD& 9SPEAKER&BACK MONITOR-*BM & LEXUS DISPLAY AUDIO(EXCEPT USA) |
1 | ||
| 55620-60350 |
URJ150 |
1 | ||
| 55620-60040 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA) |
1 | ||
| 55620-60040 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-LEXUS DISPLAY AUDIO & DVD & 9SPEAKER&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA) |
1 | ||
| 55630A - HOLDER, REAR CONSOLE BOX, CUP | ||||
| 55630-60030 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA) |
1 | ||
| 55630-60070 |
URJ150 |
1 | ||
| 55630-60030 |
URJ150 MEMORY PACK & OFF ROAD PACKAGE&DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-LEXUS DISPLAY AUDIO & DVD & 9SPEAKER&BACK MONITOR-MULTI-TELLAIN MONITOR(EXCEPT USA) |
1 | ||
| 55630-60030 |
URJ150 DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-EMV 9SPEAKER |
1 | ||
| 55630-60030 |
URJ150 DOOR TRIM-FOR LOW-PRICE HYD-GRAP&AUDIO(OVERSEAS MARKET)-LEXUS DISPLAY AUDIO & DVD& 9SPEAKER&BACK MONITOR-*BM & LEXUS DISPLAY AUDIO(EXCEPT USA) |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-60510C1 |
URJ150 BLACK/LT.BROWN,TRIM0#,20,4# |
1 | ||
| 58808-60510C2 |
URJ150 BLACK/CRIMSON,TRIM21 |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-13082A0 |
URJ150 MELLOW WHITE |
2 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-60050A0 |
URJ150 ECRU,TRIM0# |
1 | ||
| 58816-60050E0 |
URJ150 SEPIA,TRIM4# |
1 | ||
| 58816-60050C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58816E - CLIP, CONSOLE BOX INSERT, FRONT | ||||
| 90467-13082A0 |
URJ150 MELLOW WHITE |
2 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-60060C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58817-60060A0 |
URJ150 ECRU,TRIM0# |
1 | ||
| 58817-60060E0 |
URJ150 SEPIA,TRIM4# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-60A10 |
URJ150 |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-60070E0 |
URJ150 SEPIA,TRIM4# |
1 | ||
| 58822-60070C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58822-60070A0 |
URJ150 ECRU,TRIM0# |
1 | ||
| 58831A - GARNISH, CONSOLE UPPER PANEL, FRONT | ||||
| 58831-60230 |
URJ150 |
1 | ||
| 58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1 | ||||
| 58995-35060 |
URJ150 |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-60120 |
URJ150 |
1 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90468-04157 | ||||
| 90468-05135 | ||||
| 91631-B0614 | ||||
| 93540-55012 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 8121 | ||||

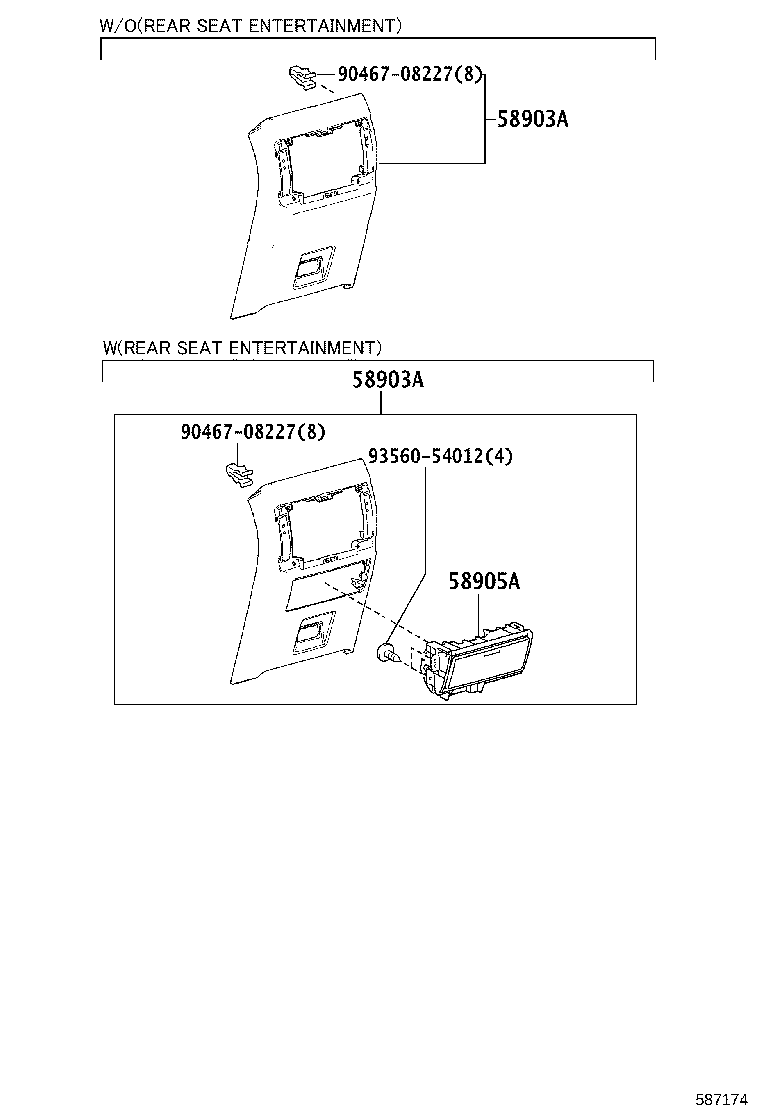

ILLUST NO. 3 OF 3(1908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-60890A0 |
URJ150 REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0# |
1 | ||
| 58903-60890E0 |
URJ150 REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4# |
1 | ||
| 58903-60890C0 |
URJ150 REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2# |
1 | ||
| 58903-60880C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58903-60880E0 |
URJ150 SEPIA,TRIM4# |
1 | ||
| 58903-60880A0 |
URJ150 ECRU,TRIM0# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-60890A0 |
URJ150 REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0# |
1 | ||
| 58903-60890E0 |
URJ150 REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4# |
1 | ||
| 58903-60890C0 |
URJ150 REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2# |
1 | ||
| 58903-60880C0 |
URJ150 BLACK,TRIM2# |
1 | ||
| 58903-60880E0 |
URJ150 SEPIA,TRIM4# |
1 | ||
| 58903-60880A0 |
URJ150 ECRU,TRIM0# |
1 | ||
| 58905A - DOOR SUB-ASSY, CONSOLE COMPARTMENT, REAR | ||||
| 58906-60070C0 |
URJ150 REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),BLACK,TRIM2# |
1 | ||
| 58906-60070E0 |
URJ150 REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),SEPIA,TRIM4# |
1 | ||
| 58906-60070A0 |
URJ150 REAR AUDIO-*RSE(SEAT-BACKMOUNT TYPE),ECRU,TRIM0# |
1 | ||
| Common parts | ||||
| 90467-08227 | ||||
| 93560-54012 | ||||
