URJ150L-GKTZKC (2010)

Toyota Lexus Gx400/460

Production Dec 2010 - Jun 2012
Engine 1URFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1012-1206)1URFE..CHI ; (1210- )1URFE

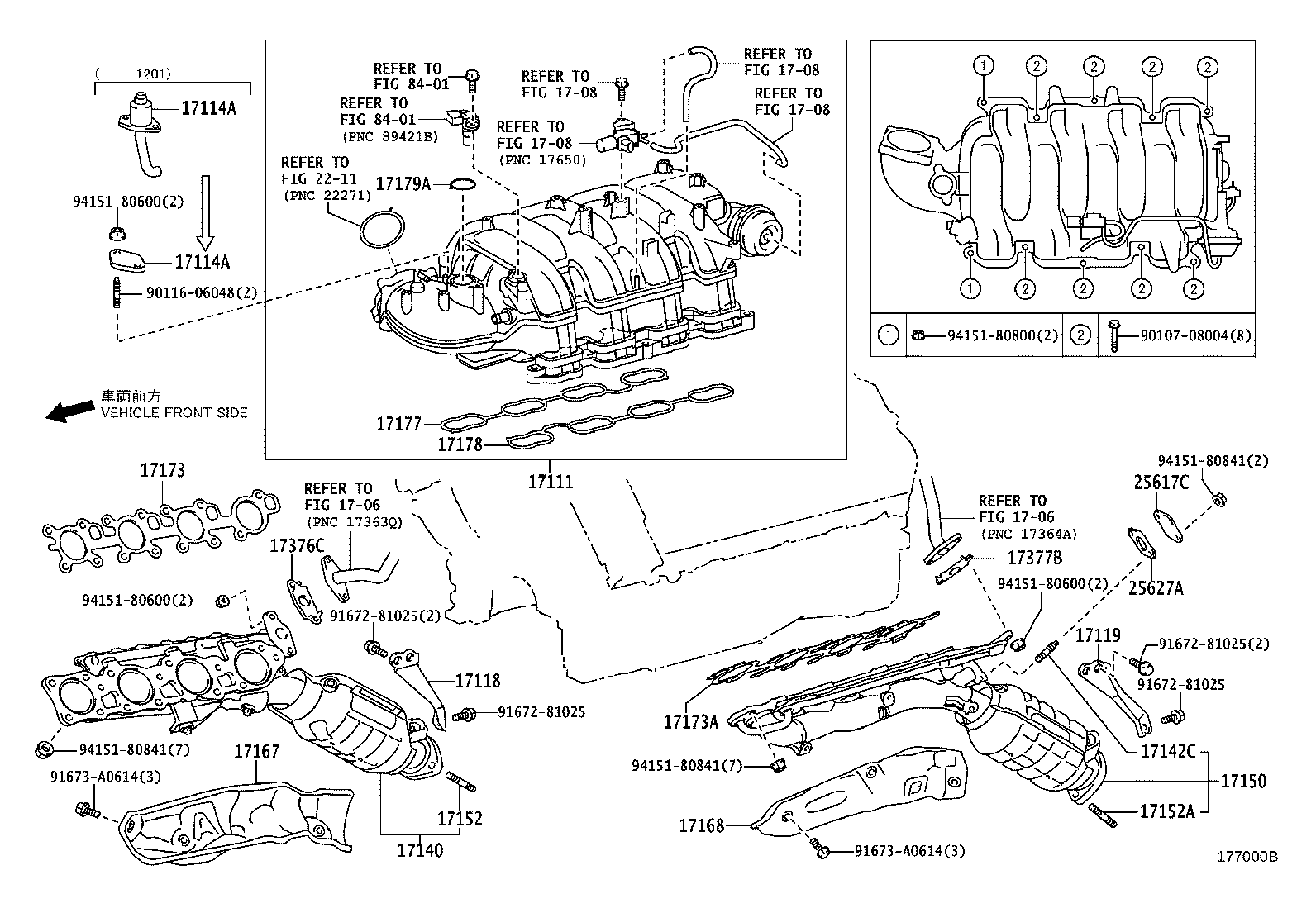

Click highlighted areas on diagram

W/O(EGR)

diagram 1706 1706 1708 1708 1708 1708 17111 17114A 17114A 17118 17119 17140 17142C 17150 17152 17152A 17167 17168 17173 17173A 17177 17178 17179A 17376C 17377B 2211 25617C 25627A 8401 8401 9010708004 9011606048 9167281025 9167281025 9167281025 9167281025 91673A0614 91673A0614 9415180600 9415180600 9415180600 9415180800 9415180841 9415180841 9415180841
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-38040

1URFE..URJ150..CHI

 1
17114A - FLANGE, INTAKE
17114-38020

1URFE..URJ150..CHI

 1
17114-38030

1URFE..URJ150..CHI

 1
17114A - FLANGE, INTAKE
17114-38020

1URFE..URJ150..CHI

 1
17114-38030

1URFE..URJ150..CHI

 1
17118 - STAY, MANIFOLD
17118-38040

1URFE..URJ150..CHI

 1
17119 - STAY, MANIFOLD, NO.2
17119-38040

1URFE..URJ150..CHI

 1
17140 - MANIFOLD ASSY, EXHAUST, RH
17140-38070

1URFE..URJ150..CHI

*114=TOYOTA/*248/Y

 1
17142C - BOLT, STUD(FOR EXHAUST MANIFOLD, LH)
90126-08053

1URFE..URJ150..CHI

 2
17150 - MANIFOLD ASSY, EXHAUST, LH
17150-38070

1URFE..URJ150..CHI

*114=TOYOTA/*249/Y

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10033

1URFE..URJ150..CHI

 2
17152A - BOLT,STUD(FOR MANIFOLD TO EXHAUST PIPE)
90126-10033

1URFE..URJ150..CHI

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-38140

1URFE..URJ150..CHI

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-38150

1URFE..URJ150..CHI

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-38020

1URFE..URJ150..CHI

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-38020

1URFE..URJ150..CHI

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-38030

1URFE..URJ150..CHI

 1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17171-38030

1URFE..URJ150..CHI

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-38010

1URFE..URJ150..CHI

 1
17376C - GASKET, AIR TUBE
17377-38010

1URFE..URJ150..CHI

 1
17377B - GASKET, AIR TUBE, NO.2
17377-38010

1URFE..URJ150..CHI

 1
25617C - PLATE, EGR HOLE COVER
25617-38020

1URFE..URJ150..CHI

 1
25627A - GASKET, EGR HOLE COVER PLATE, NO.1
25685-38010

1URFE..URJ150..CHI

 1
Common parts
90107-08004
90116-06048
91672-81025
91673-A0614
94151-80600
94151-80800
94151-80841
Linked diagrams
1706
1708
2211
8401
