GRL15L-BETQH (2012)

Toyota Lexus Gs Series

Production Jan 2012 - Oct 2015
Engine 2GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )GRL10,11,15

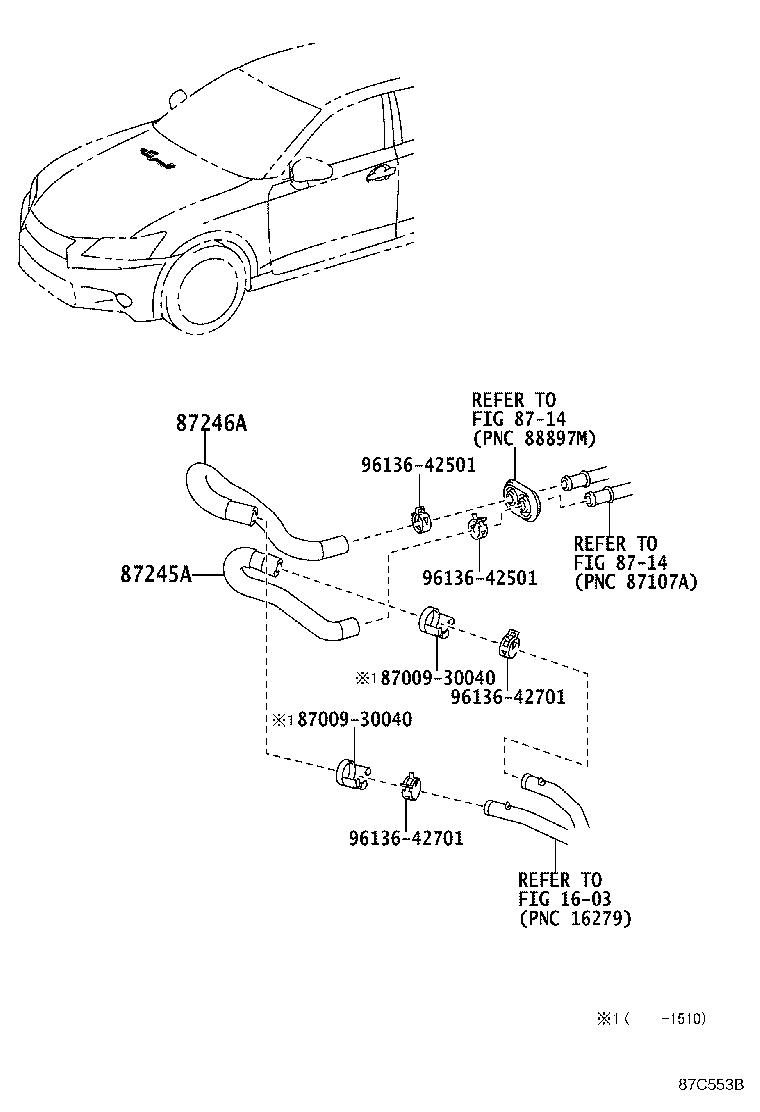

Click highlighted areas on diagram

diagram 1603 8700930040 8700930040 8714 8714 87245A 87246A 9613642501 9613642501 9613642701 9613642701
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-53180

GRL11,15;GRL10..8FC

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-53130

GRL11,15..LHD;GRL10..LHD..8FC

 1
Common parts
87009-30040
96136-42501
96136-42701
Linked diagrams
1603
8714
