GRL12R-BEZQHQ (2015)

Toyota Lexus Gs Series

Production Oct 2015 - Jul 2020
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1510- )RHD

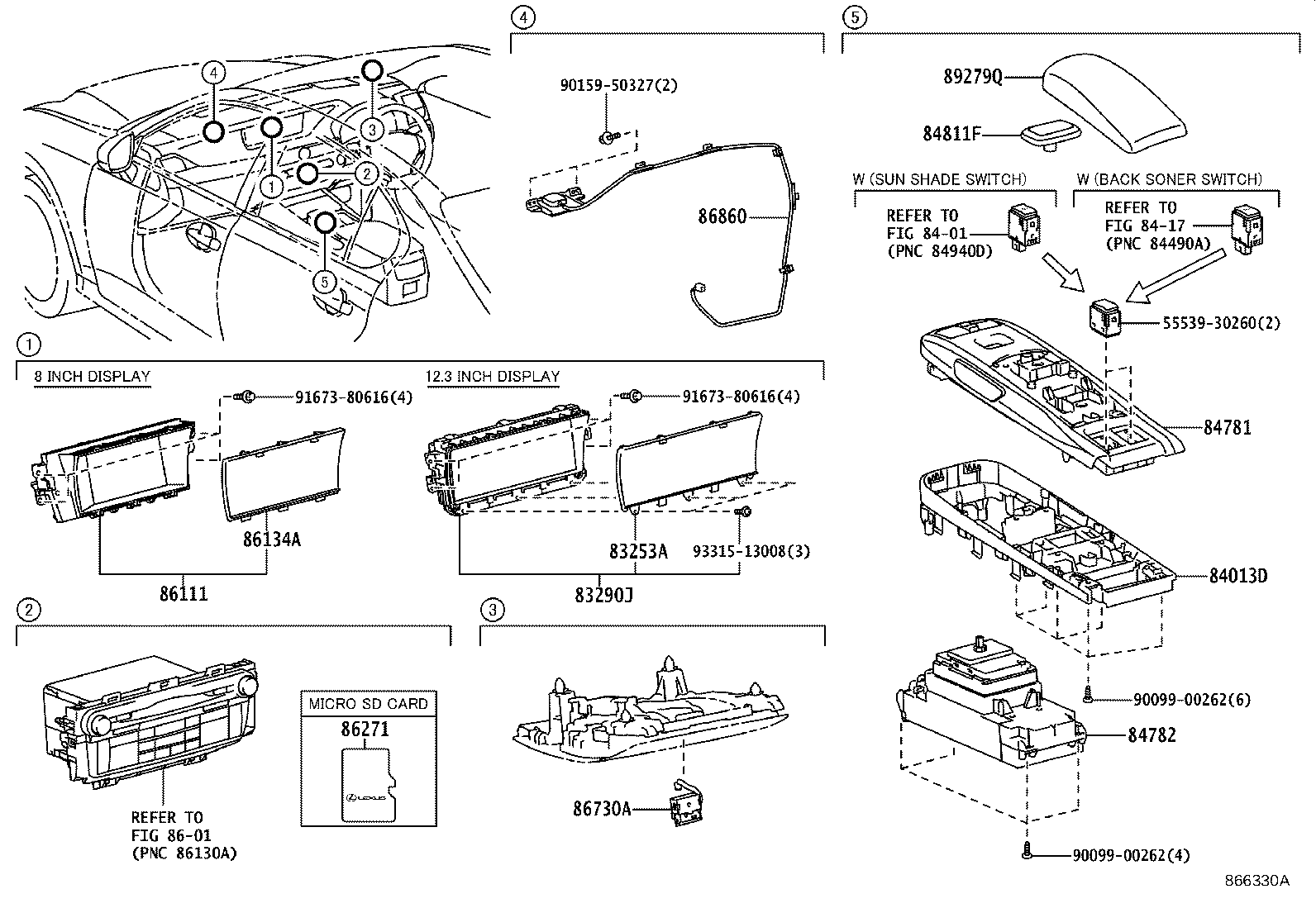

Click highlighted areas on diagram

diagram 5553930260 83253A 83290J 8401 84013D 8417 84781 84782 84811F 8601 86111 86134A 86271 86730A 86860 89279Q 9009900262 9009900262 9015950327 9167380616 9167380616 9331513008
Part # Description Qty Price
83253A - GLASS, ACCESSORY METER
83253-30010

ARL10,AWL10,GRL12,GWL10..ARL,GCC

EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

 1
83290J - METER ASSY, ACCESSORY
83290-30250

ARL10,AWL10,GRL12,GWL10..ARL,GCC

EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

 1
83290-30251

ARL10,AWL10,GRL12,GWL10..ARL,GCC

EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

 1
84013D - PANEL SUB-ASSY, INTEGRATION
84013-30270

ARL10,AWL10,GRL12,GWL10..RHD

 1
84781 - SWITCH, REMOTE OPERATION
84781-30140

ARL10,AWL10,GRL12,GWL10..ARL

 1
84781-30150

ARL10,AWL10,GRL12,GWL10..ARL

EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

 1
84781-30141

ARL10,AWL10,GRL12,GWL10..ARL

 1
84781-30151

ARL10,AWL10,GRL12,GWL10..ARL

EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY

 1
84782 - BOARD, REMOTE OPERATION
84782-30030

ARL10,AWL10,GRL12,GWL10

 1
84811F - KNOB, SWITCH
84811-30050

AWL10,GRL1#,GWL10

 1
84811-30070

ARL10,AWL10,GRL12,GWL10

 1
86111 - MULTI-DISPLAY
86110-30350

ARL10,AWL10,GRL12,GWL10..ARL

PIONEER

 1
86134A - PARTS, MULTI-DISPLAY
86134-30130

GRL1#,GWL10

 1
86134-30140

ARL10,AWL10,GRL12,GWL10..ARL,GCC;ARL10,AWL10,GRL12,GWL10..LHD..GEN

 1
86271 - DISC, DISC PLAYER
86271-48380

ARL10,AWL10,GRL12,GWL10..ARL

 1
86271-48381

ARL10,AWL10,GRL12,GWL10..ARL

 1
86271-48382

ARL10,AWL10,GRL12,GWL10..ARL

 1
86271-48383

ARL10,AWL10,GRL12,GWL10..ARL

 1
86271-48384

ARL10,GRL12,GWL10..ARL

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-30230

ARL10,AWL10,GRL12,GWL10..RHD

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-30220

ARL10,AWL10,GRL12,GWL10..RHD

 1
86860-30320

ARL10,AWL10,GRL12,GWL10..RHD

 1
89279Q - COVER
89279-30160B0

ARL10,AWL10,GRL12,GWL10..RHD

LT.GRAY NO.831,TRIM0#,1#,2#,3#,5#,6#

 1
Common parts
55539-30260
90099-00262
90159-50327
91673-80616
93315-13008
