GRL11R-BETQHQ (2012)

Toyota Lexus Gs Series

Production Jan 2012 - Oct 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201-1703)RHD

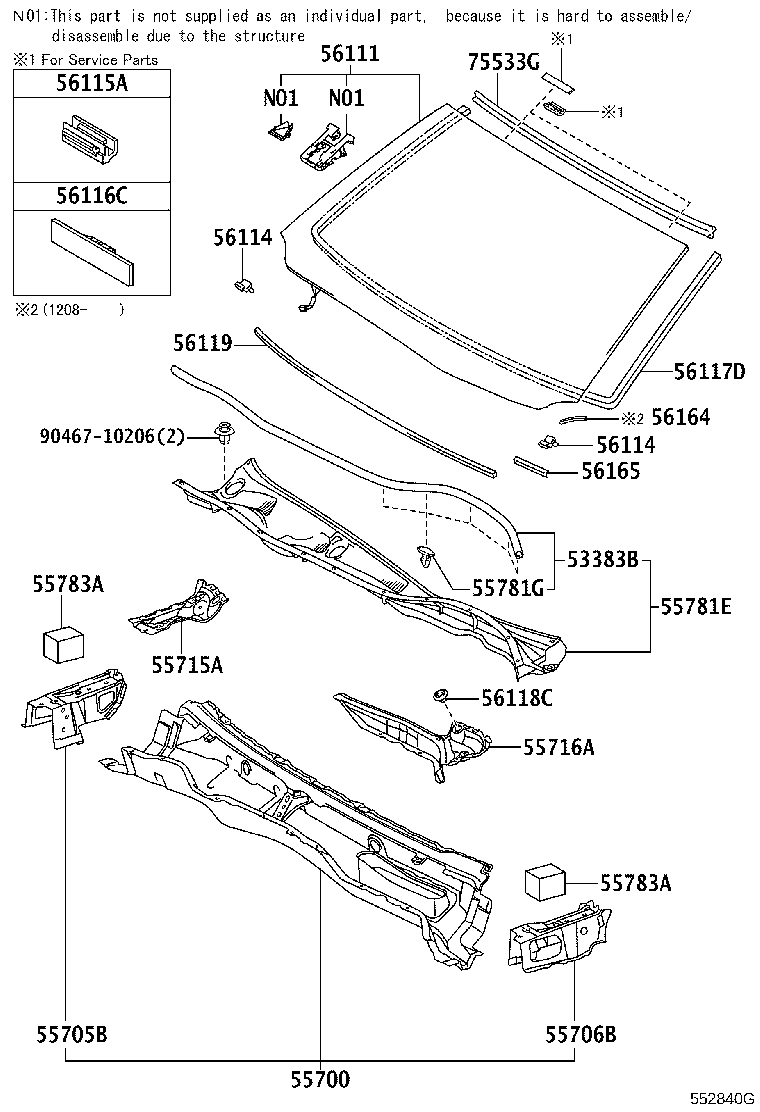

Click highlighted areas on diagram

diagram 53383B 55700 55705B 55706B 55715A 55716A 55781E 55781G 55783A 55783A 56111 56114 56114 56115A 56116C 56117D 56118C 56119 56164 56165 75533G 9046710206
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-30280

AWL10,GRL10,11,GWL10..RHD

 1
55700 - PANEL ASSY, FRONT
55700-30A70

GRL10..RHD..8FC;AWL10,GRL11,GWL10..RHD

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-30100

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-30100

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-30160

GRL10..RHD..8FC;AWL10,GRL11,GWL10..RHD

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-30180

GRL10..RHD..8FC;AWL10,GRL11,GWL10..RHD

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-30200

AWL10,GRL10,11,GWL10..RHD

 1
55708-30210

AWL10,GRL10,11,GWL10..ARL

COLD AREA SPEC

 1
55708-30201

AWL10,GRL10,11,GWL10..RHD

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-08108

GRL10..8FC;AWL10,GRL11,15,GWL10

 5
55783A - PAD, COWL TOP SILENCER
55783-30110

GRL10..8FC;AWL10,GRL11,15,GWL10

 2
55783A - PAD, COWL TOP SILENCER
55783-30110

GRL10..8FC;AWL10,GRL11,15,GWL10

 2
56111 - GLASS, WINDSHIELD
56101-30941

GRL10,11,GWL10..RHD

 1
56101-30942

GRL10,11,GWL10..RHD

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56101-30943

GRL10,11,GWL10..RHD

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH

 1
56101-30992

GRL10..RHD..8FC;AWL10,GRL11,GWL10..RHD

 1
56101-30997

AWL10,GRL10,11,GWL10..ARL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING ASSIST-WITH

 1
56101-30996

AWL10,GRL10,11,GWL10..ARL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH

 1
56101-30995

AWL10,GRL10,11,GWL10..ARL

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&NIGHT VIEW-WITH

 1
56101-30994

GRL10..RHD..8FC;AWL10,GRL11,GWL10..RHD

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH

 1
56101-30993

GRL10..RHD..8FC;AWL10,GRL11,GWL10..RHD

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56114 - RETAINER, WINDSHIELD GLASS
56114-50020

GRL10..8FC;AWL10,GRL11,15,GWL10

 2
56114 - RETAINER, WINDSHIELD GLASS
56114-50020

GRL10..8FC;AWL10,GRL11,15,GWL10

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
56117D - DAM, WINDSHIELD GLASS ADHESIVE
56117-64010

GRL10..8FC;AWL10,GRL11,15,GWL10

*D,L=2919

 1
56117-64010

GRL10..8FC;AWL10,GRL11,GWL10

*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH

 1
56117-64010

AWL10,GRL10,11,GWL10..ARL,GCC

*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH

 1
56117-64010

AWL10,GRL10,11,GWL10..ARL,GCC

*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&LANE KEEPING ASSIST-WITH

 1
56117-64010

GRL10..8FC;AWL10,GRL11,GWL10

*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
56117-64010

AWL10,GRL10,11,GWL10..ARL,GCC

*D,L=2919,INTERMITTENT WIPER-AUTO(RAIN SENSOR)&HEAD UP DISPLAY-WITH&NIGHT VIEW-WITH

 1
56118C - RETAINER, WINDSHIELD GLASS, NO.2
56118-30120

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
56118-30120

GRL10..8FC..ARL;GRL10..LHD..8FC..GEN;AWL10,GRL11,GWL10..ARL;AWL10,GRL11,GWL10..LHD..GEN

COLD AREA SPEC

 1
56119 - SEAL, WINDSHIELD GLASS
56119-30020

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
56164 - COVER, FRONT WINDOW INNER MOULDING, RH
56164-30010

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
56165 - COVER, FRONT WINDOW INNER MOULDING, LH
56165-30010

GRL10..8FC;AWL10,GRL11,GWL10

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-30410

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
Common parts
90467-10206
