GRL11R-BETQH (2012)
Toyota Lexus Gs Series
Production
Jan 2012
-
Oct 2015
Engine
4GRFSE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1201- )GRL11

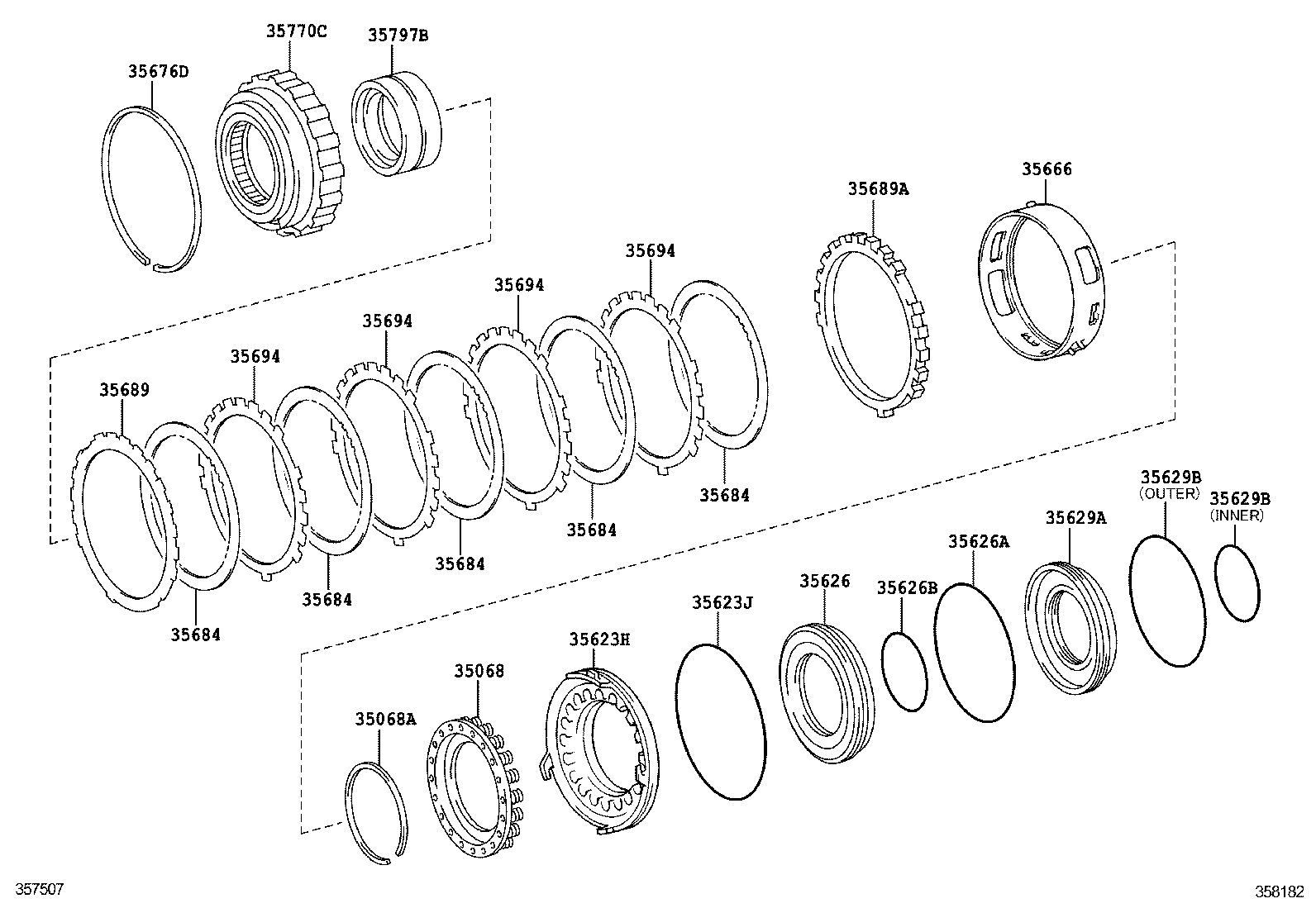

Click highlighted areas on diagram
A960E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-22010 |
GRL11 |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-52262 |
GRL11 |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-22030 |
GRL11 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-99151 |
GRL11 |
1 | ||
| 35626 - SLEEVE, BRAKE REACTION | ||||
| 35626-22020 |
GRL11 |
1 | ||
| 35626A - RING (FOR BRAKE REACTION SLEEVE OUTER) | ||||
| 90301-99155 |
GRL11 |
1 | ||
| 35626B - RING (FOR BRAKE REACTION SLEEVE INNER) | ||||
| 90301-69009 |
GRL11 |
1 | ||
| 35629A - PISTON, BRAKE, NO.4 | ||||
| 35629-22030 |
GRL11 |
1 | ||
| 35629B - RING, O (FOR BRAKE PISTON NO.4) | ||||
| 90301-56007 |
GRL11 INNER |
1 | ||
| 90301-94004 |
GRL11 OUTER |
1 | ||
| 35629B - RING, O (FOR BRAKE PISTON NO.4) | ||||
| 90301-56007 |
GRL11 INNER |
1 | ||
| 90301-94004 |
GRL11 OUTER |
1 | ||
| 35666 - TUBE, BRAKE APPLY | ||||
| 35666-22030 |
GRL11 |
1 | ||
| 35666-22020 |
GRL11 |
1 | ||
| 35676D - RING, HOLE SNAP (FOR 1ST & REVERSE BRAKE FLANGE) | ||||
| 90521-99133 |
GRL11 |
1 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-22010 |
GRL11 |
5 | ||
| 35684-30010 |
GRL11 |
5 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-22010 |
GRL11 |
5 | ||
| 35684-30010 |
GRL11 |
5 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-22010 |
GRL11 |
5 | ||
| 35684-30010 |
GRL11 |
5 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-22010 |
GRL11 |
5 | ||
| 35684-30010 |
GRL11 |
5 | ||
| 35684 - DISC, BRAKE, NO.4 | ||||
| 35684-22010 |
GRL11 |
5 | ||
| 35684-30010 |
GRL11 |
5 | ||
| 35689 - FLANGE, BRAKE, NO.4 | ||||
| 35689-22020 |
GRL11 T=1.8 MARK 0 |
1 | ||
| 35689-22030 |
GRL11 T=2.0 MARK 2 |
1 | ||
| 35689-22070 |
GRL11 T=2.8 MARK 10 |
1 | ||
| 35689-22060 |
GRL11 T=2.6 MARK 8 |
1 | ||
| 35689-22080 |
GRL11 T=3.0 MARK 12 |
1 | ||
| 35689-22040 |
GRL11 T=2.2 MARK 4 |
1 | ||
| 35689-22090 |
GRL11 T=3.2 MARK 14 |
1 | ||
| 35689-22050 |
GRL11 T=2.4 MARK 6 |
1 | ||
| 35689-22140 |
GRL11 T=2.39,MARK 5 |
1 | ||
| 35689-22160 |
GRL11 T=2.67,MARK 8 |
1 | ||
| 35689-22120 |
GRL11 T=2.11,MARK 3 |
1 | ||
| 35689-22130 |
GRL11 T=2.25,MARK 4 |
1 | ||
| 35689-22100 |
GRL11 T=1.8 MARK 0 |
1 | ||
| 35689-22110 |
GRL11 T=1.97,MARK 1 |
1 | ||
| 35689-22150 |
GRL11 T=2.53,MARK 7 |
1 | ||
| 35689-22180 |
GRL11 T=2.95,MARK 11 |
1 | ||
| 35689-22170 |
GRL11 T=2.81,MARK10 |
1 | ||
| 35689-22190 |
GRL11 T=3.09,MARK 12 |
1 | ||
| 35689A - FLANGE, BRAKE, NO.4 | ||||
| 35689-22010 |
GRL11 |
1 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-22010 |
GRL11 |
4 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-22010 |
GRL11 |
4 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-22010 |
GRL11 |
4 | ||
| 35694 - PLATE, BRAKE, NO.4 | ||||
| 35694-22010 |
GRL11 |
4 | ||
| 35770C - CLUTCH ASSY, 1WAY NO.3 | ||||
| 35770-22070 |
GRL11 |
1 | ||
| 35797B - RACE, 1 WAY CLUTCH, INNER | ||||
| 35797-22030 |
GRL11 |
1 | ||
