GRL11L-BETQHV (2012)
Toyota Lexus Gs Series

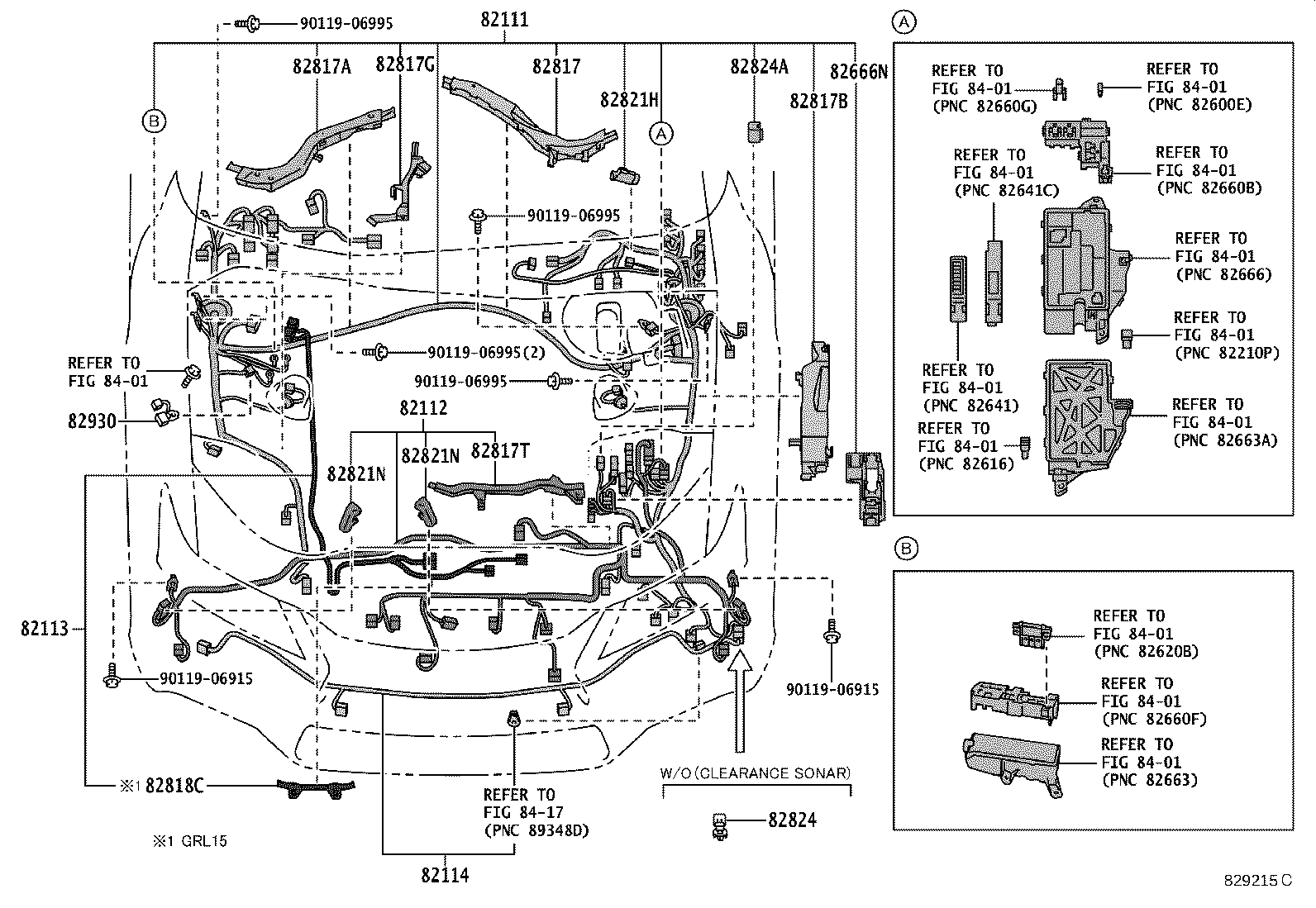

ILLUST NO. 1 OF12(1201-1309)GRL1#..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3AL50 |
GRL11..GCC |
1 | ||
| 82111-3AD40 |
GRL10,11..GCC HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AD30 |
GRL10,11..GCC |
1 | ||
| 82111-3AD50 |
GRL10,11..GCC F SPORT |
1 | ||
| 82111-3AD60 |
GRL10,11..GCC VERSION L&HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AD50 |
GRL10,11..GCC VERSION L |
1 | ||
| 82111-3AD60 |
GRL10,11..GCC F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AL60 |
GRL11..GCC HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AL80 |
GRL11..GCC VERSION L |
1 | ||
| 82111-3AL80 |
GRL11..GCC F SPORT |
1 | ||
| 82111-3AL90 |
GRL11..GCC F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AL90 |
GRL11..GCC VERSION L&HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AL80 |
GRL11..GCC THE CRAFTED LINE |
1 | ||
| 82111-3AL90 |
GRL11..GCC THE CRAFTED LINE&HEADLAMP CLEANER-WITH |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-30810 |
GRL10,11..GCC F SPORT |
1 | ||
| 82112-30D70 |
GRL10,11..GCC PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82112-30D70 |
GRL10,11..GCC VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR)&HEADLAMP-DISCHARGE & WITH(AFS & *AHB) |
1 | ||
| 82112-30F60 |
GRL10,11..GCC VERSION L&HEADLAMP-DISCHARGE & WITH(AFS & *AHB) |
1 | ||
| 82112-30D50 |
GRL10,11..GCC |
1 | ||
| 82112-30E80 |
GRL10,11..GCC F SPORT&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82112-30G40 |
GRL10,11..GCC |
1 | ||
| 82112-30G70 |
GRL10,11..GCC F SPORT&PRE-COLLISION SYSTEM-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 82112-30G80 |
GRL10,11..GCC VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR)&FRONT FOG LAMP-WITH(LED) |
1 | ||
| 82112-30G80 |
GRL10,11..GCC PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82112-30G30 |
GRL10,11..GCC F SPORT&FRONT FOG LAMP-WITHOUT |
1 | ||
| 82112-30G30 |
GRL10,11..GCC THE CRAFTED LINE&FRONT FOG LAMP-WITHOUT |
1 | ||
| 82112-30G70 |
GRL10,11..GCC THE CRAFTED LINE&PRE-COLLISION SYSTEM-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-30710 |
GRL10..LHD..8FC;AWL10,GRL11,GWL10..LHD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-30280 |
AWL10,GRL1#,GWL10 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82114-30200 |
GRL1#,GWL10 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30Y40 |
GRL11,15..LHD;GRL10..LHD..8FC |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-30M00 |
GRL11,15..LHD;GRL10..LHD..8FC |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-30M70 |
GRL11,15..LHD;GRL10..LHD..8FC |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-30Q70 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-45010 |
AWL10,GRL1#,GWL10 |
2 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-45010 |
AWL10,GRL1#,GWL10 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82114-22050 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82824-50430 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GRL11,15..LHD;GRL10..LHD..8FC |
1 | ||
| 82930 - CONDENSER ASSY, WIRING HARNESS, NO.1 | ||||
| 82930-30030 |
GRL1#..LHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||

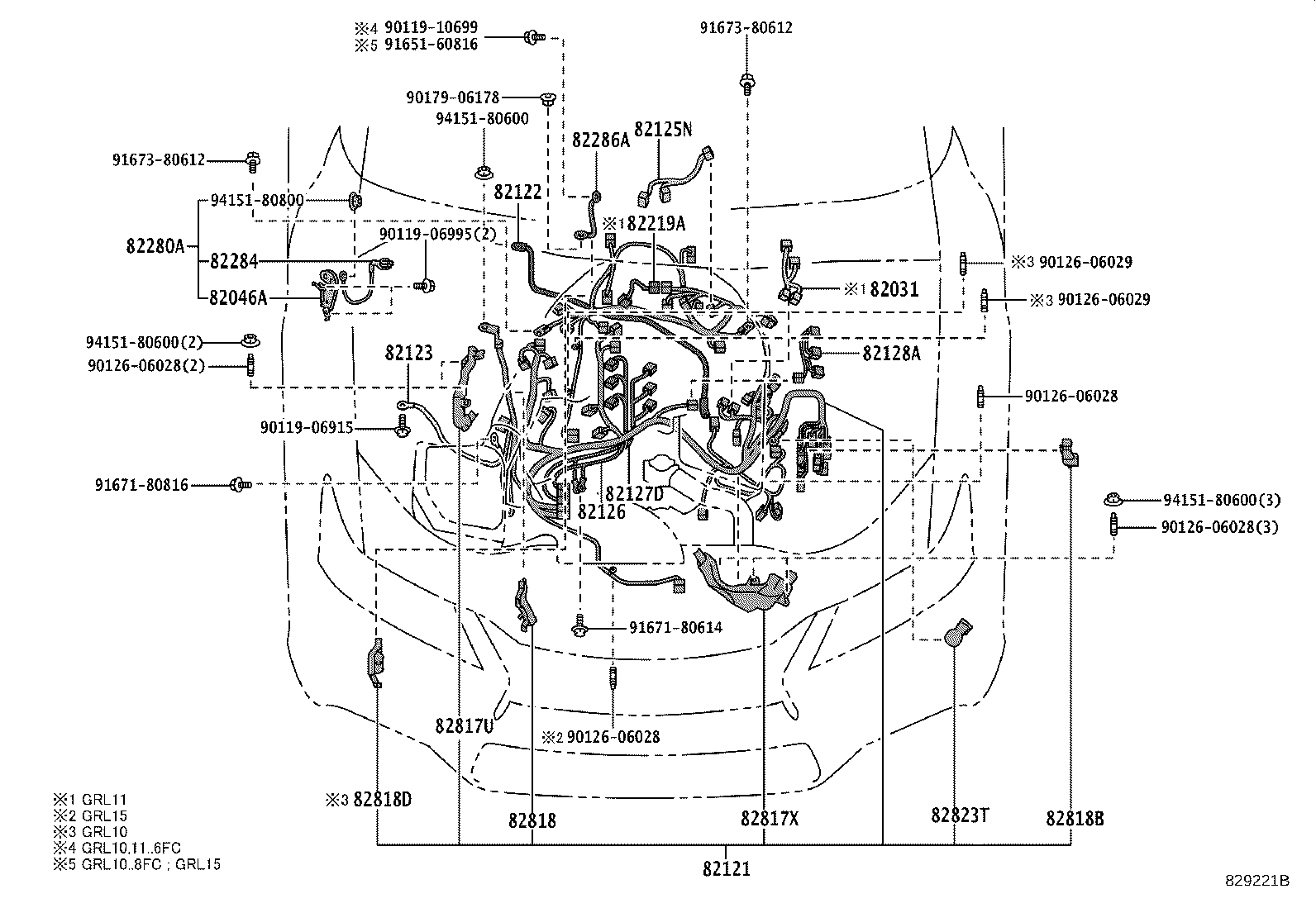

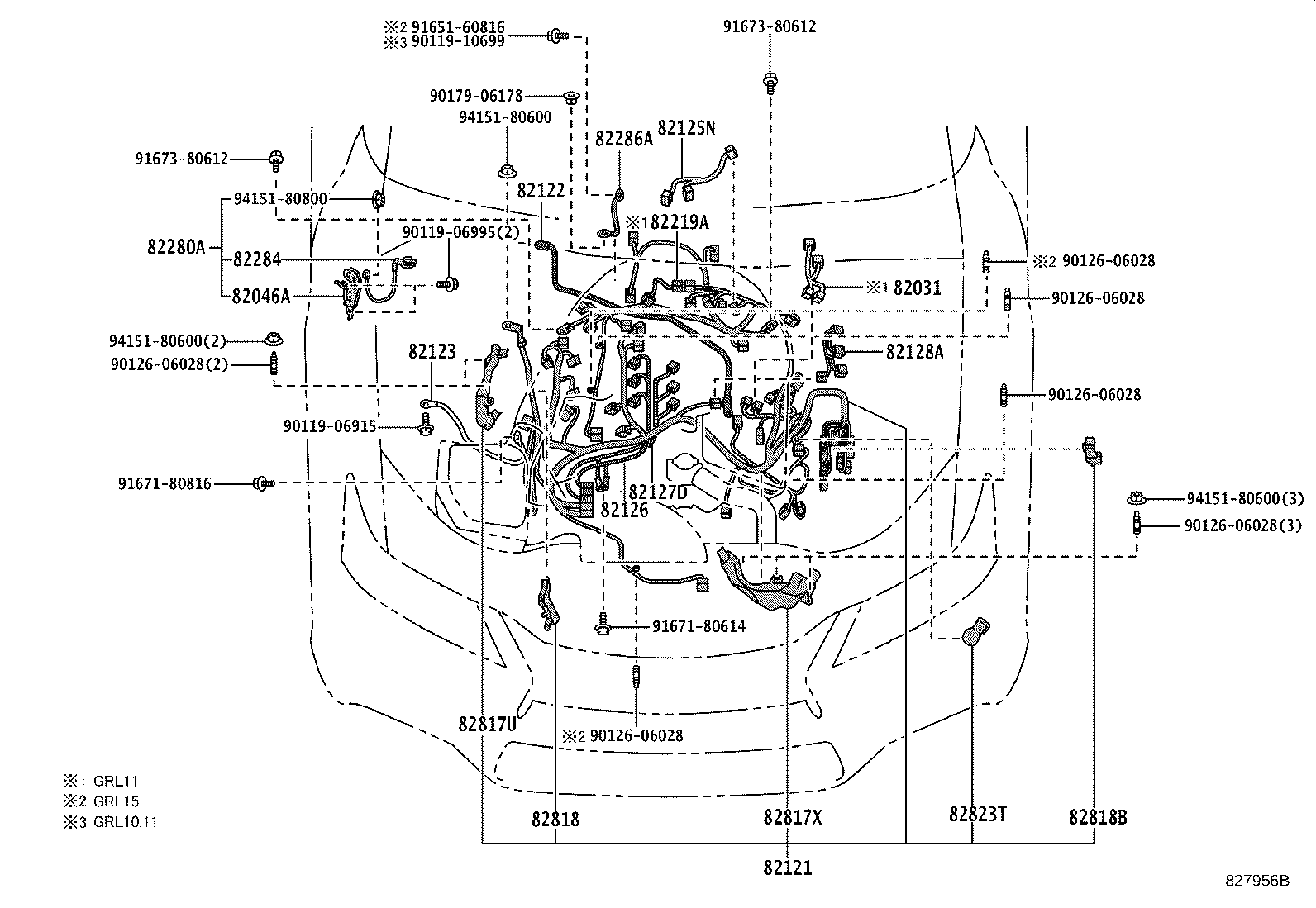

ILLUST NO. 2 OF12(1201-1309)GRL1#..LHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-22150 |
GRL11 |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30120 |
GRL11,15..LHD;GRL10..LHD..8FC |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30F70 |
GRL11..LHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30A10 |
GRL1#..LHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30490 |
GRL11,15;GRL10..8FC |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-30500 |
GRL11 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-30040 |
GRL11,15;GRL10..8FC |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-30040 |
GRL11,15;GRL10..8FC |
1 | ||
| 82280A - WIRE ASSY, BATTERY TO COWL TOP SIDE | ||||
| 82280-30080 |
GRL1#..LHD |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30080 |
GRL1#..LHD |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-30100 |
GRL11 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-2A730 |
GRL11,15;GRL10..8FC |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-30A80 |
GRL11,15;GRL10..8FC |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-30D60 |
GRL11,15;GRL10..8FC |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-30M90 |
GRL11,15;GRL10..8FC |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-52010 |
GRL1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 90119-10699 | ||||
| 90126-06028 | ||||
| 90179-06178 | ||||
| 91651-60816 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
ILLUST NO. 3 OF12(1201- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3AF80 |
GRL1#..LHD |
1 | ||
| 82141-3AF90 |
GRL11..LHD F SPORT |
1 | ||
| 82141-3AG10 |
GRL10..LHD;GRL11..GCC PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82141-3AF90 |
GRL1#..LHD VERSION L |
1 | ||
| 82141-3AG20 |
GRL10,11..GCC VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR) |
1 | ||
| 82141-3AG20 |
GRL11..GCC F SPORT&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82141-3AU40 |
GRL1#..LHD |
1 | ||
| 82141-3AU50 |
GRL11..LHD F SPORT |
1 | ||
| 82141-3AU50 |
GRL1#..LHD VERSION L |
1 | ||
| 82141-3AU80 |
GRL10,11..GCC VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR) |
1 | ||
| 82141-3AU70 |
GRL10..LHD;GRL11..GCC PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82141-3AU80 |
GRL11..GCC F SPORT&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82141-3AU51 |
GRL11..LHD F SPORT |
1 | ||
| 82141-3AU41 |
GRL1#..LHD |
1 | ||
| 82141-3AU51 |
GRL1#..LHD VERSION L |
1 | ||
| 82141-3AU51 |
GRL11..GCC THE CRAFTED LINE |
1 | ||
| 82141-3AU71 |
GRL10..LHD;GRL11..GCC PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82141-3AU81 |
GRL11..GCC THE CRAFTED LINE&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82141-3AU81 |
GRL11..GCC F SPORT&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82141-3AU81 |
GRL10,11..GCC VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-30090 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-30020 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82149A - WIRE, INSTRUMENT PANEL, NO.5 | ||||
| 82149-30070 |
GRL1#,GWL10 HEAD UP DISPLAY-WITH |
1 | ||
| 82149-30120 |
AWL10,GRL1#,GWL10 HEAD UP DISPLAY-WITH |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-30180 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
GRL10..8FC;AWL10,GRL11,15 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-30B20 |
GRL11,15;GRL10..8FC;AWL10,GWL10..RHD |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-30V30 |
GRL10..LHD..8FC;AWL10,GRL11,15,GWL10..LHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-80614 | ||||
ILLUST NO. 5 OF12(1201- )ARL10,GRL1#,GWL10
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-30T70 |
GRL10,11..LHD |
1 | ||
| 82161-30W60 |
GRL10,11..GCC BLIND SPOT MONITOR-WITH |
1 | ||
| 82161-3AE60 |
GRL15;GRL10,11..GCC |
1 | ||
| 82161-3AF00 |
GRL10,11..GCC F SPORT&NIGHT VIEW-WITH&BLIND SPOT MONITOR-WITH |
1 | ||
| 82161-3AF00 |
GRL10,11..GCC VERSION L&NIGHT VIEW-WITH&BLIND SPOT MONITOR-WITH |
1 | ||
| 82161-3AE90 |
GRL10,11..GCC BLIND SPOT MONITOR-WITH |
1 | ||
| 82161-3AE61 |
GRL15;GRL10,11..GCC |
1 | ||
| 82161-3AF01 |
GRL10,11..GCC F SPORT&NIGHT VIEW-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82161-3AE91 |
GRL10,11..GCC BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82161-3AF01 |
GRL10,11..GCC VERSION L&NIGHT VIEW-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82161-3AF01 |
GRL10,11..GCC THE CRAFTED LINE&NIGHT VIEW-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-30P50 |
GRL10,11..GCC BLIND SPOT MONITOR-WITH |
1 | ||
| 82162-30L00 |
GRL1#..LHD |
1 | ||
| 82162-30V90 |
GRL10,11..LHD BLIND SPOT MONITOR-WITH |
1 | ||
| 82162-30V80 |
GRL1#..LHD |
1 | ||
| 82162-30V91 |
GRL1#..LHD BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 82162-30V81 |
GRL1#..LHD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-30J80 |
AWL10,GRL10,11,GWL10 MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82171-30K00 |
AWL10,GRL10,11,GWL10..ARL,GCC;AWL10,GRL10,11,GWL10..LHD..GEN MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH |
1 | ||
| 82171-30K10 |
GRL11,GWL10..ARL,GCC MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH |
1 | ||
| 82171-30J90 |
AWL10,GRL10,11,GWL10 MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82171-30J60 |
AWL10,GRL10,11,GWL10..ARL,GCC;AWL10,GRL10,11,GWL10..LHD..GEN INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH |
1 | ||
| 82171-30J81 |
AWL10,GRL10,11,GWL10 MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82171-30J91 |
AWL10,GRL10,11,GWL10 MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82171-30J40 |
AWL10,GRL10,11,GWL10 |
1 | ||
| 82171-30J70 |
GRL11,GWL10..ARL,GCC INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH |
1 | ||
| 82171-30K01 |
AWL10,GRL10,11,GWL10..ARL,GCC;AWL10,GRL10,11,GWL10..LHD..GEN MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&NIGHT VIEW-WITH |
1 | ||
| 82171-30K11 |
AWL10,GRL10,11,GWL10..ARL,GCC;AWL10,GRL10,11,GWL10..LHD..GEN MOON ROOF-WITH(TILT & SLIDE)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&LANE KEEPING ASSIST-WITH |
1 | ||
| 82171-30J50 |
AWL10,GRL10,11,GWL10 INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-30330 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82181-30320 |
GRL10..8FC;AWL10,GRL11,15,GWL10 POWER TRUNK LID SYSTEM-WITH |
1 | ||
| 82181-30331 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82181-30321 |
AWL10,GRL1#,GWL10 POWER TRUNK LID SYSTEM-WITH |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-30150 |
AWL10,GRL1#,GWL10 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82183-30110 |
GRL1#,GWL10 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30080 |
GRL1#..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-30B30 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-30B50 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-30B60 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-30B70 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-21040 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-26080 |
GRL1#,GWL10 |
1 | ||
| 82666-26080 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-42020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-60220 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-42020 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666Y - HOLDER, CONNECTOR NO.18 | ||||
| 82666-26130 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-30U90 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-53240 |
GRL1#,GWL10 |
1 | ||
| 82817-30N30 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-53250 |
GRL1#,GWL10 |
1 | ||
| 82817-30N40 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-60730 |
AWL10,GRL1#,GWL10 |
1 | ||
| Common parts | ||||
| 61824-30170 | ||||
| 61824-30180 | ||||
| 61824-30190 | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 90179-06274 | ||||
| 90980-12697 | ||||
| 91553-80614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8601 | ||||
ILLUST NO. 7 OF12(1201- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-30010 |
GRL10,11,GWL10..GCC VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH) |
1 | ||
| 82176-30010 |
GRL15;GRL10,11,GWL10..GCC VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN) |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-30620 |
AWL10,GRL10,11,GWL10..LHD SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN) |
1 | ||
| 82191-30600 |
AWL10,GRL1#,GWL10..LHD SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82191-30580 |
AWL10,GRL1#,GWL10..LHD |
1 | ||
| 82191-30620 |
AWL10,GRL10,11,GWL10..LHD SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH) |
1 | ||
| 82191-30600 |
AWL10,GRL10,11,GWL10..LHD SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-30430 |
AWL10,GRL1#,GWL10..LHD |
1 | ||
| 82192-30450 |
AWL10,GRL10,11,GWL10..LHD SEAT COVER MATERIAL-LEATHER(FOR F SPORT)&FRONT SEAT ADJUSTER-DRIVER:16WAY/PASSENGER:10WAY |
1 | ||
| 82192-30460 |
AWL10,GRL10,11,GWL10..LHD SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN) |
1 | ||
| 82192-30440 |
AWL10,GRL1#,GWL10..LHD SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82192-30460 |
AWL10,GRL10,11,GWL10..LHD SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH) |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-30060 |
GRL10,11,GWL10..GCC VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH) |
1 | ||
| 82193-30060 |
GRL10,11,GWL10..GCC VERSION L&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN) |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-30B80 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-30B90 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
ILLUST NO. 8 OF12(1201- )

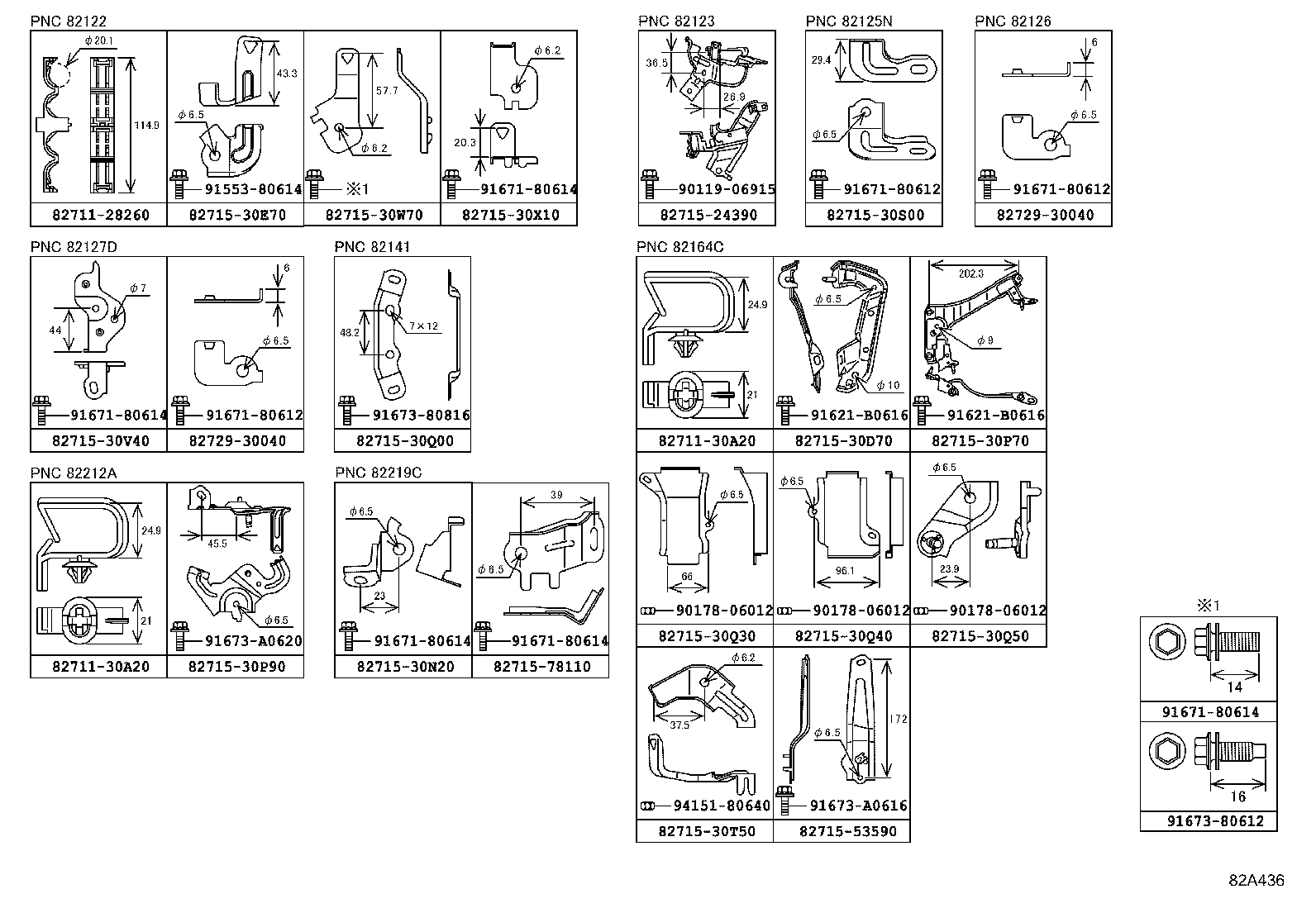

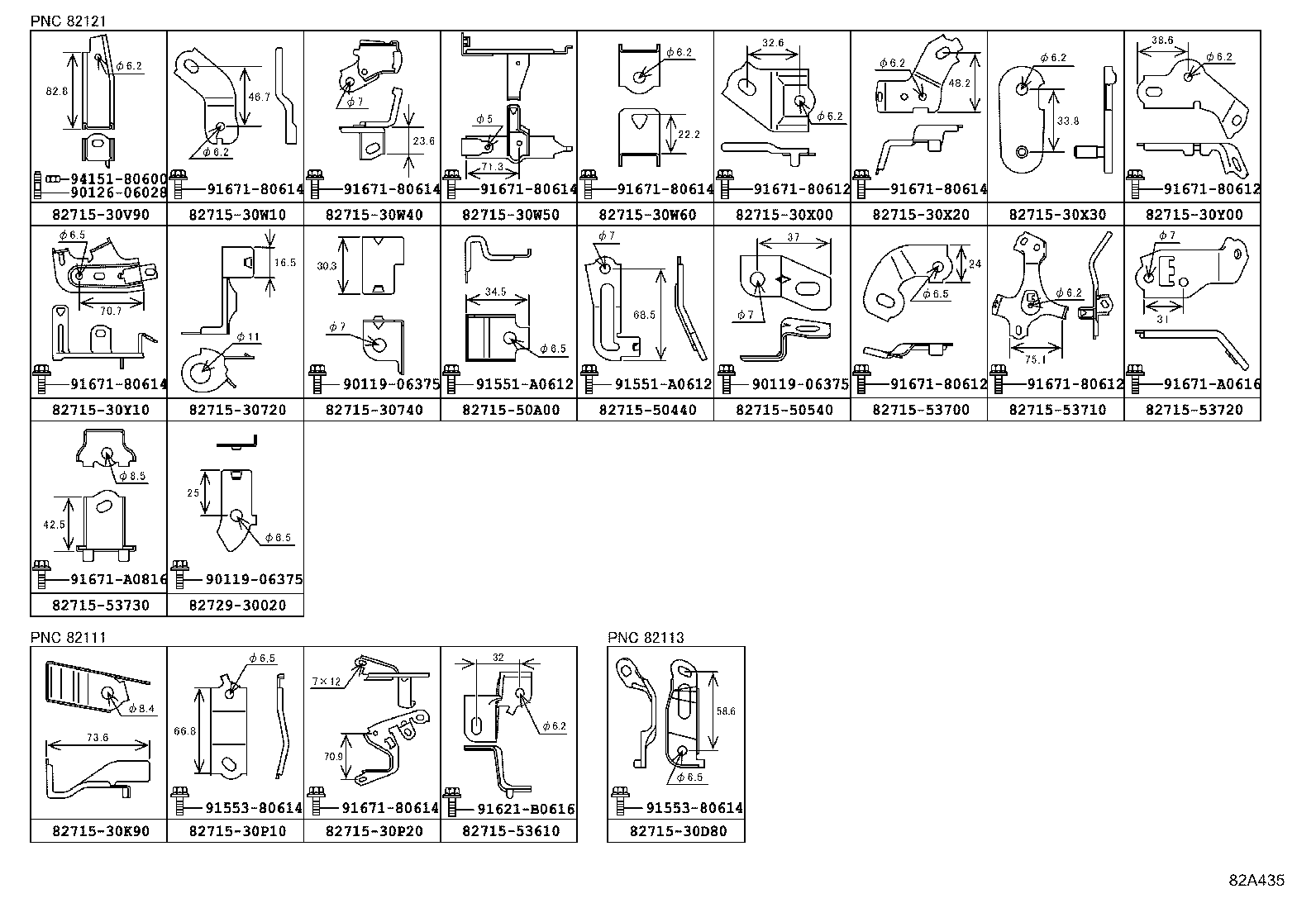

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-22800 | ||||
| 82715-30A40 | ||||
| 82715-30A50 | ||||
| 82715-30A60 | ||||
| 82715-30A70 | ||||
| 82715-30A80 | ||||
| 82715-30A90 | ||||
| 82715-30B00 | ||||
| 82715-30C10 | ||||
| 82715-30E60 | ||||
| 82715-30F20 | ||||
| 82715-30F30 | ||||
| 82715-30F40 | ||||
| 82715-30G30 | ||||
| 82715-30M90 | ||||
| 82715-30P40 | ||||
| 82715-30P50 | ||||
| 82715-30Q10 | ||||
| 82715-30R20 | ||||
| 82715-30R30 | ||||
| 82715-30R40 | ||||
| 82715-30R50 | ||||
| 82715-30R61 | ||||
| 82715-30R70 | ||||
| 82715-30R80 | ||||
| 82715-30S10 | ||||
| 82715-30S20 | ||||
| 82715-30S40 | ||||
| 82715-30T10 | ||||
| 82715-30U00 | ||||
| 82715-30U40 | ||||
| 82715-30U50 | ||||
| 82715-30U60 | ||||
| 82715-30U70 | ||||
| 82715-30U80 | ||||
| 82715-30U90 | ||||
| 90119-06375 | ||||
| 91512-61050 | ||||
| 91551-A0612 | ||||
| 91621-J0614 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91673-80612 | ||||
ILLUST NO. 4 OF12(1201- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-30D50 |
GRL10..LHD..8FC;AWL10,GRL11,GWL10..LHD FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH) |
1 | ||
| 82151-30D50 |
GRL10..LHD..8FC;AWL10,GRL11,GWL10..LHD FRONT SEAT ADJUSTER-18WAY & *PAS(SEAT BACK SWITCH & OTTOMAN) |
1 | ||
| 82151-30C90 |
GRL10..LHD..8FC;AWL10,GRL11,15,GWL10..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-30C50 |
GRL10..LHD..8FC;AWL10,GRL11,15,GWL10..LHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-30710 |
GRL1#,GWL10 |
1 | ||
| 82153-30711 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82157-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-30630 |
GRL1#,GWL10 |
1 | ||
| 82154-30631 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82158-30030 |
AWL10,GRL1#,GWL10 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
ILLUST NO.11 OF12(1201- )

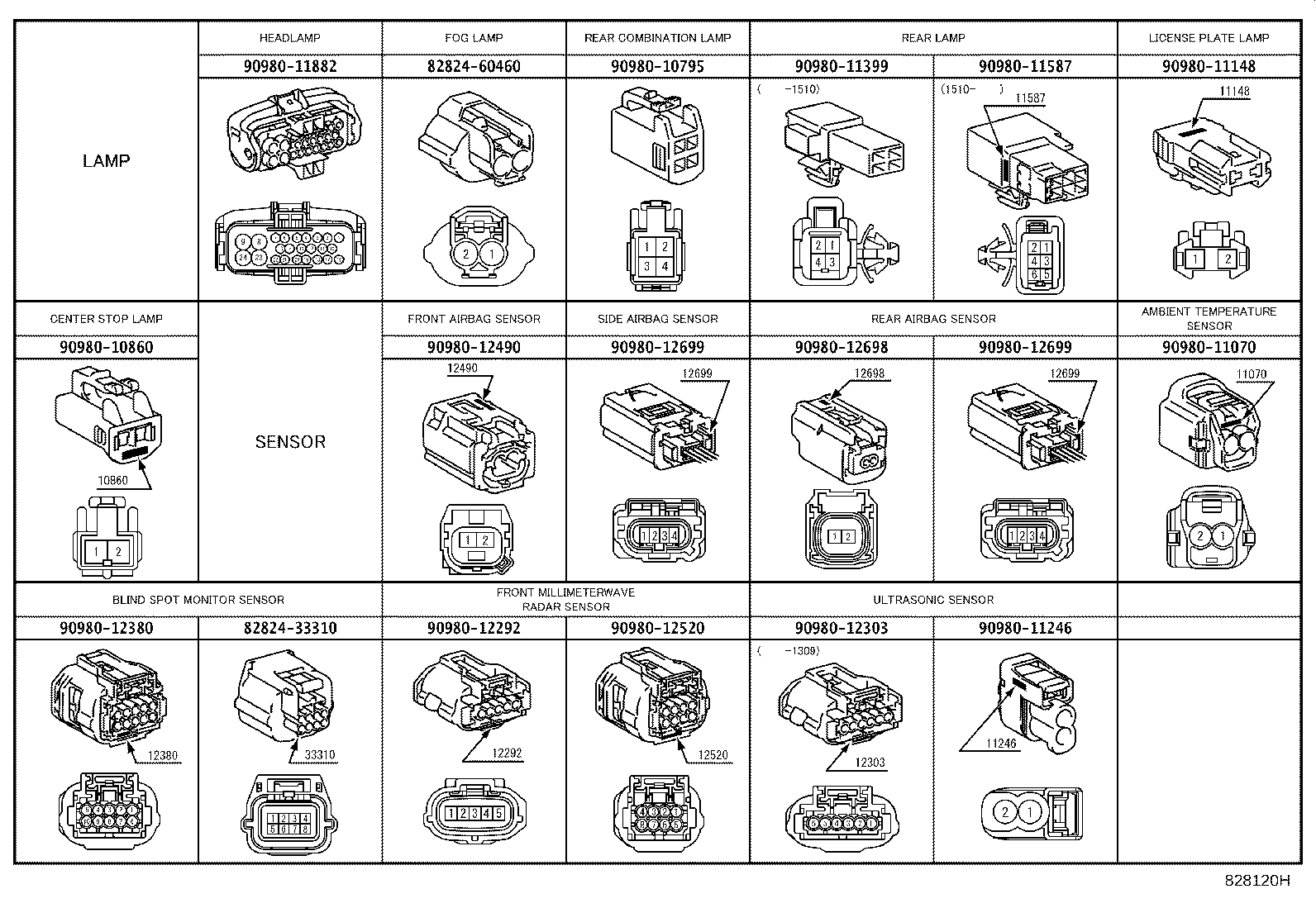

CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-33310 | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10860 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11246 | ||||
| 90980-11399 | ||||
| 90980-11587 | ||||
| 90980-11882 | ||||
| 90980-12292 | ||||
| 90980-12303 | ||||
| 90980-12380 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12698 | ||||
| 90980-12699 | ||||
ILLUST NO.12 OF12(1201- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-12297 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12593 | ||||
| 90980-12686 | ||||
| 90980-12790 | ||||
| 90980-12876 | ||||
| 90980-12B01 | ||||
ILLUST NO. 1 OF12(1309-1510)GRL1#..LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3AD40 |
GRL10,11..GCC HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AD30 |
GRL10,11..GCC |
1 | ||
| 82111-3AD50 |
GRL10,11..GCC F SPORT |
1 | ||
| 82111-3AD60 |
GRL10,11..GCC VERSION L&HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AD50 |
GRL10,11..GCC VERSION L |
1 | ||
| 82111-3AD60 |
GRL10,11..GCC F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AL50 |
GRL11..GCC |
1 | ||
| 82111-3AL60 |
GRL11..GCC HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AL80 |
GRL11..GCC VERSION L |
1 | ||
| 82111-3AL80 |
GRL11..GCC F SPORT |
1 | ||
| 82111-3AL90 |
GRL11..GCC F SPORT&HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AL90 |
GRL11..GCC VERSION L&HEADLAMP CLEANER-WITH |
1 | ||
| 82111-3AL80 |
GRL11..GCC THE CRAFTED LINE |
1 | ||
| 82111-3AL90 |
GRL11..GCC THE CRAFTED LINE&HEADLAMP CLEANER-WITH |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-30810 |
GRL10,11..GCC F SPORT |
1 | ||
| 82112-30D70 |
GRL10,11..GCC PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82112-30D70 |
GRL10,11..GCC VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR)&HEADLAMP-DISCHARGE & WITH(AFS & *AHB) |
1 | ||
| 82112-30F60 |
GRL10,11..GCC VERSION L&HEADLAMP-DISCHARGE & WITH(AFS & *AHB) |
1 | ||
| 82112-30D50 |
GRL10,11..GCC |
1 | ||
| 82112-30E80 |
GRL10,11..GCC F SPORT&PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82112-30G40 |
GRL10,11..GCC |
1 | ||
| 82112-30G70 |
GRL10,11..GCC F SPORT&PRE-COLLISION SYSTEM-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 82112-30G80 |
GRL10,11..GCC VERSION L&PRE-COLLISION SYSTEM-WITH(W/DRIVER MONITOR)&FRONT FOG LAMP-WITH(LED) |
1 | ||
| 82112-30G80 |
GRL10,11..GCC PRE-COLLISION SYSTEM-WITH |
1 | ||
| 82112-30G30 |
GRL10,11..GCC F SPORT&FRONT FOG LAMP-WITHOUT |
1 | ||
| 82112-30G30 |
GRL10,11..GCC THE CRAFTED LINE&FRONT FOG LAMP-WITHOUT |
1 | ||
| 82112-30G70 |
GRL10,11..GCC THE CRAFTED LINE&PRE-COLLISION SYSTEM-WITH&FRONT FOG LAMP-WITHOUT |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-30710 |
GRL10..LHD..8FC;AWL10,GRL11,GWL10..LHD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-30280 |
AWL10,GRL1#,GWL10 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82114-30200 |
GRL1#,GWL10 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-30A70 |
GRL1# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-30Y40 |
GRL11,15..LHD;GRL10..LHD..8FC |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-30M00 |
GRL11,15..LHD;GRL10..LHD..8FC |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-30M70 |
GRL11,15..LHD;GRL10..LHD..8FC |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-30W40 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-30Q70 |
GRL10..8FC;AWL10,GRL11,15,GWL10 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-22120 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-45010 |
AWL10,GRL1#,GWL10 |
2 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-45010 |
AWL10,GRL1#,GWL10 |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82114-22050 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82824-50430 |
AWL10,GRL1#,GWL10 |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
GRL11,15..LHD;GRL10..LHD..8FC |
1 | ||
| 82930 - CONDENSER ASSY, WIRING HARNESS, NO.1 | ||||
| 82930-30030 |
GRL1#..LHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO. 2 OF12(1309-1510)GRL1#..LHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-22150 |
GRL11 |
1 | ||
| 82046A - WIRE SUB-ASSY, BODY GROUND, NO.1 | ||||
| 82046-30120 |
GRL11,15..LHD;GRL10..LHD..8FC |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-30F70 |
GRL11..LHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-30A10 |
GRL1#..LHD |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-30490 |
GRL11,15;GRL10..8FC |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-30500 |
GRL11 |
1 | ||
| 82126 - WIRE, ENGINE | ||||
| 82126-30040 |
GRL11,15;GRL10..8FC |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-30040 |
GRL11,15;GRL10..8FC |
1 | ||
| 82280A - WIRE ASSY, BATTERY TO COWL TOP SIDE | ||||
| 82280-30080 |
GRL1#..LHD |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-30080 |
GRL1#..LHD |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-30100 |
GRL11 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-2A730 |
GRL11,15;GRL10..8FC |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-30A80 |
GRL11,15;GRL10..8FC |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-30D60 |
GRL11,15;GRL10..8FC |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-30M90 |
GRL11,15;GRL10..8FC |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-52010 |
GRL1# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06995 | ||||
| 90119-10699 | ||||
| 90126-06028 | ||||
| 90126-06029 | ||||
| 90179-06178 | ||||
| 91651-60816 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
ILLUST NO. 9 OF12(1201- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-30720 | ||||
| 82715-30740 | ||||
| 82715-30D80 | ||||
| 82715-30K90 | ||||
| 82715-30P10 | ||||
| 82715-30P20 | ||||
| 82715-30V90 | ||||
| 82715-30W10 | ||||
| 82715-30W40 | ||||
| 82715-30W50 | ||||
| 82715-30W60 | ||||
| 82715-30X00 | ||||
| 82715-30X20 | ||||
| 82715-30X30 | ||||
| 82715-30Y00 | ||||
| 82715-30Y10 | ||||
| 82715-50440 | ||||
| 82715-50540 | ||||
| 82715-50A00 | ||||
| 82715-53610 | ||||
| 82715-53700 | ||||
| 82715-53710 | ||||
| 82715-53720 | ||||
| 82715-53730 | ||||
| 82729-30020 | ||||
| 90119-06375 | ||||
| 90126-06028 | ||||
| 91551-A0612 | ||||
| 91553-80614 | ||||
| 91621-B0616 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-A0616 | ||||
| 91671-A0816 | ||||
| 94151-80600 | ||||
ILLUST NO.10 OF12(1201- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-28260 | ||||
| 82711-30A20 | ||||
| 82715-24390 | ||||
| 82715-30D70 | ||||
| 82715-30E70 | ||||
| 82715-30N20 | ||||
| 82715-30P70 | ||||
| 82715-30P90 | ||||
| 82715-30Q00 | ||||
| 82715-30Q30 | ||||
| 82715-30Q40 | ||||
| 82715-30Q50 | ||||
| 82715-30S00 | ||||
| 82715-30T50 | ||||
| 82715-30V40 | ||||
| 82715-30W70 | ||||
| 82715-30X10 | ||||
| 82715-53590 | ||||
| 82715-78110 | ||||
| 82729-30040 | ||||
| 90119-06915 | ||||
| 90178-06012 | ||||
| 91553-80614 | ||||
| 91621-B0616 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91673-80612 | ||||
| 91673-80816 | ||||
| 91673-A0616 | ||||
| 91673-A0620 | ||||
| 94151-80640 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
