GRL11L-BETQHV (2012)

Toyota Lexus Gs Series

Production Jan 2012 - Oct 2015
Engine 4GRFSE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1201- )ARL10,GRL1#

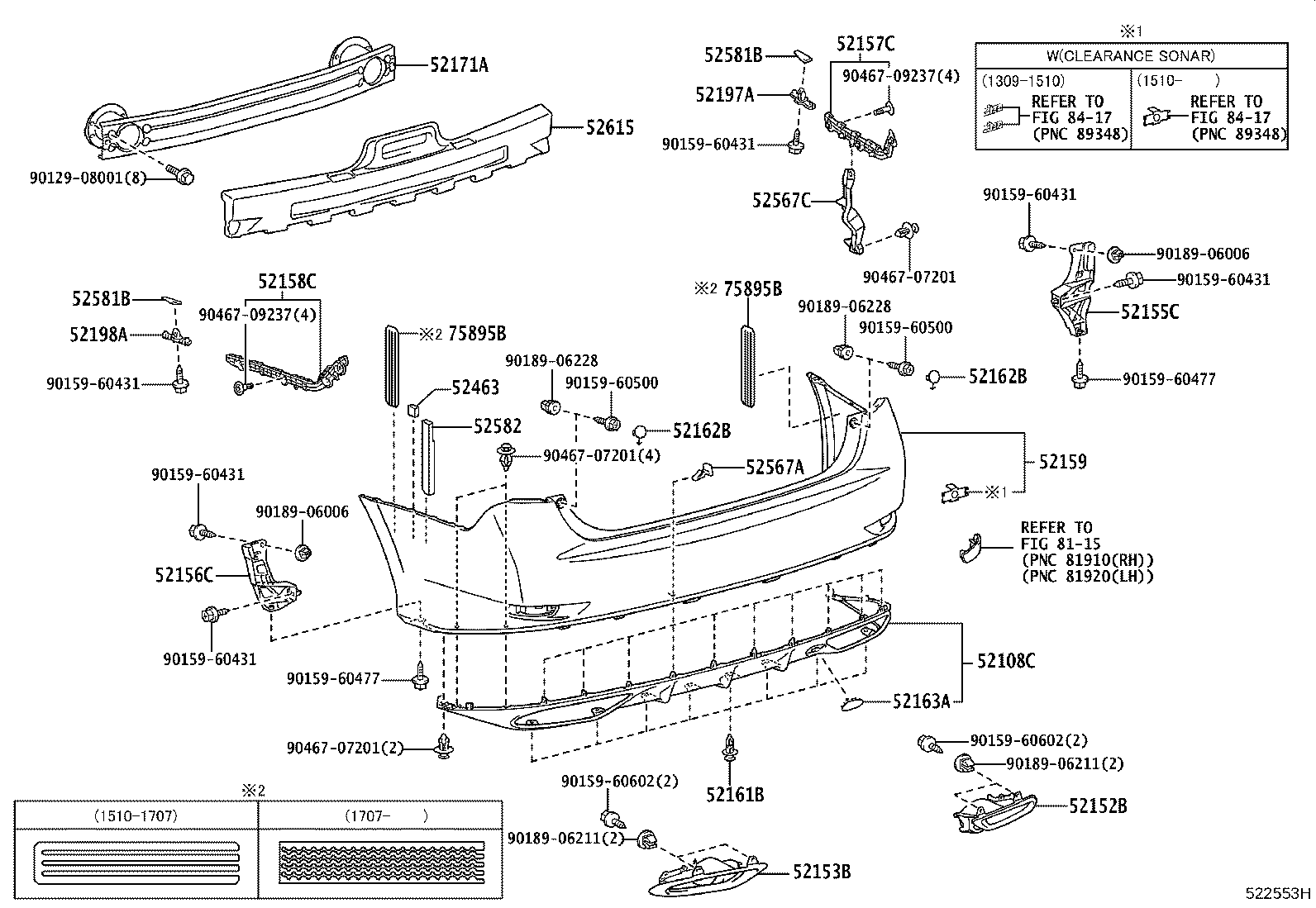

Click highlighted areas on diagram

diagram 52108C 52152B 52153B 52155C 52156C 52157C 52158C 52159 52161B 52162B 52162B 52163A 52171A 52197A 52198A 52463 52567A 52567C 52581B 52581B 52582 52615 75895B 75895B 8115 8417 8417 9012908001 9015960431 9015960431 9015960431 9015960431 9015960431 9015960431 9015960477 9015960477 9015960500 9015960500 9015960602 9015960602 9018906006 9018906006 9018906211 9018906211 9018906228 9018906228 9046707201 9046707201 9046707201 9046709237 9046709237
Part # Description Qty Price
52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER
52108-30050

GRL11;GRL10..8FC

F SPORT

 1
52108-30030

GRL11,15;GRL10..8FC

 1
52108-30050

GRL11;GRL10..8FC

F SPORT&CLEARANCE & BACK SONAR-WITH

 1
52108-30080

GRL10,11..GCC

THE CRAFTED LINE

 1
52108-30080

GRL10,11..GCC

THE CRAFTED LINE&CLEARANCE & BACK SONAR-WITH

 1
52152B - EXTENSION, REAR BUMPER, RH
52106-30110

GRL11,15;GRL10..8FC

 1
52153B - EXTENSION, REAR BUMPER, LH
52107-30160

GRL11,15;GRL10..8FC

 1
52155C - SUPPORT, REAR BUMPER SIDE, NO.1 RH
52155-30110

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
52156C - SUPPORT, REAR BUMPER SIDE, NO.1 LH
52156-30080

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-30090

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-30110

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
52159 - COVER, REAR BUMPER
52159-30955

AWL10,GRL1#,GWL10

PAINT REQ.

 1
52159-30964

AWL10,GRL10,11,GWL10

PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH

 1
52159-30956

GRL10,11,GWL10

PAINT REQ.,F SPORT&CLEARANCE & BACK SONAR-WITH

 1
52159-30964

GRL10,11,GWL10..GCC

PAINT REQ.,THE CRAFTED LINE&CLEARANCE & BACK SONAR-WITH

 1
52159-30964

AWL10,GRL1#,GWL10

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

 1
52159-30956

GRL1#,GWL10

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

 1
52161B - PIECE, REAR BUMPER
52161-16010

GRL11,15;GRL10..8FC

 8
52162B - PLATE, REAR BUMPER, NO.1
52162-30915

AWL10,GRL1#,GWL10

 2
52162B - PLATE, REAR BUMPER, NO.1
52162-30915

AWL10,GRL1#,GWL10

 2
52163A - PLATE, REAR BUMPER, RH
52161-30170

GRL11;GRL10..8FC

F SPORT&CLEARANCE & BACK SONAR-WITH

 1
52161-30150

GRL11,15;GRL10..8FC

 1
52161-30130

GRL10,11..GCC

THE CRAFTED LINE

 1
52161-30130

GRL10,11..GCC

THE CRAFTED LINE&CLEARANCE & BACK SONAR-WITH

 1
52161-30170

GRL11;GRL10..8FC

F SPORT

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52023-30361

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-53030

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
52198A - BRACKET, REAR BUMPER SEAL, LH
52197-53030

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
52463 - PAD, REAR BUMPER, LH
52462-30100

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
52567A - RETAINER, REAR BUMPER, LOWER SIDE
52535-28020

GRL10..8FC;AWL10,GRL11,15,GWL10

 10
52567C - RETAINER, REAR BUMPER LOWER SIDE, RH
52567-30070

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
52581B - PROTECTOR, REAR BUMPER
52581-30080

GRL10..8FC;AWL10,GRL11,15,GWL10

 2
52581B - PROTECTOR, REAR BUMPER
52581-30080

GRL10..8FC;AWL10,GRL11,15,GWL10

 2
52582 - PROTECTOR, REAR BUMPER, LH
52582-30050

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-30300

GRL1#,GWL10

 1
52615-30301

GRL10..8FC;AWL10,GRL11,15,GWL10

 1
Common parts
90129-08001
90159-60431
90159-60477
90159-60500
90159-60602
90189-06006
90189-06211
90189-06228
90467-07201
90467-09237
Linked diagrams
8115
8417
