GRL10R-BETQHQ (2012)
Toyota Lexus Gs Series

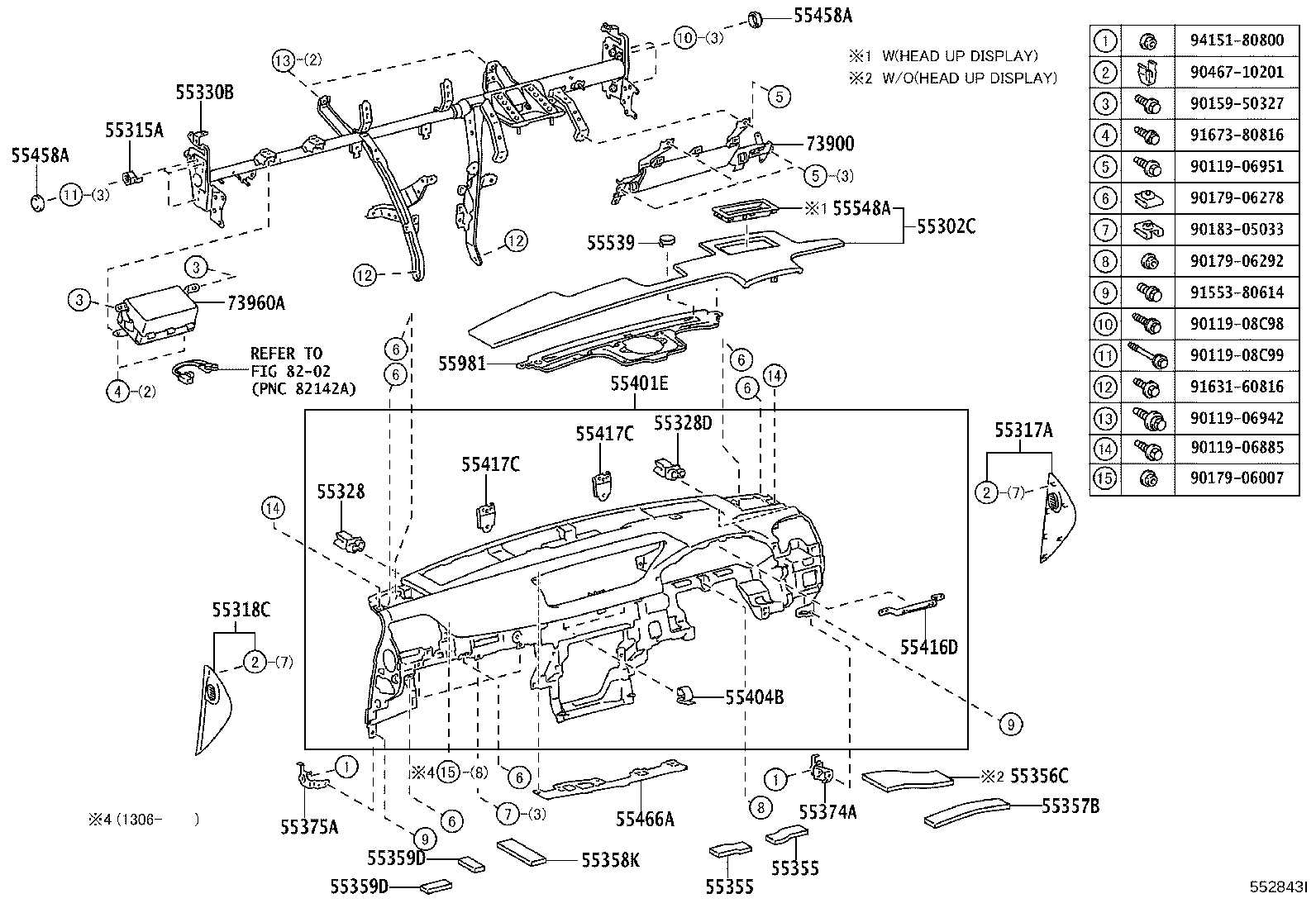

ILLUST NO. 1 OF 2(1201- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302C - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55302-30140C0 |
GRL10..RHD HEAD UP DISPLAY-WITH,BLACK/ECRU,TRIM00,01,50,51 |
1 | ||
| 55302-30150C2 |
GRL10..RHD BLACK/LT.GRAY NO.094,TRIM04,05,1#,2#,3#,4#,54,55 |
1 | ||
| 55302-30140C2 |
GRL10..ARL HEAD UP DISPLAY-WITH,BLACK/LT.GRAY,TRIM04,05,1#,2#,3#,4#,54,55 |
1 | ||
| 55302-30150C0 |
GRL10..RHD BLACK/IVORY,TRIM00,01,03,50,51 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-53040 |
GRL10 |
3 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-30130C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-30130C0 |
AWL10,GRL1#,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55328 - PIN, INSTRUMENT PANEL, NO.1 | ||||
| 55328-60090 |
AWL10,GRL10,11,GWL10..RHD |
1 | ||
| 55328D - PIN, INSTRUMENT PANEL, NO.3 | ||||
| 55328-22110 |
GRL10..RHD |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-30410 |
GRL10..RHD |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30130 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-30130 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-30060 |
AWL10,GRL1#,GWL10 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-30100 |
AWL10,GRL1#,GWL10 |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-30160 |
AWL10,GRL1#,GWL10 |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-30080 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-30080 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55374A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH | ||||
| 55374-30290 |
GRL10..RHD |
1 | ||
| 55375A - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH | ||||
| 55375-30190 |
AWL10,GRL10,11,GWL10..RHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-30800C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55401-30790C0 |
AWL10,GRL10,11,GWL10..ARL HEAD UP DISPLAY-WITH,BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55404B - CLIP, SAFETY PAD SET | ||||
| 90084-46027 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55416D - BRACKET, INSTRUMENT PAD, NO.2 | ||||
| 55416-30200 |
AWL10,GRL1#,GWL10 |
1 | ||
| 55417C - BRACKET, INSTRUMENT PAD, NO.3 | ||||
| 55417-30090 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55417C - BRACKET, INSTRUMENT PAD, NO.3 | ||||
| 55417-30090 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-22110 |
GRL10 |
6 | ||
| 55458A - CAP, INSTRUMENT PANEL SAFETY PAD | ||||
| 55458-22110 |
GRL10 |
6 | ||
| 55466A - RETAINER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55466-30080 |
AWL10,GRL10,11,GWL10..RHD |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-30350C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-30260C0 |
AWL10,GRL10,11,GWL10..ARL HEAD UP DISPLAY-WITH,BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-30160C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-30060C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-30100 |
GRL10 |
1 | ||
| Common parts | ||||
| 90119-06885 | ||||
| 90119-06942 | ||||
| 90119-06951 | ||||
| 90119-08C98 | ||||
| 90119-08C99 | ||||
| 90159-50327 | ||||
| 90179-06007 | ||||
| 90179-06278 | ||||
| 90179-06292 | ||||
| 90183-05033 | ||||
| 90467-10201 | ||||
| 91553-80614 | ||||
| 91631-60816 | ||||
| 91673-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

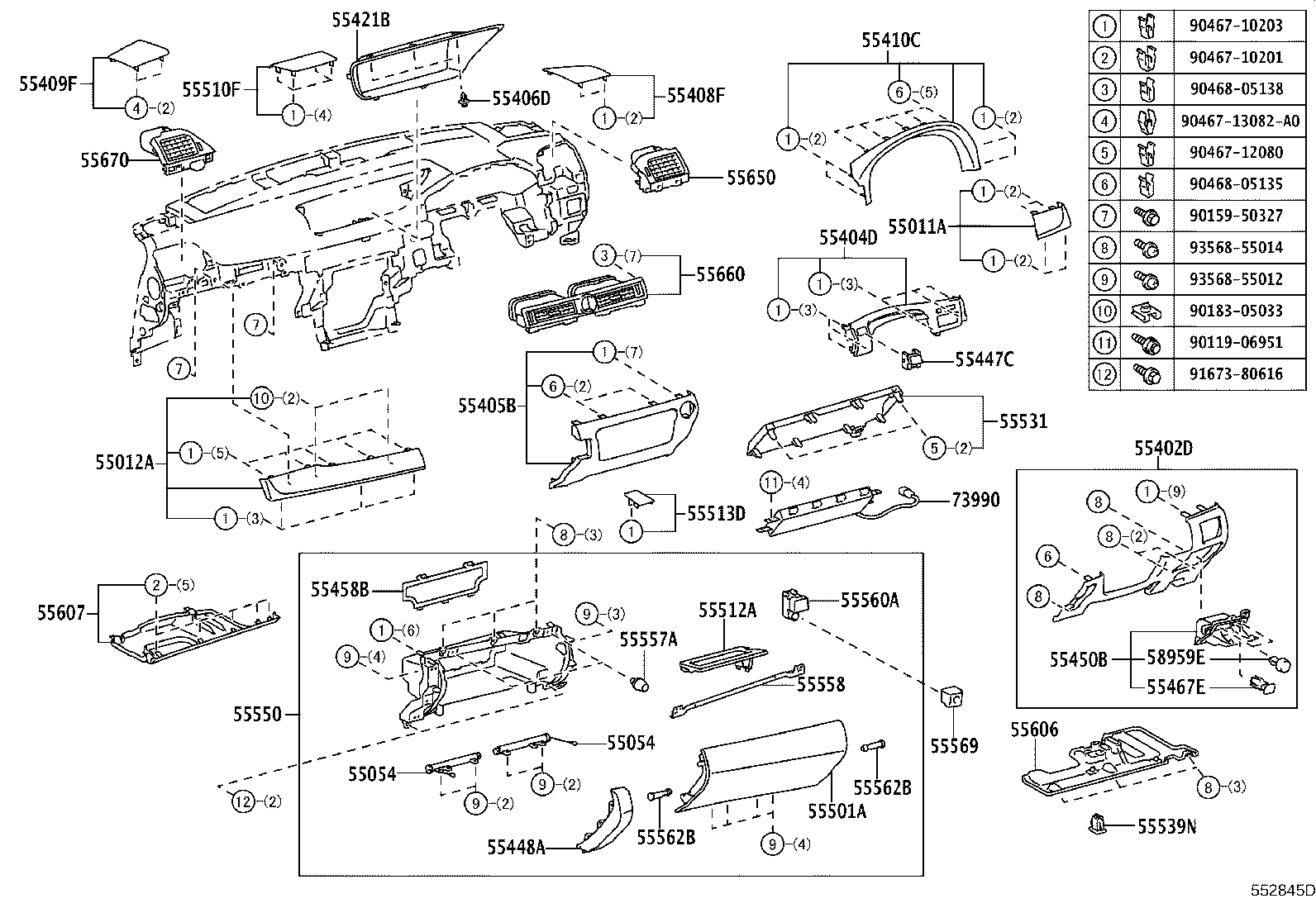

ILLUST NO. 2 OF 2(1201-1510)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-30070E0 |
GRL10..RHD DOOR TRIM ORNAMENT-NATURAL WOOD,-DK.BROWN,TRIM00,10,20,40,50 |
1 | ||
| 55011-30070C1 |
GRL10..RHD DOOR TRIM ORNAMENT-NATURAL WOOD,-BLACK,TRIM01,05,12,21,25,3#,41,51,55 |
1 | ||
| 55011-30070F0 |
GRL10..RHD DOOR TRIM ORNAMENT-NATURAL WOOD,-BROWN,TRIM02,22,42,52 |
1 | ||
| 55011-30050C0 |
GRL10..RHD..6FC;GRL11,GWL10..RHD BLACK FILM,TRIM0#,1#,2#,4#,5# |
1 | ||
| 55011-30060B0 |
AWL10,GRL10,11,GWL10..RHD F SPORT&DOOR TRIM ORNAMENT-ALUMINUM,ALUMI,TRIM0#,2#,3#,5# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-30060C1 |
GRL10..RHD DOOR TRIM ORNAMENT-NATURAL WOOD,-BLACK,TRIM01,05,12,21,25,3#,41,51,55 |
1 | ||
| 55012-30060F0 |
GRL10..RHD DOOR TRIM ORNAMENT-NATURAL WOOD,BROWN,TRIM02,22,42,52 |
1 | ||
| 55012-30060E0 |
GRL10..RHD DOOR TRIM ORNAMENT-NATURAL WOOD,-DK.BROWN,TRIM00,10,20,40,50 |
1 | ||
| 55012-30050B0 |
AWL10,GRL10,11,GWL10..RHD F SPORT&DOOR TRIM ORNAMENT-ALUMINUM,ALUMI,TRIM0#,2#,3#,5# |
1 | ||
| 55012-30040C0 |
GRL10..RHD..6FC;GRL11,GWL10..RHD BLACK FILM,TRIM0#,1#,2#,4#,5# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-30060 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-30060 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-30210C1 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-30B00 |
GRL10..RHD HEAD UP DISPLAY-WITH |
1 | ||
| 55404-30B20 |
GRL10..RHD |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-30480C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-06165C0 |
GRL10..6FC;GRL11,15,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
3 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-30270C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55408-30290C0 |
AWL10,GRL10,11,GWL10..ARL EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-30280C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55409-30300C0 |
AWL10,GRL10,11,GWL10..ARL EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-30A30C0 |
GRL10..RHD BLACK/IVORY,TRIM00,01,03,50,51 |
1 | ||
| 55410-30A30C2 |
GRL10..RHD BLACK/LT.GRAY,TRIM04,05,1#,2#,3#,4#,54,55 |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-30120 |
GRL10..RHD EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY |
1 | ||
| 55421-30110 |
GRL10..RHD |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-30100 |
GRL10..RHD HEAD UP DISPLAY-WITH |
1 | ||
| 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 | ||||
| 55448-30150C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-30080C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55458B - COVER, INSTRUMENT, LWR | ||||
| 55459-30070 |
GRL1#,GWL10 |
1 | ||
| 55467E - LOCK, COIN BOX | ||||
| 55467-30090 |
GRL10..RHD |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-30240C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-30170C0 |
AWL10,GRL10,11,GWL10 BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55510-30190C0 |
AWL10,GRL10,11,GWL10..ARL,GCC EMV & NAVIGATION SYSTEM-12.3INCH DISPLAY,BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55512A - PLATE, GLOVE COMPARTMENT | ||||
| 55512-30140 |
AWL10,GRL10,11,GWL10..RHD |
1 | ||
| 55513D - PLATE, GLOVE COMPARTMENT, NO.2 | ||||
| 55513-30170 |
AWL10,GRL10,11,GWL10..RHD |
1 | ||
| 55531 - PANEL, GLOVE COMPARTMENT | ||||
| 55531-30240 |
AWL10,GRL10,11,GWL10..RHD |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
GRL10 |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-30490C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-30110 |
AWL10,GRL1#,GWL10 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-30090C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-10010 |
AWL10,GRL1#,GWL10 |
2 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-30070C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-30260 |
GRL10..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-30350C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-30440C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-30480C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-30530C0 |
AWL10,GRL10,11,GWL10..RHD BLACK,TRIM0#,1#,2#,3#,4#,5# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 90541-04079 |
GRL10 |
2 | ||
| 58959-60060 |
GRL1#,GWL10 |
2 | ||
| 73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 73990-30060 |
GRL10..RHD |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90183-05033 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 90468-05135 | ||||
| 90468-05138 | ||||
| 91673-80616 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
